HIGH BAY HOT Series
Luminaire Type
Overview
The High Bay Hot Series is engineered to excel in high-temperature environments up to 176°F (80°C), rigorously tested and UL-verified to maintain 95.9% lumen output after 10,000 hours of continuous operation. It sustains at least 70% of original lumen level after 47,000-50,000 hours, translating to over 5 years of 24/7 life. A heavy-duty anodized aluminum housing resists corrosion, and vertical cooling fins enhance heat dissipation for die casting, metalworks, ironmaking, steel production, and chemical plants. Red Sky Lighting backs the complete system—LEDs, driver, housing, and gaskets—with a comprehensive 5-year warranty.
Classifications, Ratings, Certifications
INFO
UL-Verified LED Lighting for 176°F High-Temperature Environments
Die casting, ironmaking, and steel production create ambient heat that destroys ordinary fixtures — the High Bay Hot Series is UL-verified to hold 95.9% of its output after 10,000 hours at 176°F.
The High Bay Hot Series is engineered to excel in high-temperature environments. Rigorously tested and UL-verified, it demonstrates lumen maintenance of up to 95.9% after 10,000 hours of continuous operation at an ambient temperature of 176°F (80°C), maintaining at least 70% of original lumen level after 47,000 to 50,000 hours — translating to over 5 years of life with 24/7 operation.
A heavy-duty anodized aluminum housing offers excellent corrosion resistance, and an innovative vertical cooling fin design and driver compartment enhance performance in extreme heat environments common to die casting, metalworks, ironmaking, steel production, power generation, and chemical plants.
Key Features
- Rugged Construction: Heavy-duty anodized aluminum housing for anti-corrosion; IP66/67.
- High-Temperature Performance: Operating ambient temperature up to 176°F, with LED life L70>130,000 hrs@176°F and only 4.1% lumen depreciation after 10,000 hours.
Why Specify the High Bay Hot Series
- UL-verified 95.9% lumen maintenance at 176°F ambient — independently validated, not just claimed
- Comprehensive 5-year warranty covers the entire system: LEDs, driver, housing, and gaskets
- Vertical cooling fin design purpose-built for extreme-heat industrial processes
- 3-year standard / 5-year extended warranty options
Specs
| Electrical Parameters | |
|---|---|
| L70 | 130,000 hrs@176°F |
| Warranty | Standard: 3 Years, Extended: 5 Years |
| Power Factor | ≥0.90 |
| Supply Wire | L/N-FG 11KV, L-N 5.5KV@120-277V AC, 10KV/5KV@347-480V AC |
| Surge Protection | 10KV |
| THD | <20% |
| Voltage/Frequency | 120-277V AC, 347-480V AC, 50/60Hz |
| Power (W) | 150W |
| Rated Input Current | 1.389A@120VAC, 0.602A@277VAC, 0.480A@347VAC, 0.348A@480VAC |
| Optical Parameters | |
|---|---|
| Correlated Color Temperature (CCT) | 5000K |
| Color Rendering Index (CRI) | Ra≥70 |
| Available Beam Angle | 60° / 110° |
| Lumen Output (Lm)* | 22,158 |
| Lumen Efficacy (Lm/W)* | 150 |
| Mechanical Parameters | |
|---|---|
| Hardware | 316 Stainless Steel |
| Lens Material | Tempered glass |

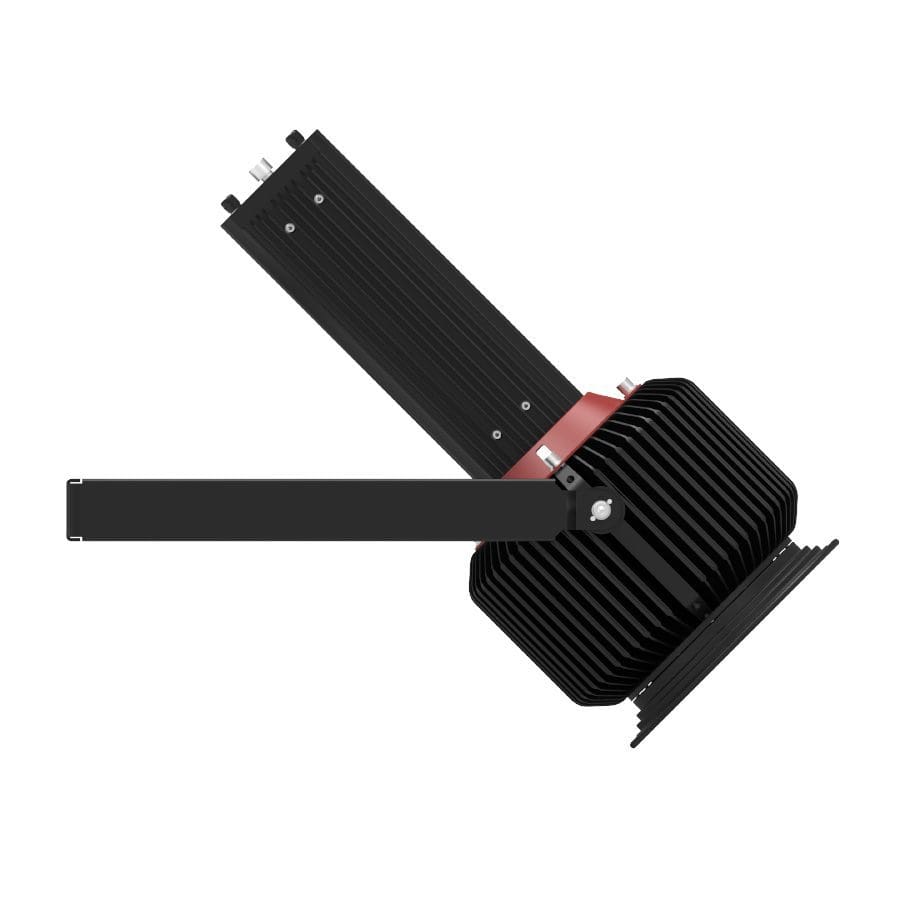

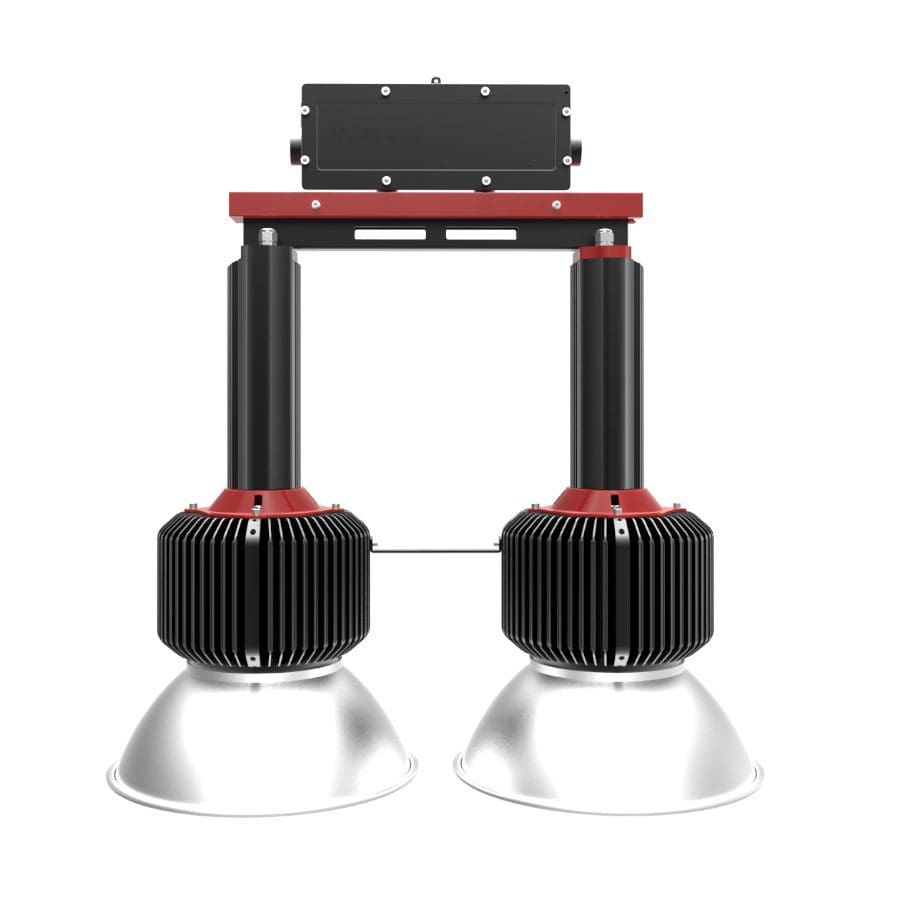

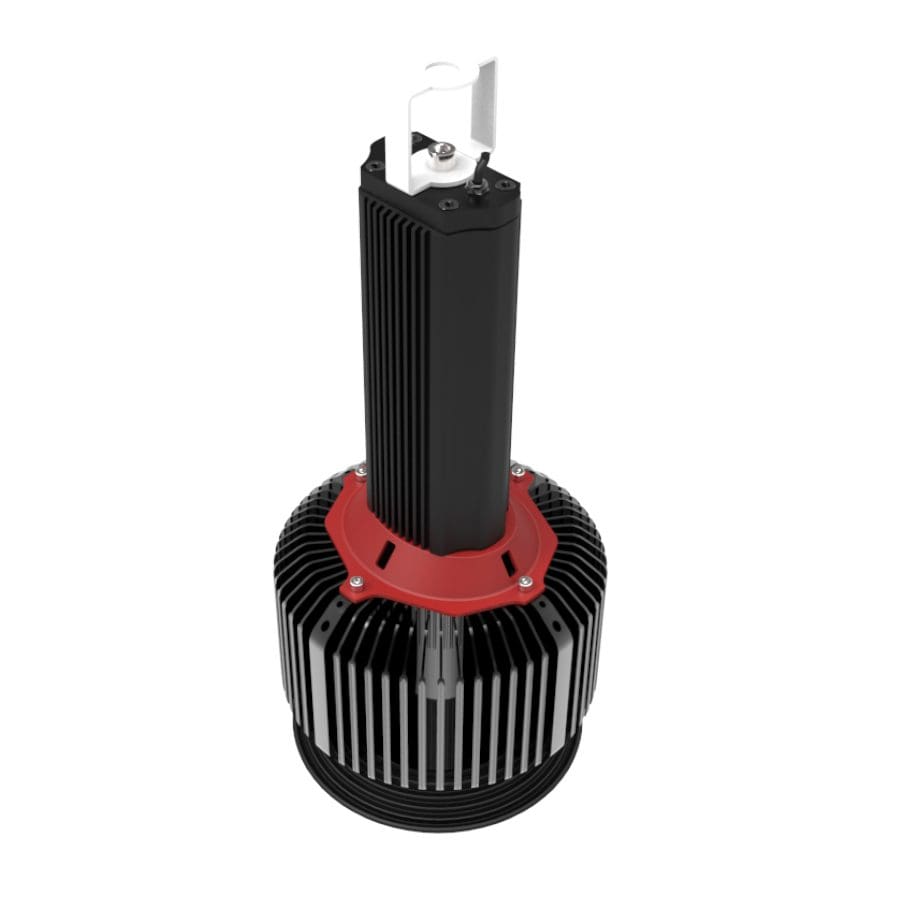

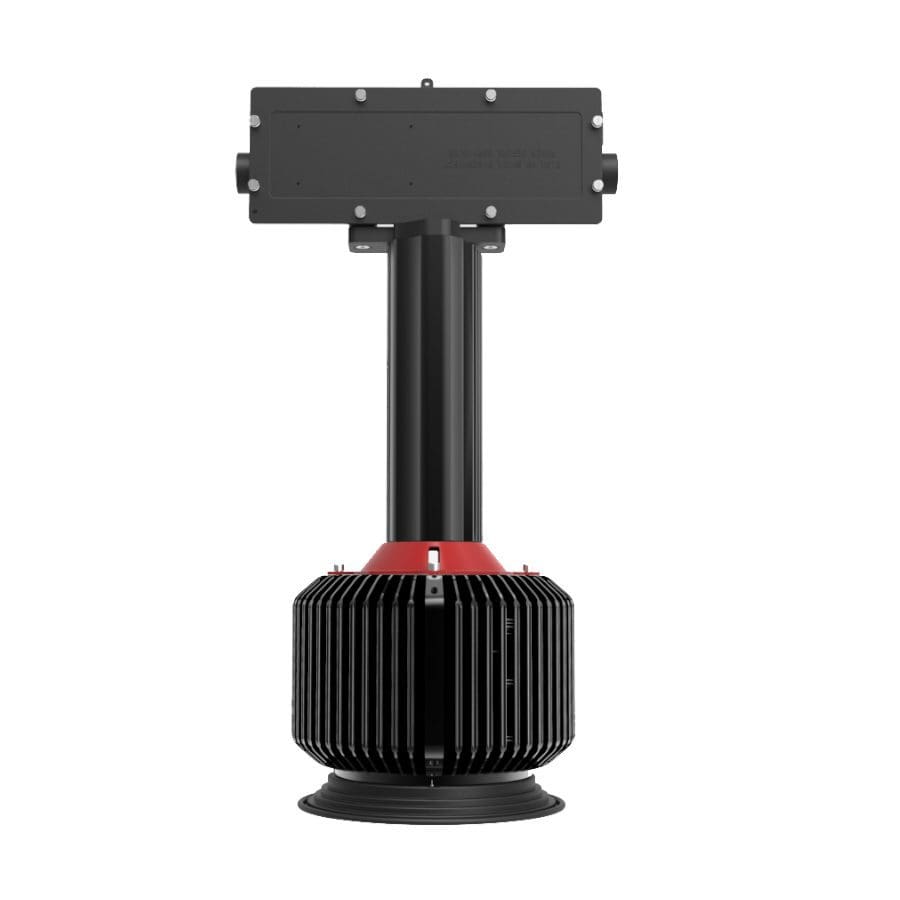

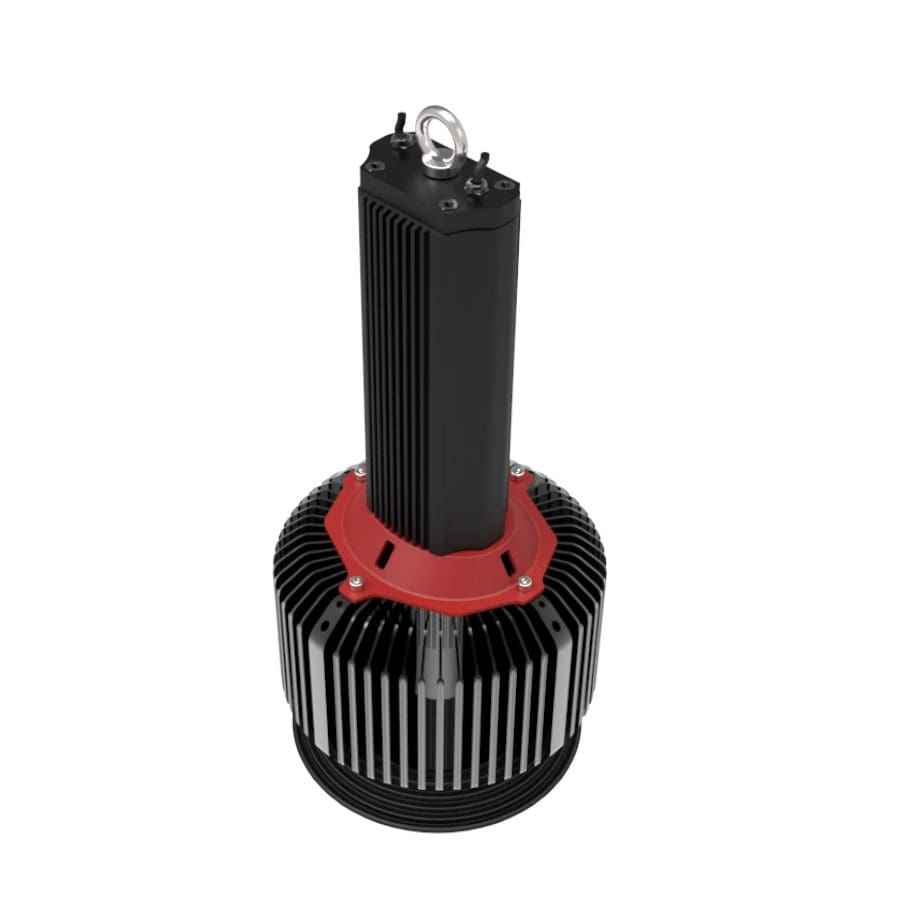

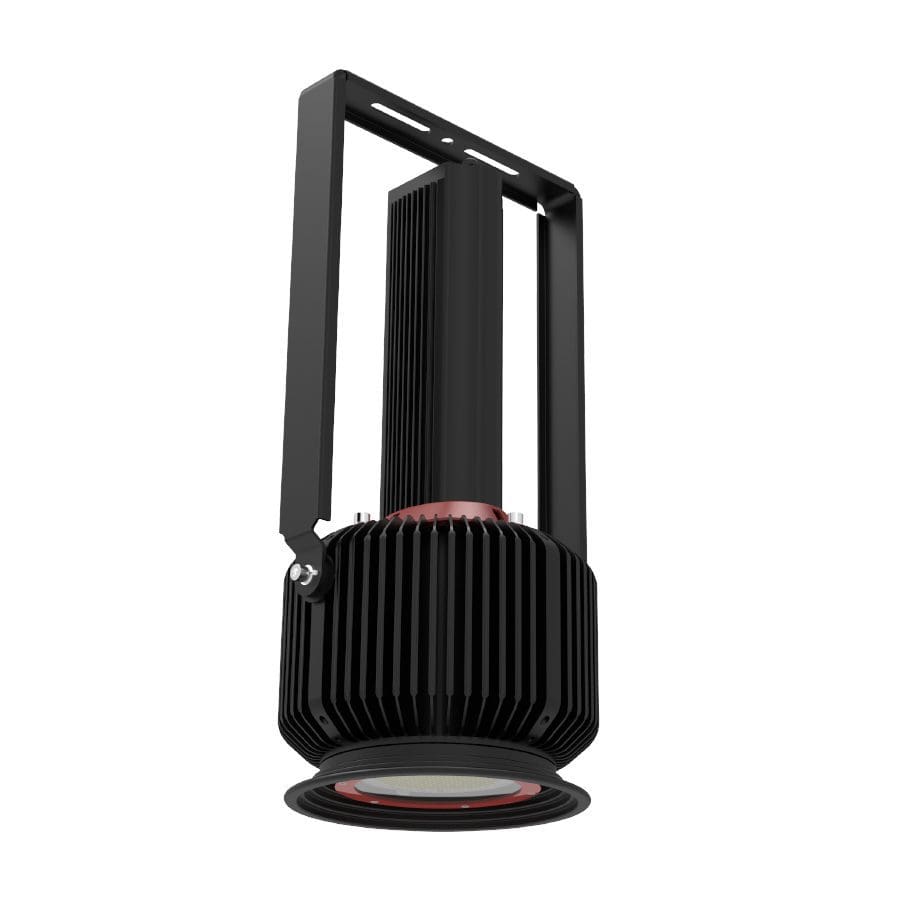

| Mounting Options | Hook, Yoke, Twin |
| Product Weight | 23.8lbs/10.8kg |
| Housing Material | Marine Grade Aluminium |
| Package Weight | 25.9lbs/11.8kg |
| Product Dimensions (L×W×H) | Φ10.2×22.6in (Φ260×573mm) |
| Package Dimensions (L×W×H) | 25.7×12.2×12.4in (653×309×315mm) |
| Wiring | 5ft 3x18 AWG STW 600V Power cord |
| Environmental Parameters | |
|---|---|
| EPA Wind Rating (FT2/m2) | 1.410/0.131 |
| Ambient Operating Humidity | 10%~90% RH |
| Maximum Ambient Temperature | 176°F (80°C) |
* Value calculated based on 5000K, 110°; varies to different spec.
Compliance
| Certifications |
|---|
| CSA C22.2 No. 250.0-08 |
| CSA C22.2 No. 250.13-14 |
| FCC Part 15, Subpart B |
| UL 1598 |
| UL 1598 Wet Locations |
| UL 8750 |
| Ratings |
|---|
| IK08 |
| IP66 |
| IP67 |
| Salt Spray 720 hrs (ASTM B117) |
