What Makes a Light “Explosion Proof”?
Despite the name, explosion proof doesn't mean the fixture won't explode — it means that if an internal ignition occurs (from an electrical fault, arc, or component failure), the fixture's sealed, reinforced housing contains it, preventing the spark or flame from reaching the hazardous atmosphere outside.
This is achieved through several design elements working together: heavy-duty enclosures capable of withstanding internal pressure from a contained explosion, precision-machined joints and seals (called "flame paths") narrow enough to cool escaping gases below their ignition temperature before they exit the housing and components rated to avoid producing sparks or excess heat under normal and fault conditions.
The result is a fixture that can be installed directly in a hazardous area, rather than requiring hazardous components to be isolated or remotely located.
Explosion Proof vs. Related Terms
It's easy to conflate "explosion proof" with other hazard-related terms, but they aren't interchangeable:
- Explosion proof vs. hazardous-rated: explosion proof is a type of hazardous-location rating, specifically addressing ignition containment. Hazardous-rated is a broader category that can also include dust-tight, intrinsically safe, or purged/pressurized designs.
- Explosion proof vs. weatherproof: weatherproof fixtures resist moisture and outdoor elements but aren't necessarily rated to contain an internal ignition. A fixture can be weatherproof without being explosion proof, and vice versa.
- Class/Division vs. Zone: North America typically classifies hazardous locations using the Class/Division system (e.g., Class I Division 1). Many international markets use the Zone system (Zone 0, 1, 2) under IEC standards. The two systems address similar hazards but aren't always a precise one-to-one match.
Where Explosion Proof Lighting Is Used
Explosion proof lighting is required anywhere flammable gases, vapors, or combustible dust are present as part of normal operations or foreseeable equipment failure, including:

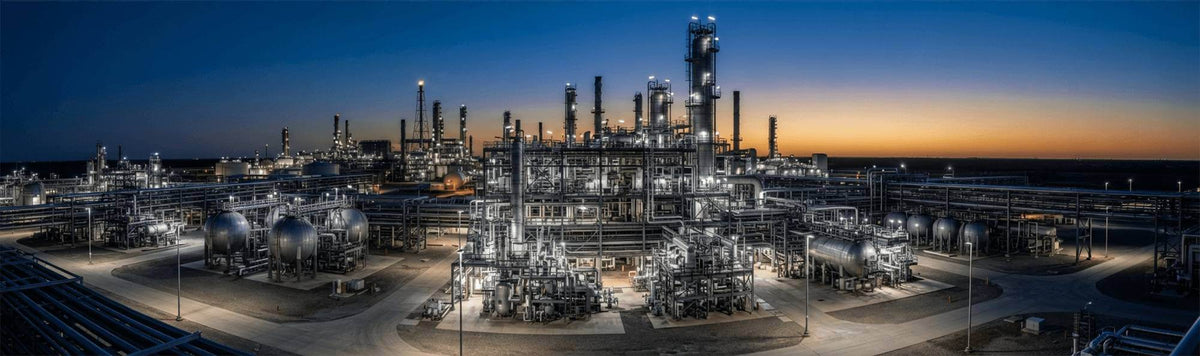

- Oil & gas and LNG facilities — processing areas, storage tanks, and pipeline infrastructure where hydrocarbon vapors are routinely present
- Petrochemical and chemical plants — processing units, storage areas, and loading zones handling volatile compounds
- Metal processing and manufacturing — facilities generating combustible metal dust or operating near flammable solvents
- Grain, flour, and agricultural processing — environments where combustible dust accumulation creates explosion risk
- Aerospace and defense facilities — fueling areas, paint booths, and testing environments with flammable vapor exposure
How to Know If You Need Explosion Proof Lighting
Not every industrial facility requires explosion proof fixtures — the determining factor is whether a hazardous atmosphere is present continuously, intermittently, or only under fault conditions. A facility's hazardous location classification (typically determined by a qualified engineer or safety professional as part of a facility hazard assessment) will specify exactly which areas require explosion proof equipment and to what rating.
