IEC Dust Zone Classification (Zone 20, 21 & 22) LED Lighting

What IEC Dust Zone Classification Means

Under IEC and ATEX standards, combustible dust hazards are classified separately from gas hazards, using Zone 20, 21, and 22 — a parallel system to the gas-focused Zone 0, 1, and 2. Each zone reflects how frequently and for how long an explosive dust atmosphere is present, mirroring the logic of the gas zone system but applied to airborne and accumulated dust risk.

This system corresponds conceptually to the NEC's Class 2 Division 1 and Class 2 Division 2 dust classifications used in North America, though the specific equipment protection requirements and testing standards differ between the two frameworks.

Comparing Zone 20, 21, and 22

Each zone reflects a different frequency and duration of dust exposure:

• Zone 20 applies where a combustible dust cloud is present continuously, or for long periods, or frequently — the highest-risk dust classification.
• Zone 21 applies where a combustible dust cloud is likely to occur occasionally during normal operation.
• Zone 22 applies where a combustible dust cloud is not expected to occur during normal operation, and if it does, only briefly.

Where Each Dust Zone Applies

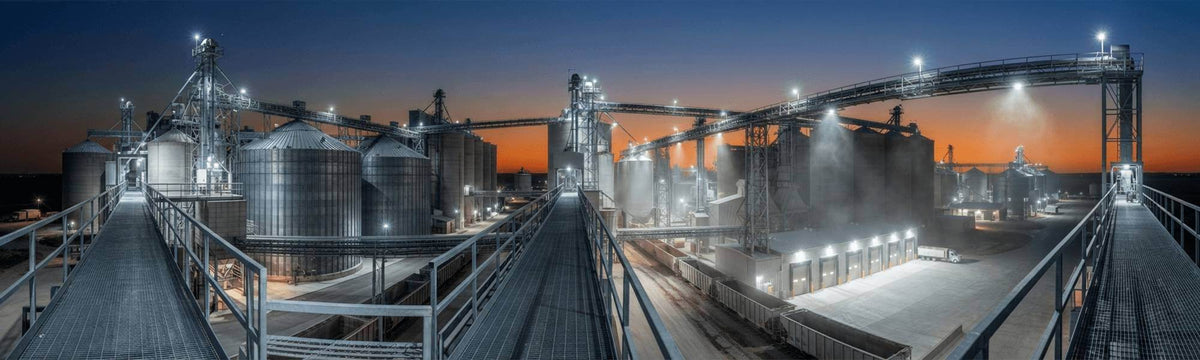

• Zone 20 — inside dust-handling equipment (e.g., inside a silo or dust collector) with continuous dust suspension
• Zone 21 — areas immediately around dust-handling equipment where dust clouds occur occasionally, such as during loading or filling
• Zone 22 — areas further from the primary dust source, where dust clouds are infrequent and dust accumulation is the main residual risk

Specifying the Right Fixture

A facility hazard assessment, typically performed by a qualified engineer under IEC/ATEX methodology, determines which zone applies to each specific area based on the equipment, process, and dust characteristics involved. Fixtures rated for a specific zone should also be matched to the maximum surface temperature appropriate for the dust's ignition characteristics.
