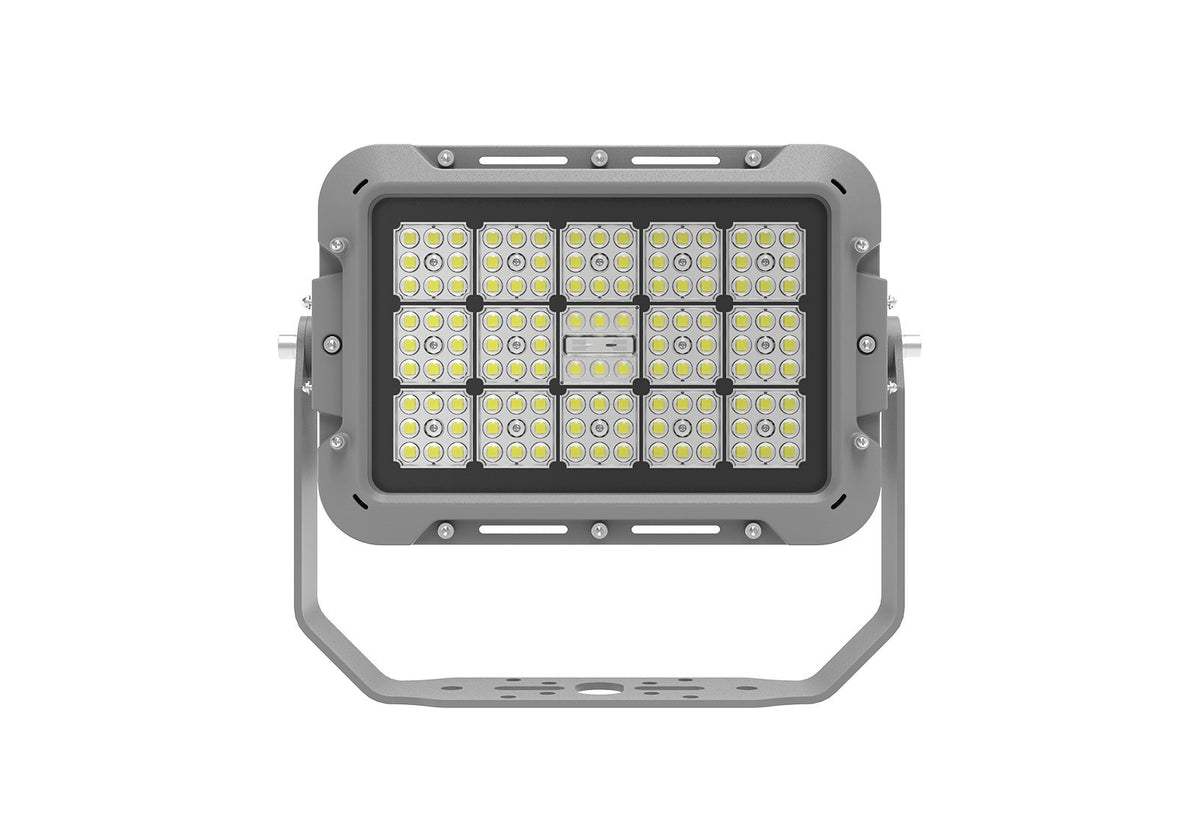

BLOCK MAX Series
Luminaire Type
Overview
The Block Max Series is a line of high-performance LED fixtures engineered for harsh and hazardous environments, offering a wide lumen range from 7,000 to 30,000 lumens at up to 180 lm/W. Safety-focused ratings include Ex eb mb IIC T5 Gb for gas and dust explosions and IP66/67 for dust-tight, waterproof performance, with ATEX and IECEx certification for hazardous locations. Features include easy installation, emergency functionality on select models providing up to 90 minutes of backup, and a compact, lightweight design—delivering brightness, energy savings, and durability for metal processing, oil and gas, and marine applications.
Classifications, Ratings, Certifications
INFO
High-Efficacy Explosion-Proof Flood & High Bay Lighting
When a project needs maximum brightness per watt without compromising hazardous-area certification, the Block Max Series delivers up to 180 lm/W in a lightweight, compact footprint.
The Block Max Series is a line of high-performance LED lighting fixtures designed for use in harsh and hazardous environments. These robust lights offer a wide lumen range from 7,000 to 30,000 lumens with an efficiency of up to 180 lumens per watt, ensuring both brightness and energy savings, with easy installation and multiple beam angles and color temperatures to suit various applications.
Safety is a key focus of the Block Max Series, with high protection ratings such as Ex eb mb IIC T5 Gb for gas, Ex tb IIIC T85℃ Db for dust, and IP66/67 for dust-tight and waterproof capabilities. The series is also ATEX and IECEx certified, meeting international standards for use in hazardous locations.
Key Features
- Easy Installation: Simplified wiring design with ample space for connections.
- Emergency Functionality: Available at 7L and 15L models, providing 5,000 Lm for 90 minutes or 2,500 Lm for 180 minutes.
- Compact and Lightweight Design: Easy to handle and install.
- High Efficiency: Delivers up to 180 Lm/W for exceptional energy savings.
- Wide Range Selection: Available in lumen outputs from 7,000 to 30,000 Lm.
Why Specify the Block Max Series
- Up to 180 lm/W — among the highest efficacy in the hazardous-area category
- ATEX and IECEx certified for international hazardous-location projects
- Optional 90- or 180-minute emergency battery backup on select models
- IP66/67-rated for dust-tight, waterproof performance
Specs
| Electrical Parameters | |
|---|---|
| L70 | >102,000 hrs @55°C |
| Warranty | Fixture: 5 years, Battery: 1 year |
| Power Factor | ≥0.90 |
| Supply Wire | 1mm² ~ 4mm² |
| Surge Protection | L/N-FG 6KV, L-N 4KV |
| THD | <20% |
| Voltage/Frequency | 100-277V AC 50/60Hz |
| Power (W) | 40W | 90W | 115W | 145W | 180W |
| Battery | Ni-CD Rechargeable Battery |
| Charge Time | 24 hours |
| Emergency Run Time | 5000Lm@90mins, 2500Lm@180mins |
| Rated Input Current @220V AC (A) | 0.202 | 0.455 | 0.581 | 0.733 | 0.909 |
| Dimming & Auxiliary Power | 0-10V, 300mA@12Vdc |
| Optical Parameters | |
|---|---|
| Correlated Color Temperature (CCT) | 3000K / 4000K / 5700K |
| Color Rendering Index (CRI) | Ra ≥ 70 |
| Available Beam Angle | 30° / 60° / 90° / 120° |
| Lumen Efficacy* | 180 Lm/W |
| Lumen Output (Lm)* | 7162 | 15523 | 20741 | 25800 | 31164 |
| Mechanical Parameters | |
|---|---|
| Hardware | 316 Stainless Steel |
| Lens Material | Clear Glass / Diffuse Glass** |

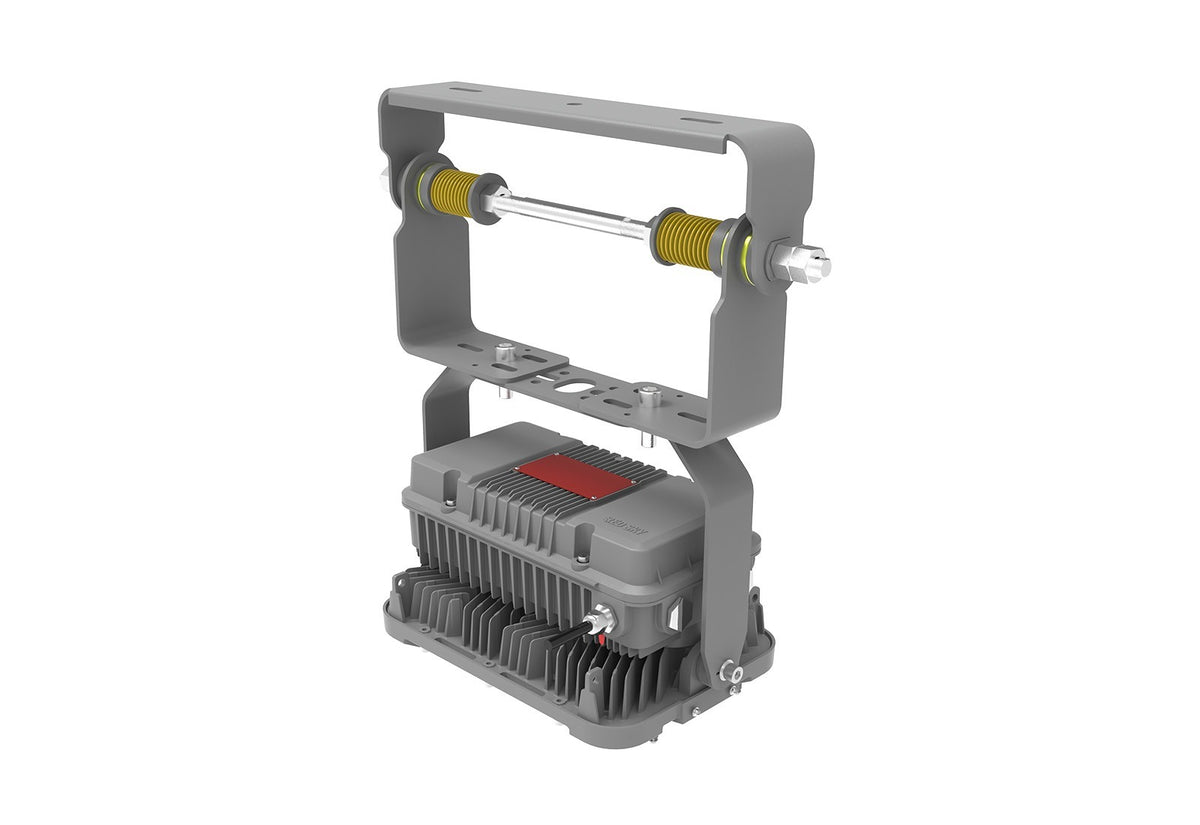

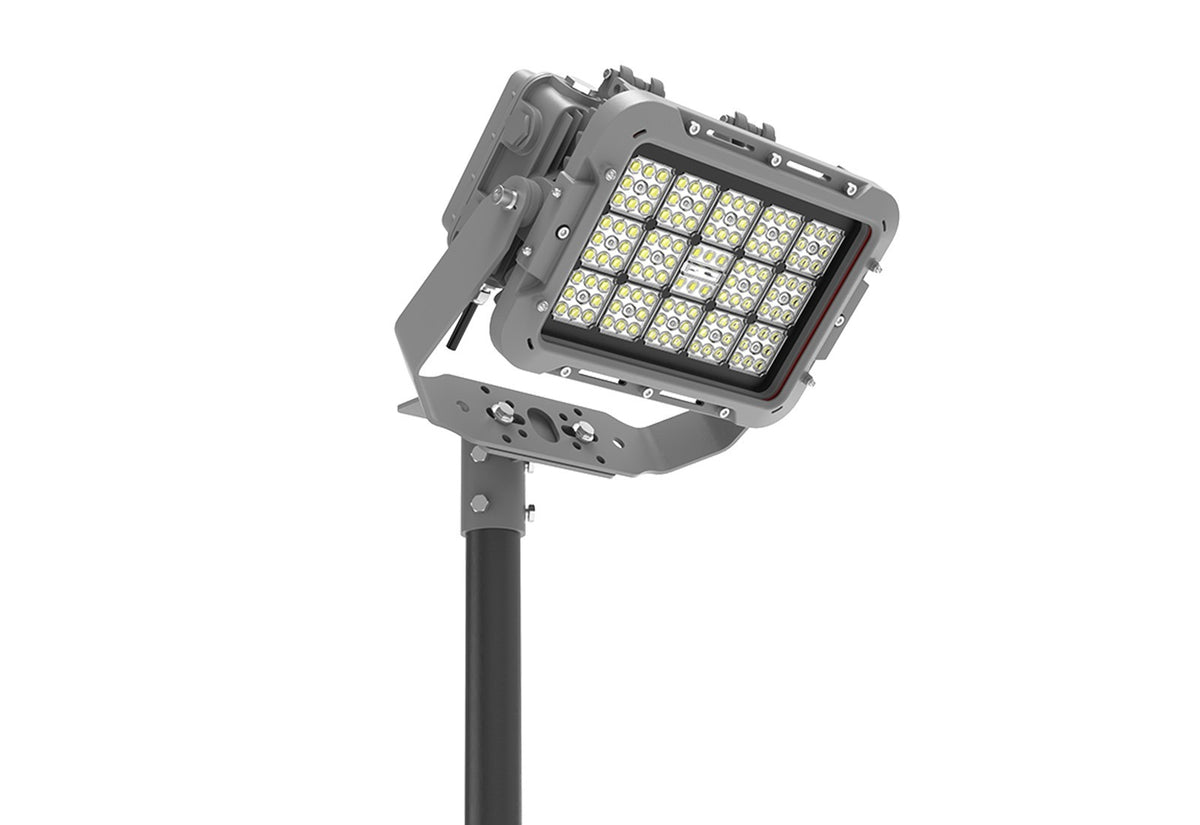

| Mounting Options | Straight Yoke, Angled Yoke, Stanchion |
| Product Weight | 25.8lbs/11.7kg, 31.1lbs/14.1kg@EM |
| Housing Material | Copper-free (< 0.4%) die-cast aluminum |
| Package Weight | 27.9lbs/12.7kg, 33.2lbs/15.1kg@EM |
| Cable Entry | (4) M20/M25×1.5 |
| Product Dimensions (L×W×H) | 16.3×9.9×11.2 in (413×251×285 mm) |
| Package Dimensions (L×W×H) | 19.7×13.4×11.8 in (500×340×300 mm) |
| Environmental Parameters | |
|---|---|
| Ambient Operating Temperature | -4°F ~ +131°F (-20°C ~ 55°C) @standard, 32°F ~ +131°F (0°C ~ 55°C) @EM |
| T-Code Rating | Gas – T5; Dust – T85°C |
| Vibration Resistance | IEC60068-2-6 3g |
| Corrosion Resistance | Salt Spray 720 hrs (ISO 9227) |
| EPA Wind Rating (FT2/m²) | 1.753/0.16 (Yoke), 1.888/0.18 (Stanchion) |
* Value calculated based on 5700K, 90° and Clear Glass; varies to different spec.
** Diffuse Glass is available only for 7L and 15L, and exclusively with a 120° beam.
Compliance
| Classifications |
|---|
| Zone 1 |
| Zone 2 |
| Zone 21 |
| Zone 22 |
| Certifications |
|---|
| ATEX & UKEX: II 2G Ex eb mb IIC T5/T4 Gb; II 2D Ex tb IIIC T85°C Db |
| IECEx: Ex eb mb IIC T5/T4 Gb; Ex tb IIIC T85°C Db |
| UKCA EMC/LVD |
| Ratings |
|---|
| IEC60068-2-6 3g |
| IK08 |
| IP66 |
| IP67 |
