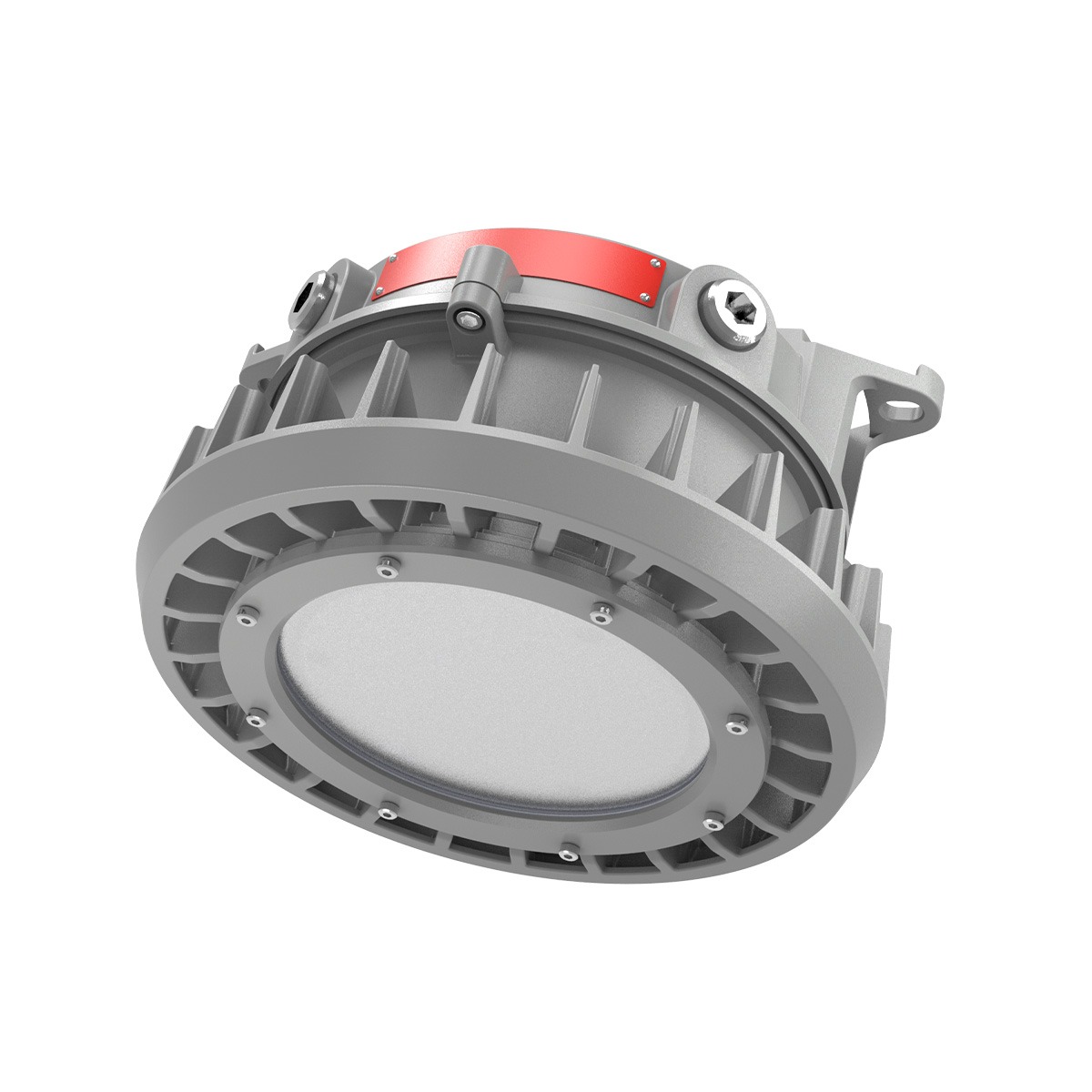

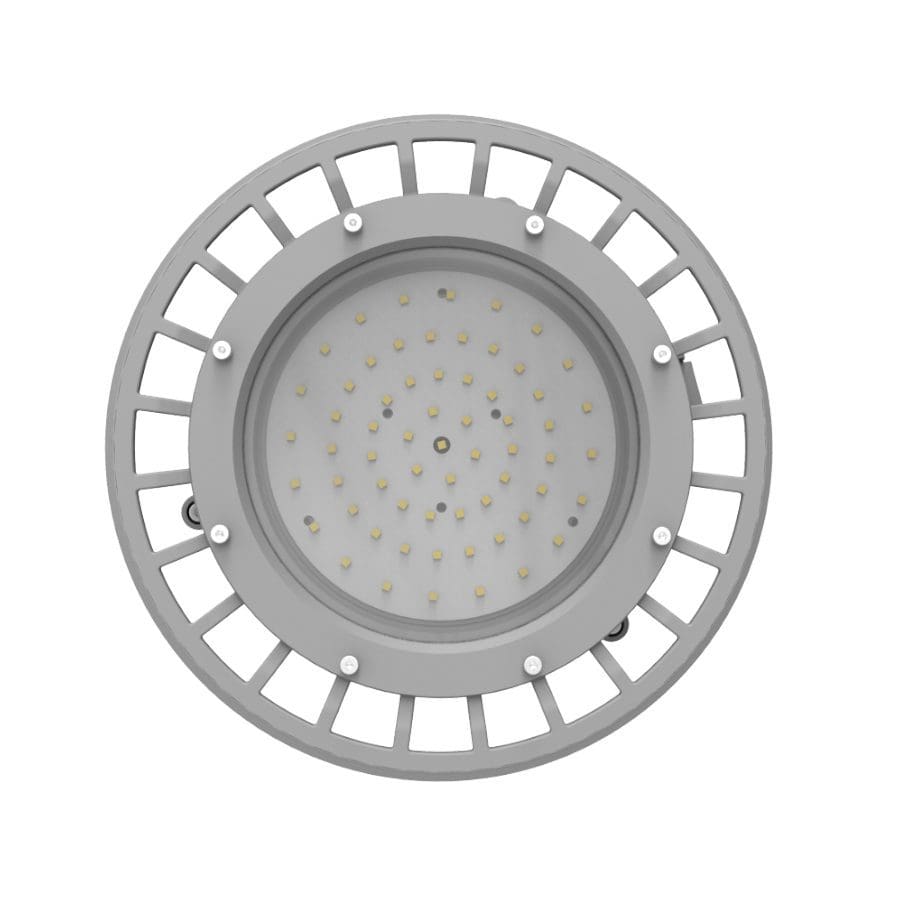

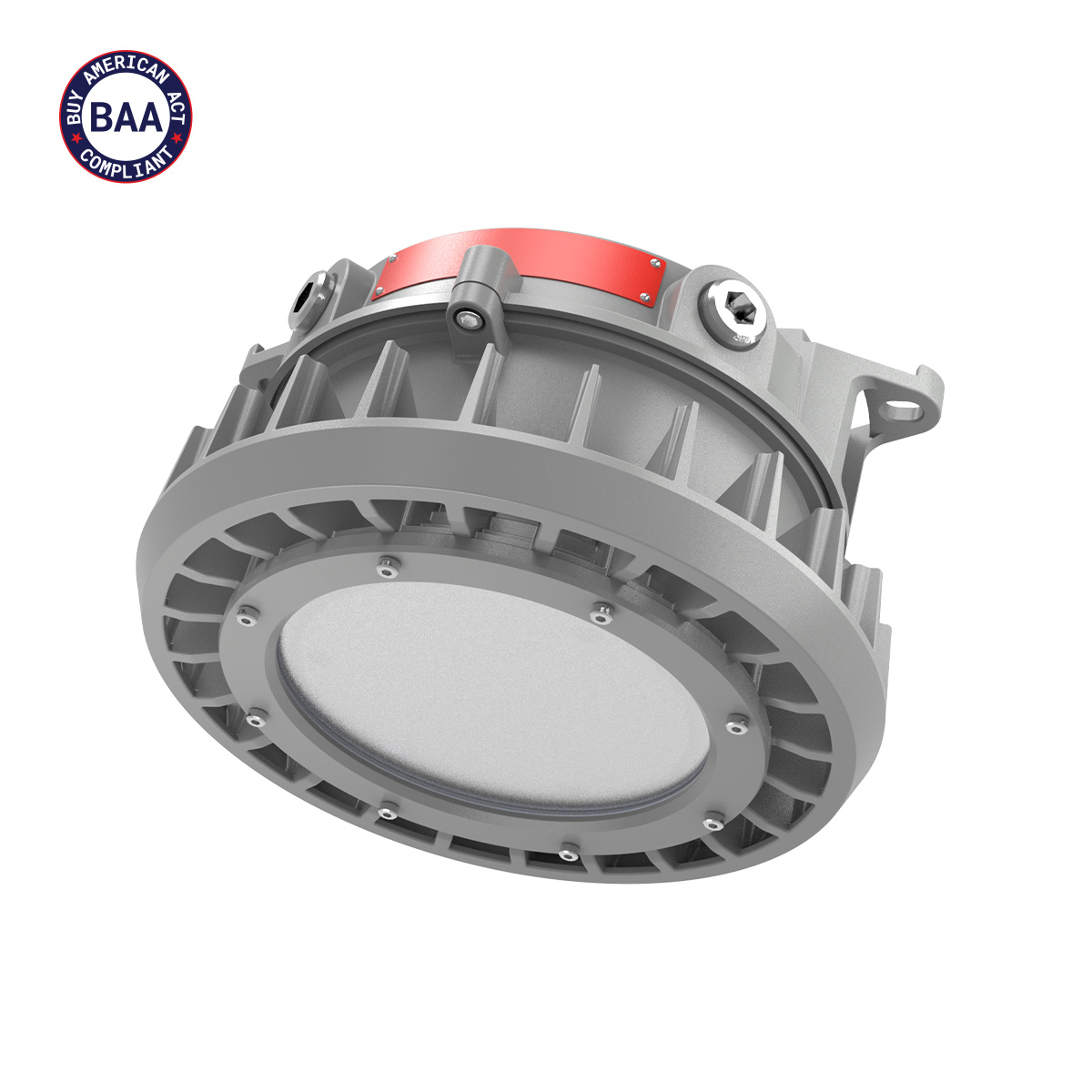

Round Series
SKU RND2
Description:
The compact yet robust Round Series lights up even the tightest spaces. Measuring only 9 inches, it delivers a powerful 150 lumens per watt from high-efficiency LEDs. Approved for hazardous locations, the Round Series accommodates demanding conditions in industries like oil and gas, marine, factories and more.
Product Type & Application: Metal Processing, Agriculture, Area & Floodlight, High bay & Low bay, Oil and gas, Power Generation, Pulp, Paper and Wood, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power (W)
35W, 40W, 45W, 55W, 60W, 65W
VOLTAGE(V)
100-277V AC, 347-480V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
127,000 hrs@140°F
Dimming
34/40/45/55/65W: 0-10V, Range 10-100%
Surge Protection
35/40/45W: 6KV 55W: 10KV 60W: L\N-FG 4KV L-N 2KV 65W: 10KV
Warranty
LEDs: 10 years, Driver: 7 years
Optical Parameters
Lumen Output
5,295Lm, 6,366Lm, 6,751Lm, 8,789Lm, 10,154Lm, 10,758Lm
Lumen Efficacy
150Lm/W
Available Beam Angle
60°/ 120°
Correlated Color Temperature (CCT)
3000K/4000K/5000K
Color Rendering Index (CRI)
Ra>70
Mechanical Parameters
Hardware
Stainless steel 316

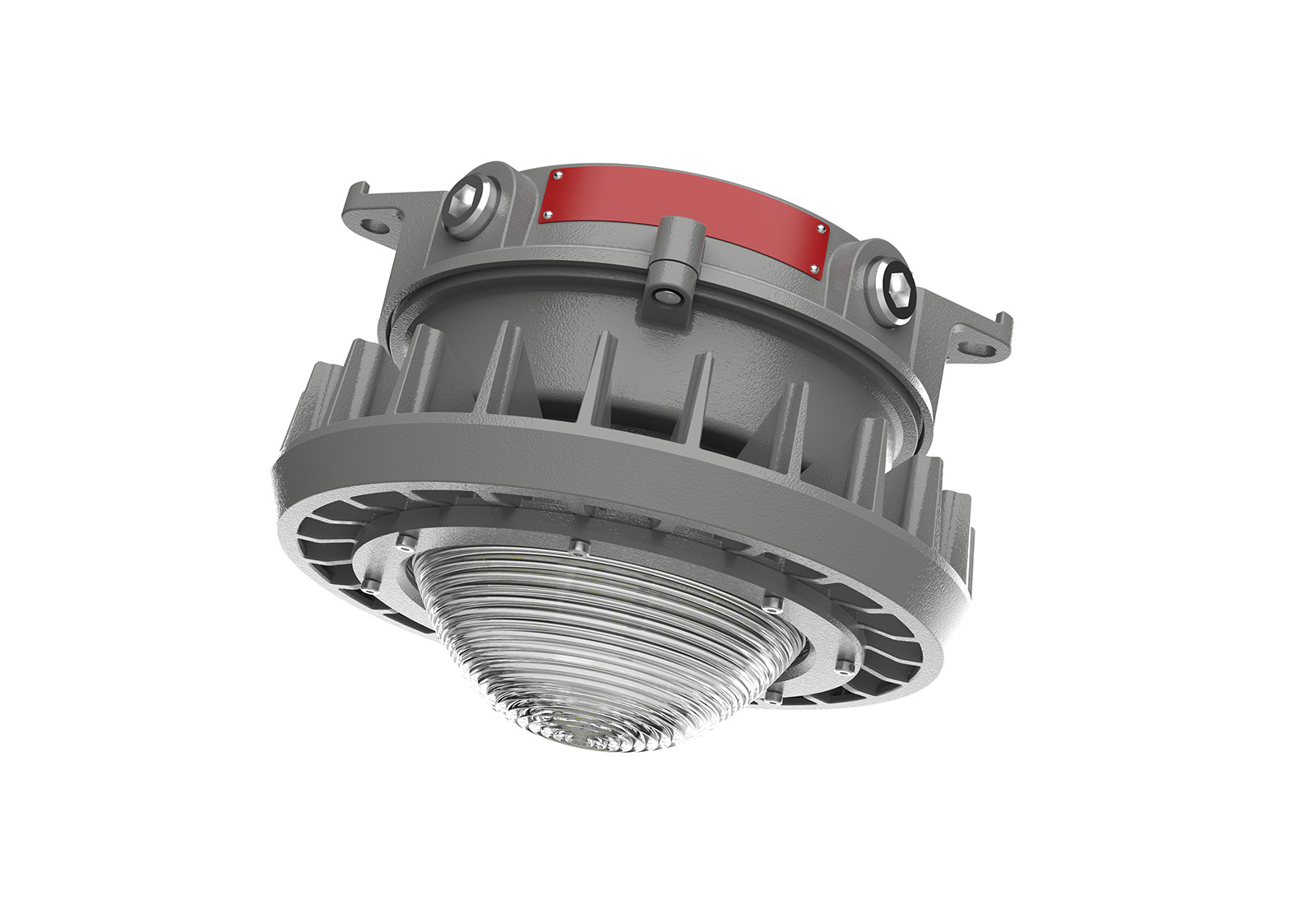

Lens Material
Tempered Glass

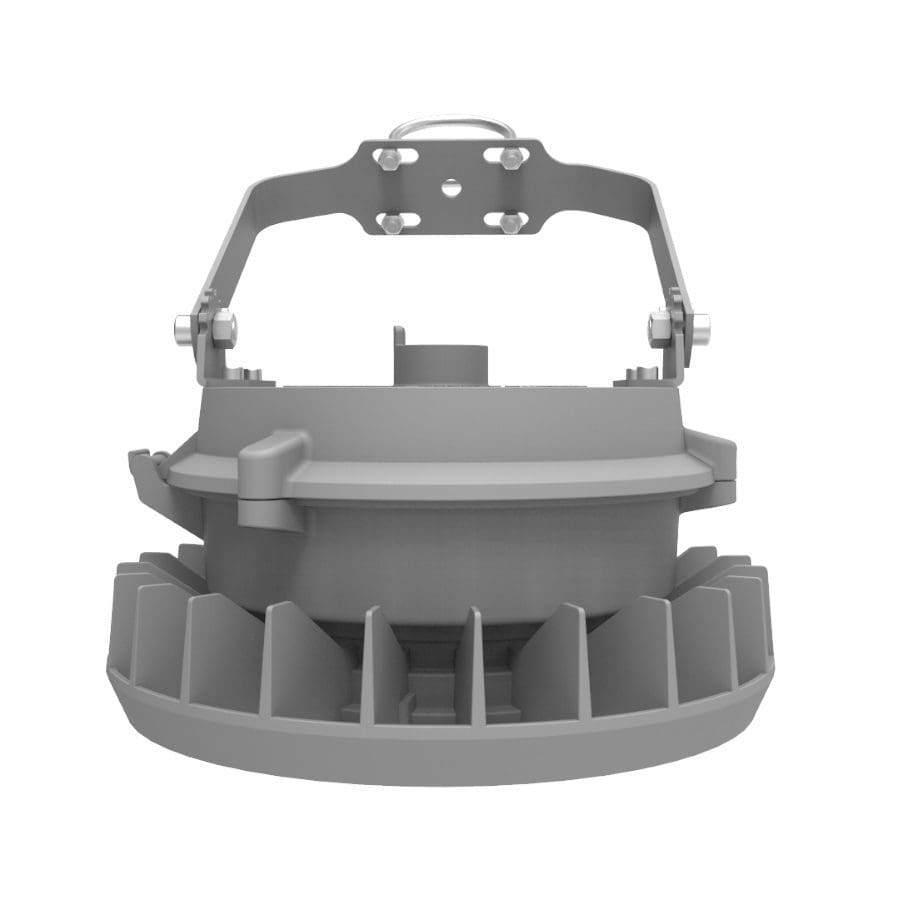

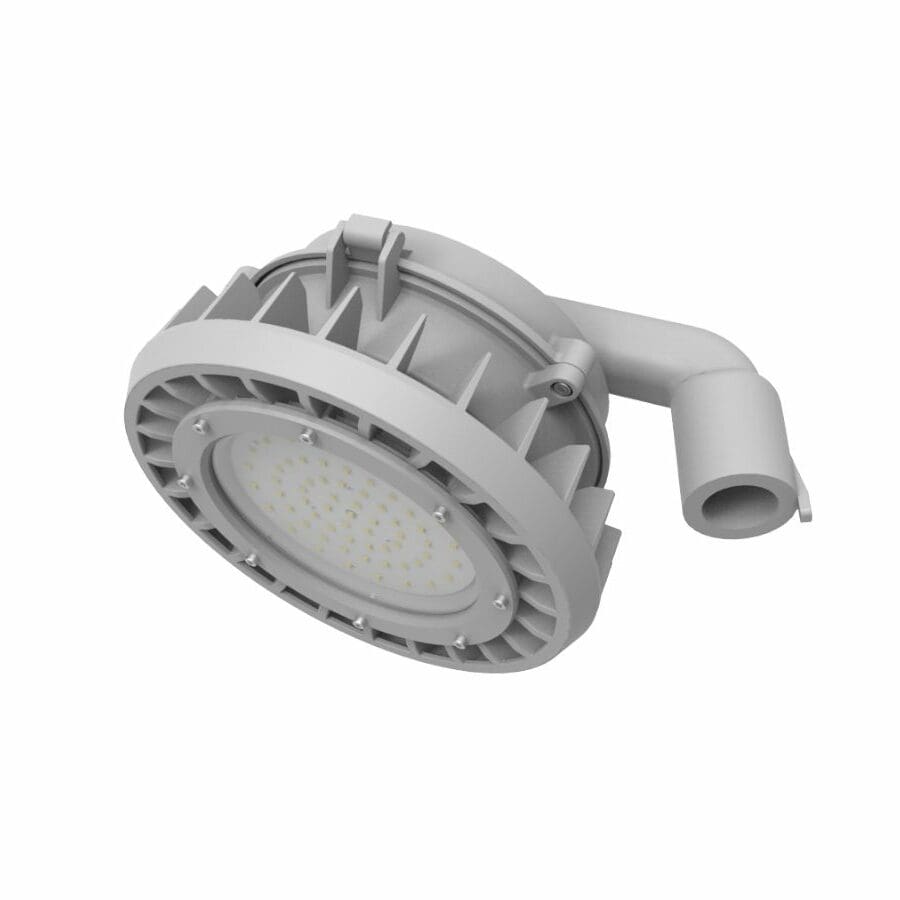

Mounting Options

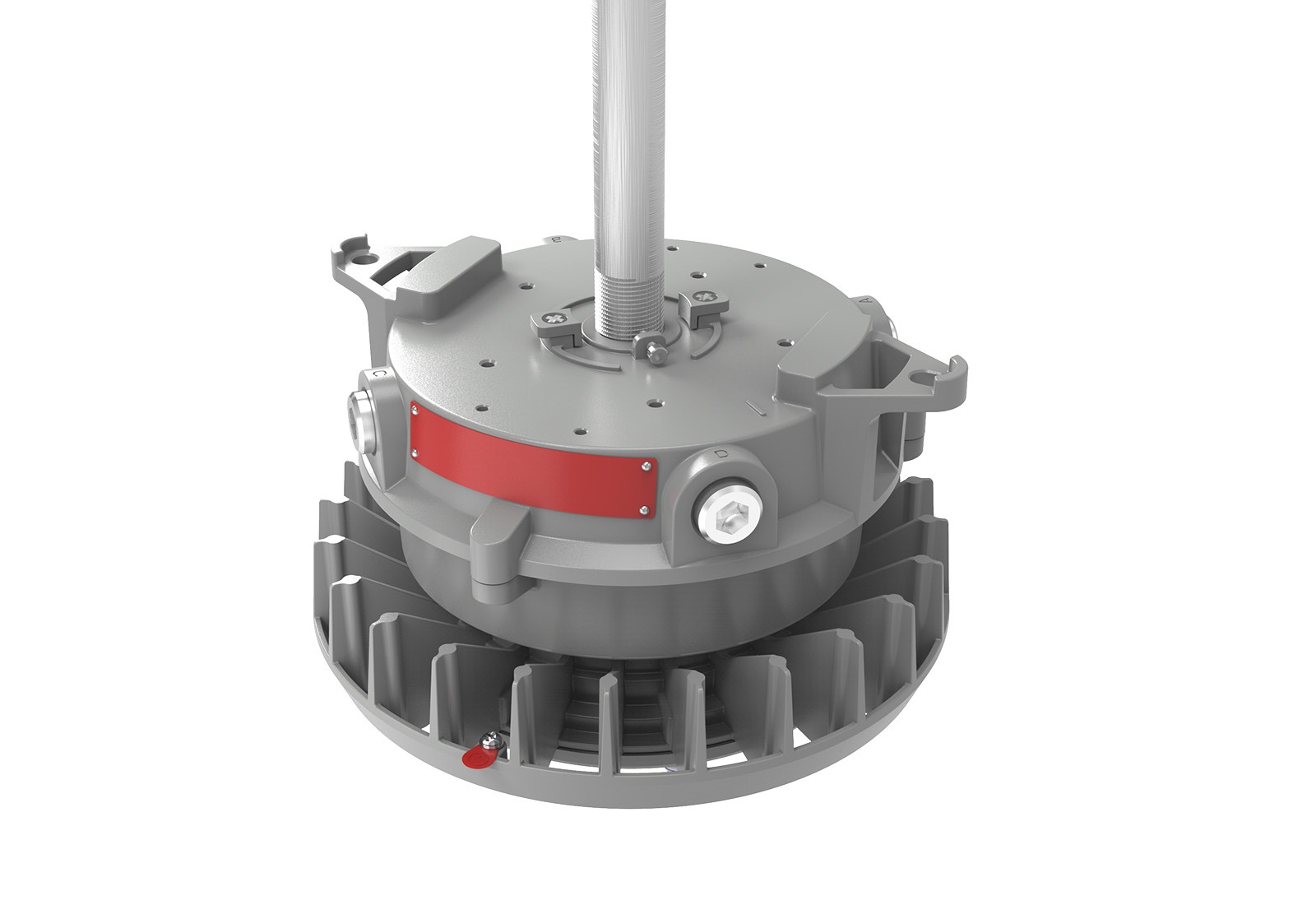

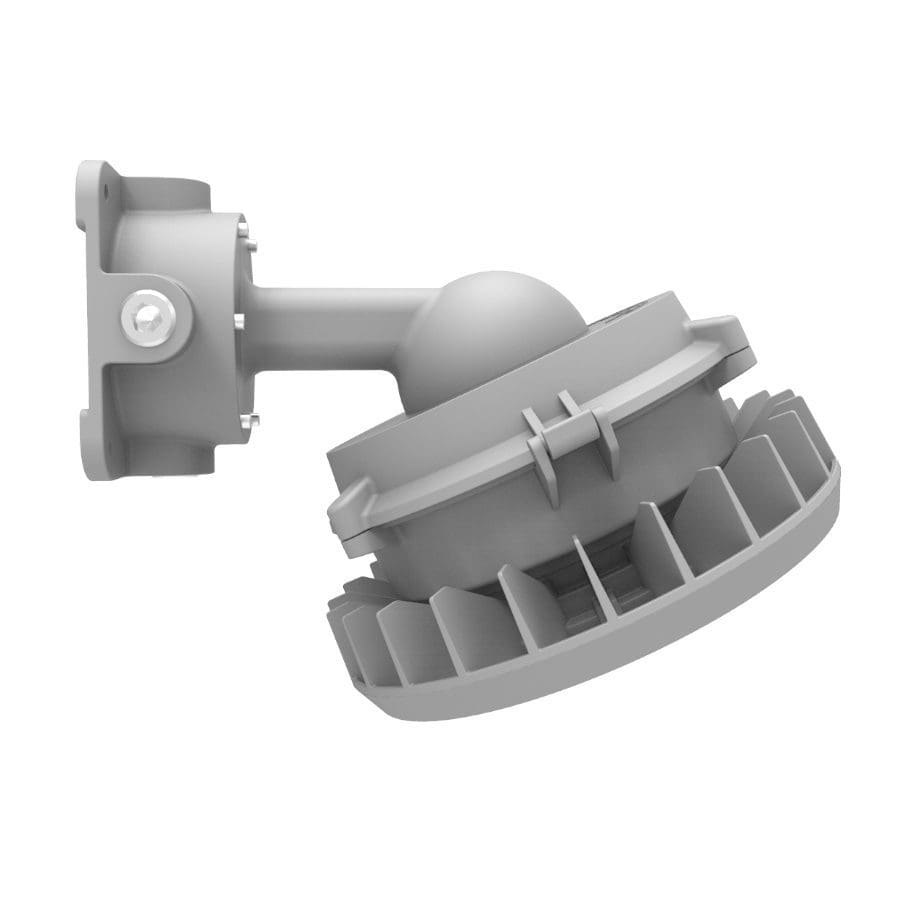

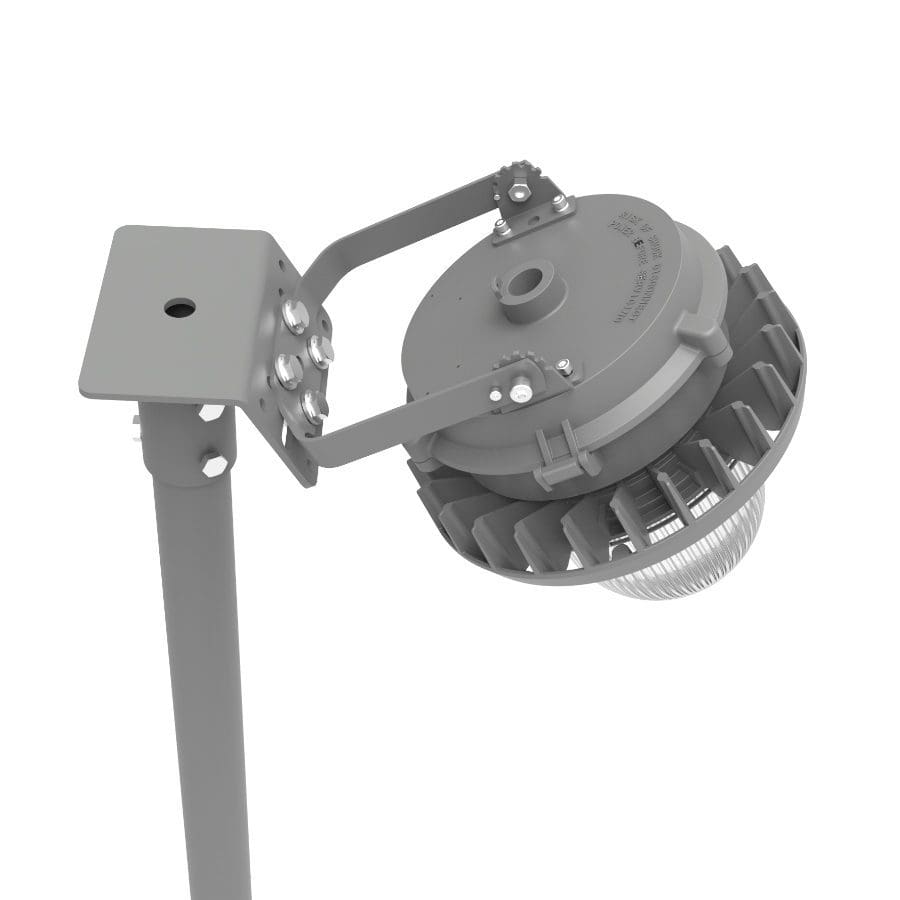

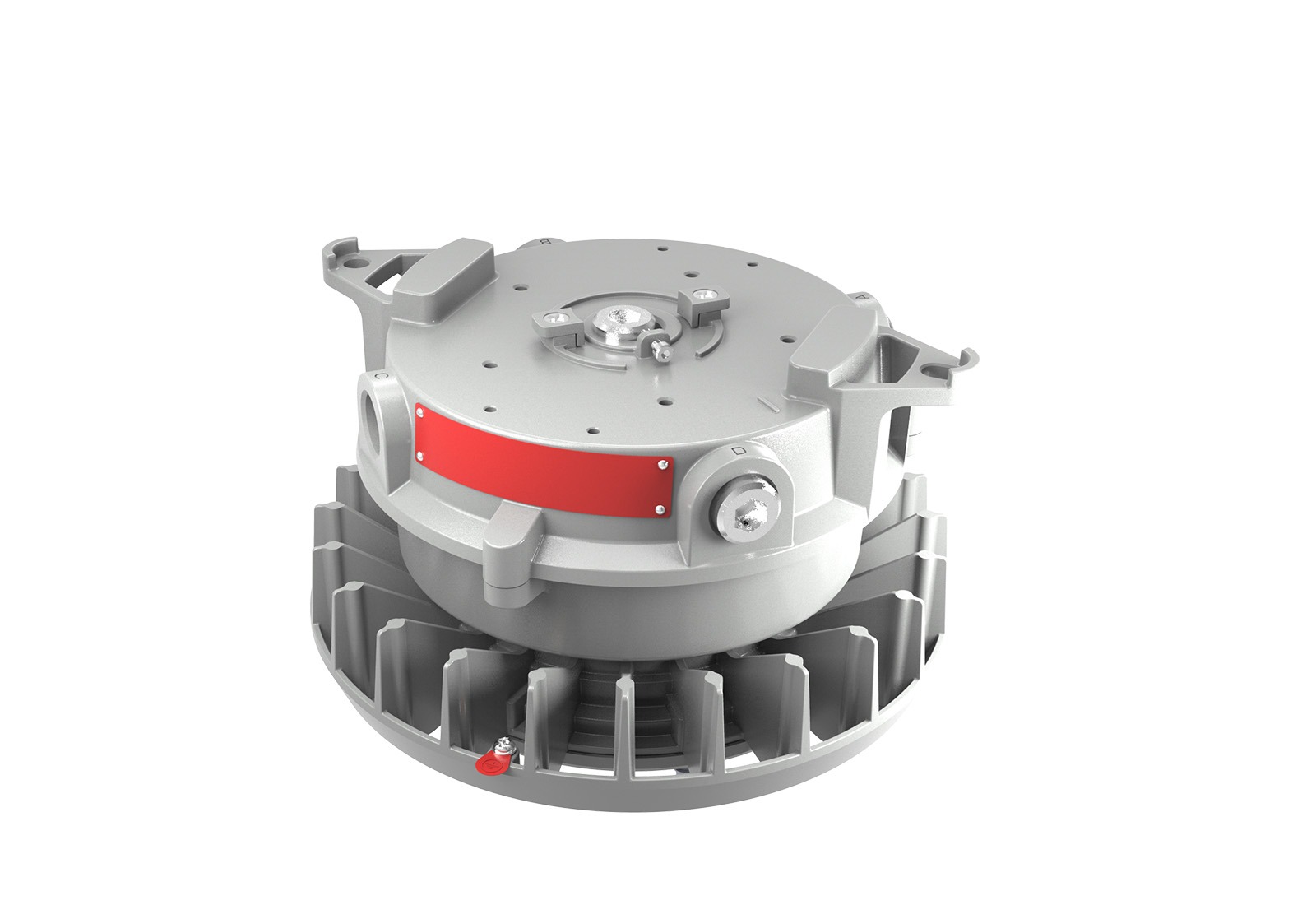

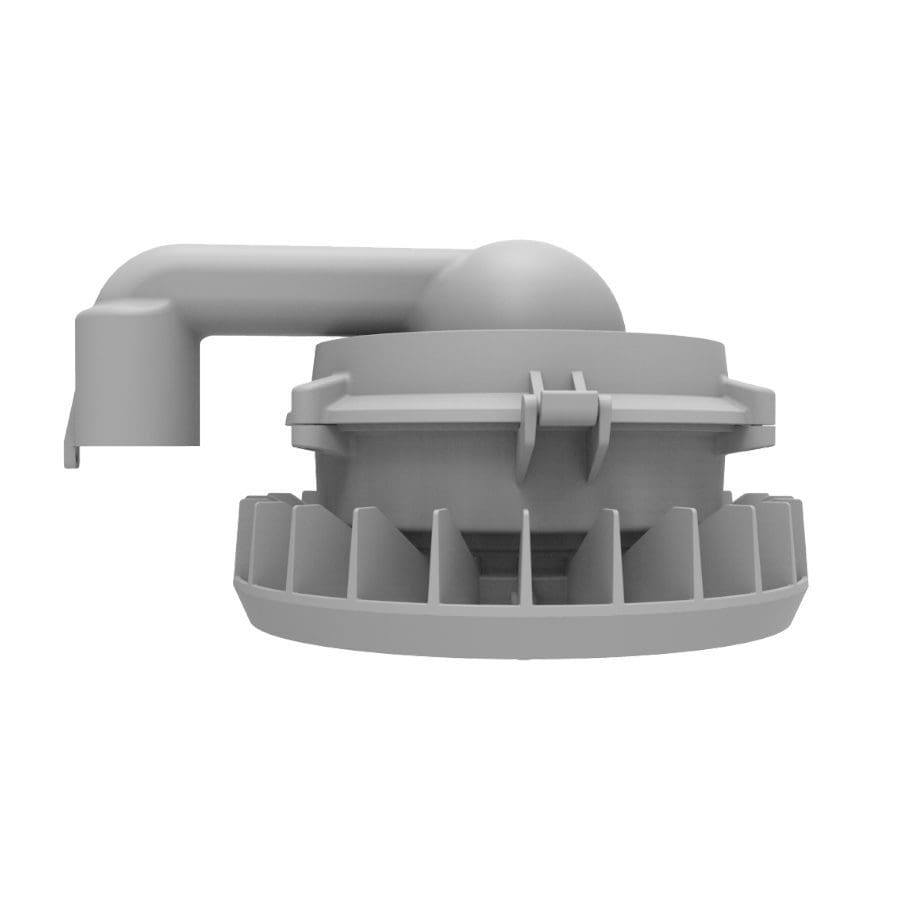

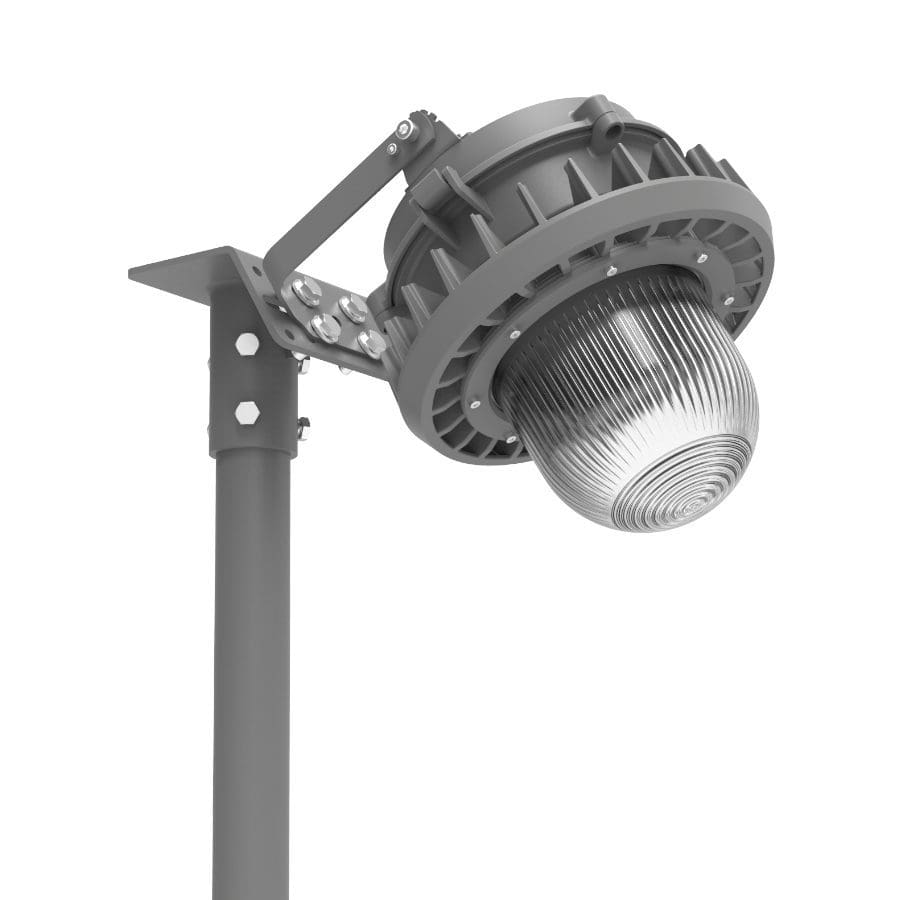

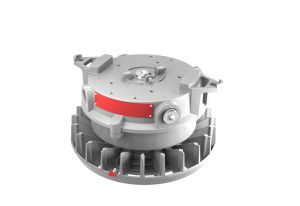

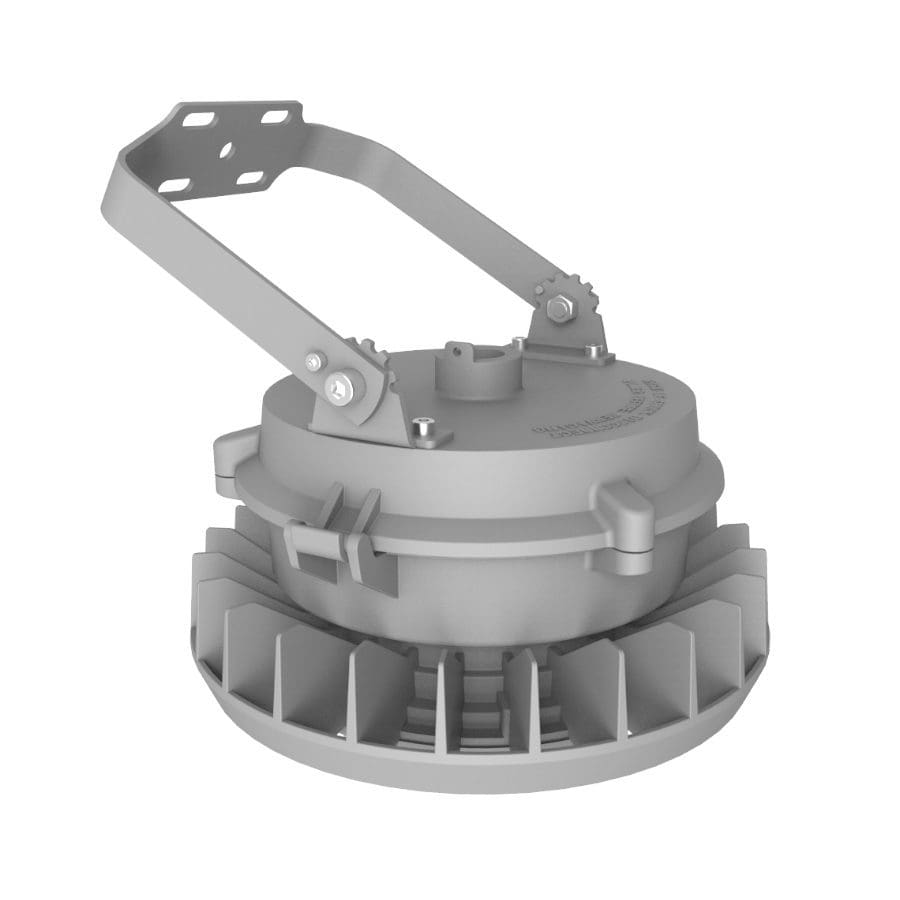

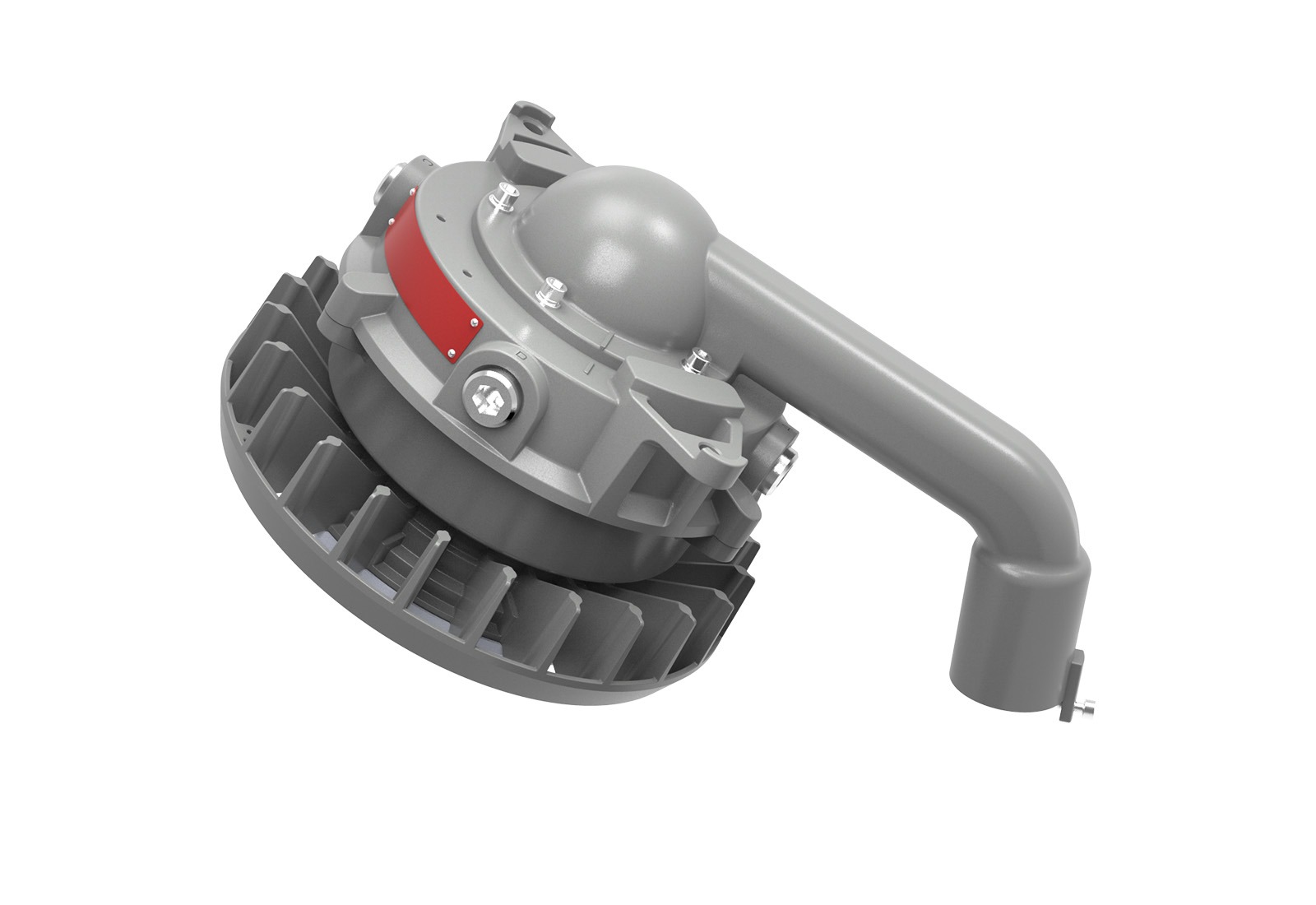

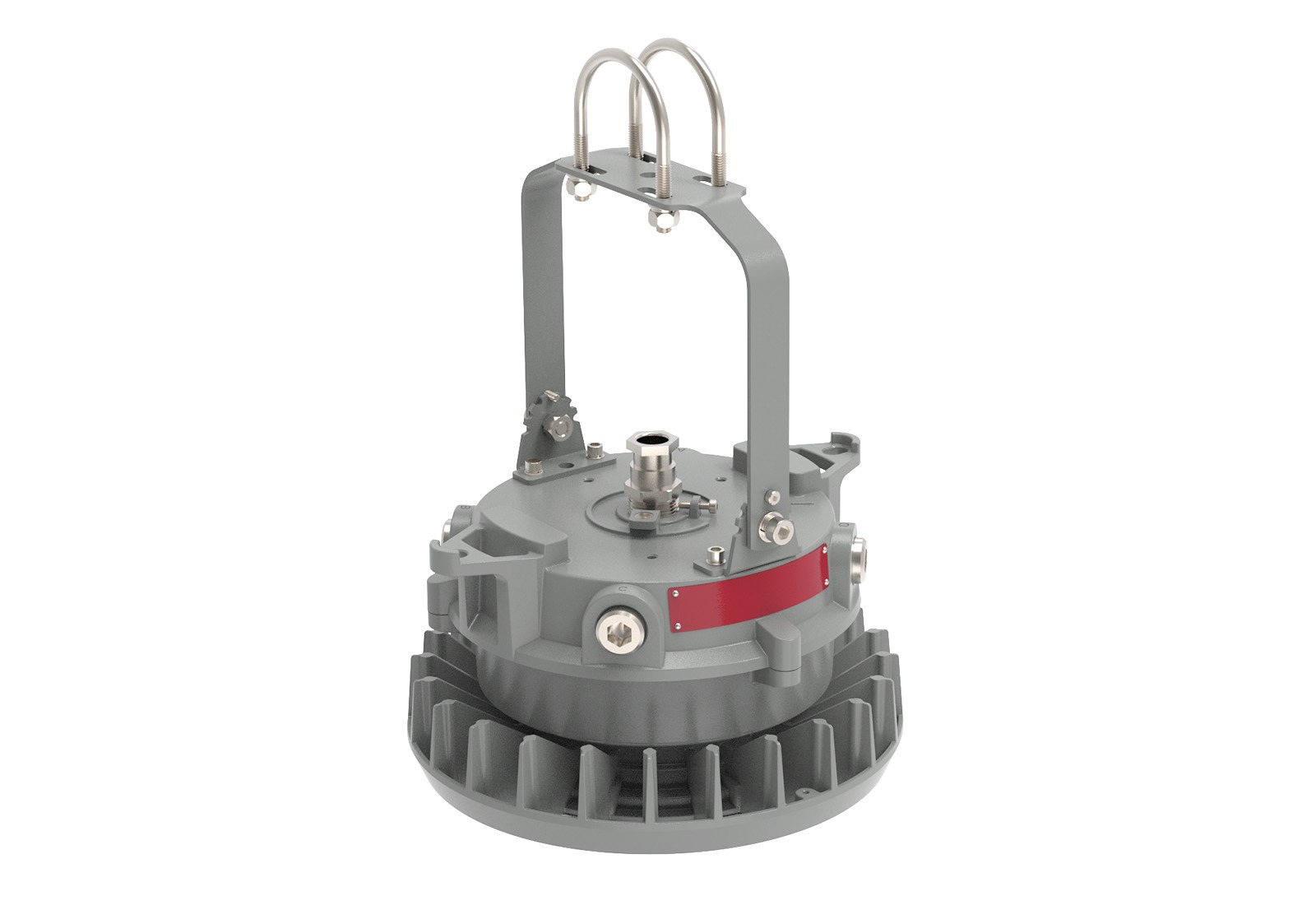

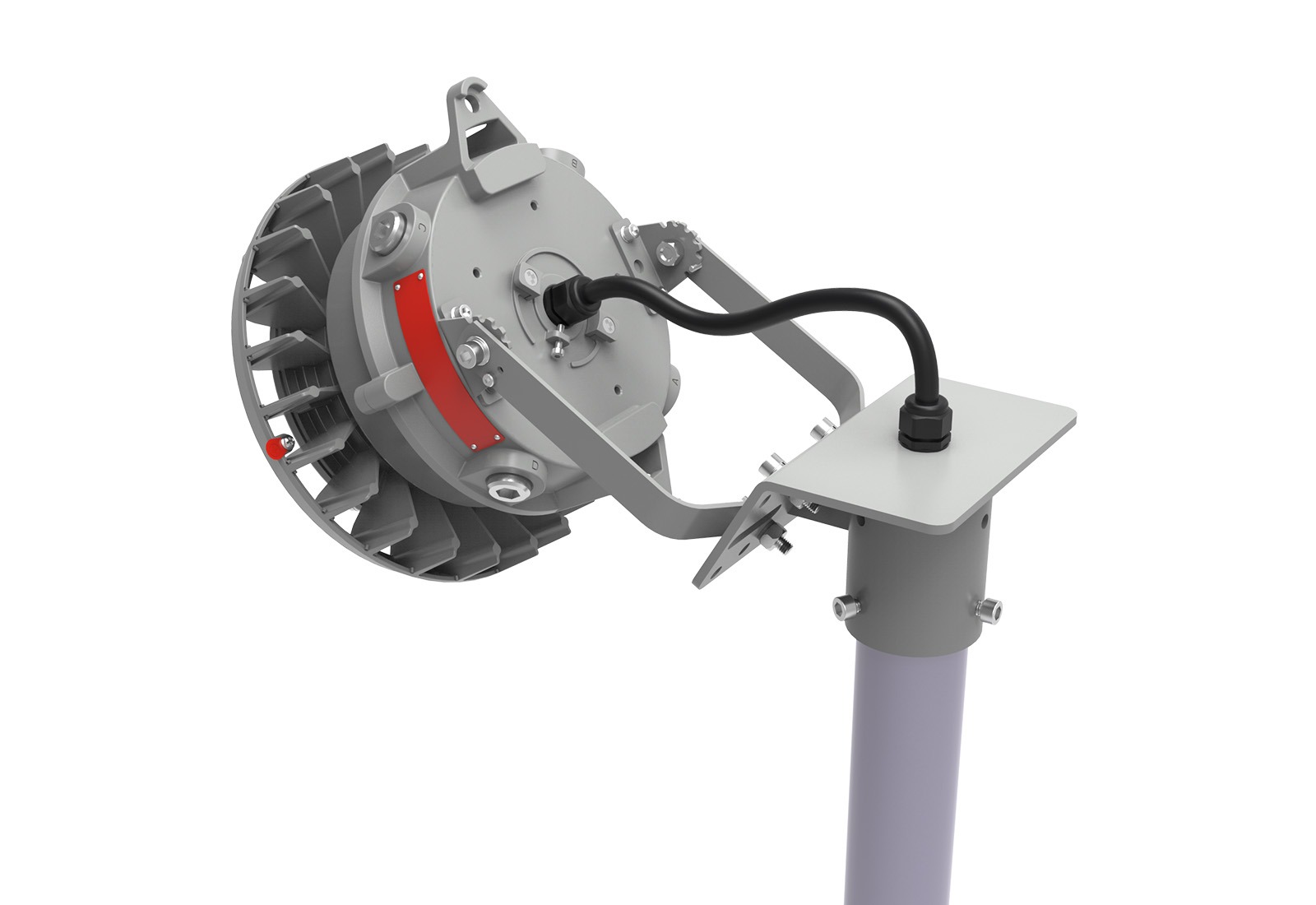

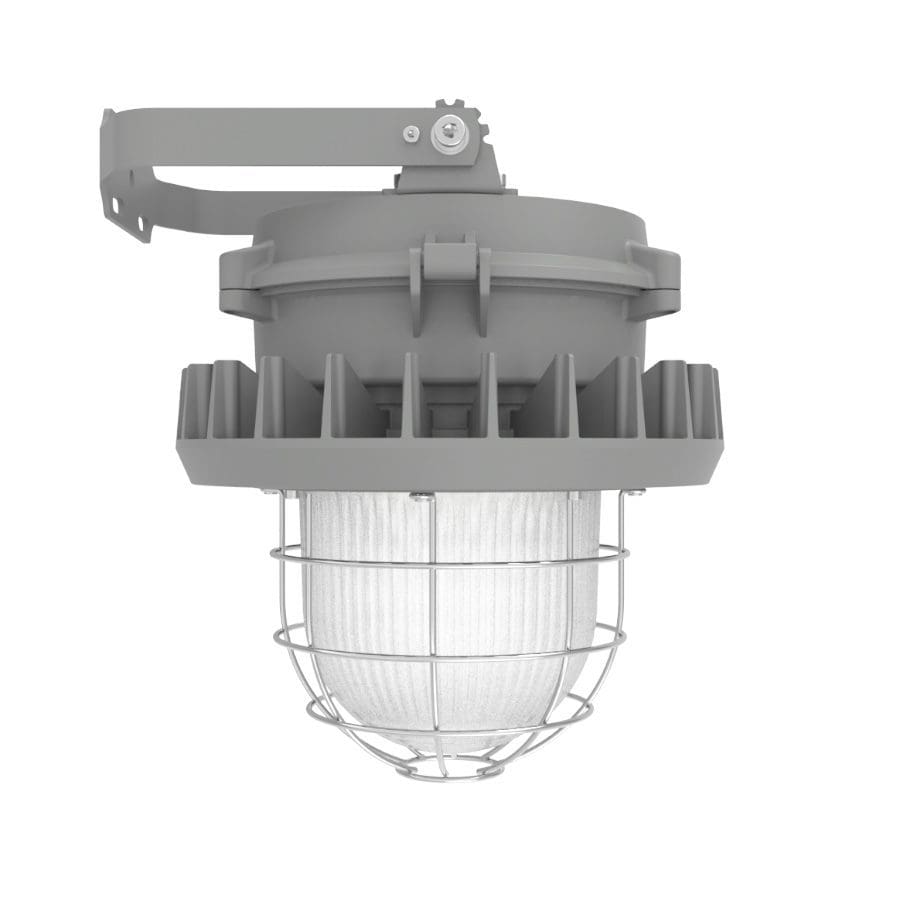

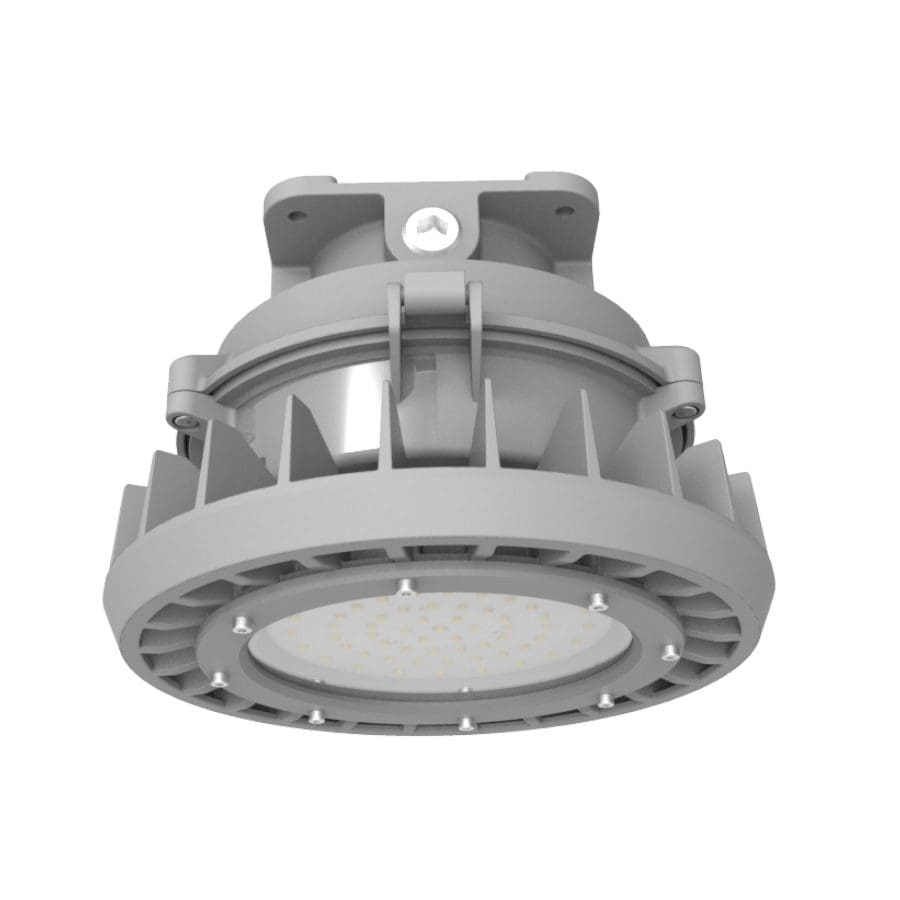

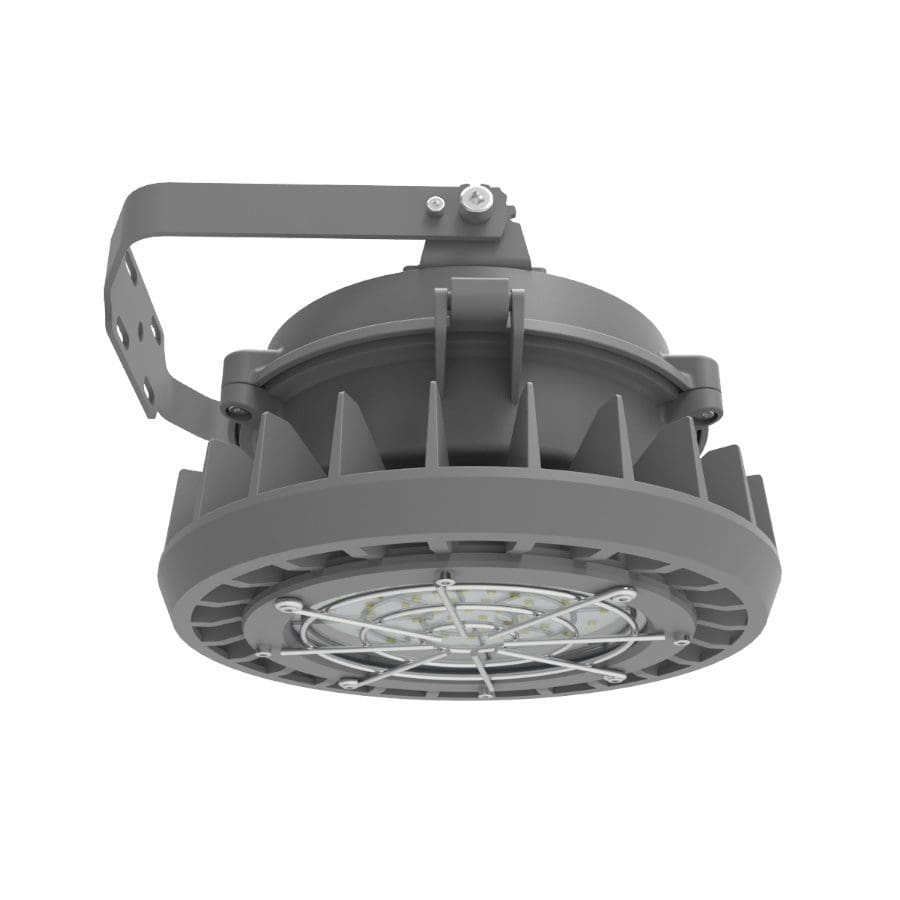

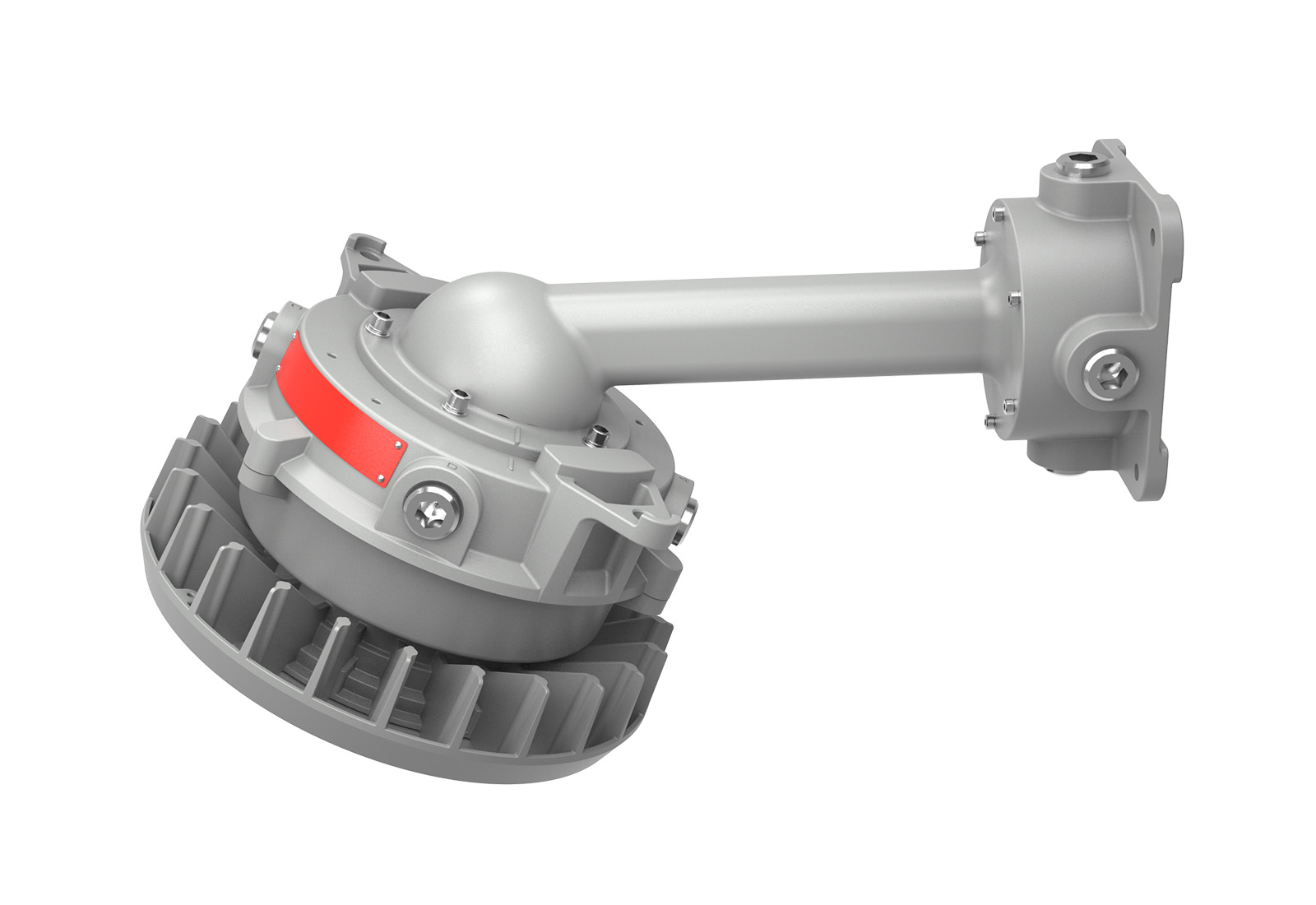

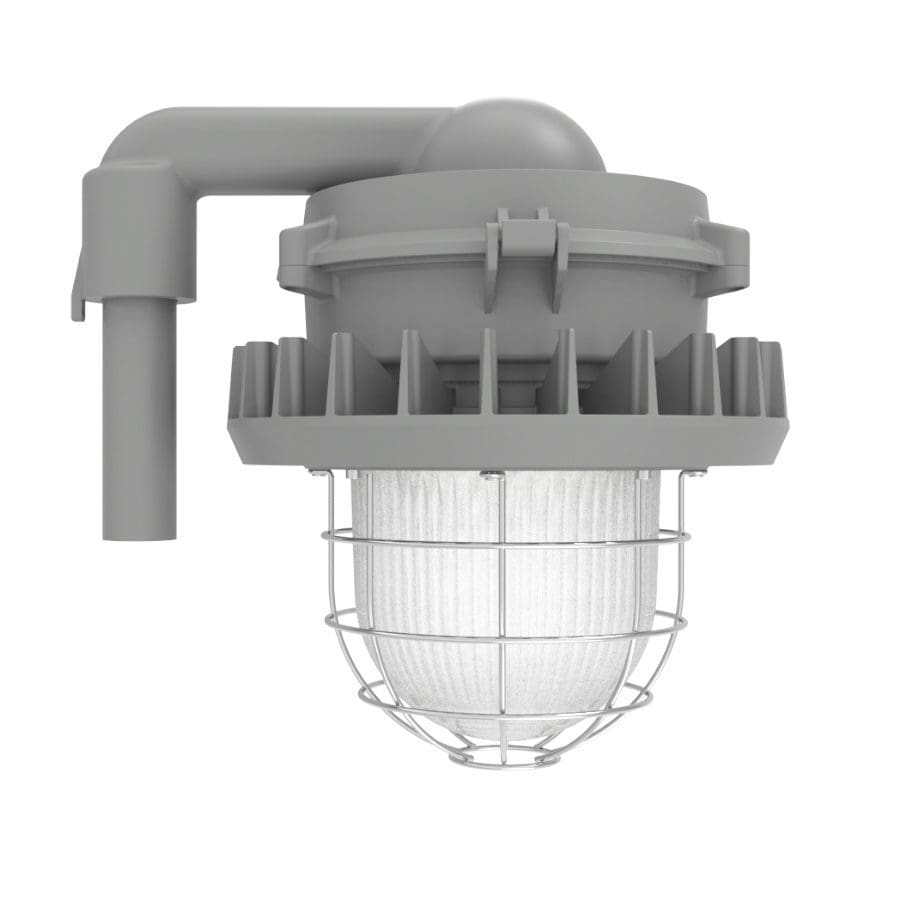

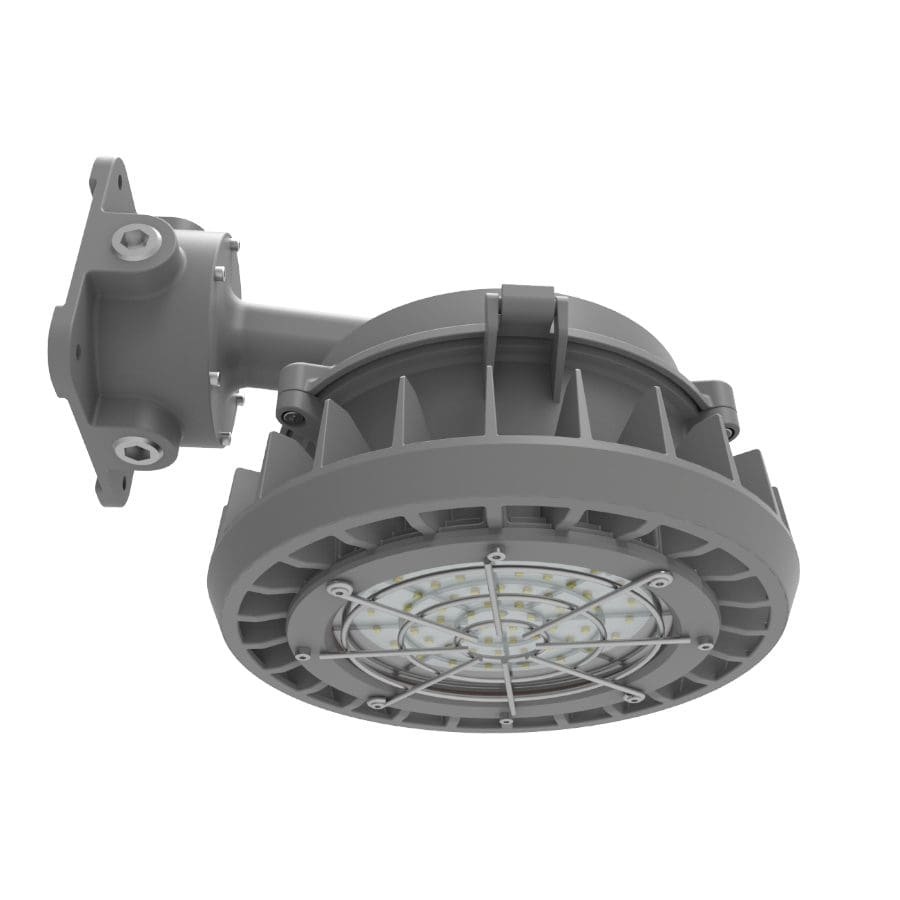

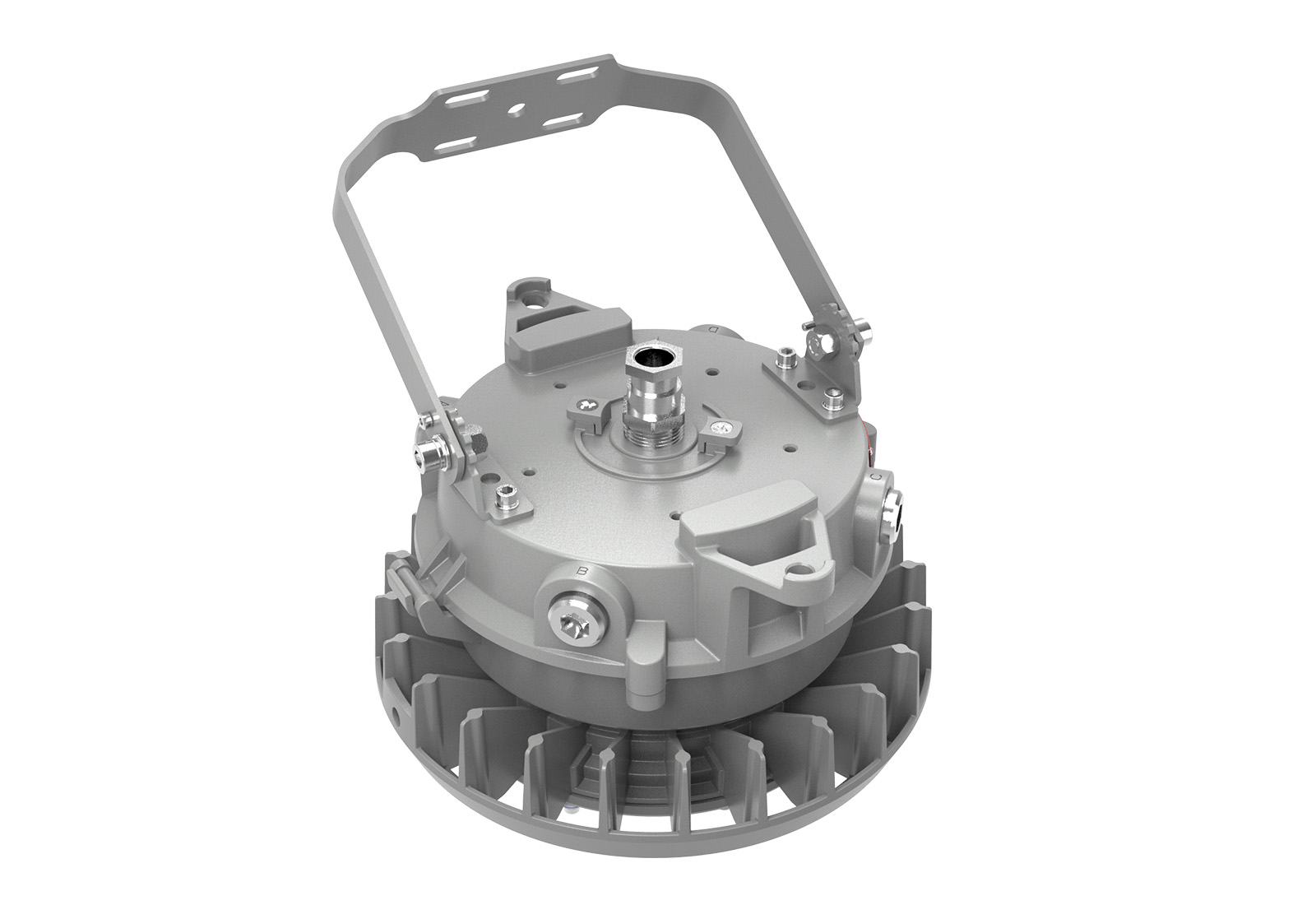

Pendant, Ceiling, Yoke, Wall, Stanchion, Pole
Product Weight
11.0lbs / 5.0kg
Cable Entry
(5) 3/4″ NPT
Product Dimensions(L×W×H)
10.6×10.3×7.6in (269.4×262×191.7mm)
Environmental Parameters
Ambient Operating Temperature
-40°F ~ +140°F (-40°C ~ 60°C)
T-Code Rating
C1D2 – T4A, C2D1 – T5
