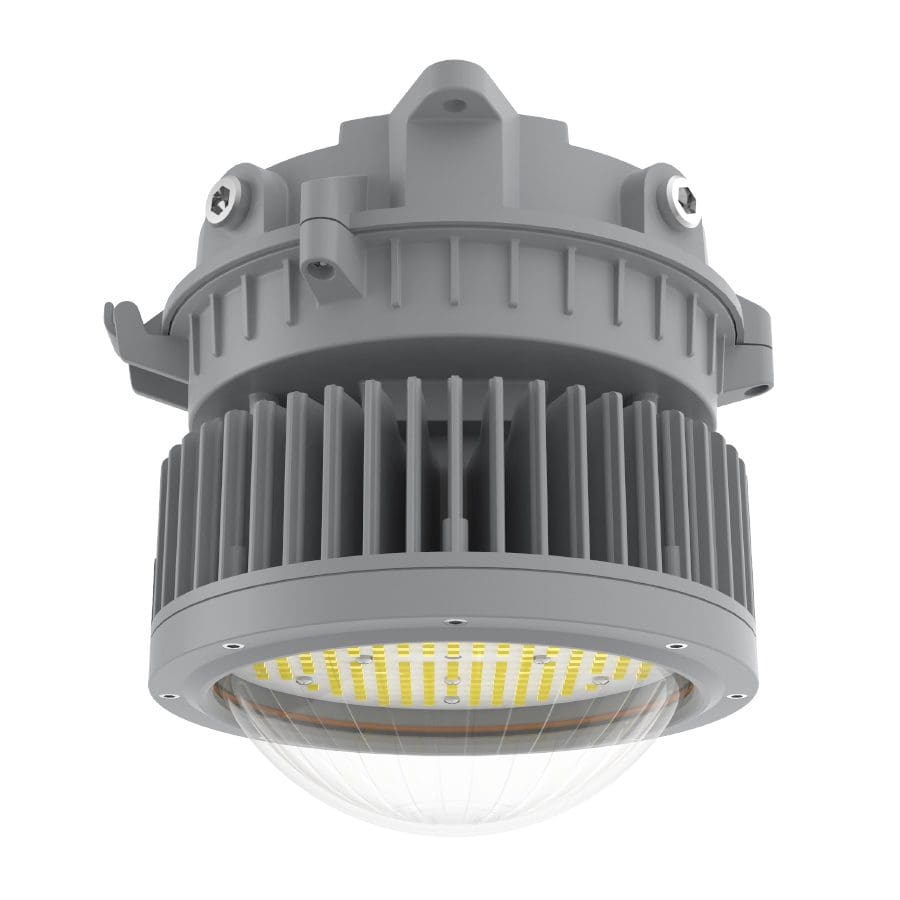

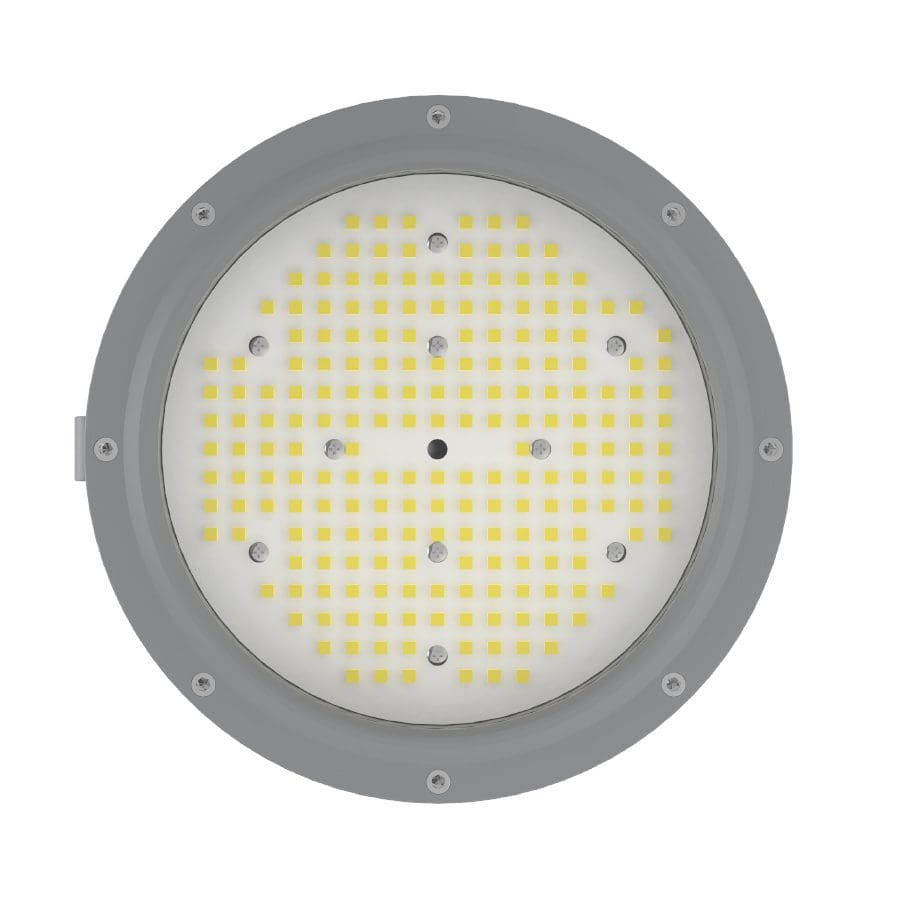

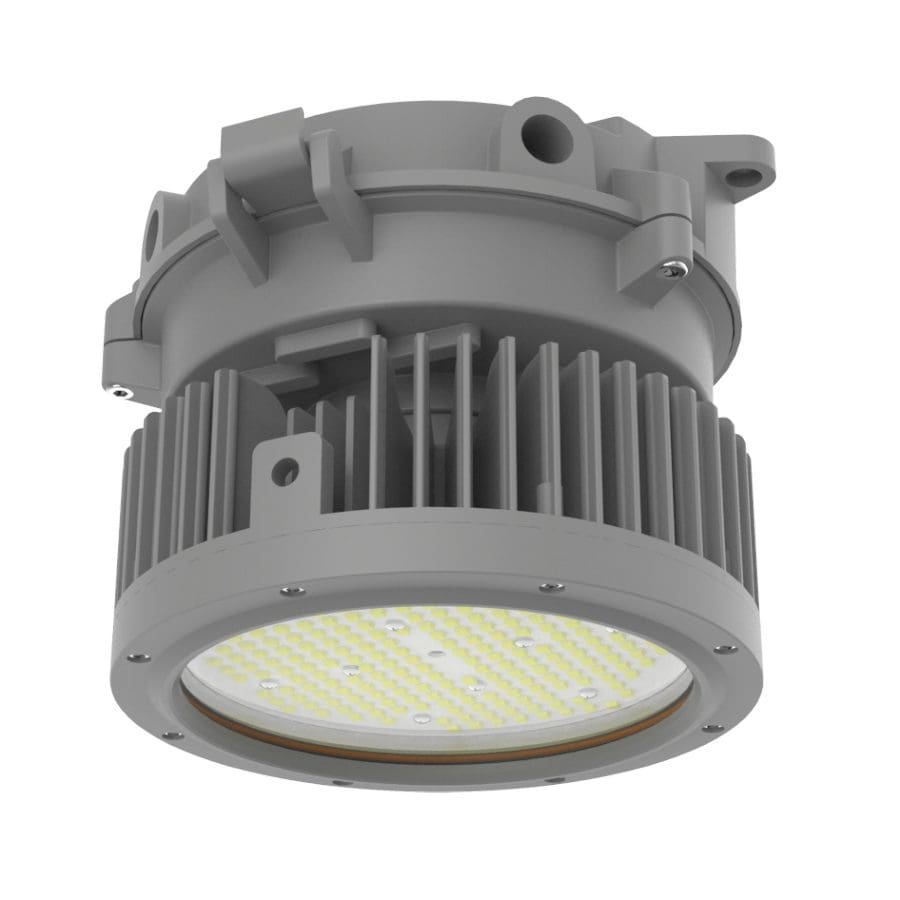

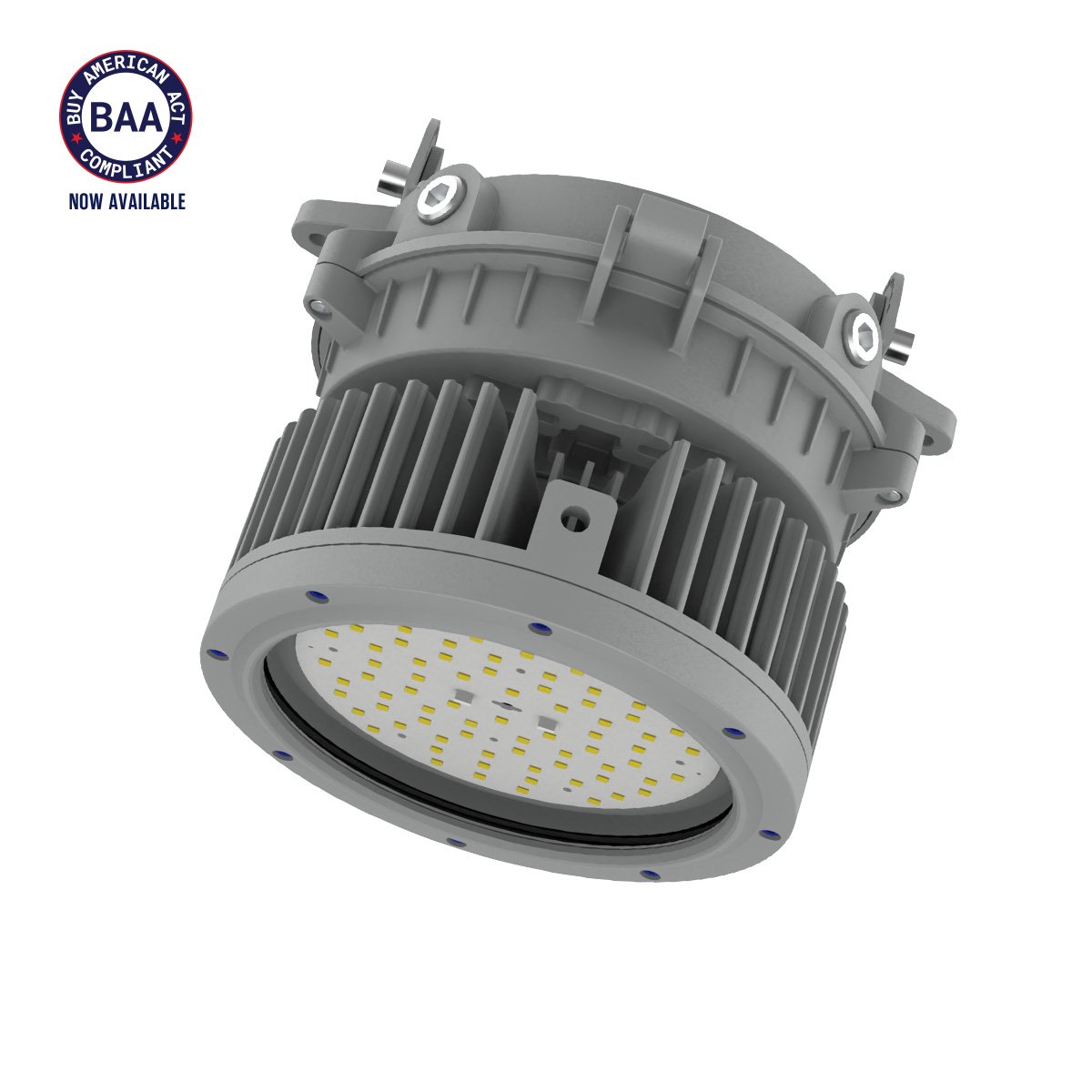

Round Max Series
SKU RDX
Description:
The Round-Max is designed for indoor mid to high bay and outdoor general area applications. Available up to 30,000 lumens with type I, III and V optics, it is designed to distribute the light where needed most, reducing the number of fixtures needed. Ideal for lighting oil & gas refineries, shipyards, power plants, and other industrial applications.
Product Type & Application: Metal Processing, Agriculture, Area & Floodlight, High bay & Low bay, Oil and gas, Power Generation, Pulp, Paper and Wood, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power (W)
80W, 120W, 150W, 200W
VOLTAGE(V)
100-277V AC, 347-480V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
80/120W: 112,000 hrs@149°F
150W: 112,000 hrs@140°F
200W: 110,000 hrs@131°F
Dimming
0-10V, Range 10-100%
Surge Protection
6KV
Warranty
LEDs: 10 years, Driver: 7 years
Optical Parameters
Lumen Output
80W: 12,720Lm
120W: 19,320Lm
150W: 23,850Lm
200W: 29,600Lm
Lumen Efficacy
150Lm/W
Available Beam Angle
T1/T3/T5/30°/60°
Correlated Color Temperature (CCT)
3000K/4000K/5000K
Color Rendering Index (CRI)
Ra>70**
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Tempered Glass or Polycarbonate
Mounting Options

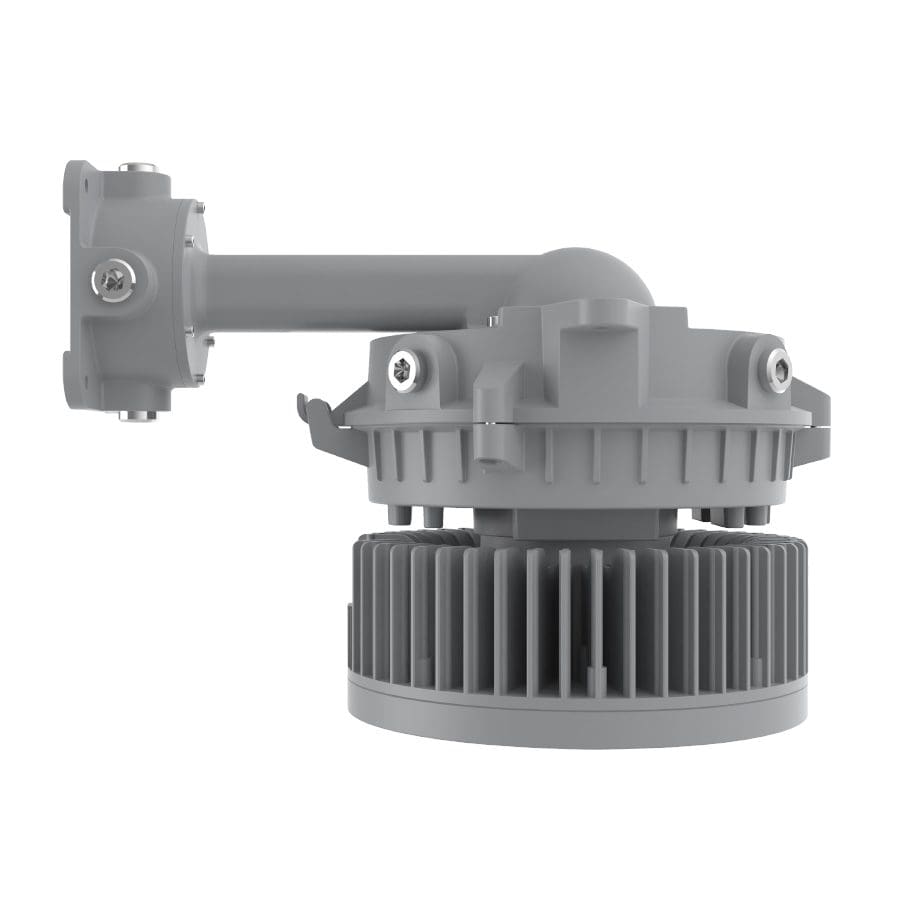

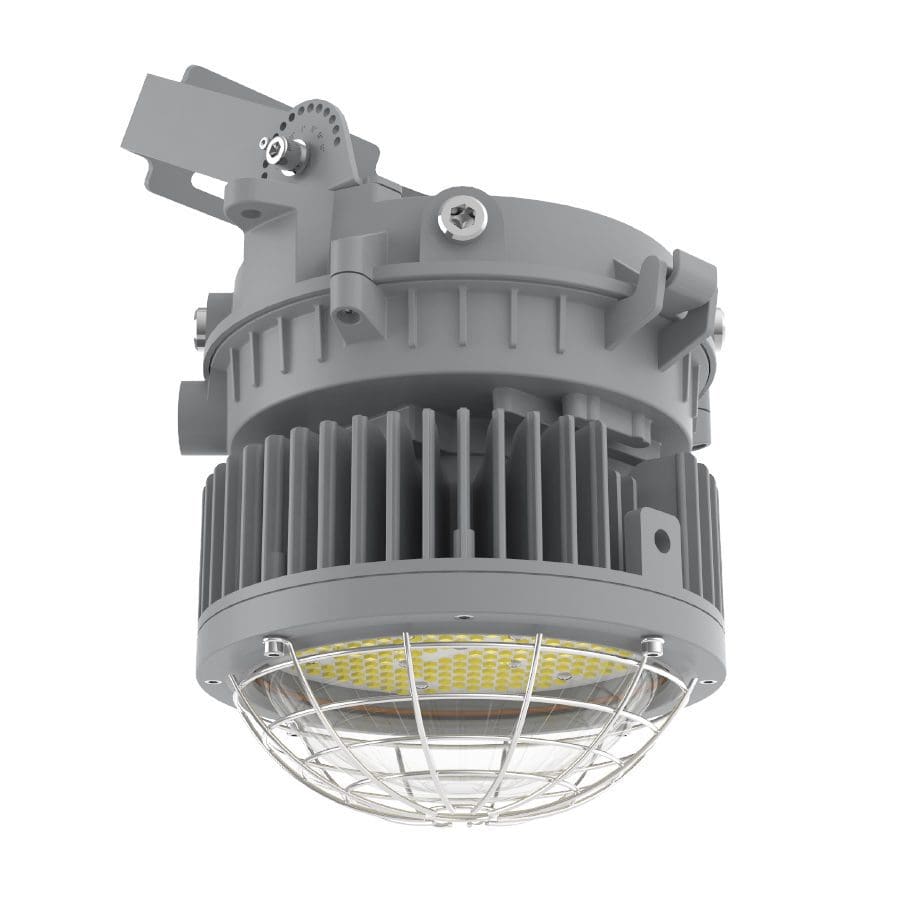

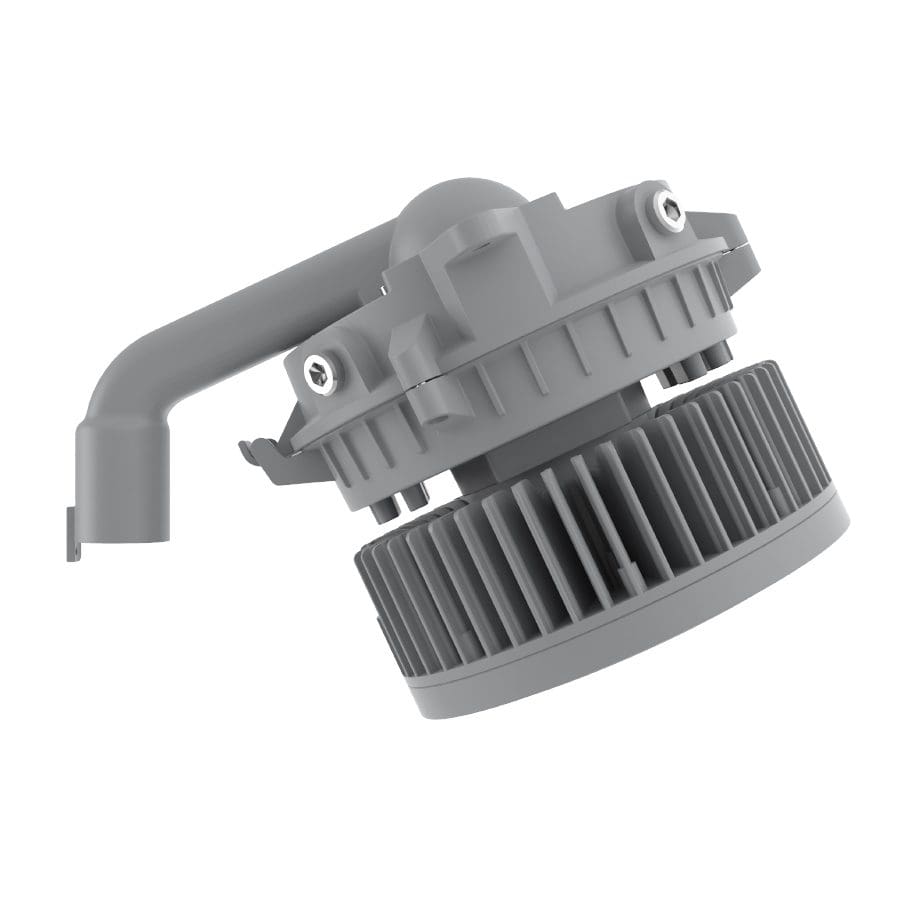

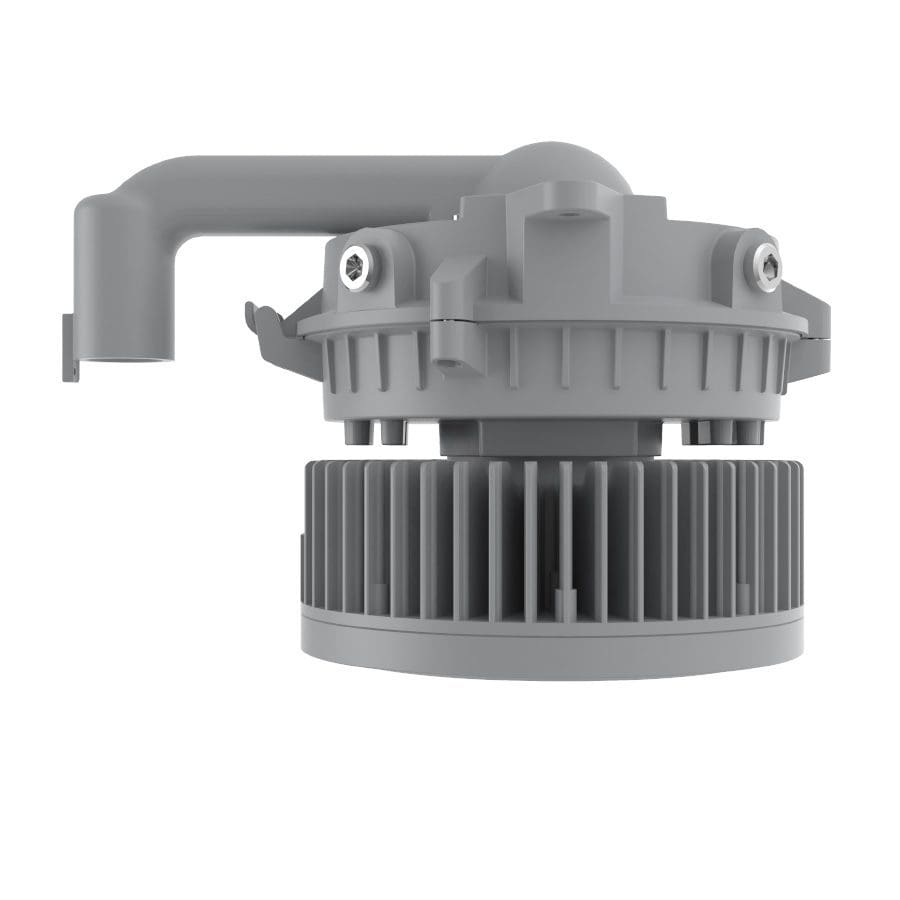

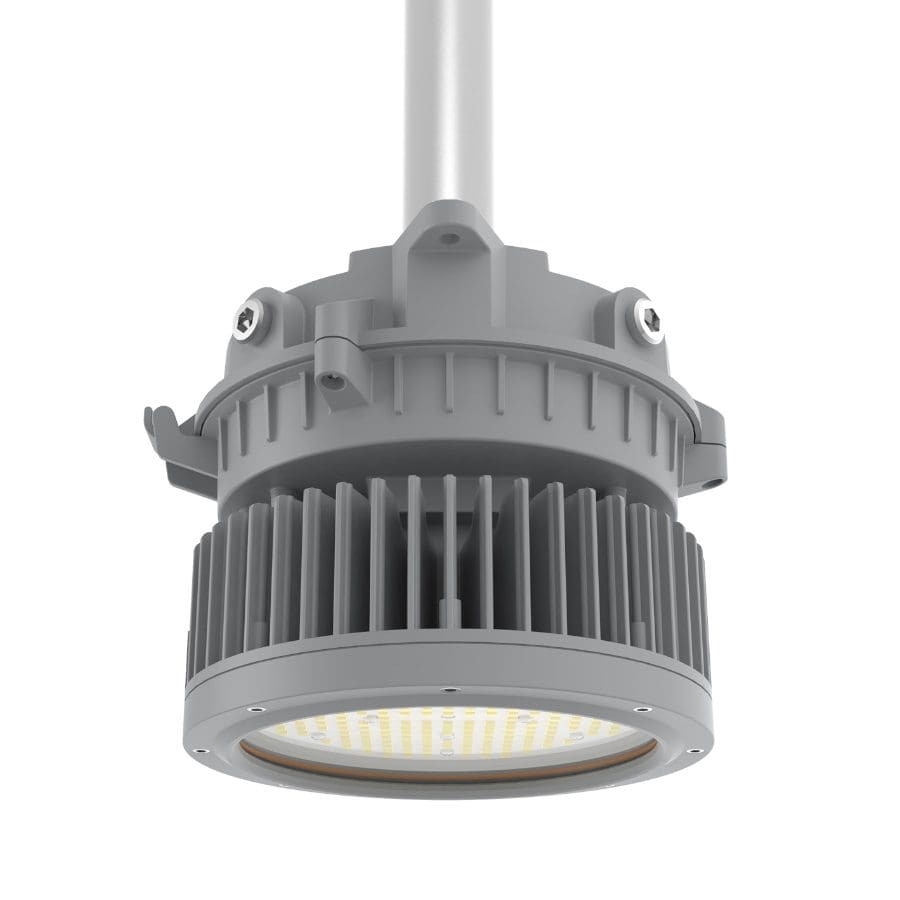

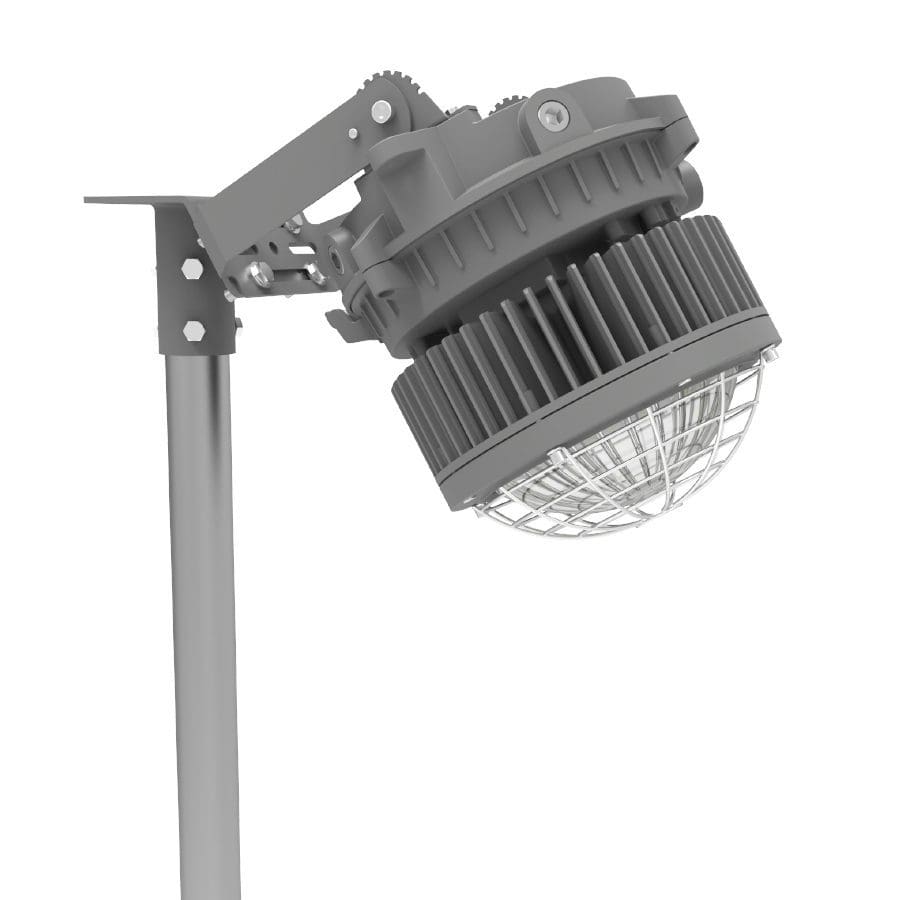

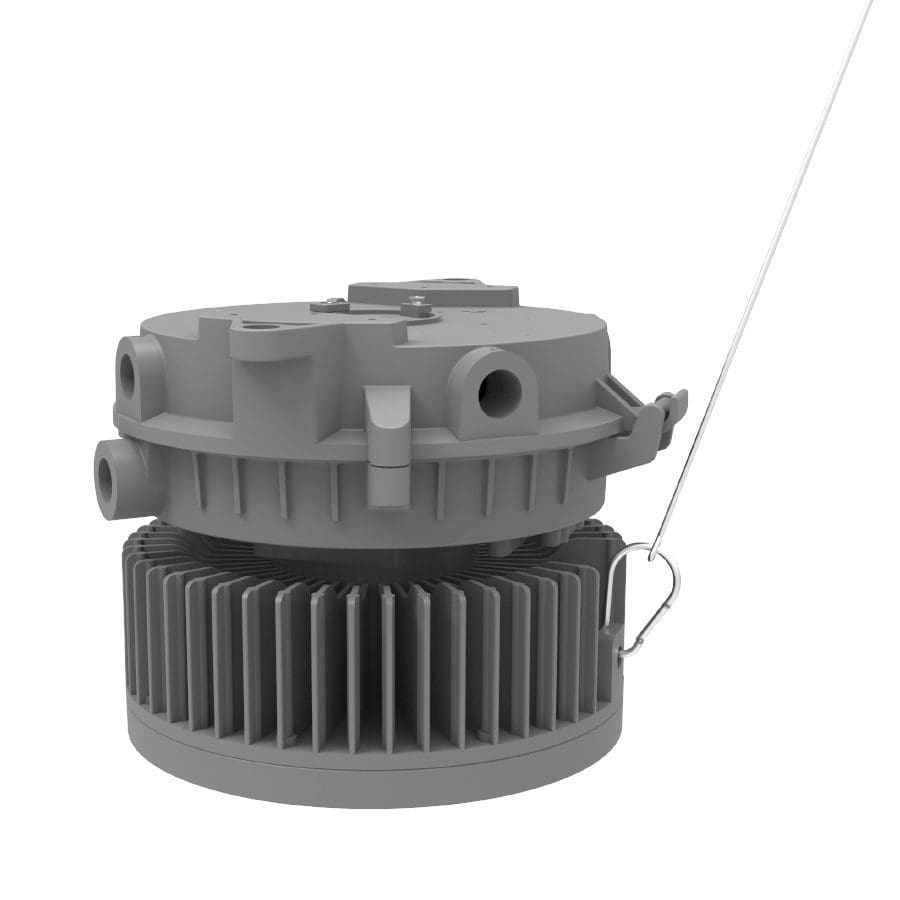

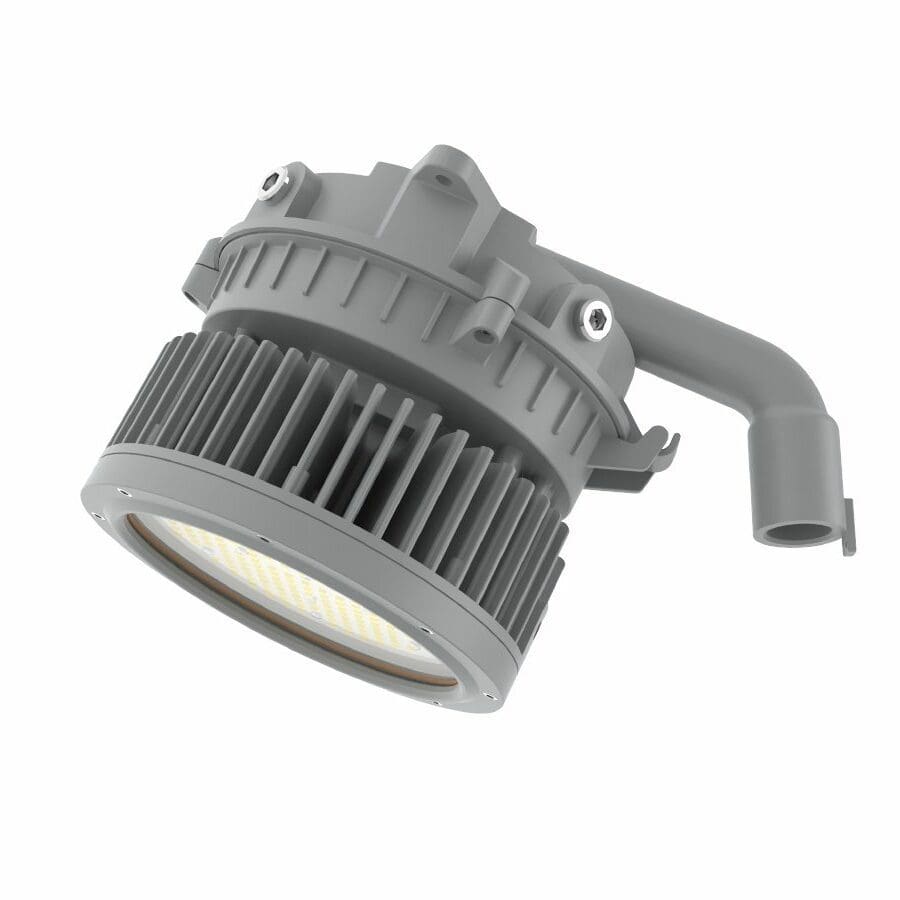

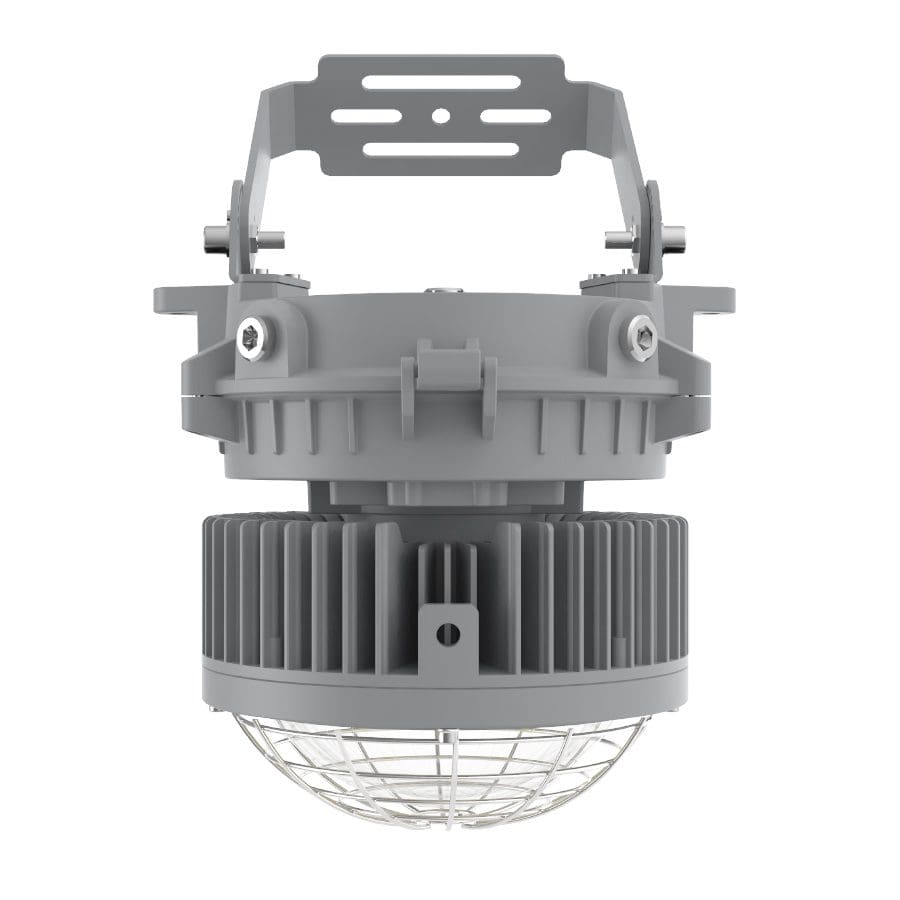

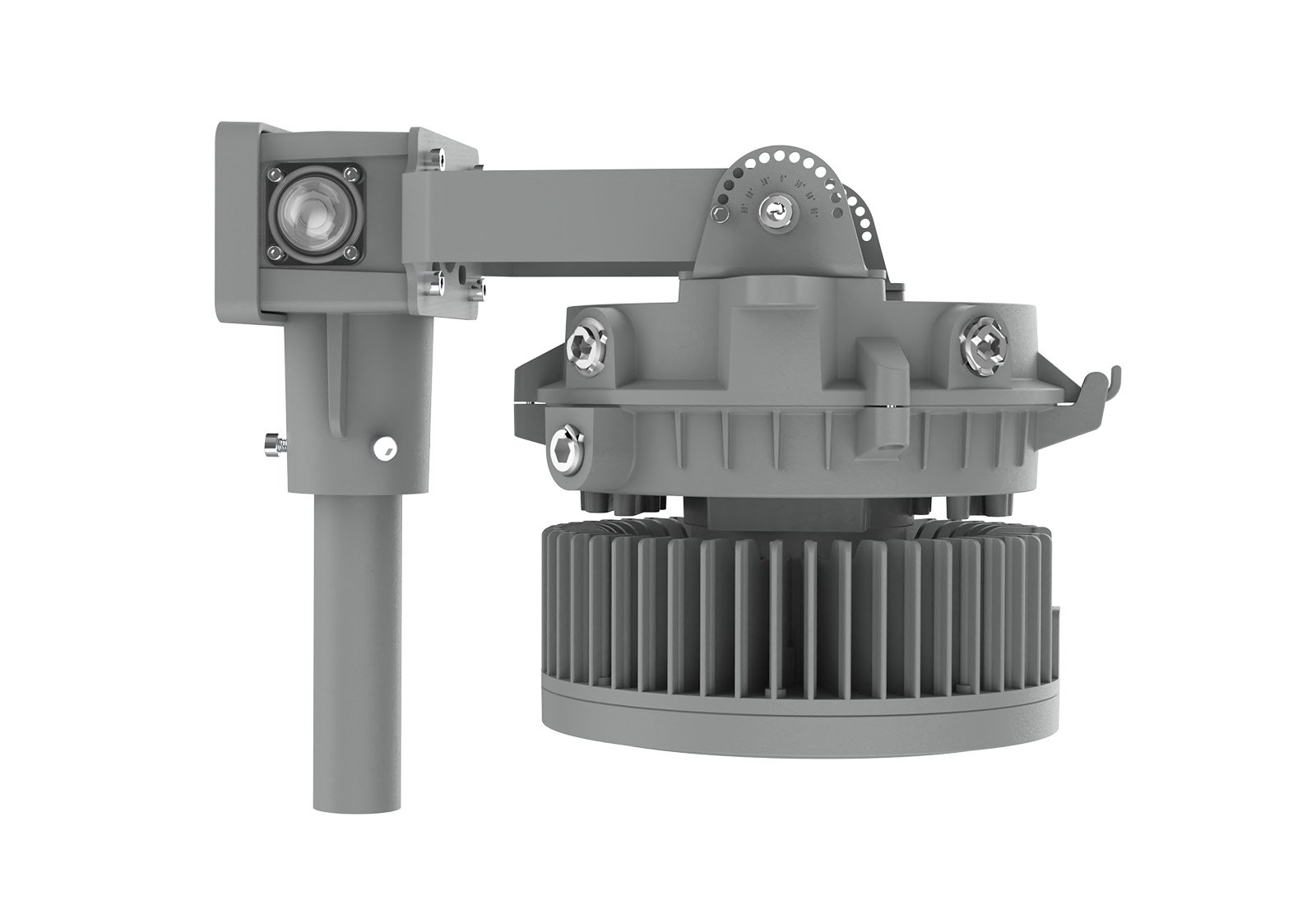

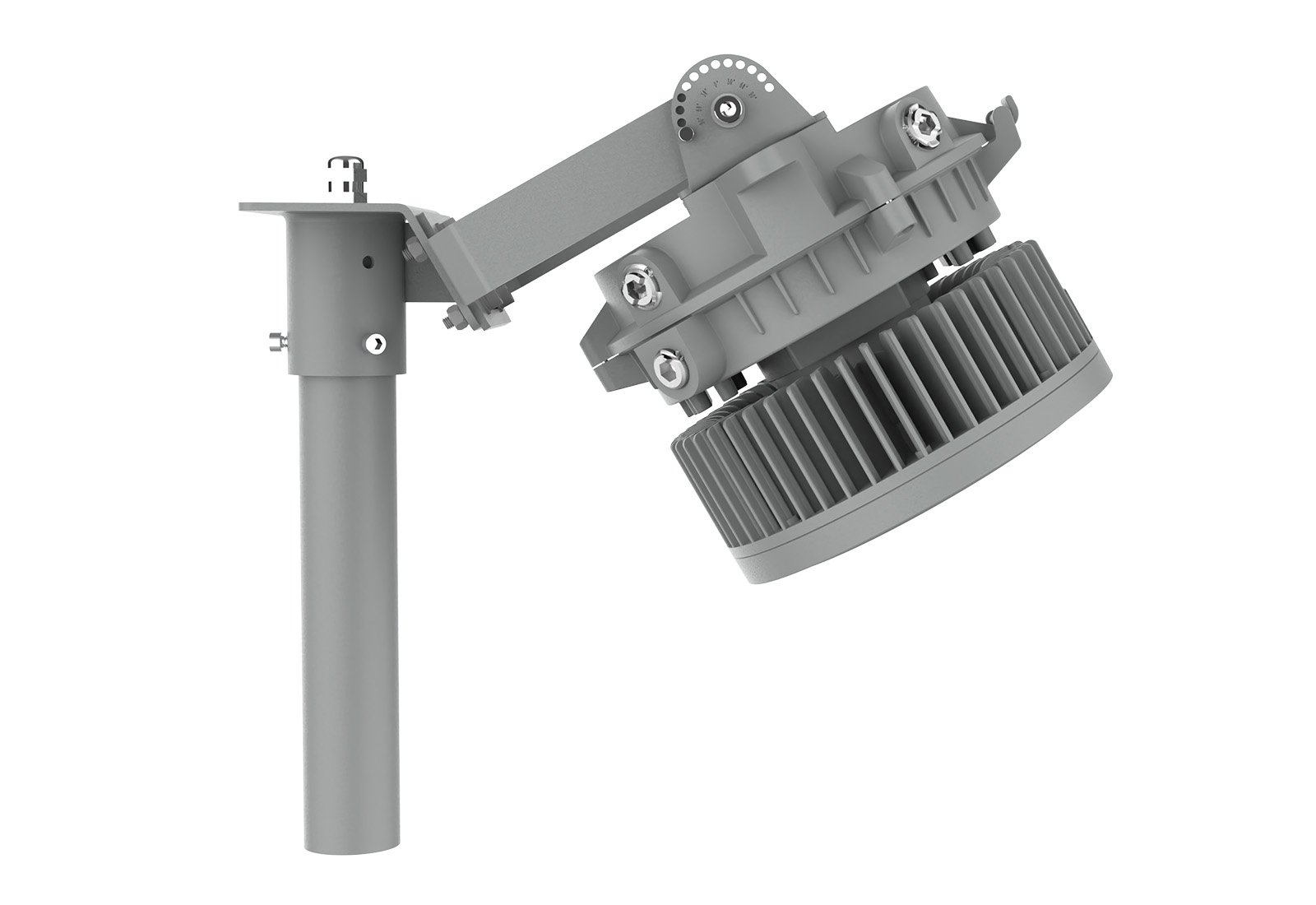

Pendant, Ceiling, Stanchion, Wall, Yoke, Junction Box, Stanchion slip fitter
Product Weight
21.6lbs/9.8kg
Cable Entry
(6) 3/4″ NPT
Product Dimensions(Φ×H)
Φ10.6×9.1in(Φ270×230mm)
Environmental Parameters
Ambient Operating Temperature
80W/120W:
-40°F ~ +149°F (-40°C ~ 65°C)
150W:
-40°F ~ +140°F (-40°C ~ 60°C)
200W:
-40°F ~ 131°F (-40°C ~ 55°C)
T-Code Rating
CID2 – T4A, CIID1 – T4A
