ROUND MAX EMERGENCY HARSH SERIES
SKU RDX EM HS
Description:
The RDX EM is a UL 924-certified emergency LED light engineered for harsh environments. Delivering 6,000–29,000 lumens with LiFePO₄ battery backup, IP66/IP67, and NEMA 4X protection, it ensures reliable, energy-efficient illumination for oil & gas, chemical, marine, and industrial applications.
Product Type & Application: Area & Floodlight, High bay & Low bay, Marine Transportation and logistics, Metal Processing, Oil and gas, Power Generation, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power (W)
40W, 50W, 65W, 85W, 130W, 160W, 200W
VOLTAGE(V)
100-277V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
>102,000 hrs@60°C
Dimming
1-10V
Surge Protection
10KV
Emergency Run Time*
3,000Lm@90mins/ 1,500Lm@180mins
Warranty
Fixture: 5 years, Battery: 3 years
Optical Parameters
Lumen Output*
6,039Lm, 7,580Lm, 9,873Lm, 12,957Lm, 19,714Lm, 23,551Lm, 28,654Lm
Lumen Efficacy*
150Lm/W
Available Beam Angle
30°/ 60°/T1/T3/T5
Correlated Color Temperature (CCT)
3000K/4000K/5000K
Color Rendering Index (CRI)
80 CRI
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Tempered Glass or Polycarbonate
Mounting Options

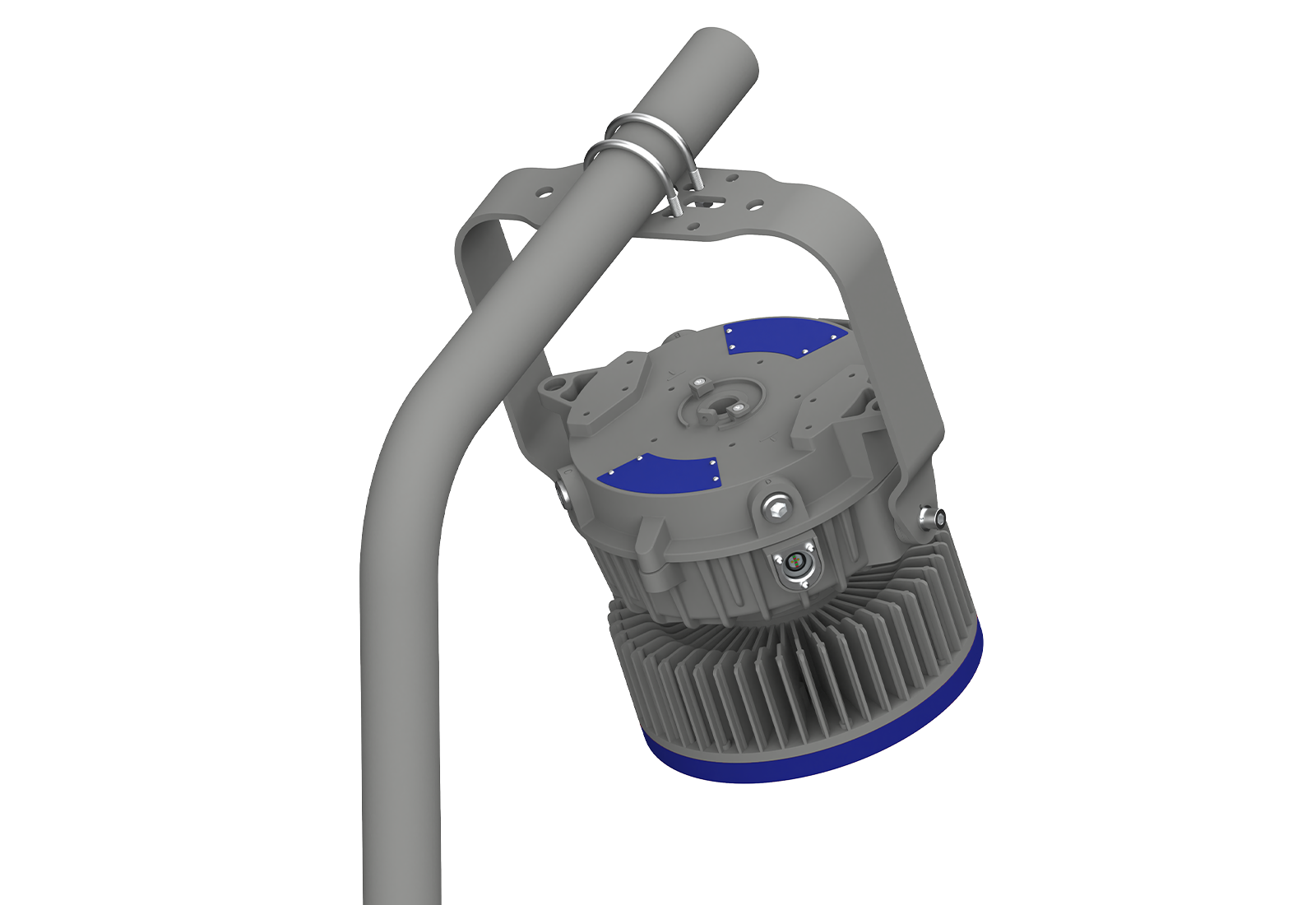

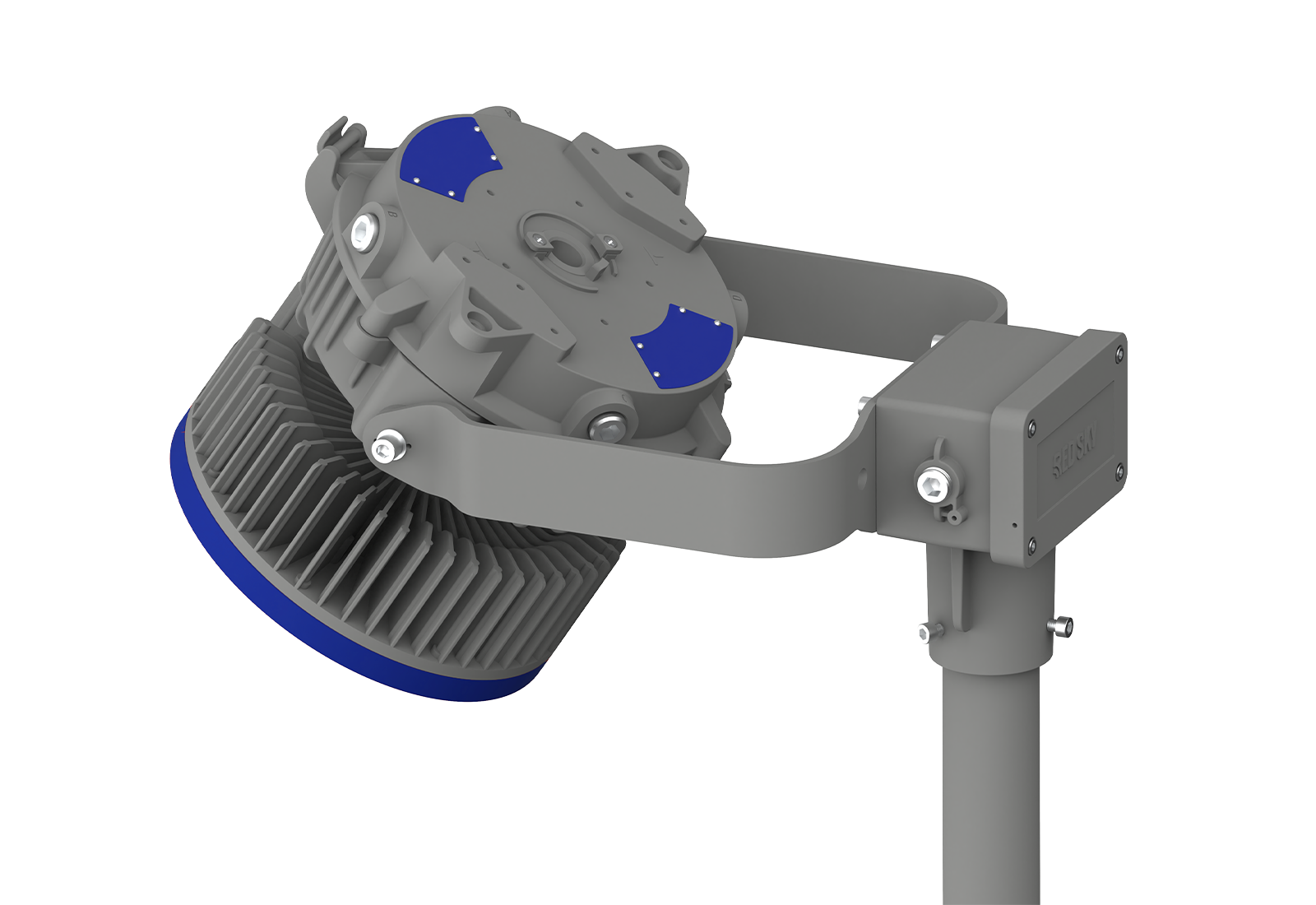

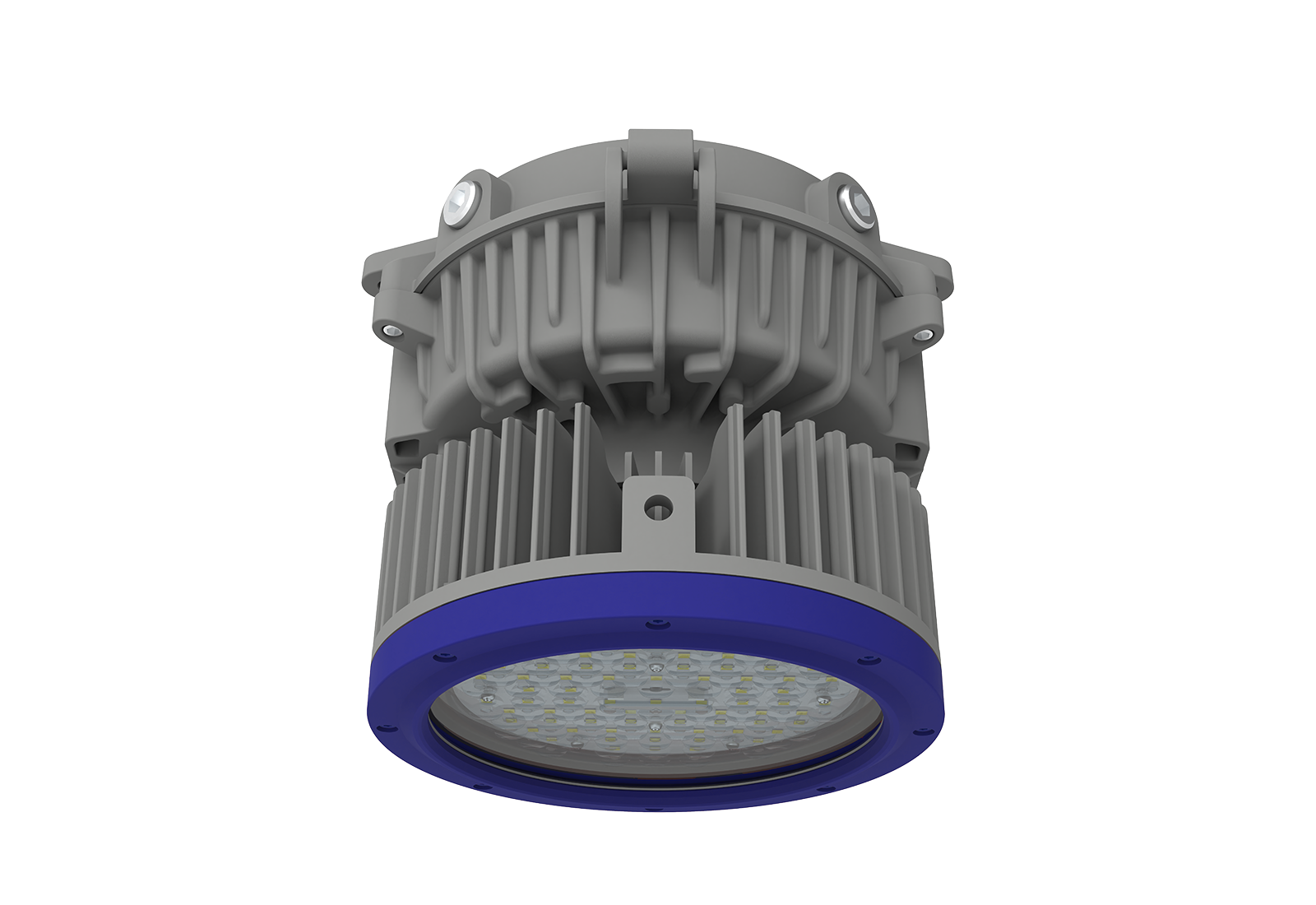

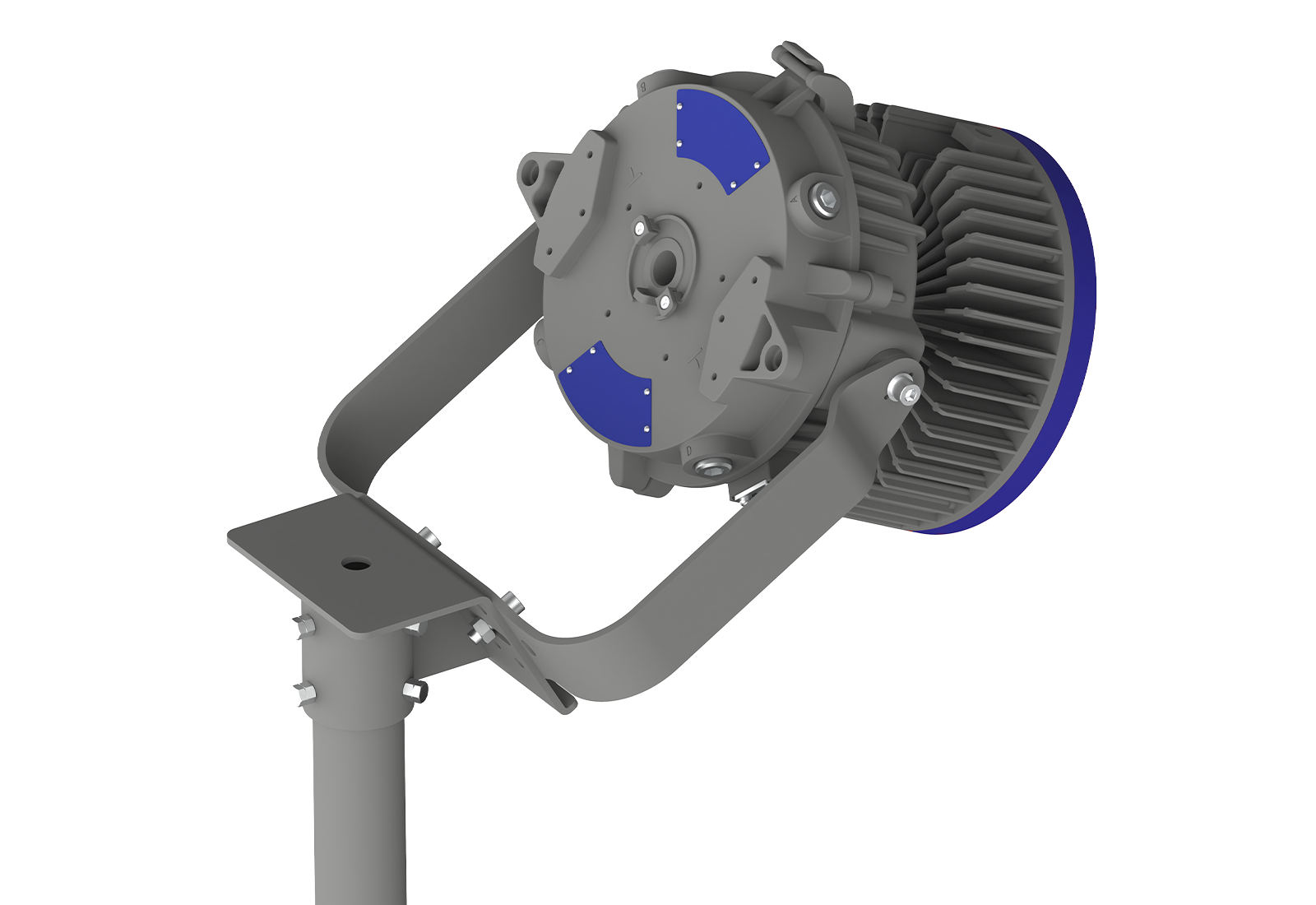

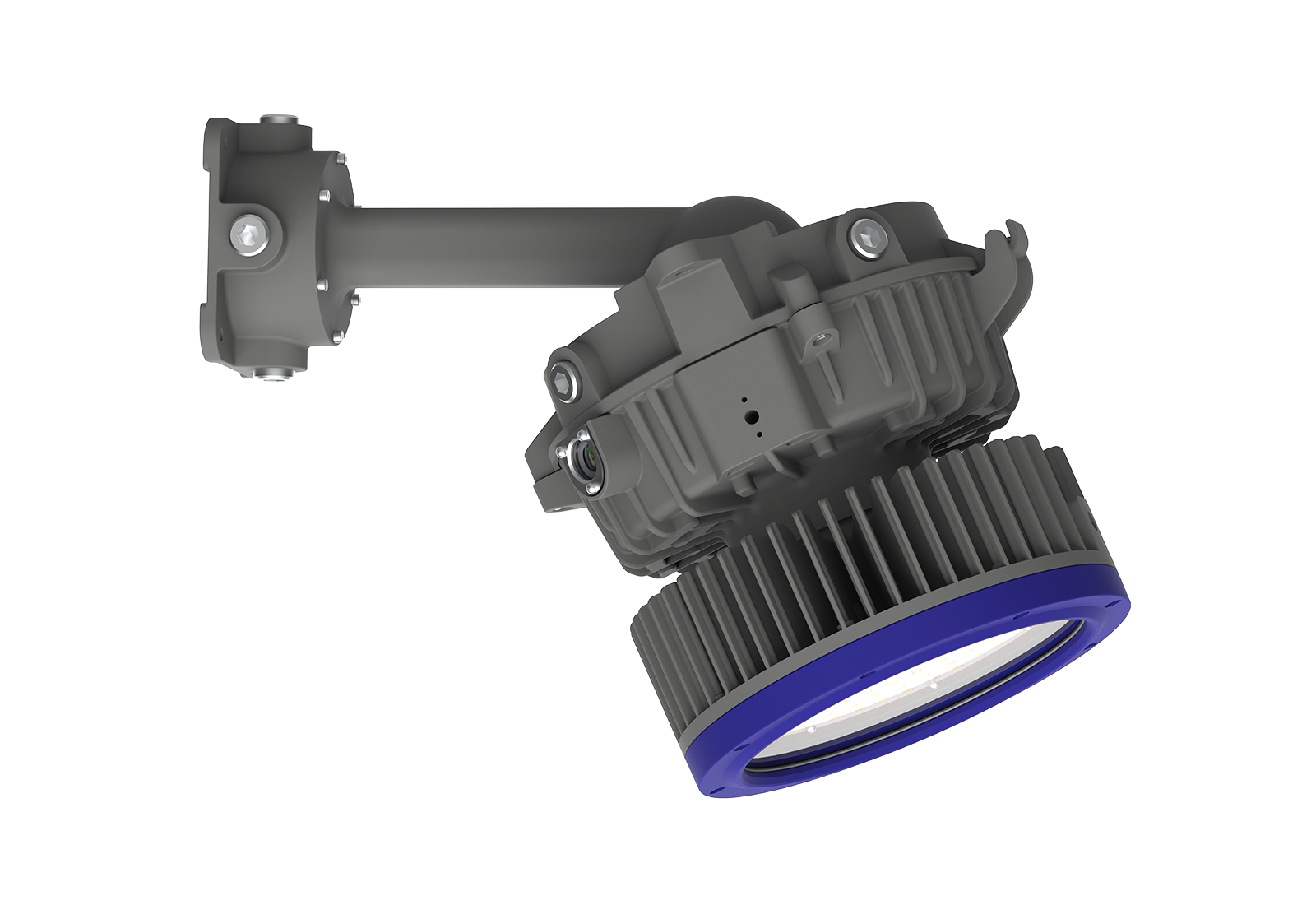

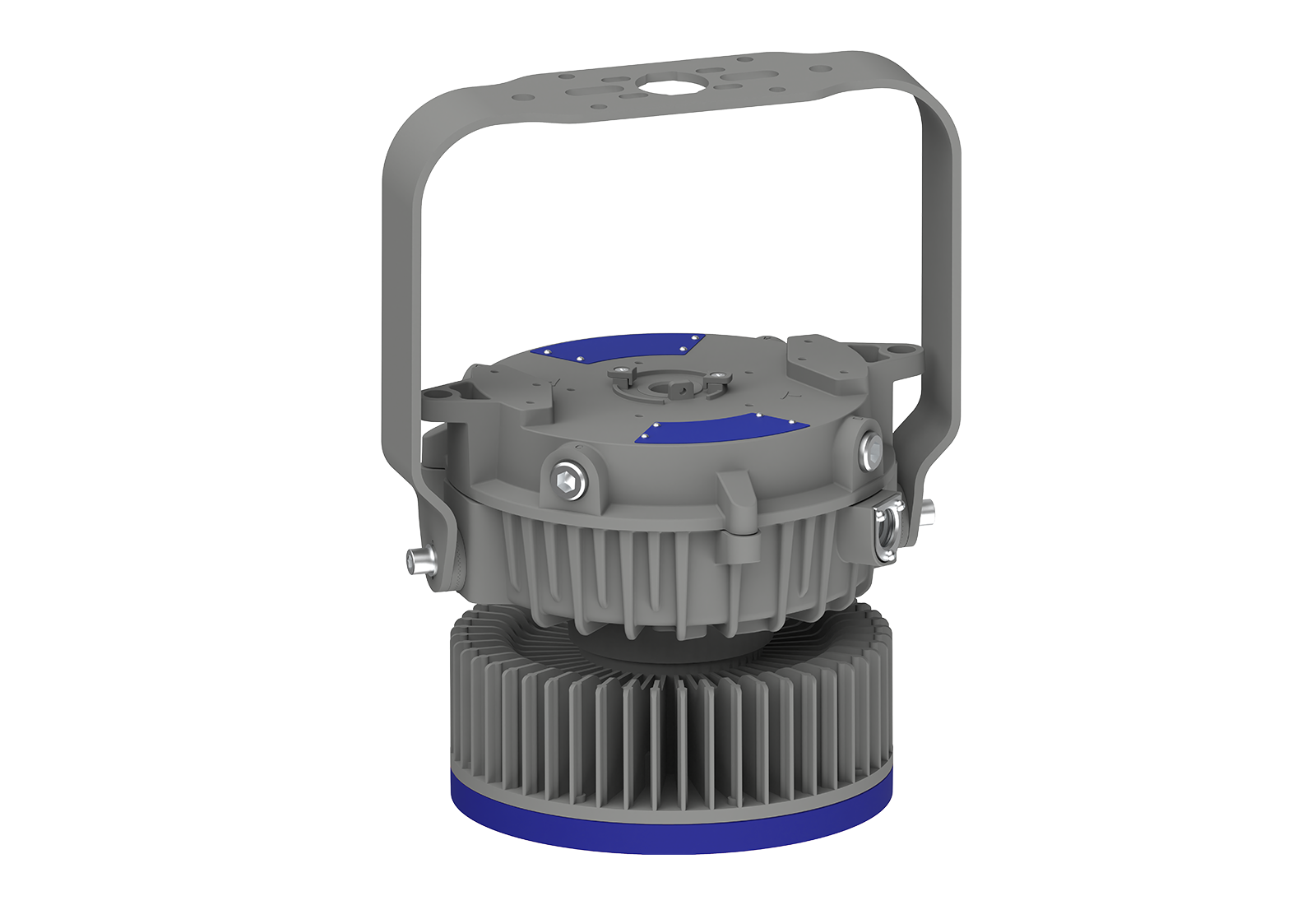

Pendant, Ceiling, Yoke, Wall, Stanchion, Pole, Junction Box, Stanchion Slip Fitter
Product Weight
28lbs/12.7kg
Cable Entry
(5) NPT 3/4”
Product Dimensions(L×W×H)
Flat lens：Φ13×10.7 in (Φ330×271.5 mm) /
Drop lens：Φ13×12.9 in (Φ330×327.3 mm)
Environmental Parameters
Ambient Operating Temperature
40W, 50W, 65W, 85W, 130W, 160W: 32°F ~+140°F (0°C ~ +60°C)
200W: 32°F ~ +131°F(0°C ~ +55°C）
