Description:

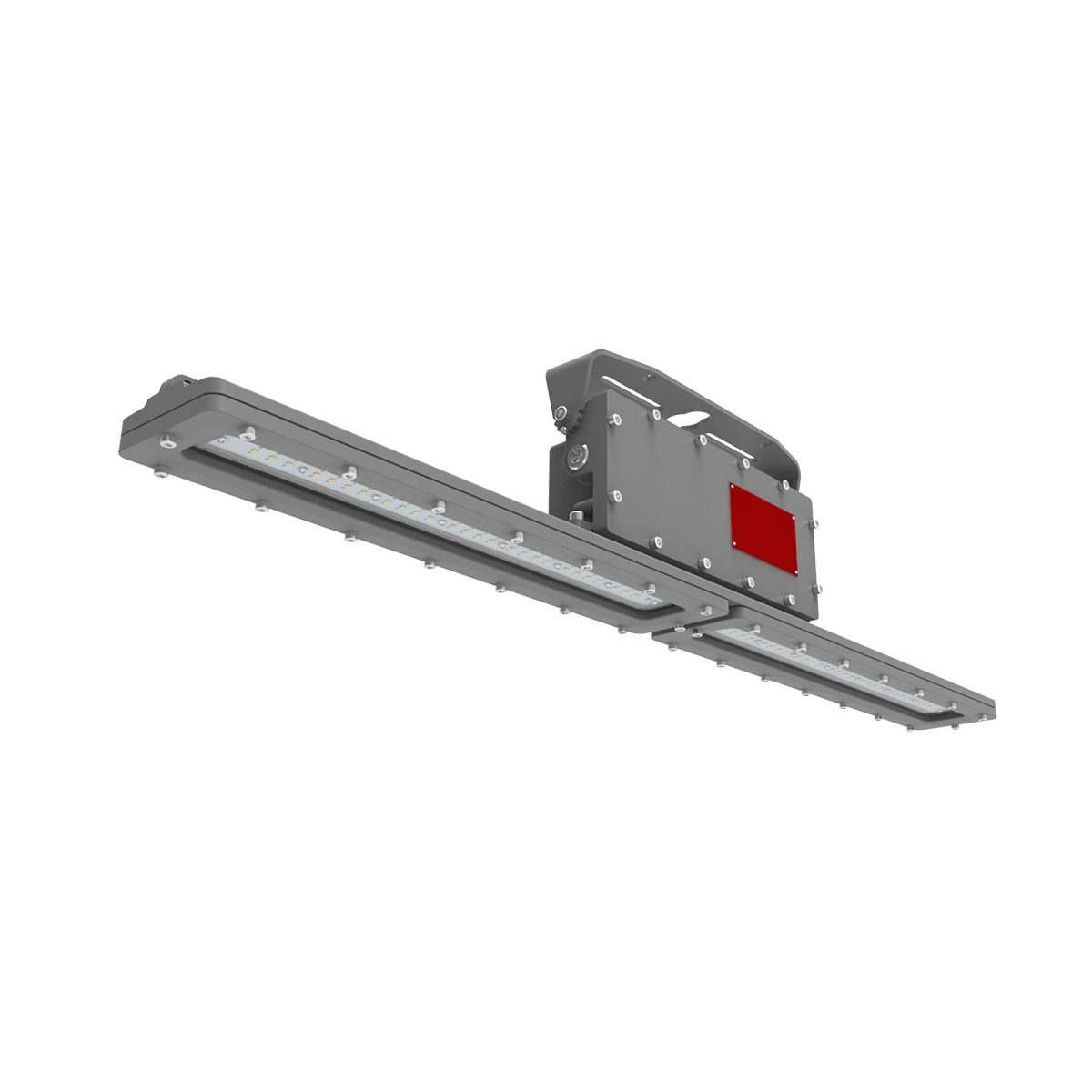

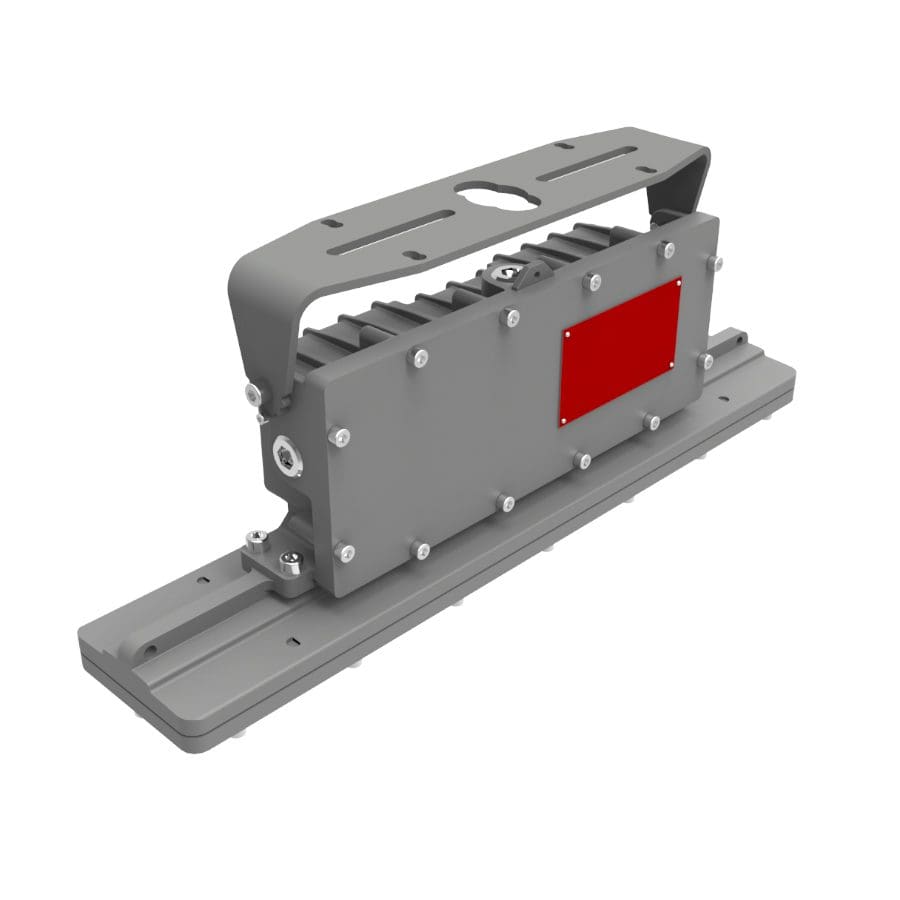

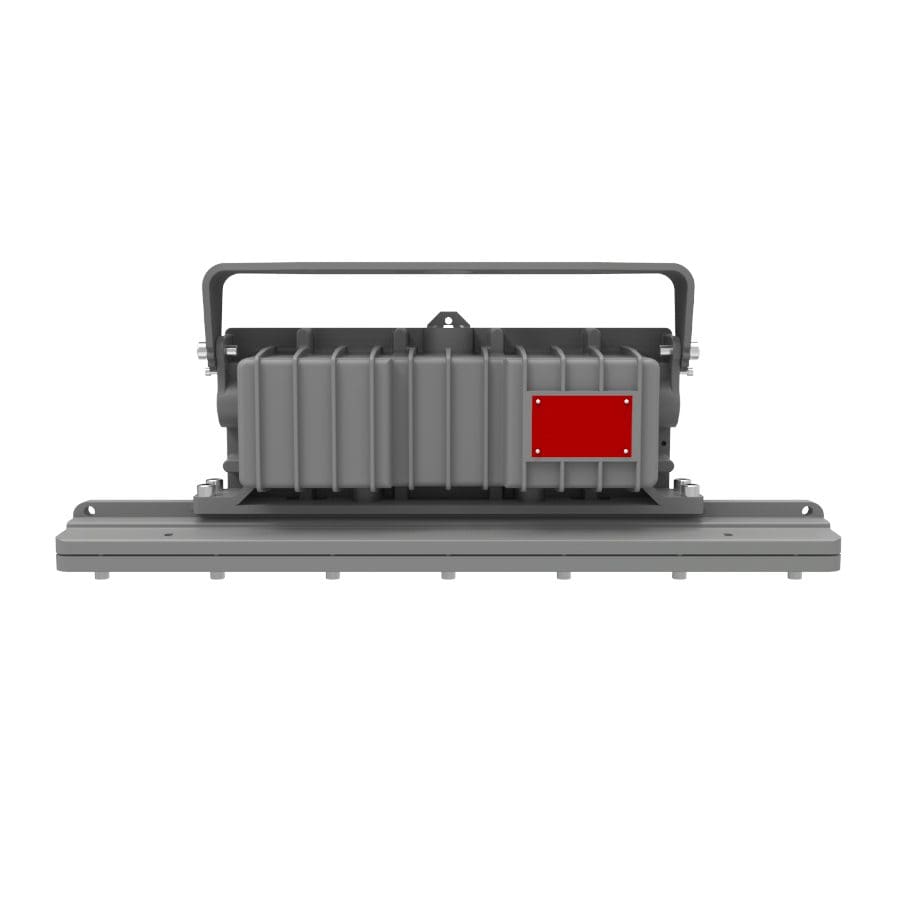

Sleek but rugged, this fixture is designed to meet the most demanding harsh and hazardous environments. Rated up to Class l Division 1, the Linear Tuff is also low maintenance and energy efficient. Available in 2′ and 4′ lengths, this fixture is suitable for low profile applications in petrochemical facilities, marine vessels, drilling rigs, loading docks, and mining tunnels, and oil and gas refineries.
Product Type & Application: Applications, Linear, Marine Transportation and logistics, Oil and gas, Paint Booth, Petrochemical Refining and Processing, Power Generation, Water, wastewater treatment
Specifications
Rating & Classifications
Downloads
Electrical
Power (W)
40W, 80W
VOLTAGE(S)
100-277V AC, 347-480V AC
Frequency
50/60Hz
Power Factor
>90%
THD
<20%
L70
140,000 Hours@144°F
Surge Protection
6KV
Optical
Lumen Output
4425Lm, 9160Lm
Lumen Efficacy
Up to 116Lm/W
Beam Angle(s)
T2, 60°, 110°
CCT
3000K, 4000K, 5000K
CRI
Ra>70
Mechanical
Ambient OPERATING Temperature
-40F to 144F (-40C to 60C)
T-Code Rating
CID1 – T6, CID2 – T3C
Housing Construction
Marine Grade Cast Aluminum
Housing Finish
Thermoset Powercoat
Lens Material
Tempered Glass
Mounting Options

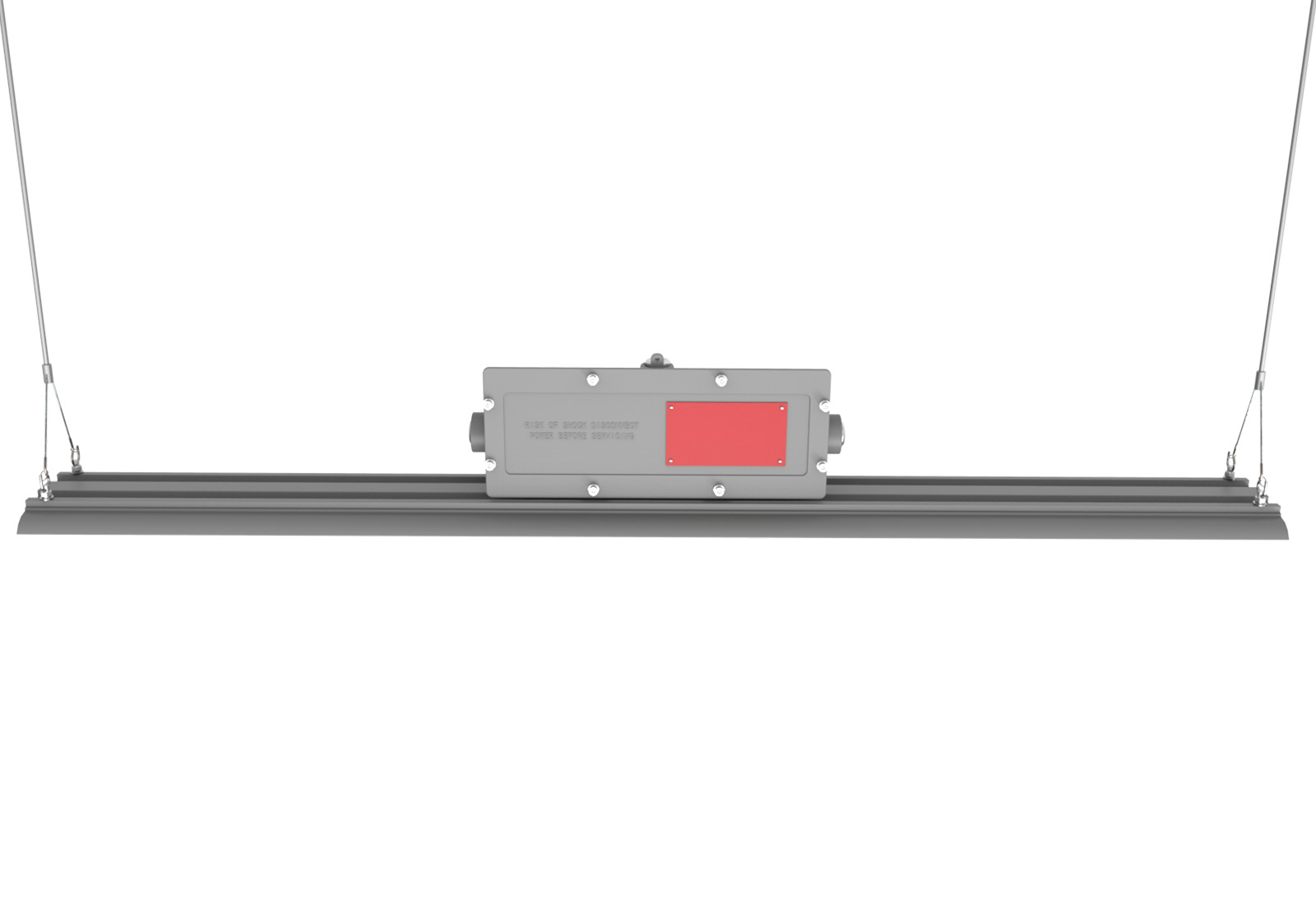

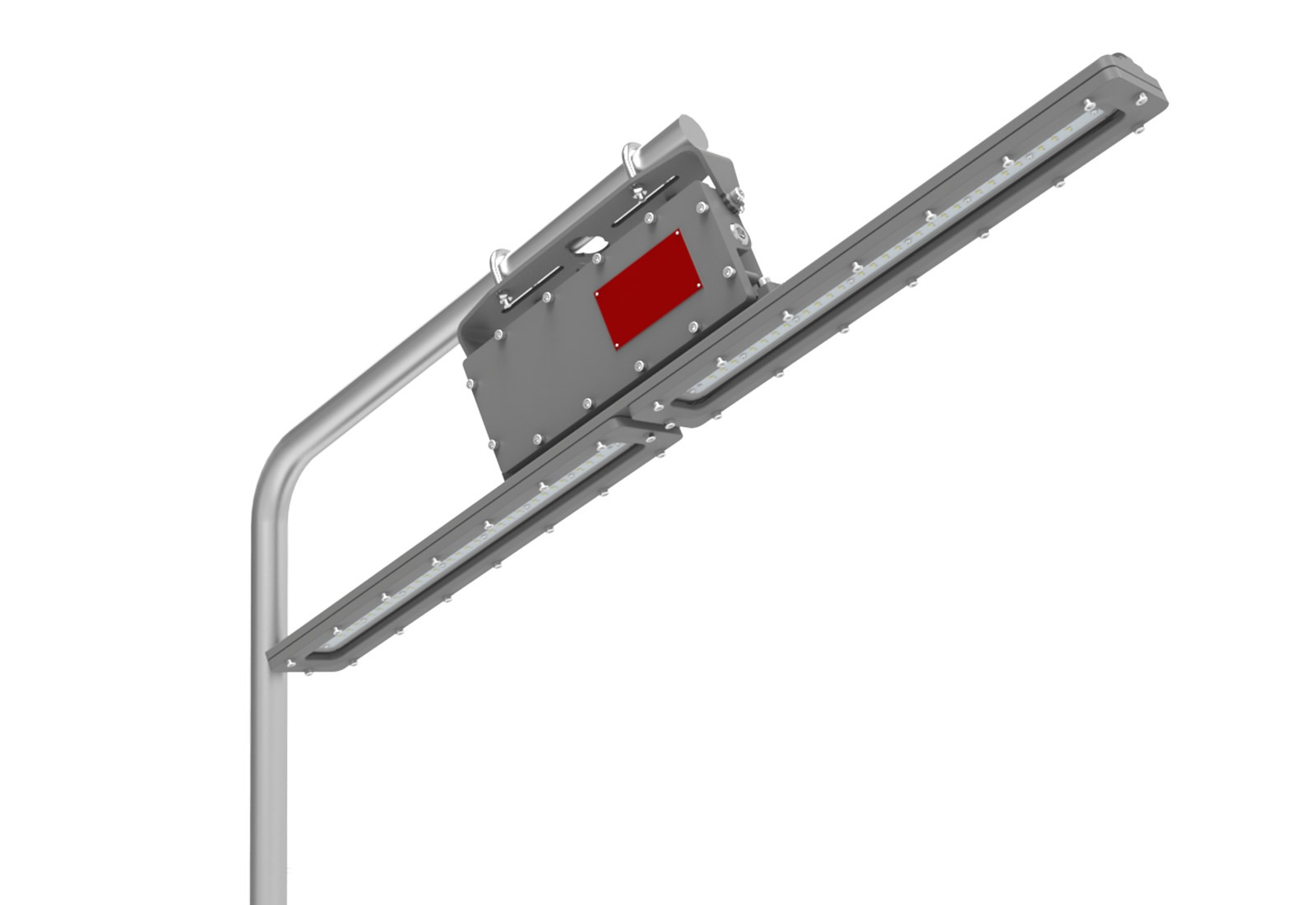

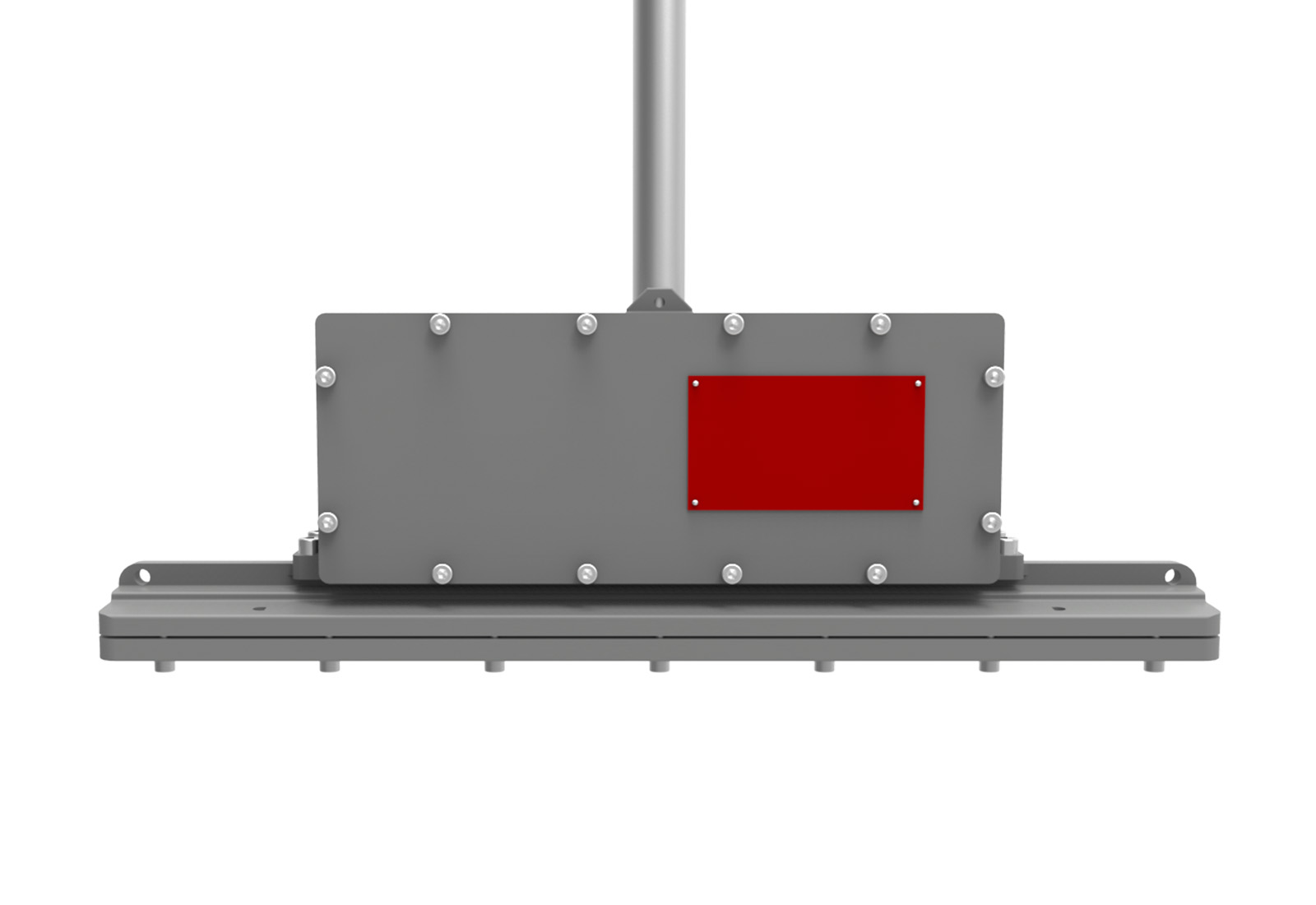

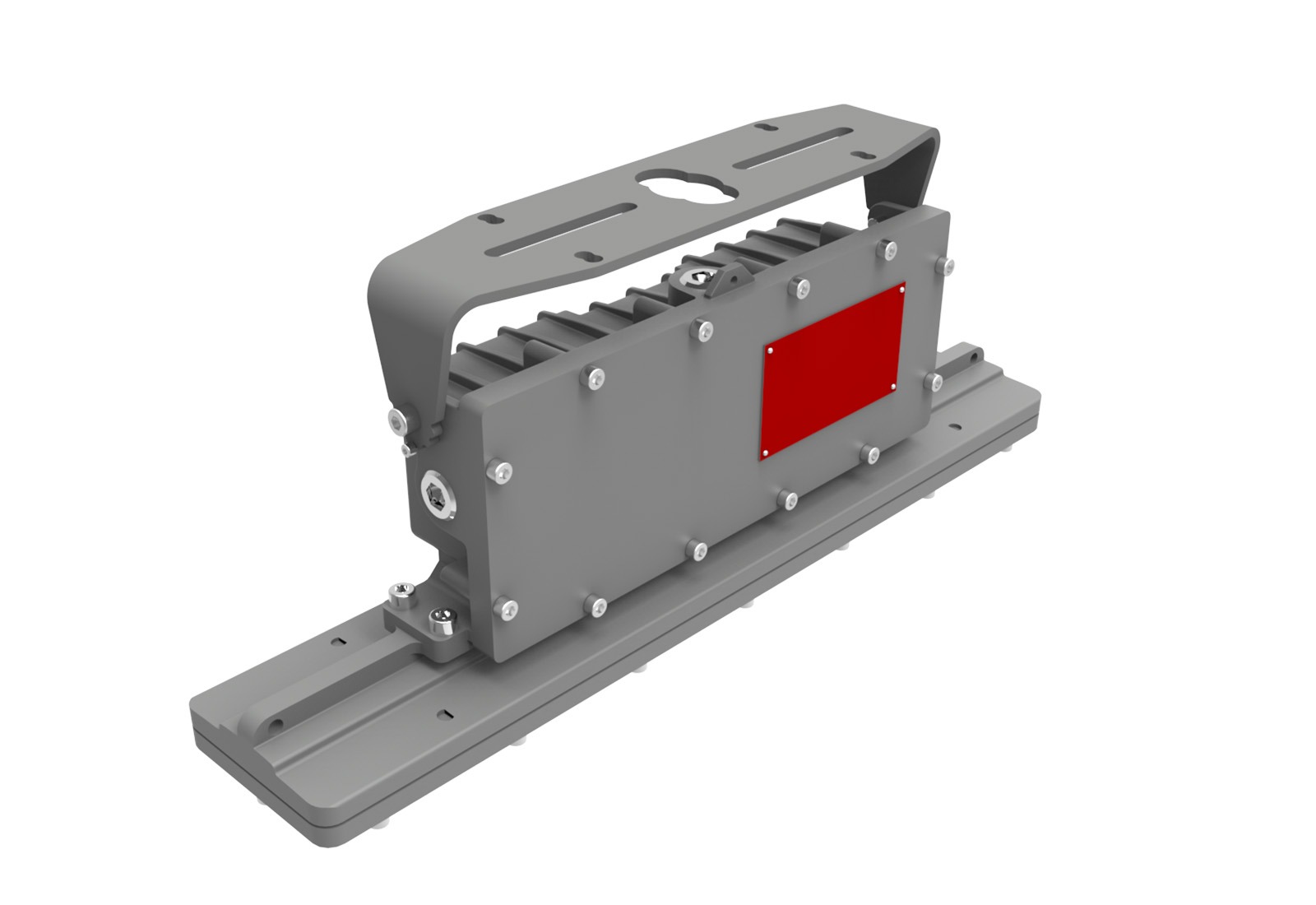

Pendant, Yoke Bracket, Chain, Pipe
Weight
16.3lb/7.4kg, 23.8lb/10.8kg
Dimensions (L×W×H)
40W-544×108×185 mm 21.4×4.3×7.3in, 80W-1100×108×185 mm 43.3×4.3×7.3in
Connections
3/4″ NPT
Warranty/Certifications
Warranty Terms
Driver: 7 years, LEDs: 10 years
Class l Division 1, Groups C,D
Class l Division 2, Groups A,B,C,D
CSA C22.2 No. 250.0-08
CSA C22.2 No.250.13-14
UL 844 Hazardous Location
UL 1598A Marine Vessels/Salt Spray
UL 1598 Wet Location
UL 8750 LED Safety
DLC
IP66
