Description:
With its rugged copper-free aluminum construction, the Linear Series is rated for hazardous environments up to Class I Division 2, protecting against combustible dust, gases, and vapors. Featuring a maintenance-free design, the Linear Series ensures over 147,000 hours of reliable light output at temperatures up to 149°F (65°C), while its robust design and quality enable operation under temperatures as low as -40°F (-40°C).
Specs
Compliance
Download
Electrical Parameters
Power (W)
30W, 40W, 60W, 80W
VOLTAGE(V)
100-277V AC, 347-480V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
147,000 hrs@149°F
Dimming
0-10V, Range 10-100%
Surge Protection
100-277Vac: 10KV, 6KV 347-480Vac: L\N-FG 4KV, L-N 2KV, 6KV
Warranty
LEDs: 10 years, Driver: 7 years
Optical Parameters
Lumen Output
4,426Lm, 5,795Lm, 9,185Lm, 12,026Lm
Lumen Efficacy
150Lm/W
Correlated Color Temperature (CCT)
3000K/4000K/5000K
Color Rendering Index (CRI)
Ra>70
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Polycarbonate

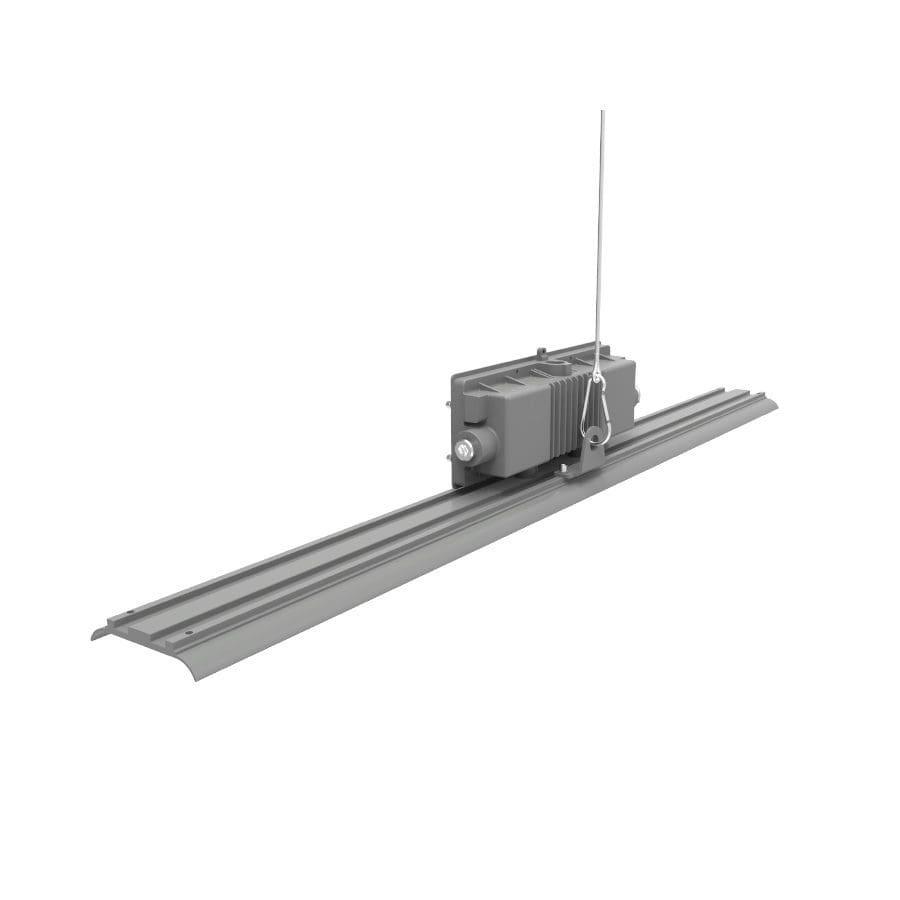

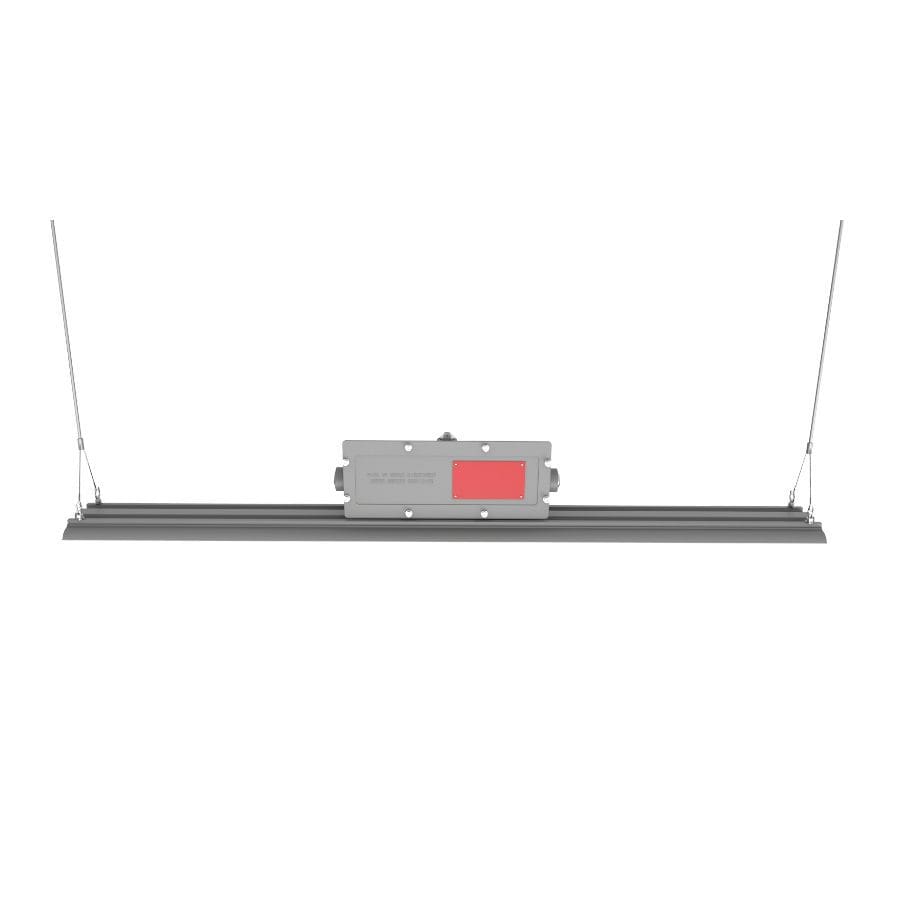

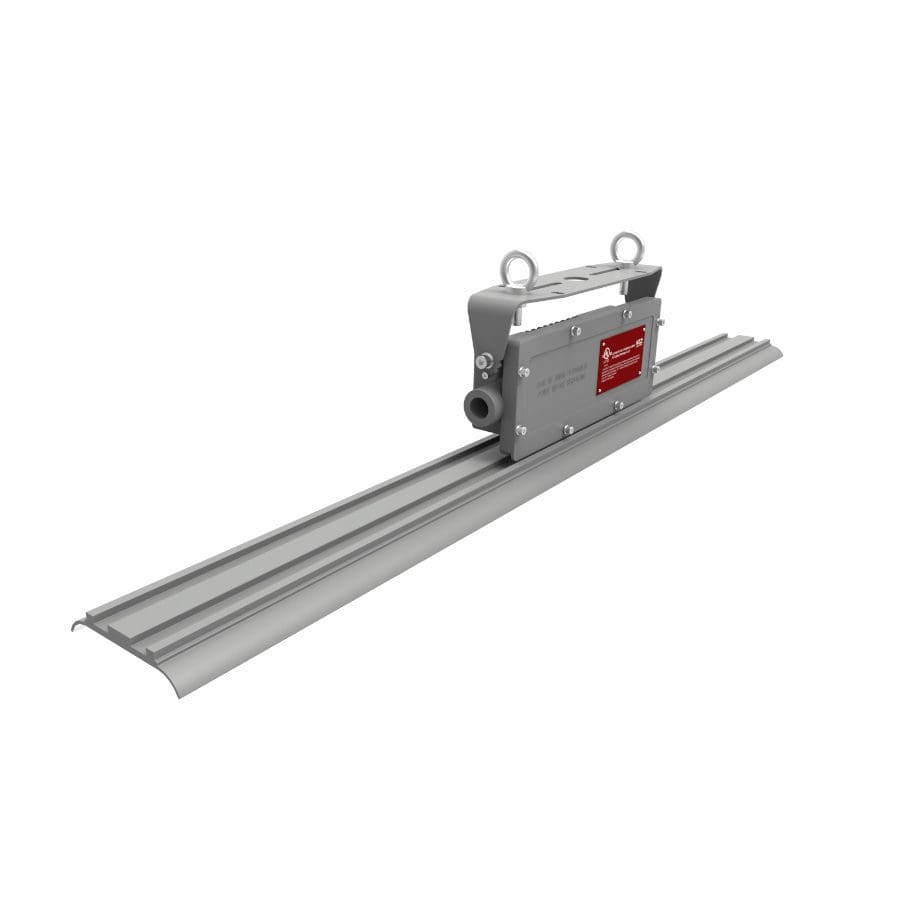

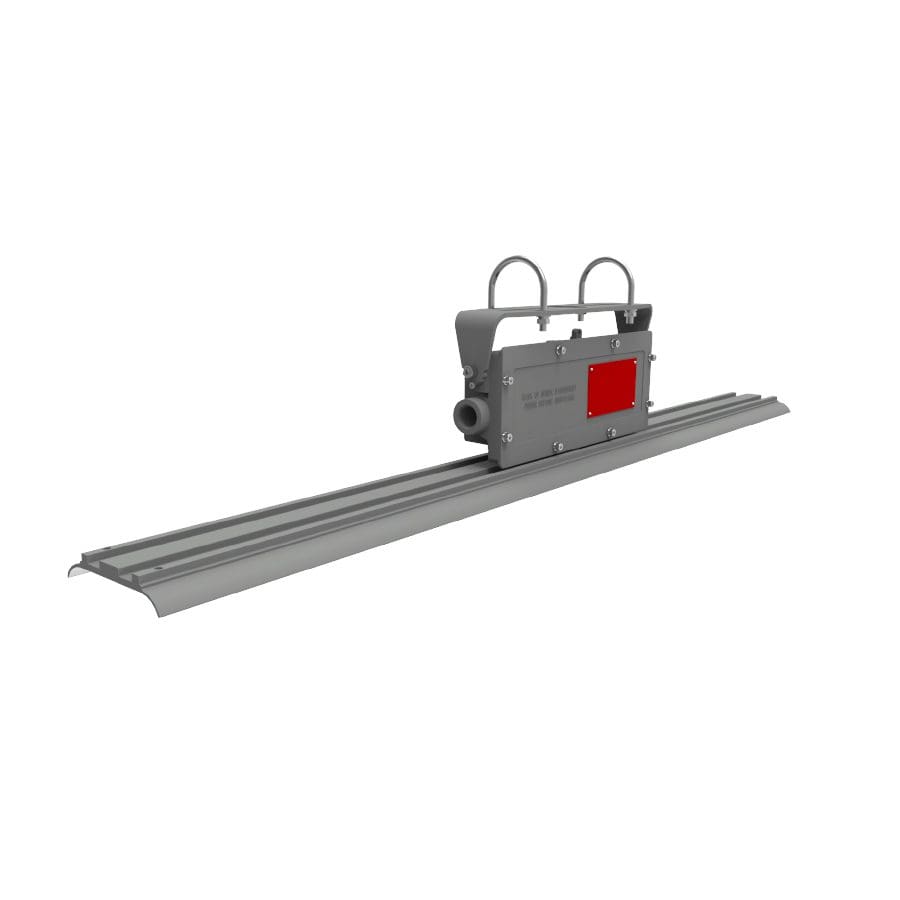

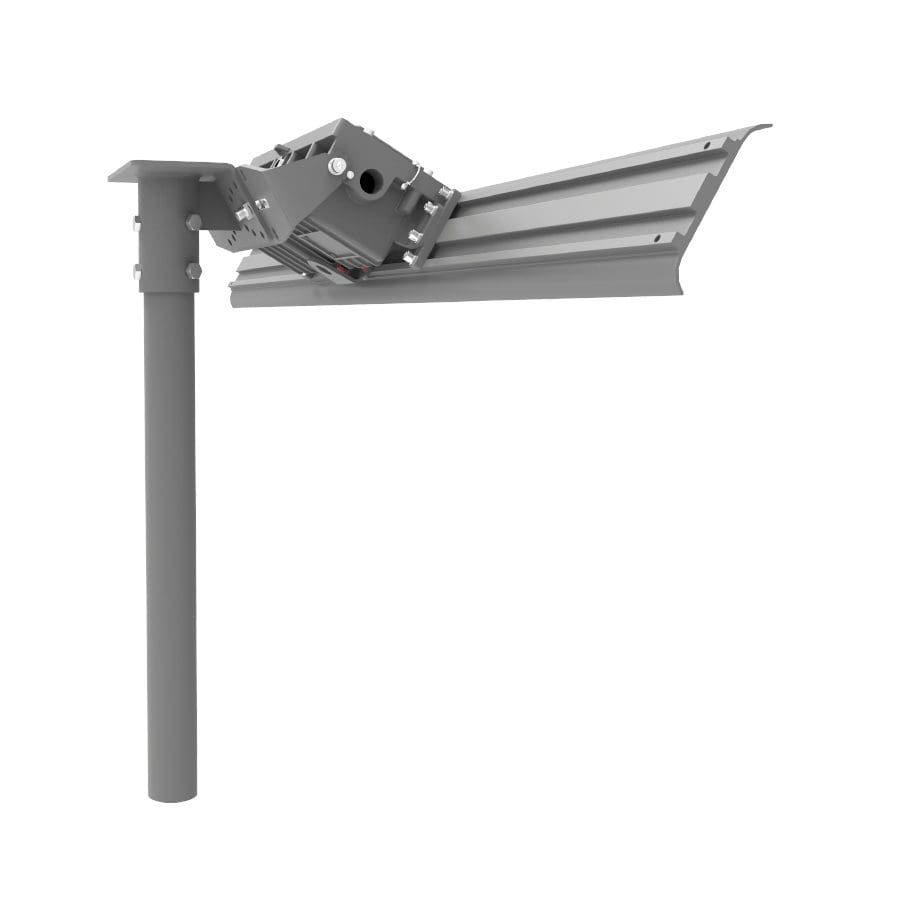

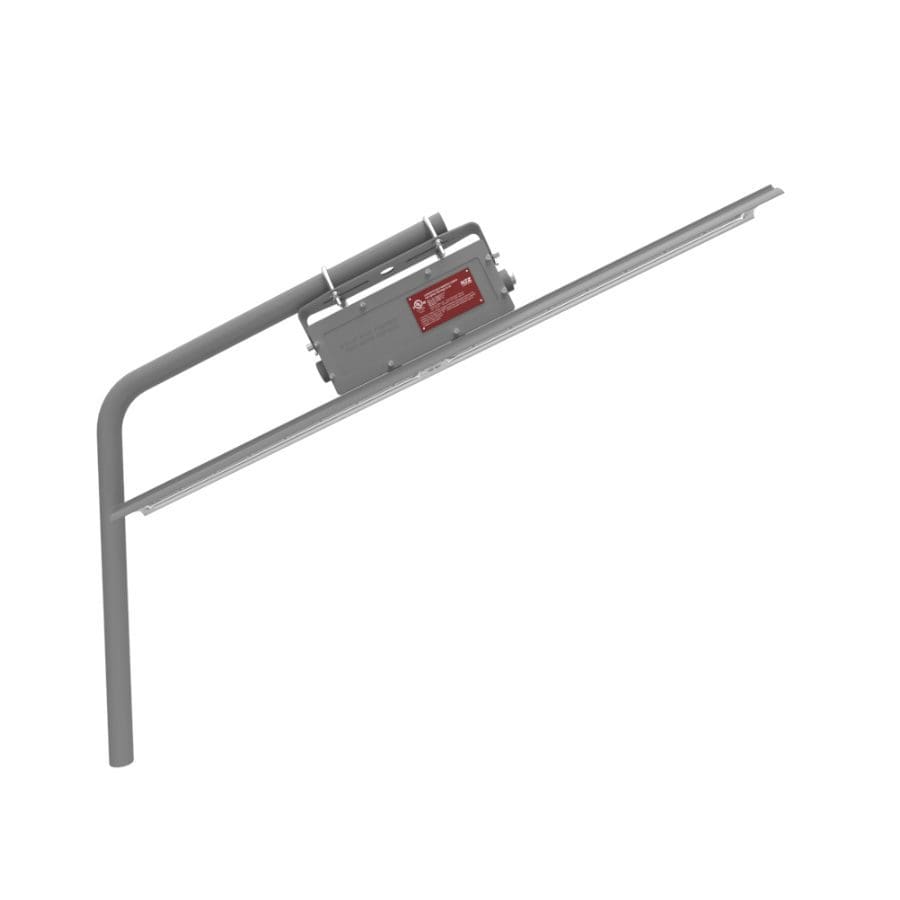

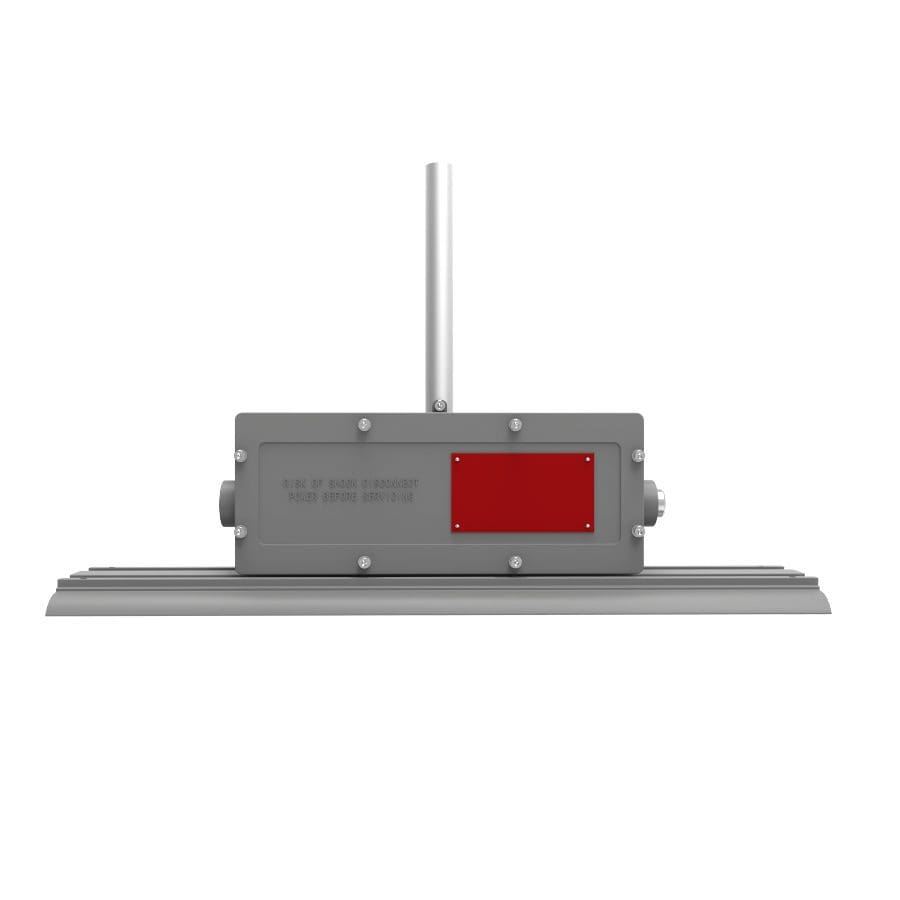

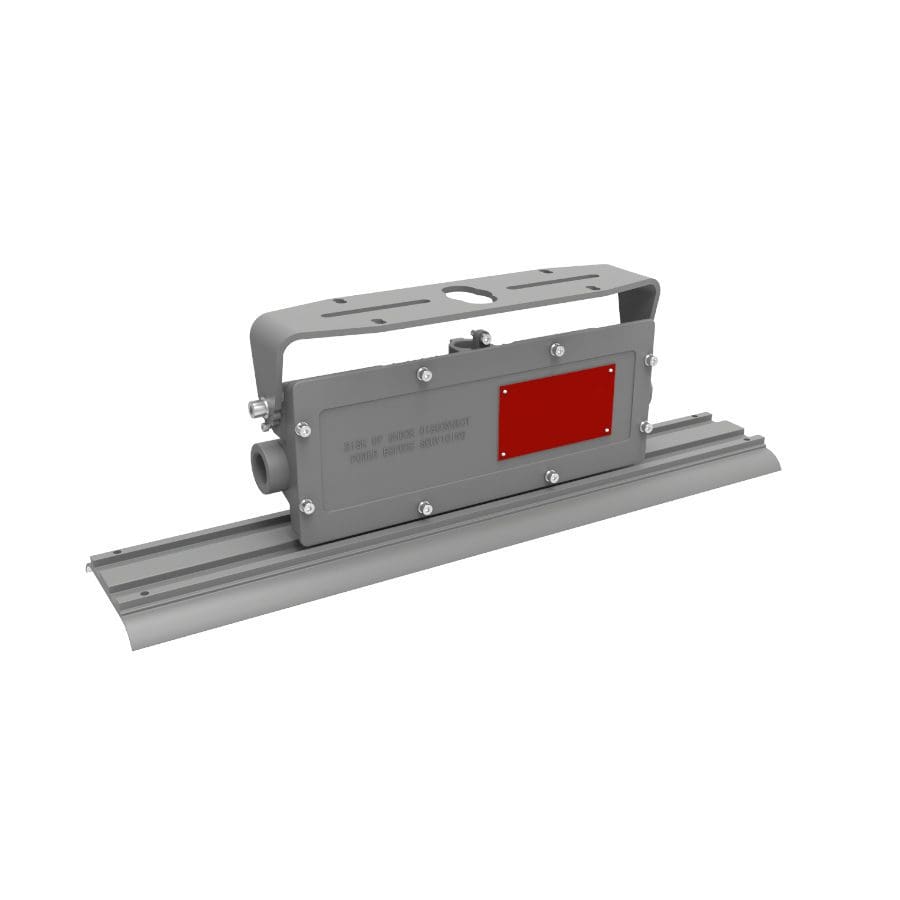

Mounting Options
Pendant, Yoke, Chain, Pole, Stanchion
Product Weight
11.0lbs/5.0kg, 14.68lbs/6.66kg
Cable Entry
(3) 3/4″ NPT
Product Dimensions(L×W×H)
23.6×5.0×6.6in(600×127×168 mm), 47.2×5.0×6.6in(1200×127×168 mm)
Environmental Parameters
Ambient Operating Temperature
C1D2@-40°F ~ 149°F (-40°C ~ 65°C), C2D1@-40°F ~ 122°F (-40°C ~ 50°C)
T-Code Rating
T4A
Ratings:
Class I Division 2, Groups A, B, C, D
Class II Division 1 Group E, F, G
Class II Division 2, Groups F, G
Class III
Class I, Zone 2, Group IIC
Zone 21, Group IIIC
UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
IP66
IK08
NEMA 4X
Salt Spray 720 hrs (ISO 9227)
Certifications:
UL844
UL1598
UL1598A
CSA C22.2 No.250.0
CSA C22.2 No.137
FCC Part 15, Subpart B
DLC Standard
