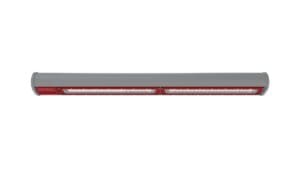

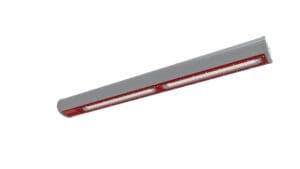

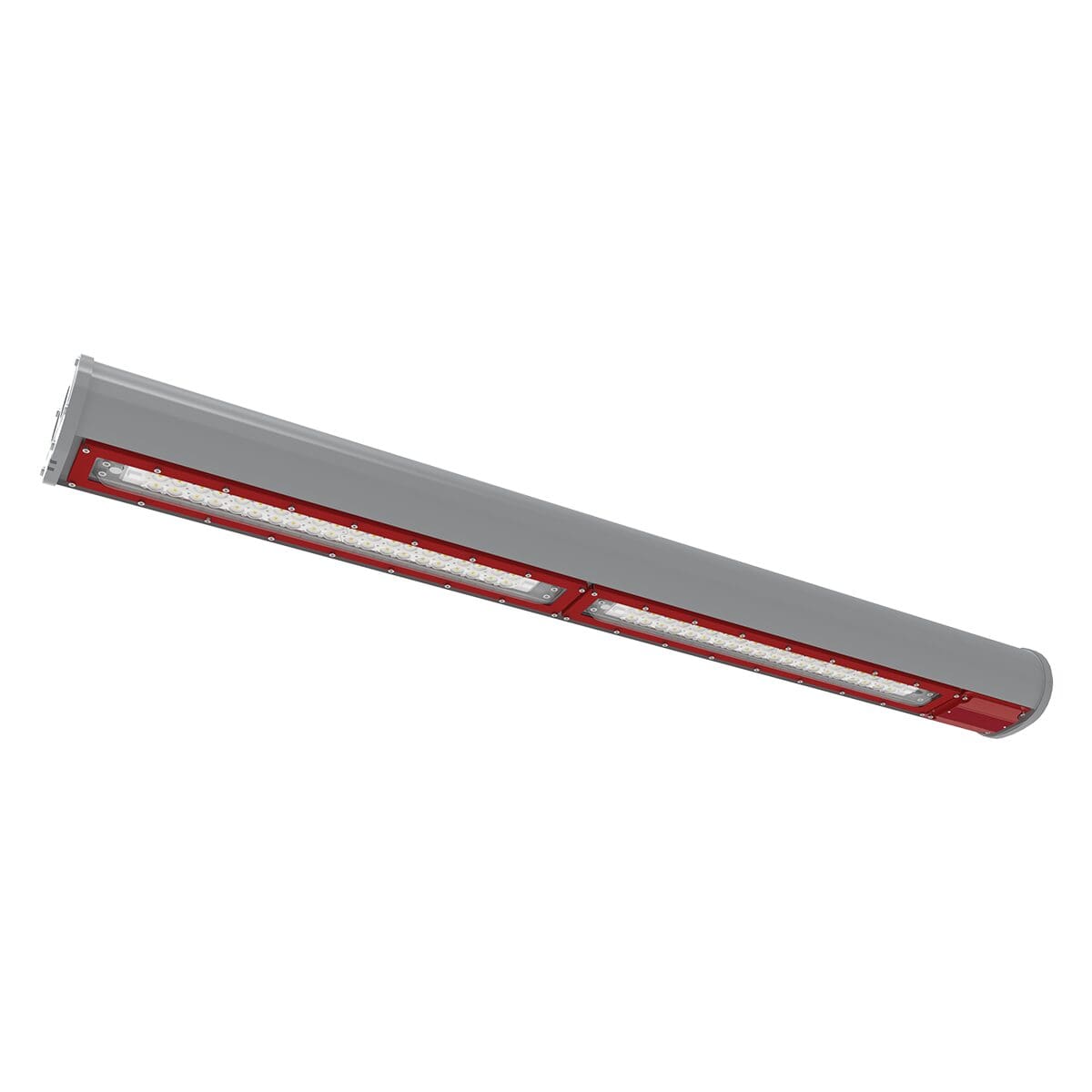

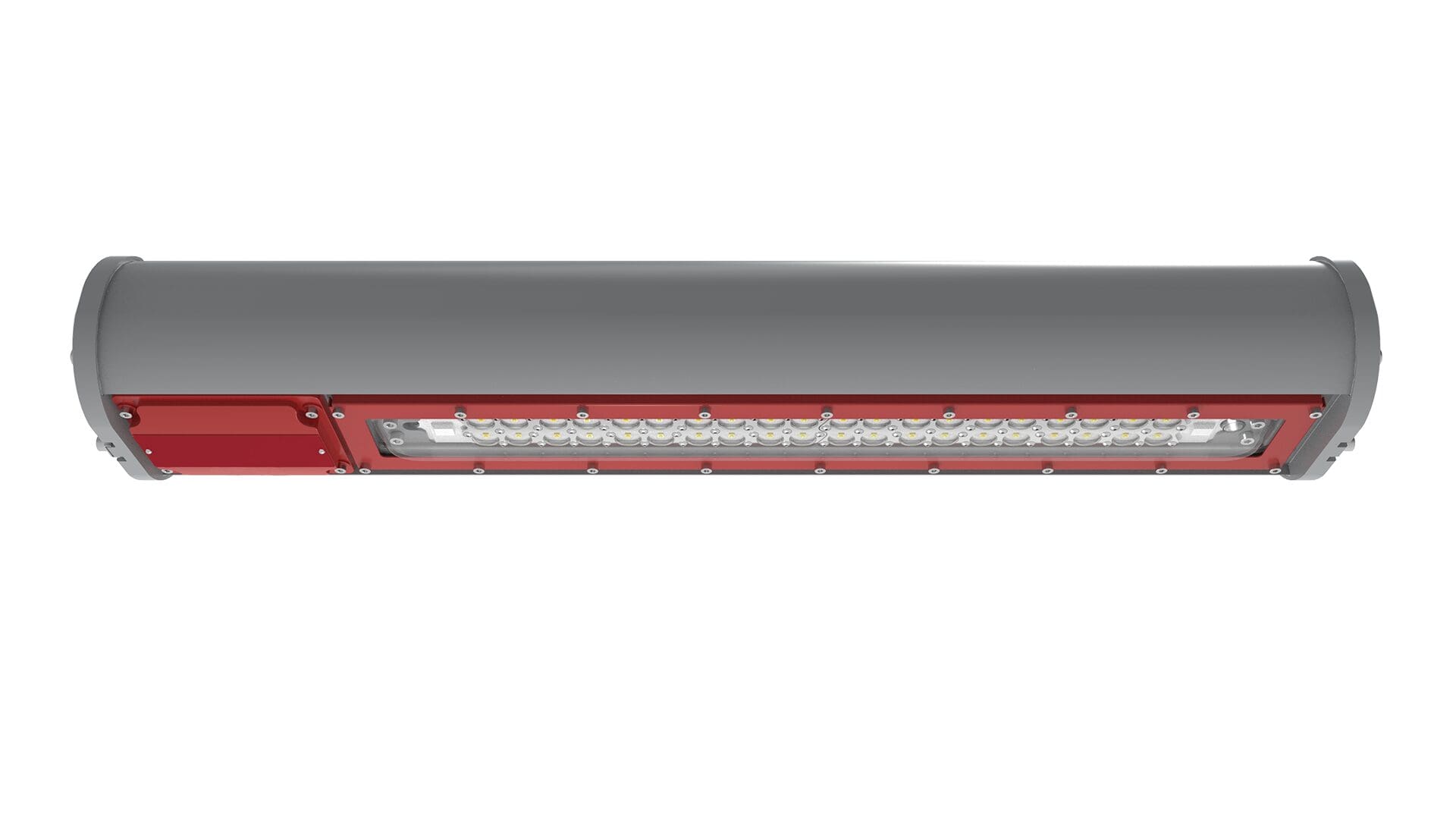

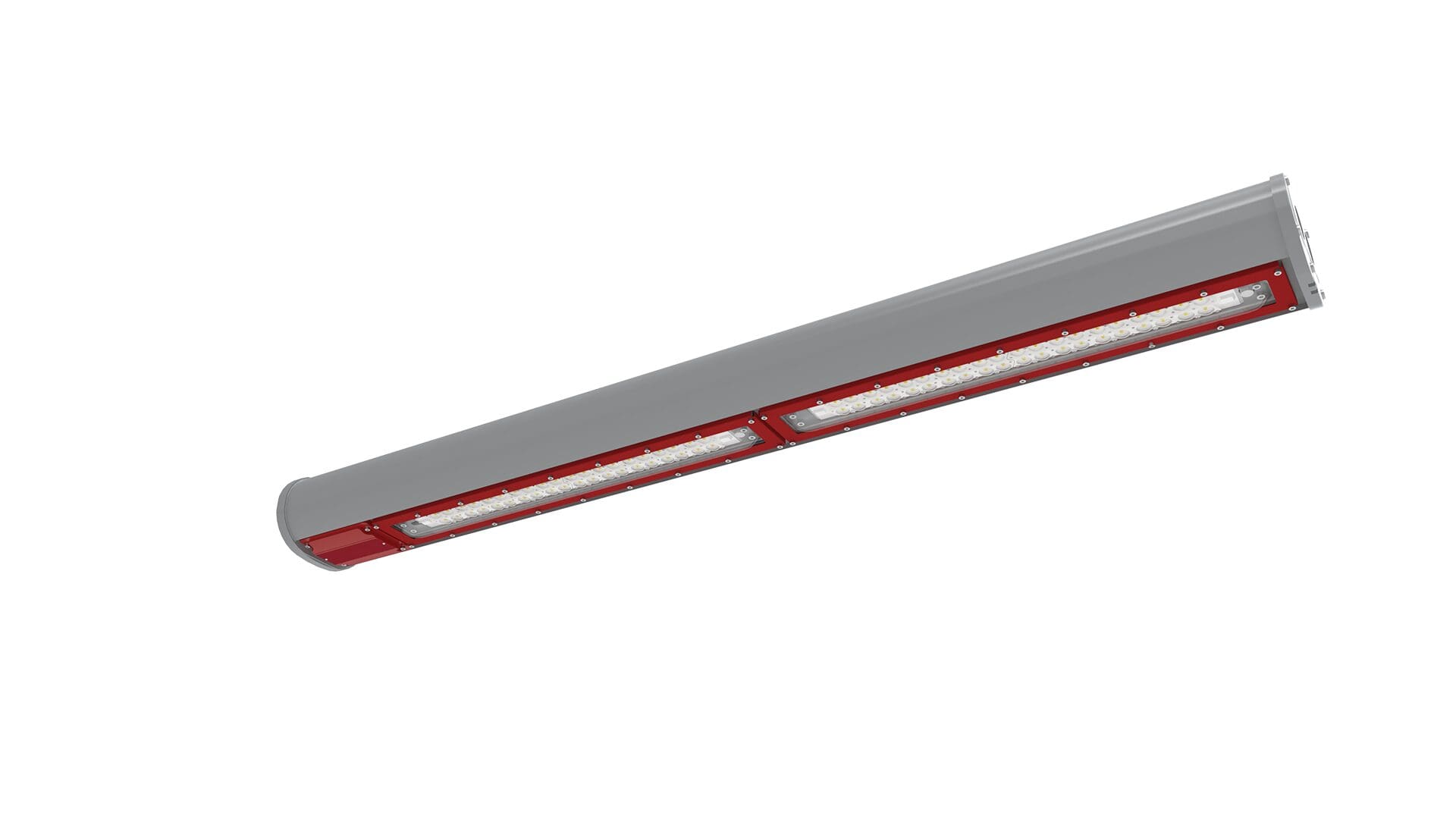

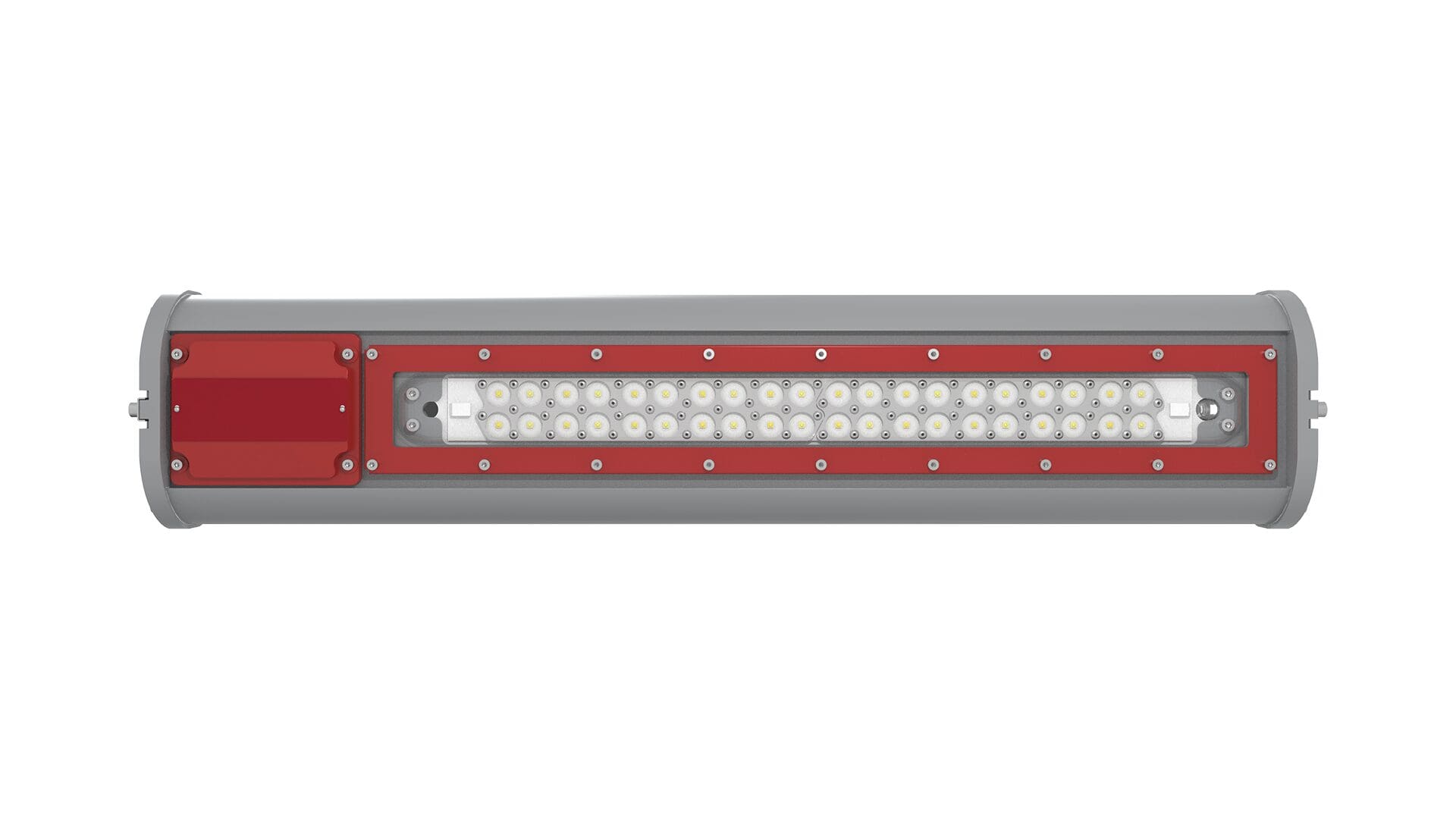

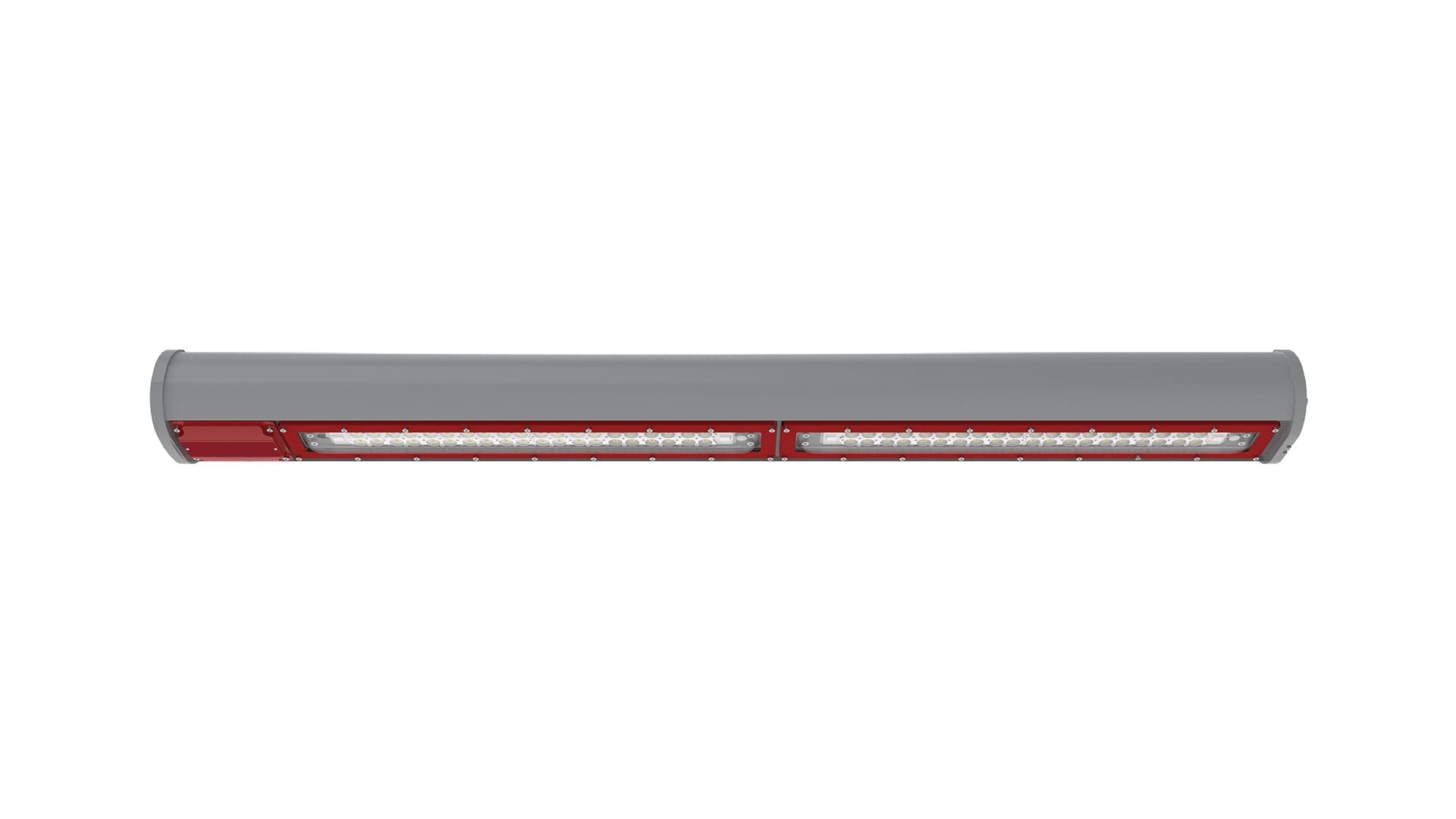

Linear Low Pro Series
SKU LLP
Description:
ATEX and IECEX certified
Product Type & Application: Metal Processing, Agriculture, Emergency, Linear, Oil and gas, Power Generation, Pulp, Paper and Wood, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power (W)
20W, 40W, 50W, 60W, 80W, 100W
VOLTAGE(V)
120-277V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
≤20%
L70
470,000 hrs@55°C
Dimming
0-10V, Range 10-100%
Surge Protection
6KV
Warranty
Fixture: 5 Years, Battery: 1 Year
Optical Parameters
Lumen Output**
2,208Lm, 4,164Lm, 5,525Lm, 6,448Lm, 8,676Lm, 10,296Lm
Lumen Output(EM)**
EM6-6W(866Lm@180Mins) /EM12-12W (1,657Lm@90Mins)
Lumen Efficacy**
120Lm/W
Available Beam Angle
110°
Correlated Color Temperature (CCT)
4000K/5700K
Red/Green/Blue/Amber
Color Rendering Index (CRI)
Ra>70
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Polycarbonate
Mounting Options
Low Ceiling, High Ceiling, Wall, Eyebolt, Pole
Product Weight
20W: A: 6.3kg/13.89 lbs
B: 6.7kg/14.77 lbs
40W: A: 6.3kg/13.89 lbs
B: 6.7kg/14.77 lbs C:9.5kg/20.94 lbs
50/60/80/100W:
C: 9.5Kg/20.94 lbs
D: 9.9Kg/21.83 lbs
Cable Entry
(4) M20/M25
Product Dimensions(L×W×H)
20W:
A: 747×158×111
B: 864×158×111
40W:
A: 747×158×111
B: 864×158×111
C: 1332x158x111
50/60/80/100W:
C: 1332×158×111
D:1449×158×111
Environmental Parameters
Ambient Operating Temperature
-40°C~+55°C, -20°C~+50°C(Emergency)
T-Code Rating
20/40/50W:
T6 (Gas Environment)
T80°C (Dust Environment)
60/80/100W:
T5 (Gas Environment)
T80°C (Dust Environment)
