SERIOUSLY SAFE LIGHTS™

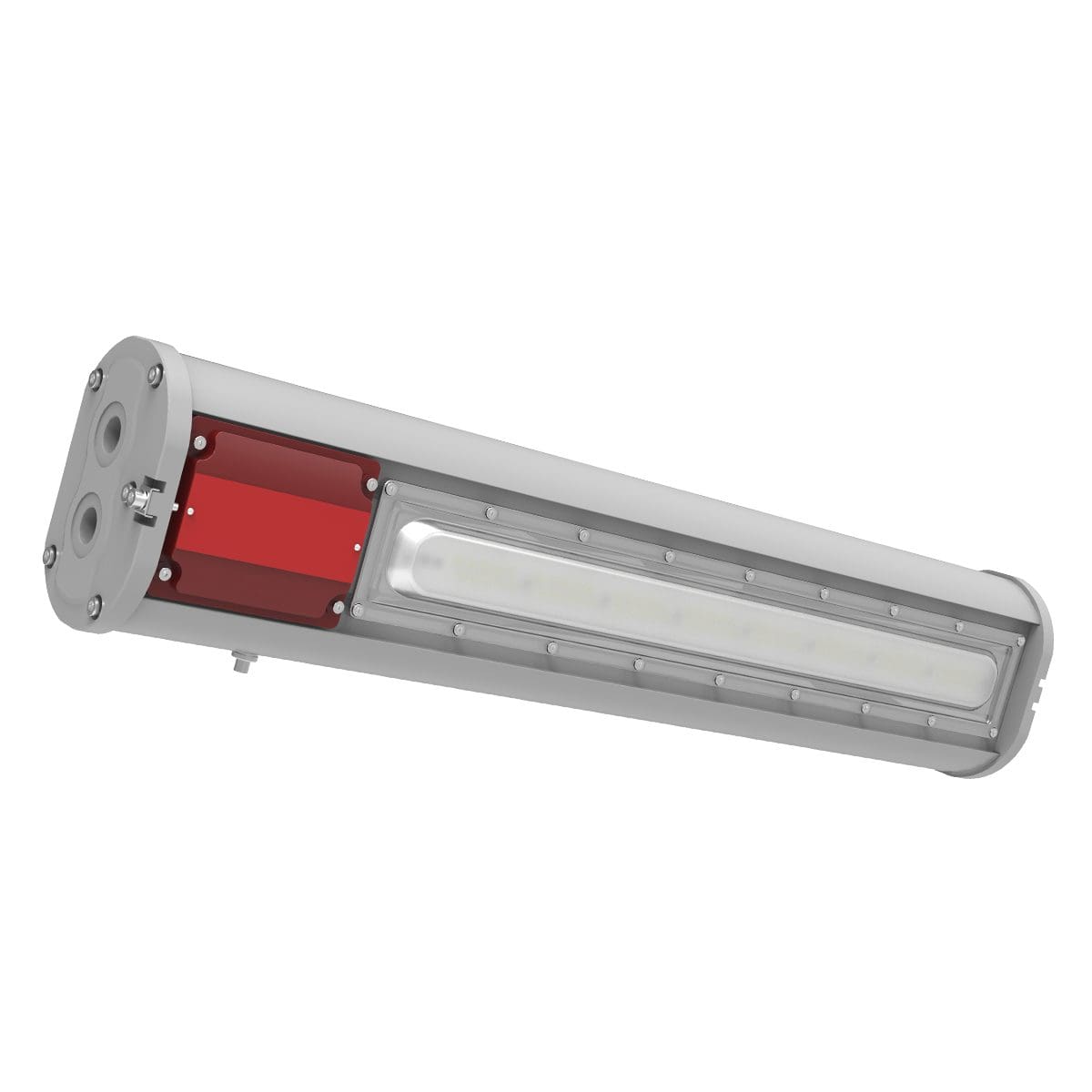

Linear Harsh Series

SKU LNH

Description:

Linear Harsh Series LED Luminaire is built for installations in heavy and harsh industrial applications where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient can be expected.
Linear Harsh Series is a perfect solution to replace existing fluorescent lighting systems (T12, T8 and T5HO) with four wattages from 3,500 to 13,000 lumens and provides up to 1,500 lumens illumination for 90 minutes of emergency lighting during a power outage.

Electrical

Power (W)

25W, 75W, 50W, 100W

VOLTAGE(S)

100-240V AC

Frequency

50/60Hz

Power Factor

>95%

THD

<20%

L70

150,000 Hours@55°C

Surge Protection

6KV Line-to ground
Optical

Lumen Output

10206Lm, 12911Lm, 3566Lm, 6343Lm

Lumen Efficacy

125Lm/W @5000K

Beam Angle(s)

110°

CCT

2700K, 4000K, 5000K, 5700K, Red, Amber, Green, Blue

CRI

Ra>70
Mechanical

Ambient OPERATING Temperature

-40°F to 131°F (-40°C to 55°C), 32°F to 122°F (0°C to 50°C EM)

T-Code Rating

Dust – 80℃, Gas – T5 (60 to 100W), Gas – T6 (20 to 60W)

Housing Construction

Stainless steel 316

Housing Finish

Thermoset Powercoat

Lens Material

Polycarbonate

Mounting Options

Wall, Ceiling (Flush mount ), Pole, Suspended (Chain /Eyebolt )

Weight

25/50W: 6.3Kg/13.9Lb, 75/100W: 9.5Kg/20.9Lb

Dimensions (L×W×H)

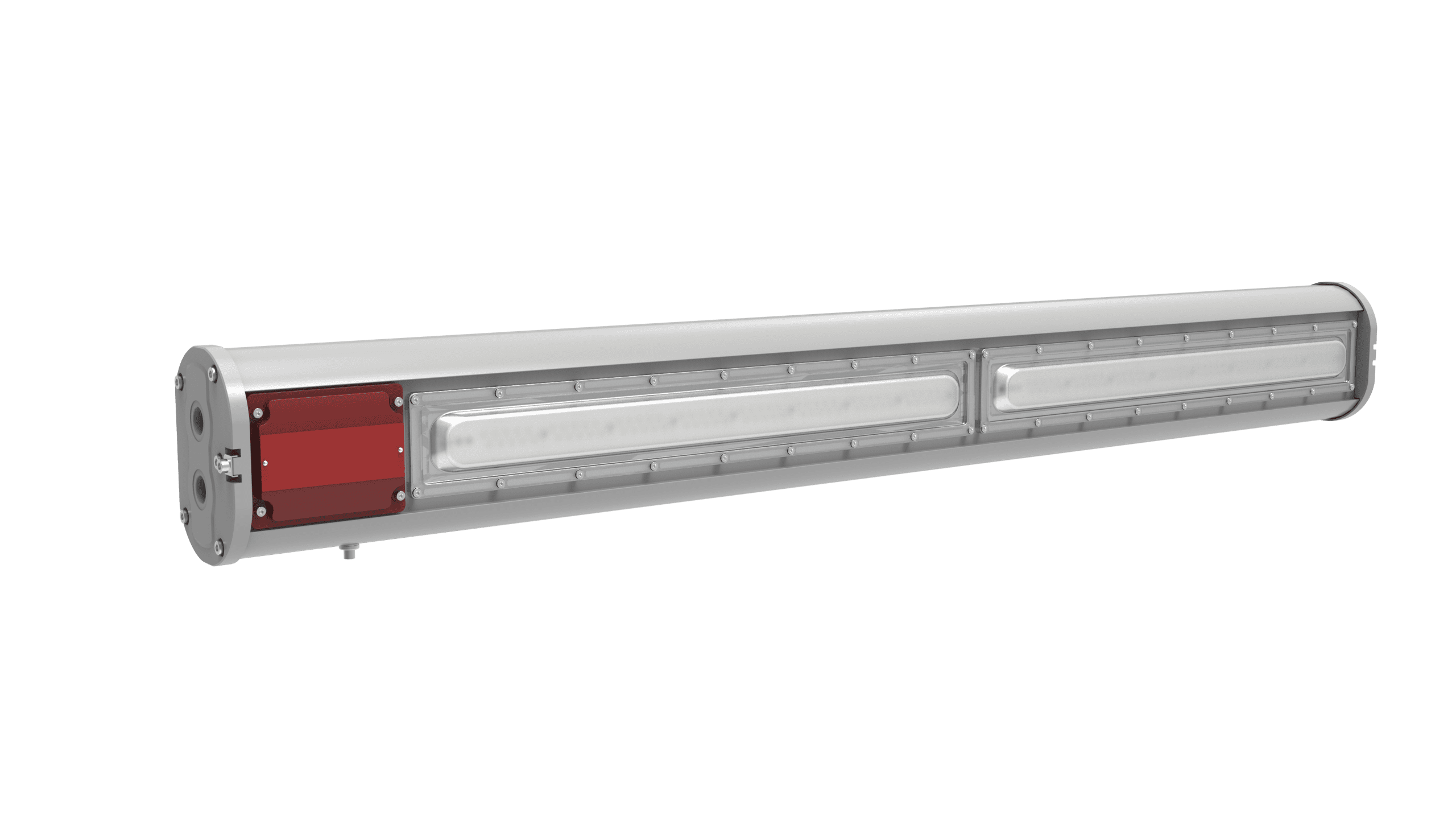

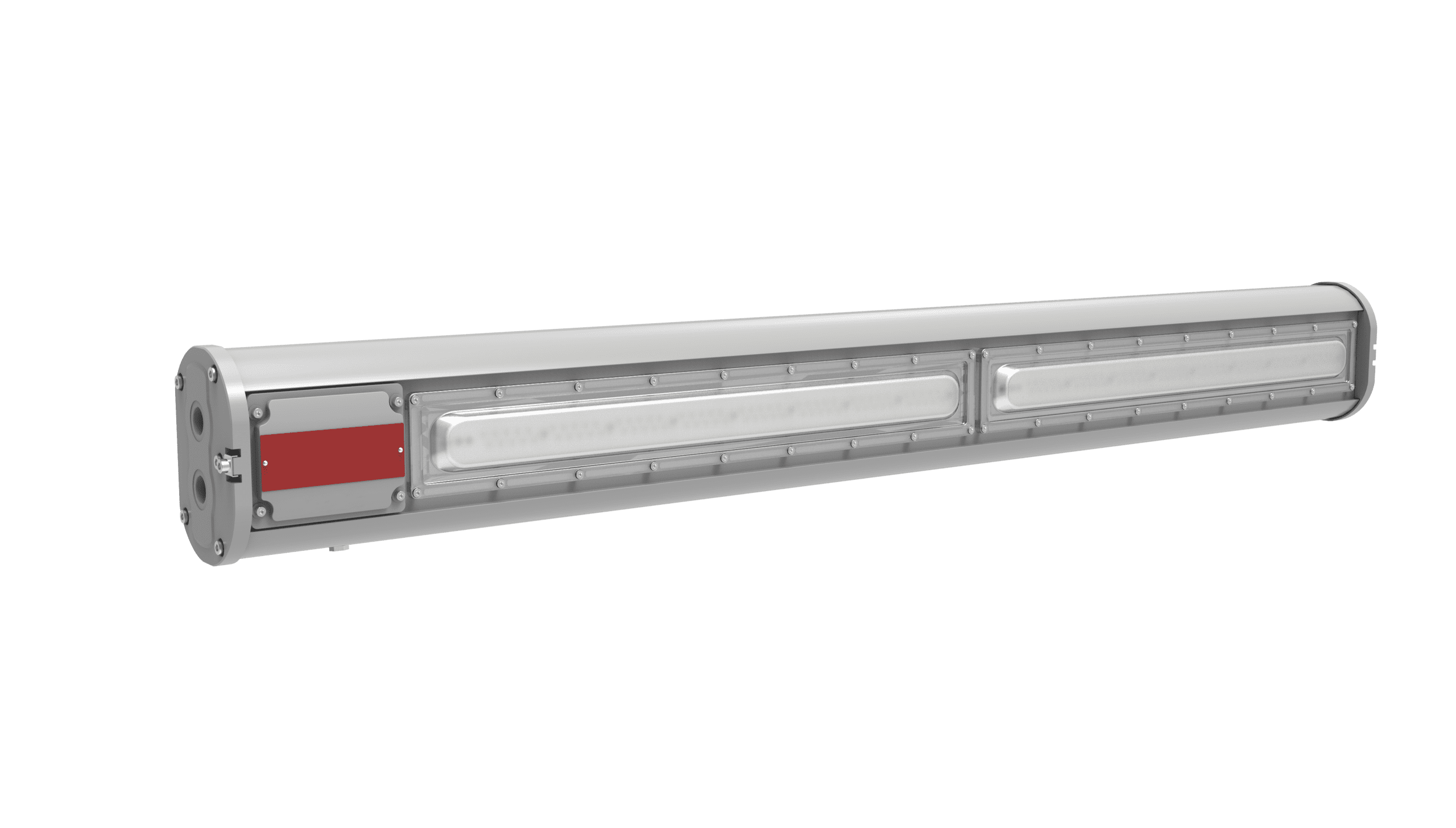

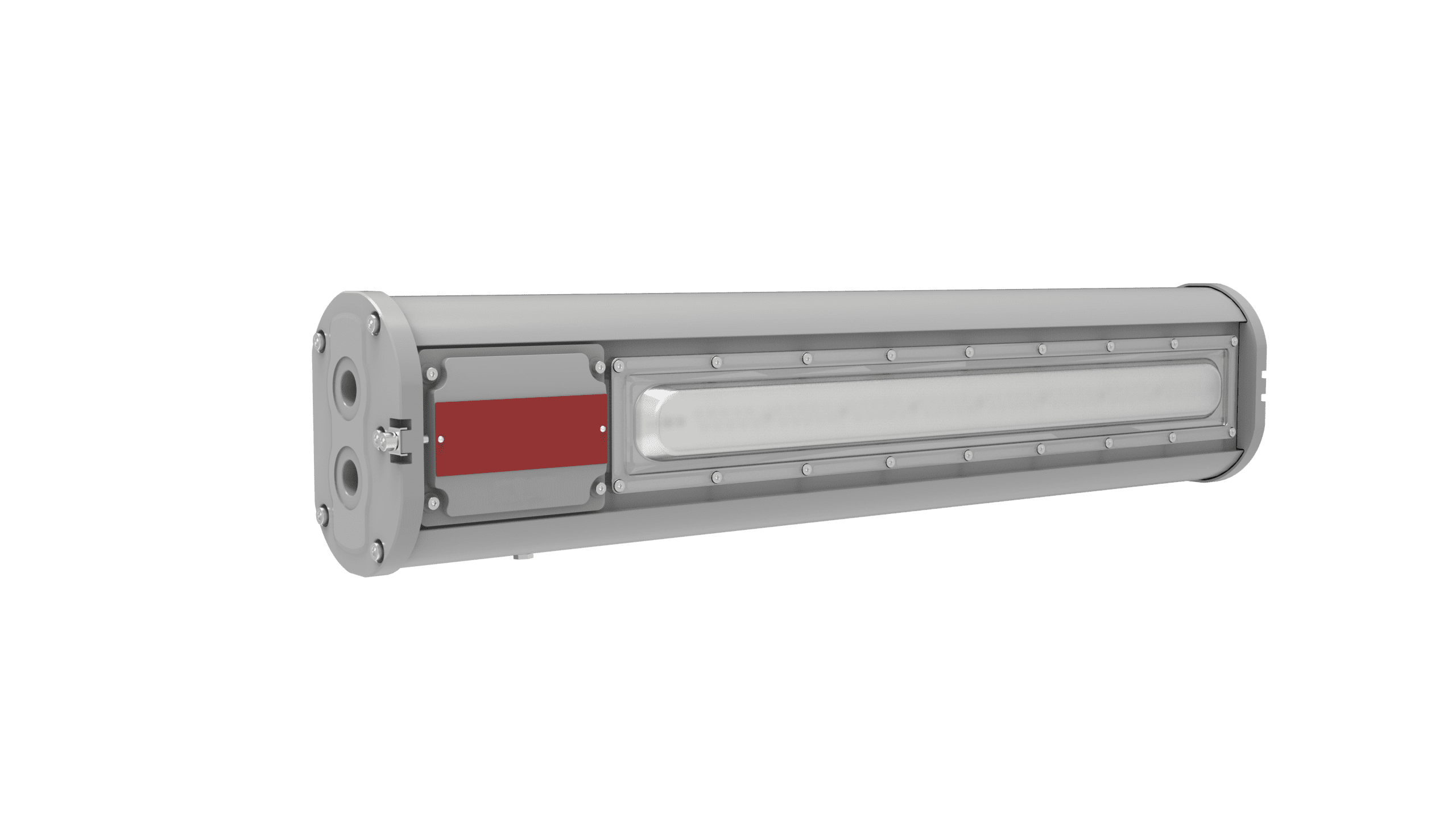

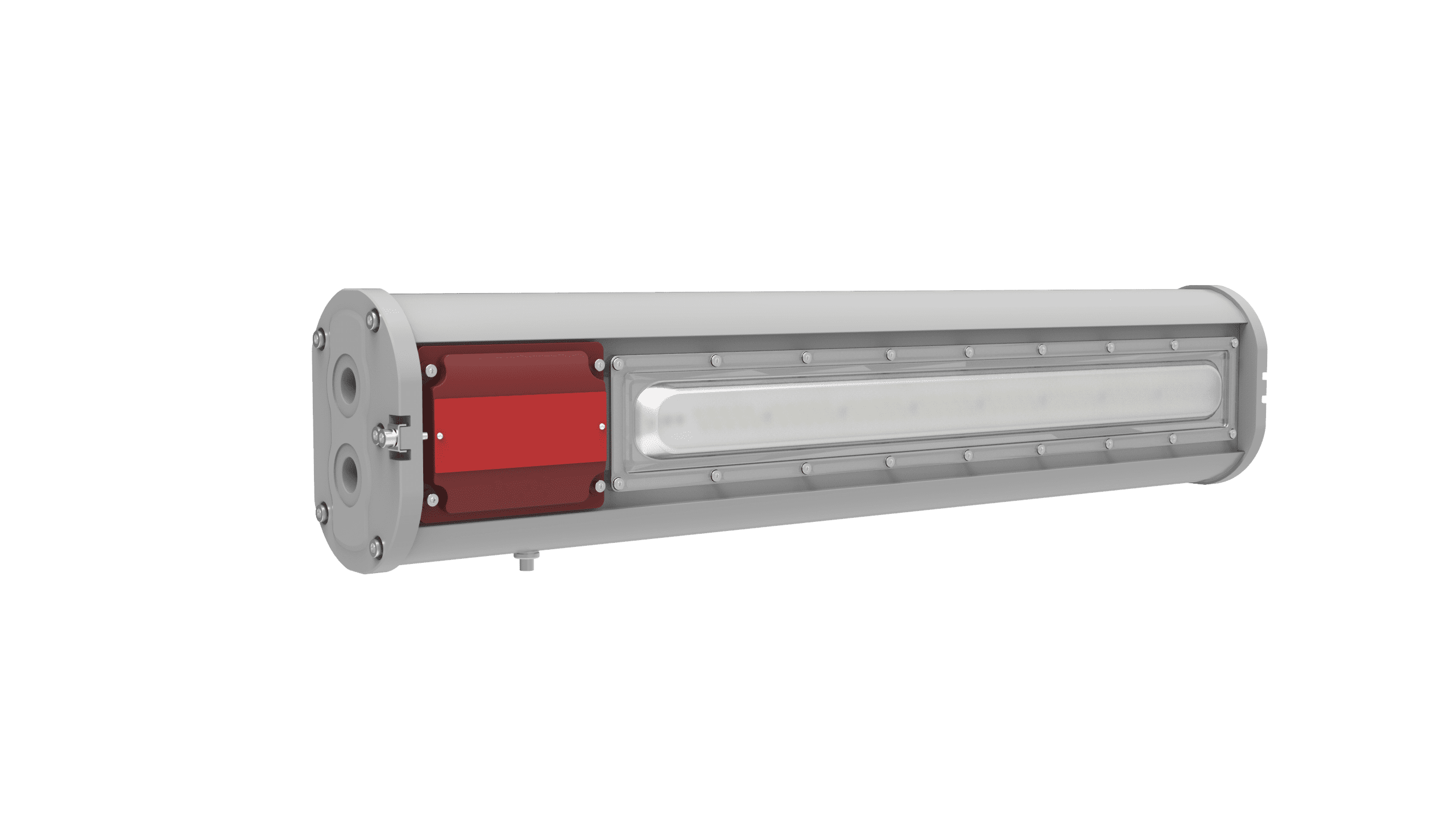

1332×158×111 mm (40-100W Single), 1449×158×111 mm (40-100W Dual), 747×158×111 mm (20-40W Single), 864×158×111 mm (20-40W Dual)

Connections

(4) 1/2″ NPT, (4) 3/4″ NPT, (4) M20, (4) M25
Warranty/Certifications

Warranty Terms

Fixture: 5 Year, Battery: 1 Year
