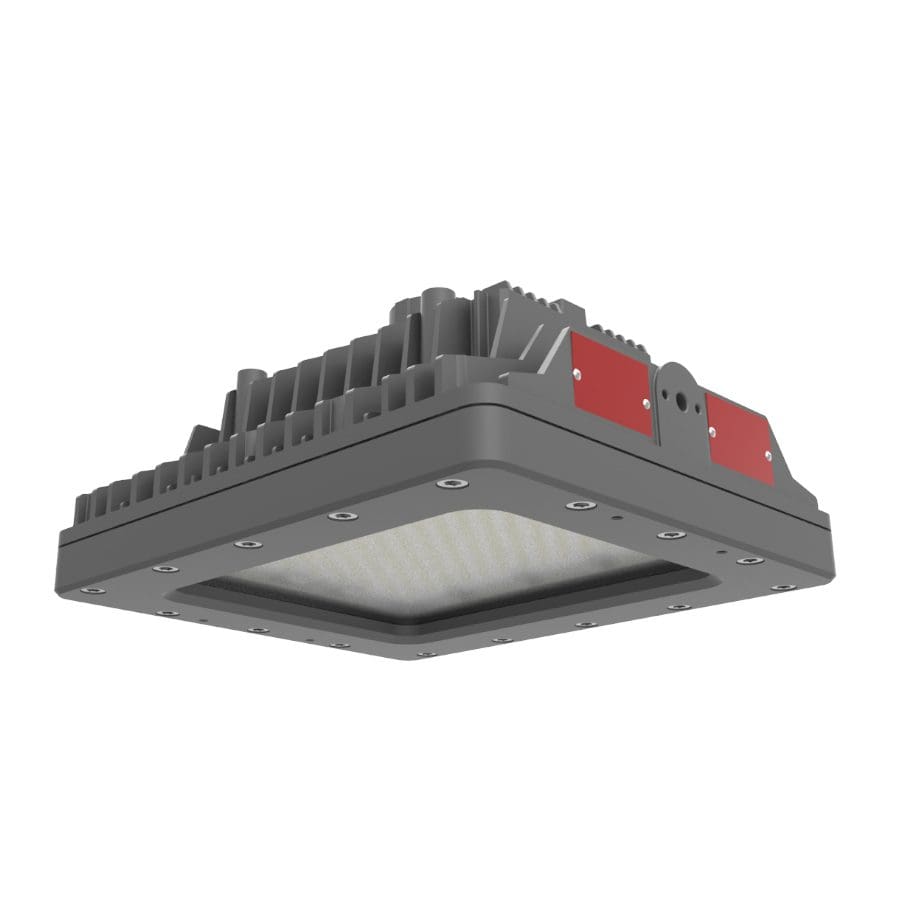

Block Mini Series H1

SKU BLM H1

Description:

Introducing the Block Mini Series H1 from Red Sky Lighting – a compact and powerful explosion-proof LED luminaire engineered for the most hazardous locations. This versatile lighting solution meets the stringent Class 1 Division 1 standard, certifying it for use in areas where flammable gases, vapors or liquids are present under normal operating conditions.

Electrical Parameters

Power (W)

21W, 40W, 50W, 60W

Voltage (V)

21/40/60W: 120-277V AC
50W: 347-480V AC

Frequency

50/60Hz

Power Factor

≥0.90

THD

<20%

L70

21/40/50W: 219,000 hrs@149°F 60W: 127,000 hrs@147°F

Dimming

0-10V, Range 10-100%

Surge Protection

21/40W: 2KV 50/60W: 6KV

Warranty

LEDs: 10 Years,Driver: 7 Years
Optical Parameters

Lumen Output

21W: 4,220Lm
40W: 6,499Lm
50W: 7,179Lm
60W: 8,514Lm

Lumen Efficacy

162Lm/W

Available Beam Angle

T2/T3/T5

Correlated Color Temperature (CCT)

3000K/4000K/5000K

Color Rendering Index (CRI)

Ra>70

Mechanical Parameters

Hardware

Stainless steel 316

Lens Material

Tempered Glass

Mounting Options

Pendant, Yoke

Product Weight

21W: 10.5lbs/4.8kg
40W: 10.8lbs/4.9kg
50/60W: 11.7lbs/5.3kg

Cable Entry

(1) 3/4″ NPT w/3’ 18/6 Leads (L/N/G,Dim+/Dim-/12V)

Product Dimensions(L×W×H)

9.7×8.3×5.1in (245×210×129 mm)

Environmental Parameters

Ambient Operating Temperature

21/40/50W: -40°C~+65°C(-40°F~+149°F)
60W: 64°C(147°F)

T-Code Rating

21/40W: C1D1–T6, CID2–T4A, CIID1–T6

50W: C1D1–T6, CID2–T4,
CIID1–T6

60W: C1D1–T5, CID2–T4,
CIID1–T5
