RETROFIT WITH ROUND SERIES
SKU RTR RND2
Description:

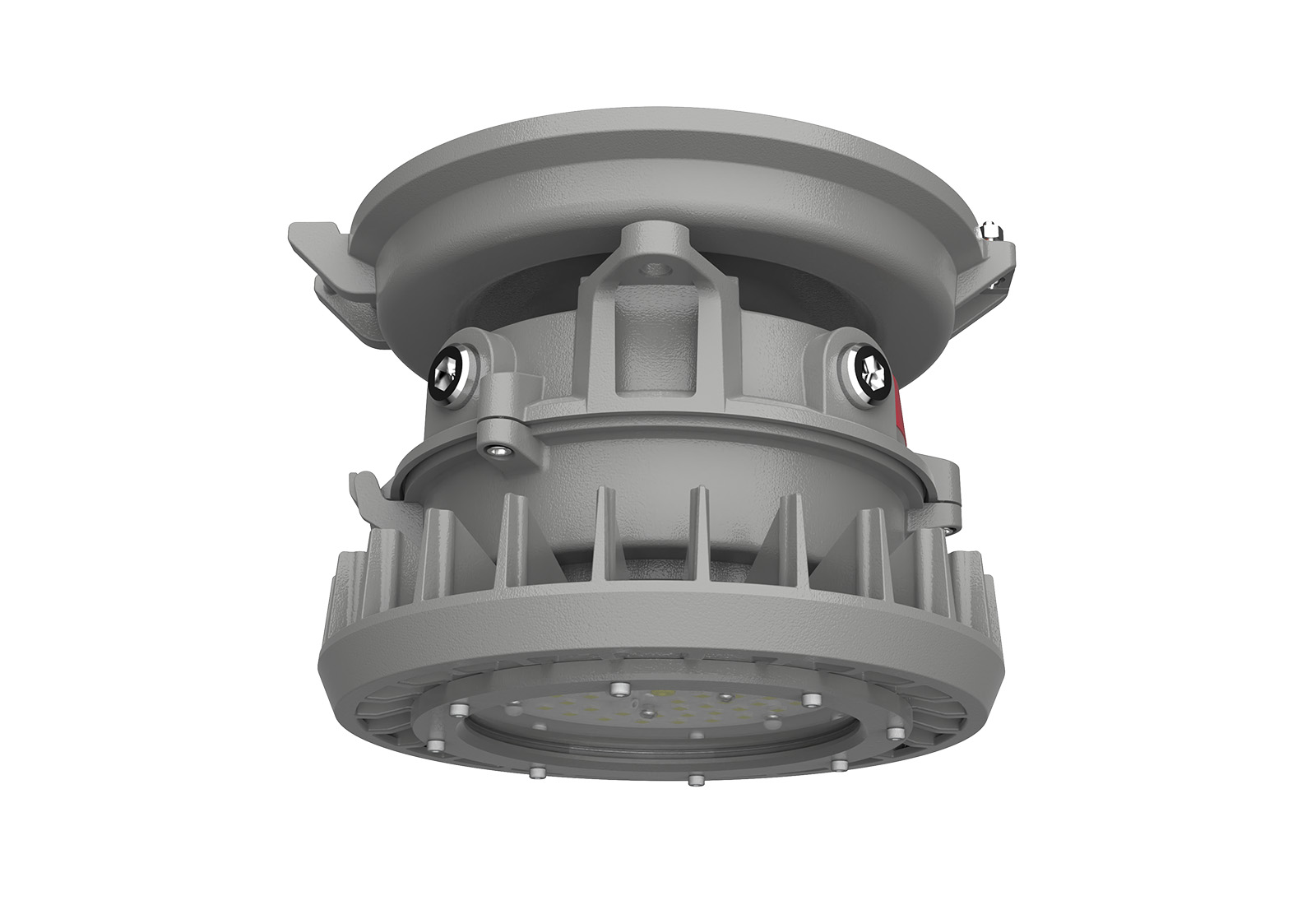

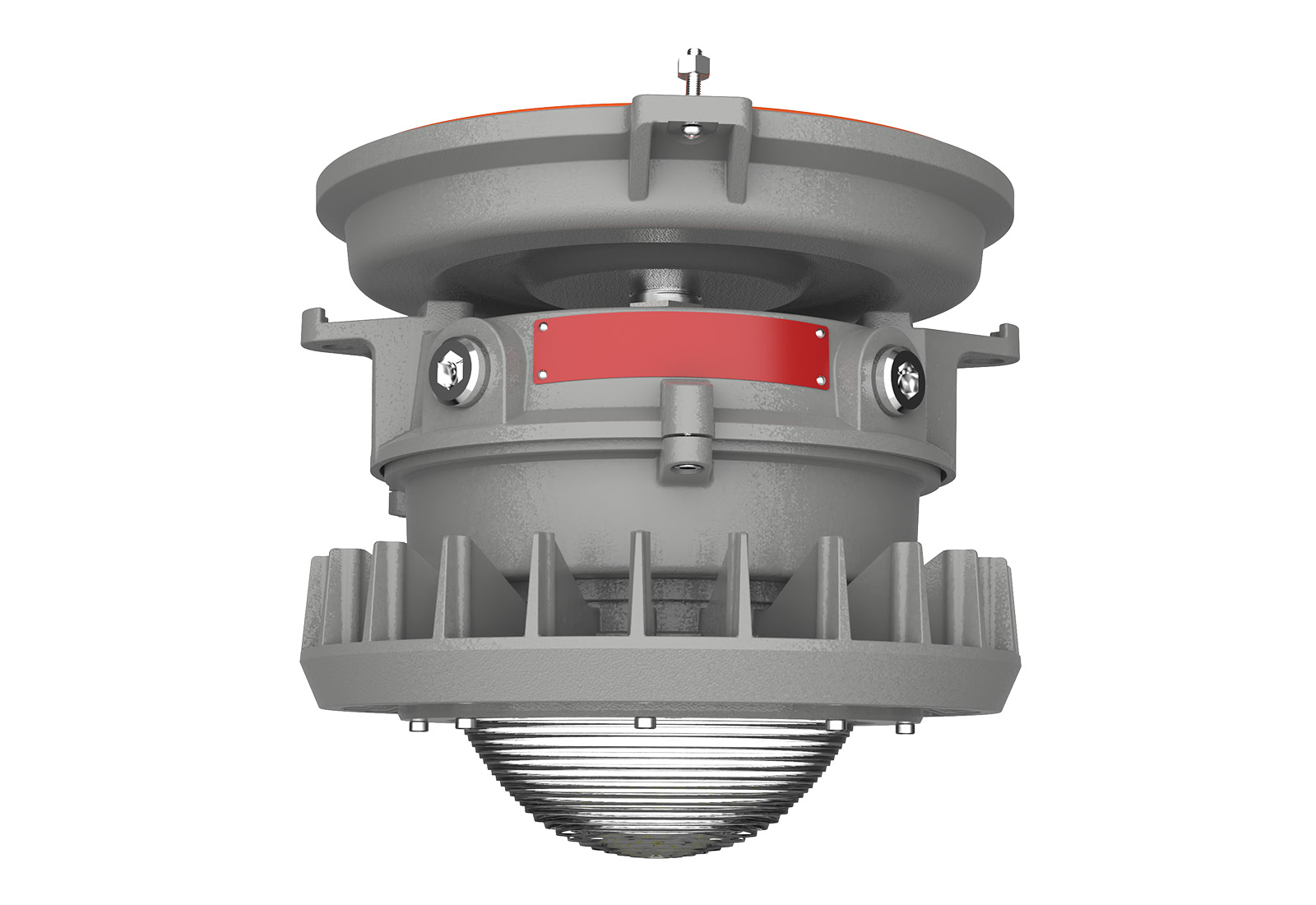

The Retrofit with Round series provides a fast and cost-effective way to upgrade existing hazardous location fixtures to LED — without full luminaire replacement.
By reusing the original fixture housing and cover, including the explosion-proof enclosure and conduit entry, it simplifies installation while maintaining the integrity of the hazardous location rating.

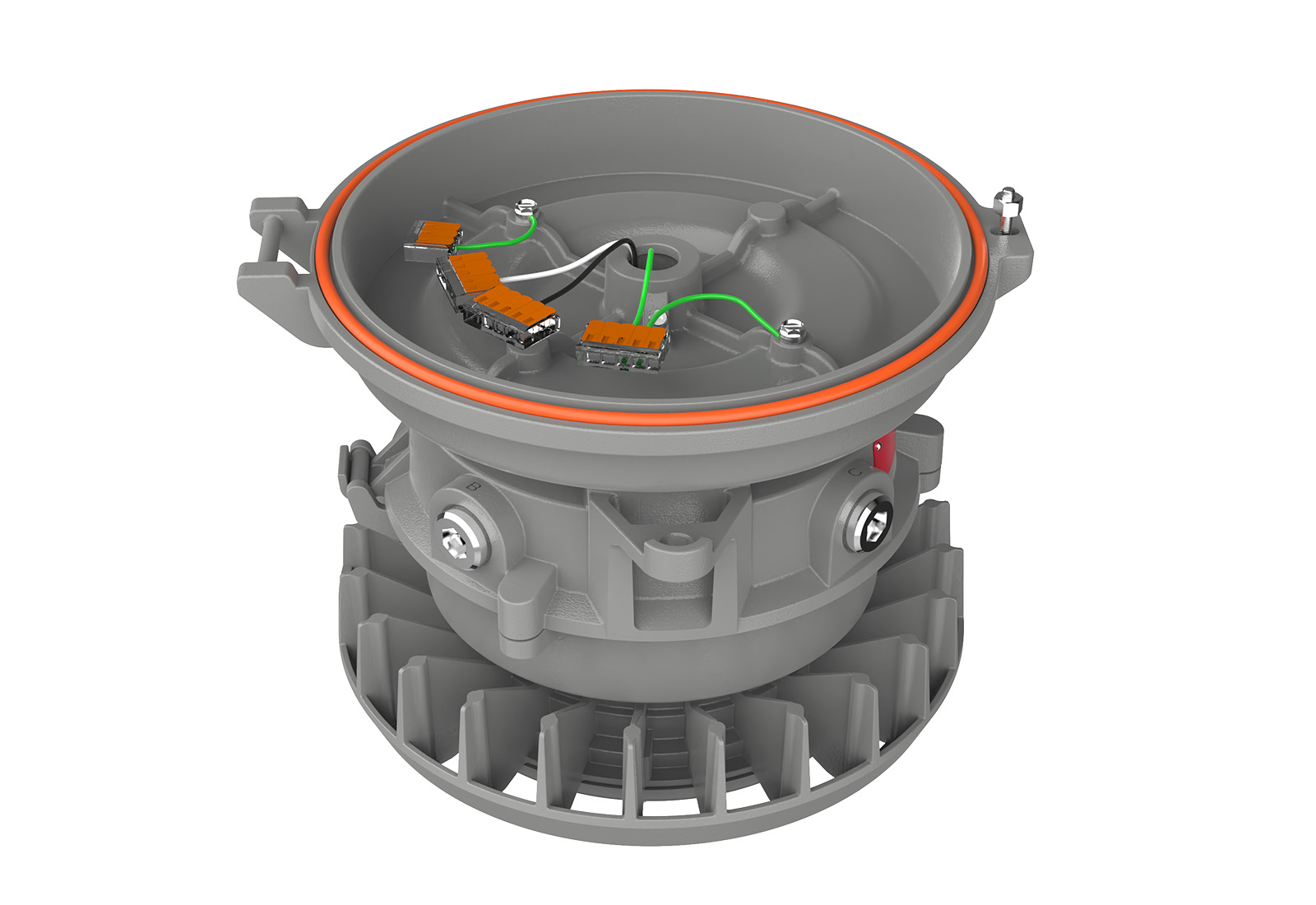

With dedicated adapters, pre-installed wiring, and WAGO connectors, Retrofit with RND2 enables quick, one-person installation and reduces labor time in retrofit projects across demanding industrial environments.
Product Type & Application: Water, Wastewater Treatment, High bay & Low bay, Metal Processing, Power Generation, Retrofit
Specs
Compliance
Download
Electrical Parameters
Power (W)
35W, 40W, 45W, 55W, 60W, 65W
VOLTAGE(V AC)
120-277, 347-480
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
127,000 hrs@140°F
Surge Protection
10KV
Warranty
LEDs: 10 years, Driver: 7 years
Optical Parameters
Lumen Output*
5,048Lm, 5,617Lm, 6,532Lm ,7,982Lm, 8,901Lm ,9591Lm
Lumen Efficacy*
150Lm/W
Available Beam Angle
60°/120°/T1/T3
Correlated Color Temperature (CCT)
3000K/4000K/5000K/Amber
Color Rendering Index (CRI)
80 CRI
Mechanical Parameters
Mounting Options
MM3/CMP/MM2/MM2L
Product Weight
MM3-16.09lbs/7.3kg, CMP-14.77lbs/6.7kg, MM2-14.33lbs/6.5kg
Cable Entry
(4) 3/4″ NPT
Product Dimensions(L×W×H)
MM3-13.6×12.1×9.3 in (345×307×235 mm),
CMP-11.6×10.3×8.2 in (295×261×208 mm),
MM2-10.5×9.7×8.7 in (266×246×220 mm）
Environmental Parameters
Ambient Operating Temperature
-40°F ~ +140°F (-40°C ~ 60°C)
