Linear Emergency Harsh Series
SKU LNR EM HS
Description:
Linear Emergency Harsh Series is coming soon!
Product Type & Application: Emergency, Agriculture, Linear, Metal Processing, Oil and gas, Power Generation, Pulp, Paper and Wood, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power
40W, 90W, 115W, 145W, 180W
Rated Input Current(220V AC)
0.202A, 0.455A, 0.581A, 0.733A, 0.909A
VOLTAGE(V)
100-277V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
>102,000 hrs@55°C
Dimming & Auxiliary Power
0-10V，300mA@12Vdc
Surge Protection
L/N-FG 6KV，L-N 4KV
Supply Wire
1mm²~4mm²
Charge Time
24 hours
Emergency Run Time
40/90W: 5000Lm@90mins,
2500Lm@180mins
Battery
Ni-CD Rechargeable Battery
Warranty
Driver：5 years, Battery: 1 years
Optical Parameters
Lumen Output
7,162Lm, 15,523Lm, 20,741Lm, 25,800Lm, 31,164Lm
Lumen Efficacy
180Lm/W
Available Beam Angle
30° / 60° / 90° / 120°
Correlated Color Temperature (CCT)
3000K/4000K/5700K
Color Rendering Index (CRI)
Ra≥70
Mechanical Parameters
Housing Material
Copper-free (< 0.4%) die-cast aluminum
Hardware
Stainless steel 316
Lens Material
40/90W: Clear Glass/Diffuse Glass**
115/145/180W: Clear Glass
Mounting Options

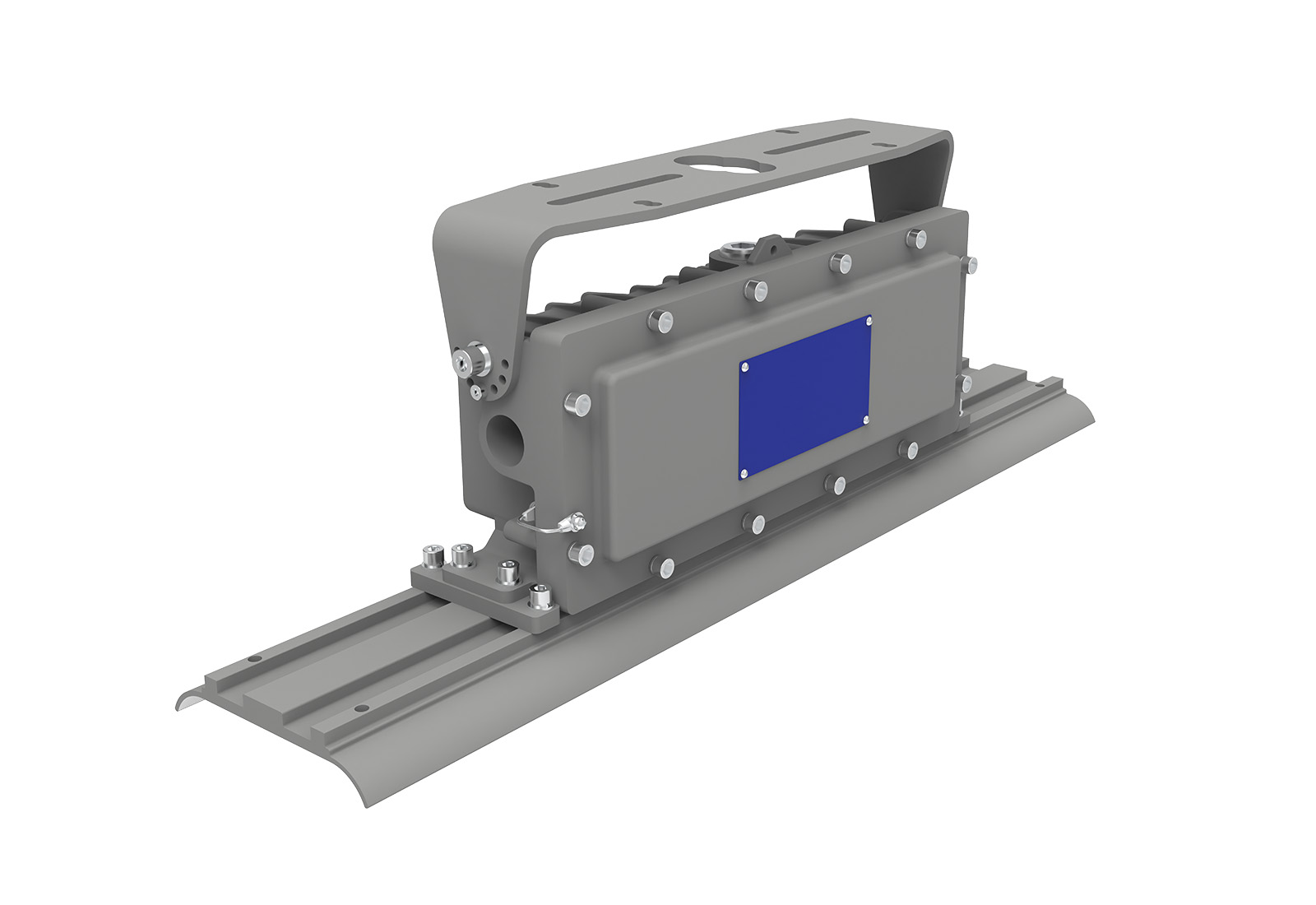

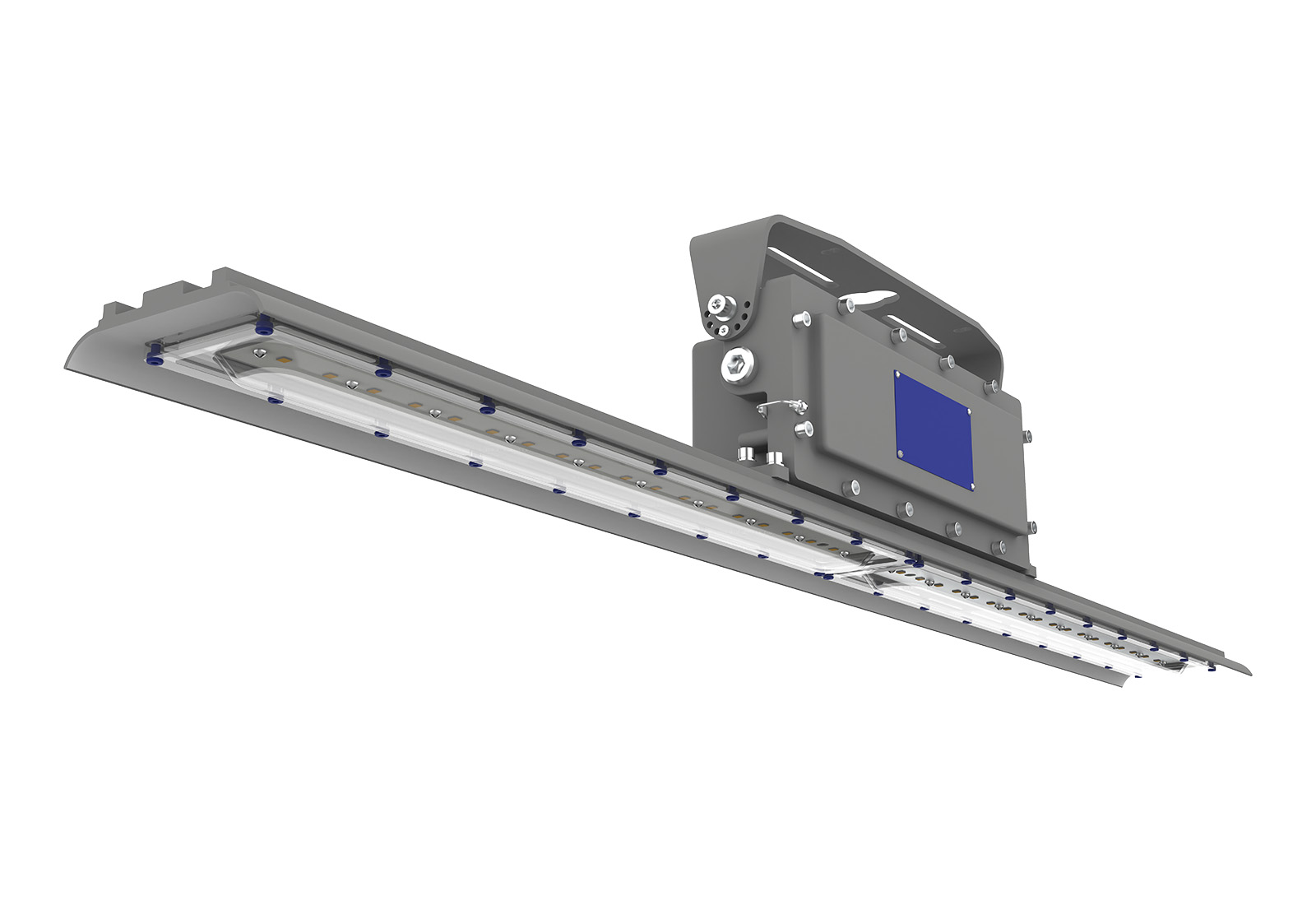

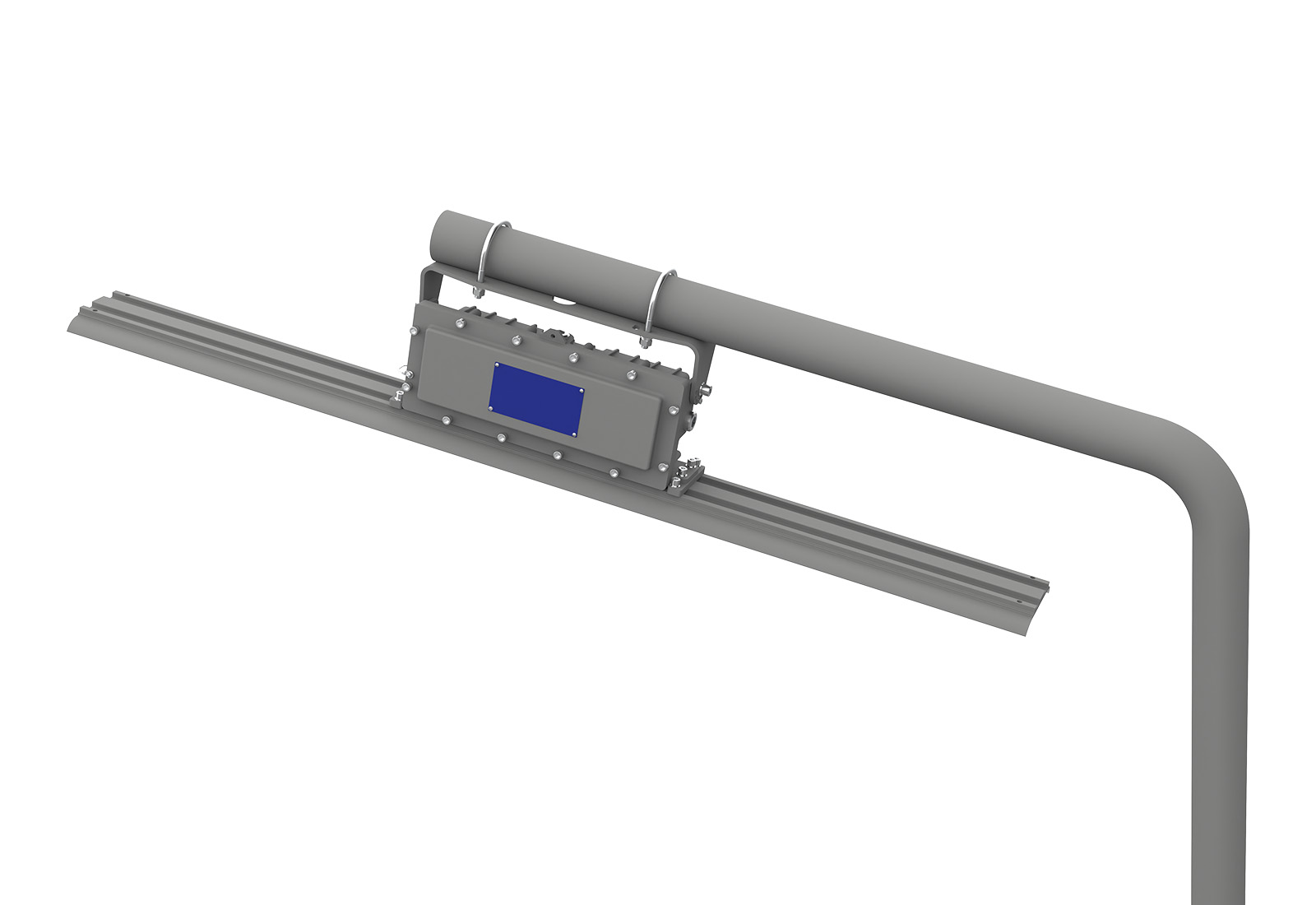

Straight Yoke, Angled Yoke, Stanchion
Product Weight
40/90W: 25.8lbs/11.7kg,
31.1lbs/14.1kg@EM
115/145/180W:27.6lbs/12.6kg
Package Weight
40/90W:27.9lbs/12.7kg,
33.2lbs/15.1kg@EM
115/145/180W:29.7lbs/13.6kg
Cable Entry
(4) M20/M25 x 1.5
Product Dimensions(L×W×H)
16.3×9.9×11.2 in (413x251x285 mm)
Package Dimensions(L×W×H)
19.7×13.4×11.8 in (500x340x300 mm)
Environmental Parameters
corrosion resistance
Salt Spray 720 hrs (ISO 9227)
Vibration Resistance
IEC60068-2-6 3g
Ambient Operating Temperature
-4°F ~ +131°F (-20°C ~ 55°C)@standard,
32°F ~ +131°F (0°C ~ 55°C)@EM
T-Code Rating
40/90W:Gas-T5; Dust-85°C
115/145/180W:Gas-T4; Dust-T85°C
EPA wind rating (FT2)
1.753/0.16(Yoke), 1.888/0.18(Stanchion)
