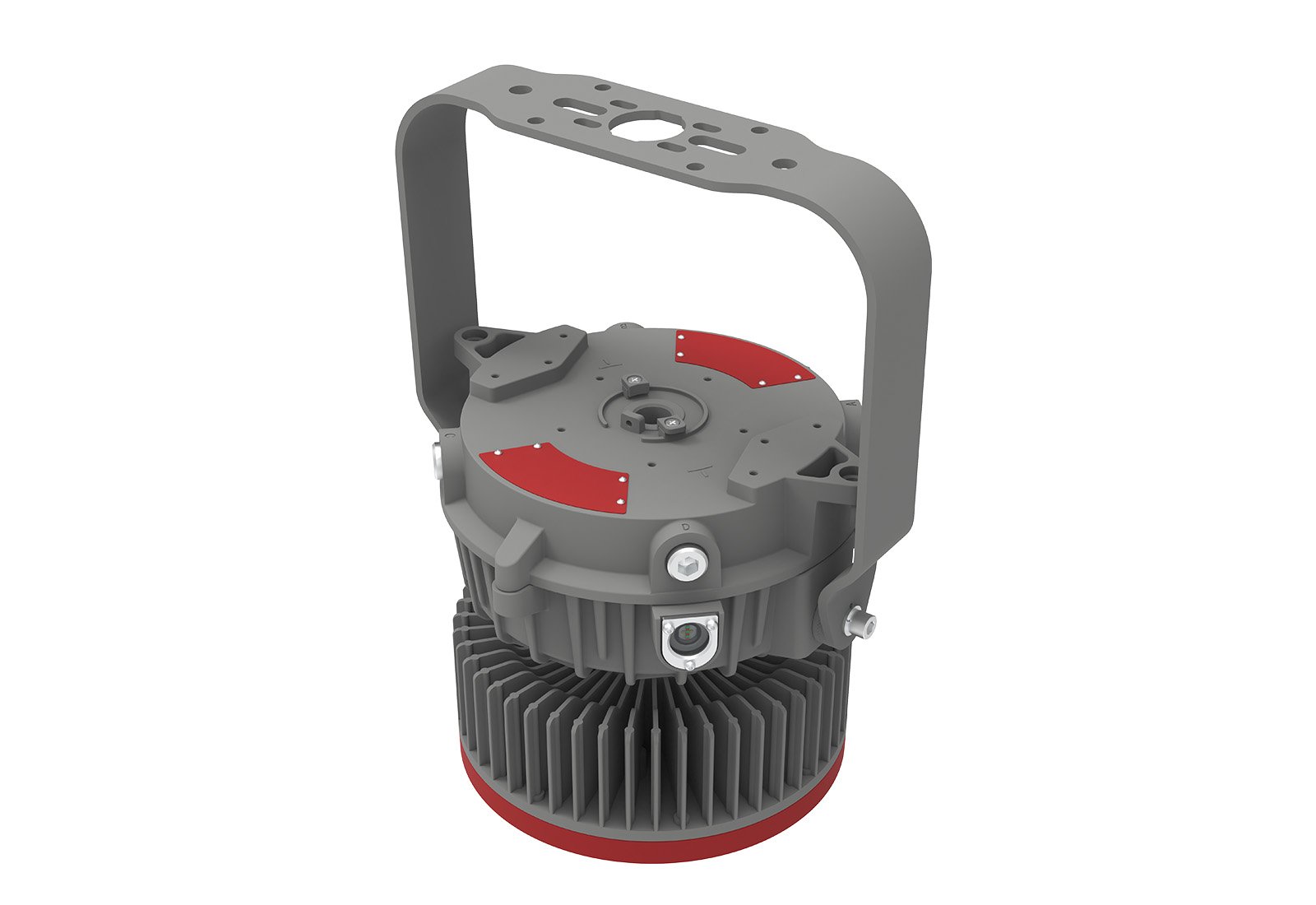

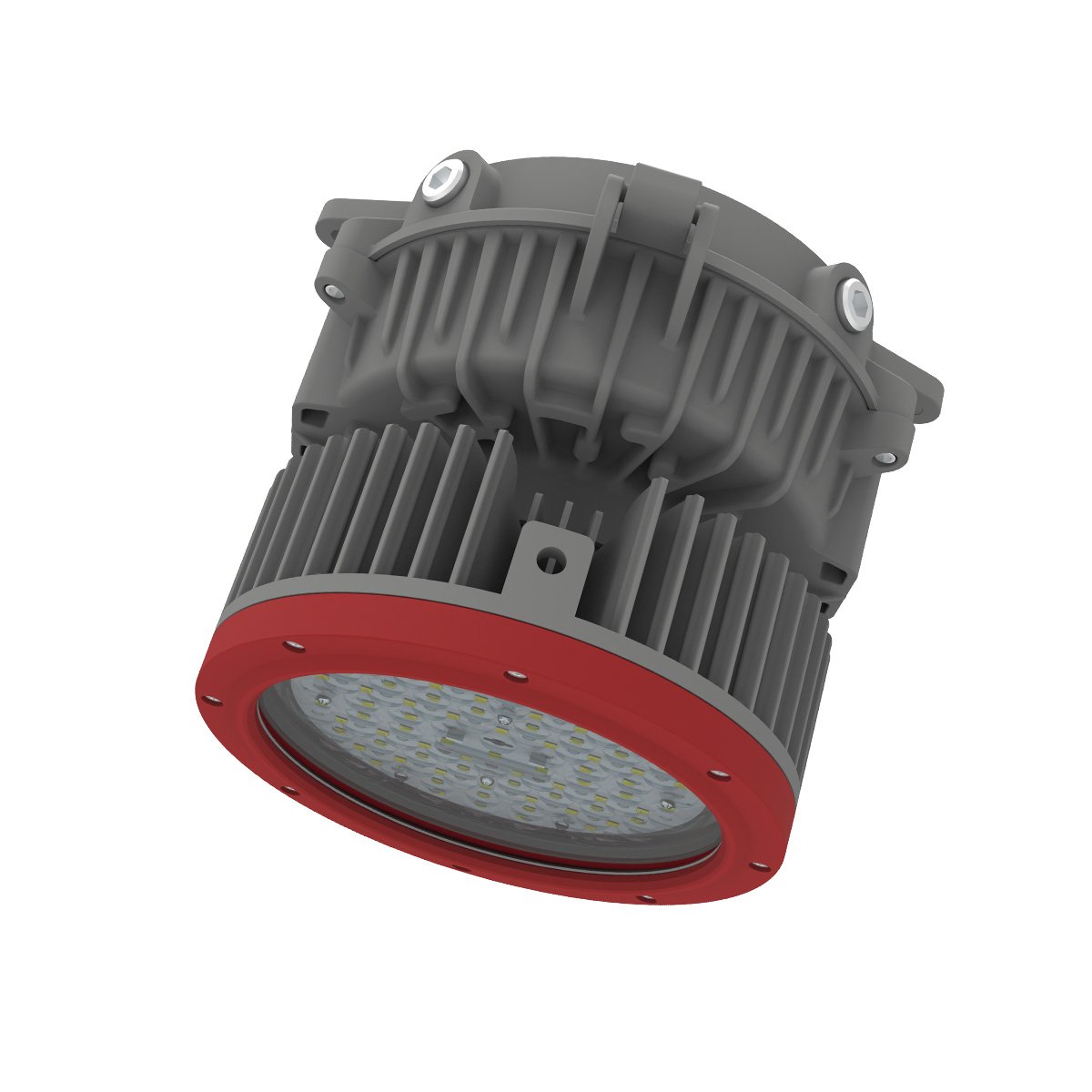

Round Max Emergency Series
SKU RDX EM
Description:
The round max emergency series delivers seriously safe lighting for hazardous environments. Combining general and emergency illumination, it provides up to 29,000 lumens with a LiFePO₄ battery backup for 90–180 minutes of emergency runtime. Built tough with IP66/IP67, IK10, and 3G vibration ratings, it ensures reliability when safety matters most.
Product Type & Application: Metal Processing, Area & Floodlight, Emergency, High bay & Low bay, Oil and gas, Power Generation, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power (W)
40W, 50W, 65W, 85W, 130W, 160W, 200W
VOLTAGE(V)
100-277V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
>102,000 hrs@60°C
Dimming
1-10V
Surge Protection
10KV
Emergency Run Time*
3,000Lm@90mins/ 1,500Lm@180mins
Warranty
Fixture: 5 years, Battery: 3 years
Optical Parameters
Lumen Output*
6,039Lm, 7,580Lm, 9,873Lm, 12,957Lm, 19,714Lm, 23,551Lm, 28,654Lm
Lumen Efficacy*
150Lm/W
Available Beam Angle
30°/ 60°/T1/T3/T5
Correlated Color Temperature (CCT)
3000K/4000K/5000K
Color Rendering Index (CRI)
80 CRI
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Tempered Glass or Polycarbonate

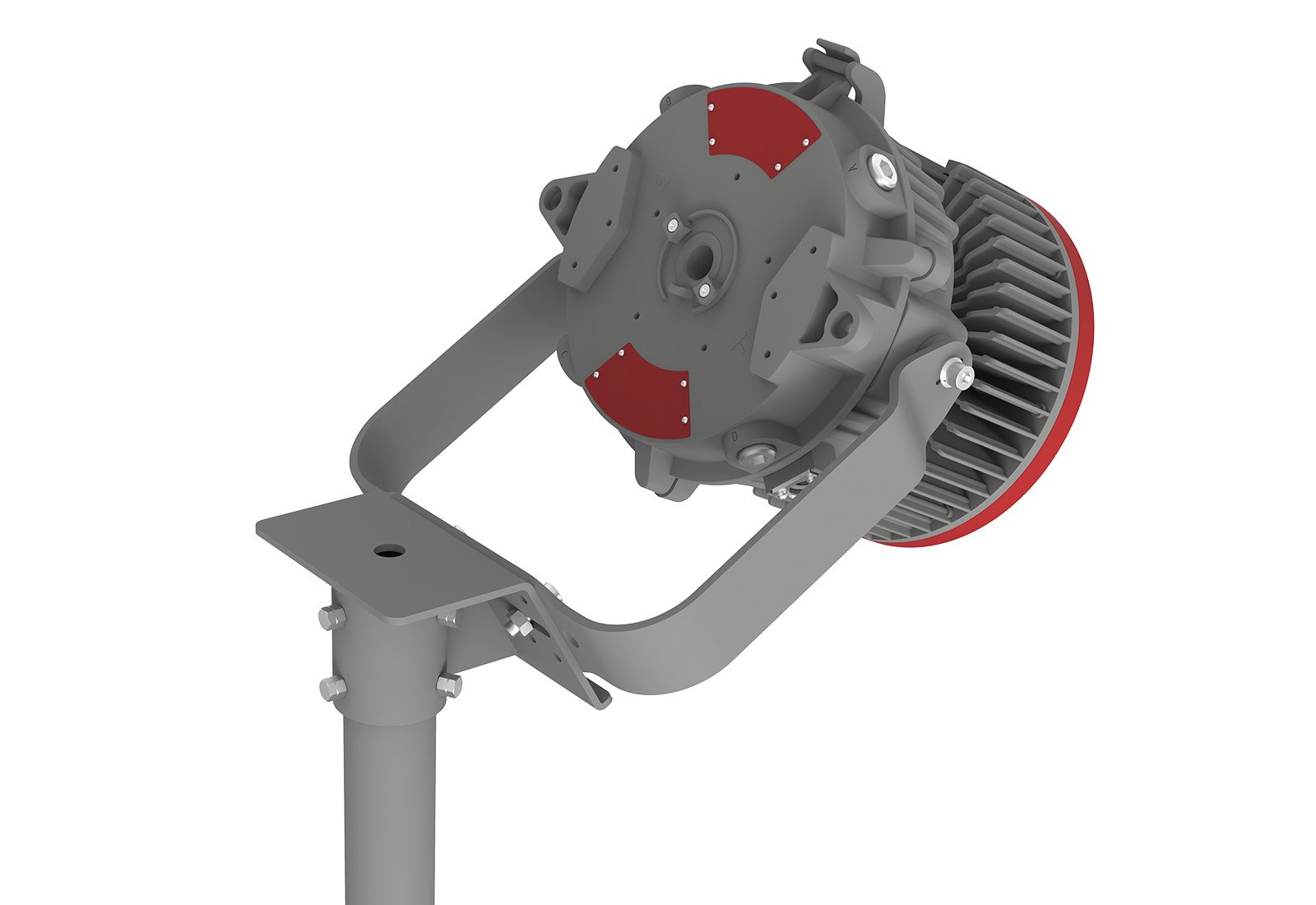

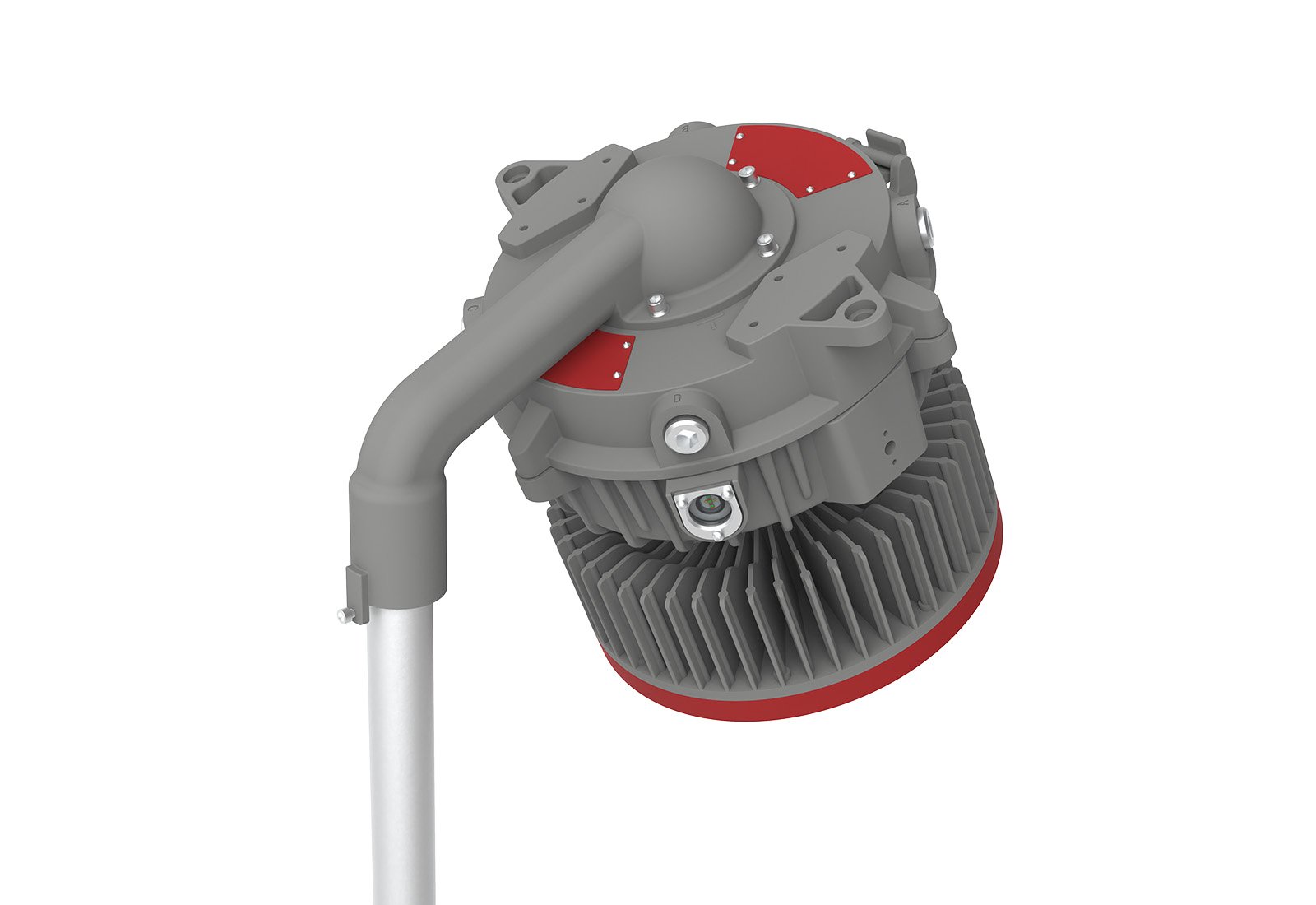

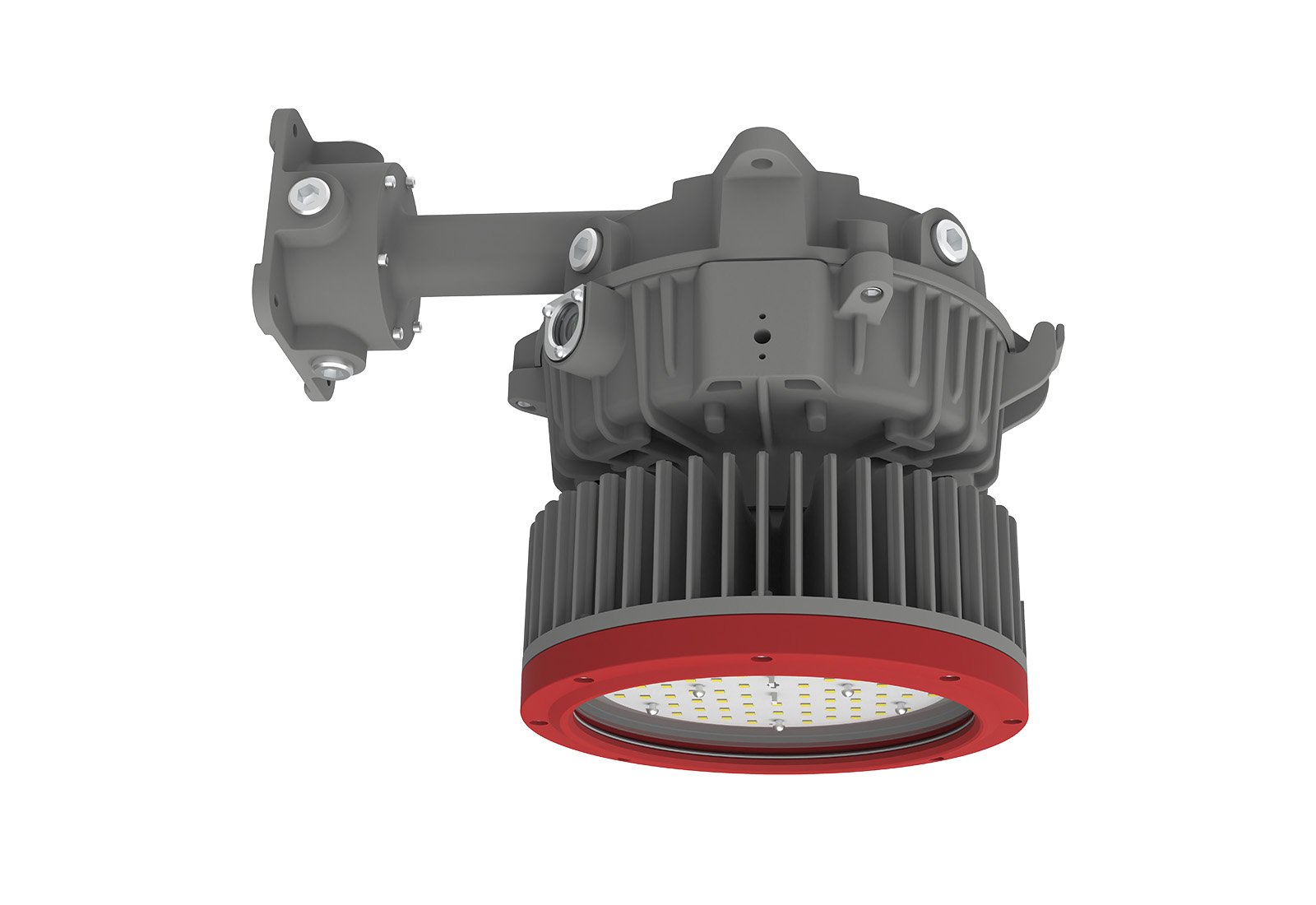

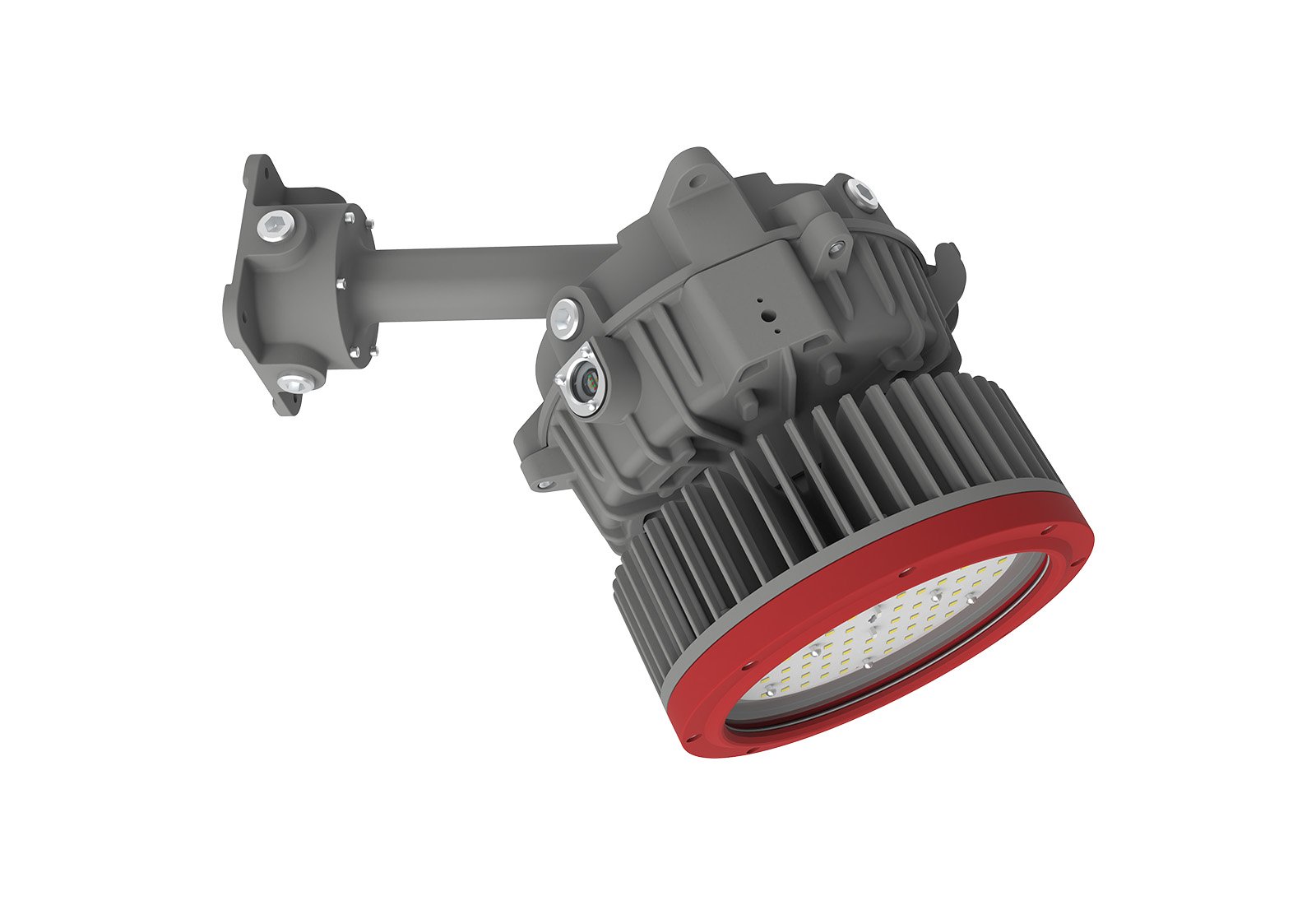

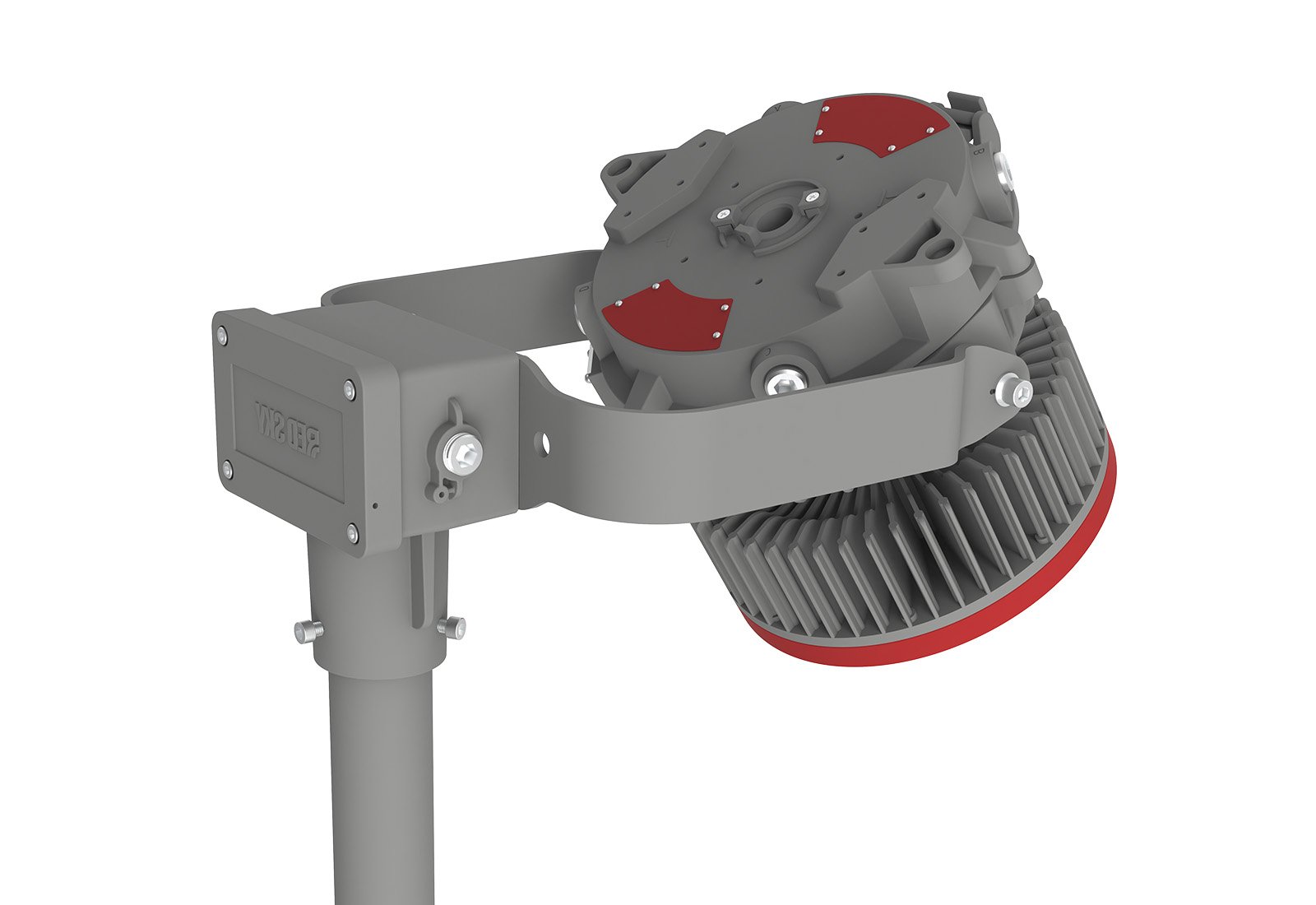

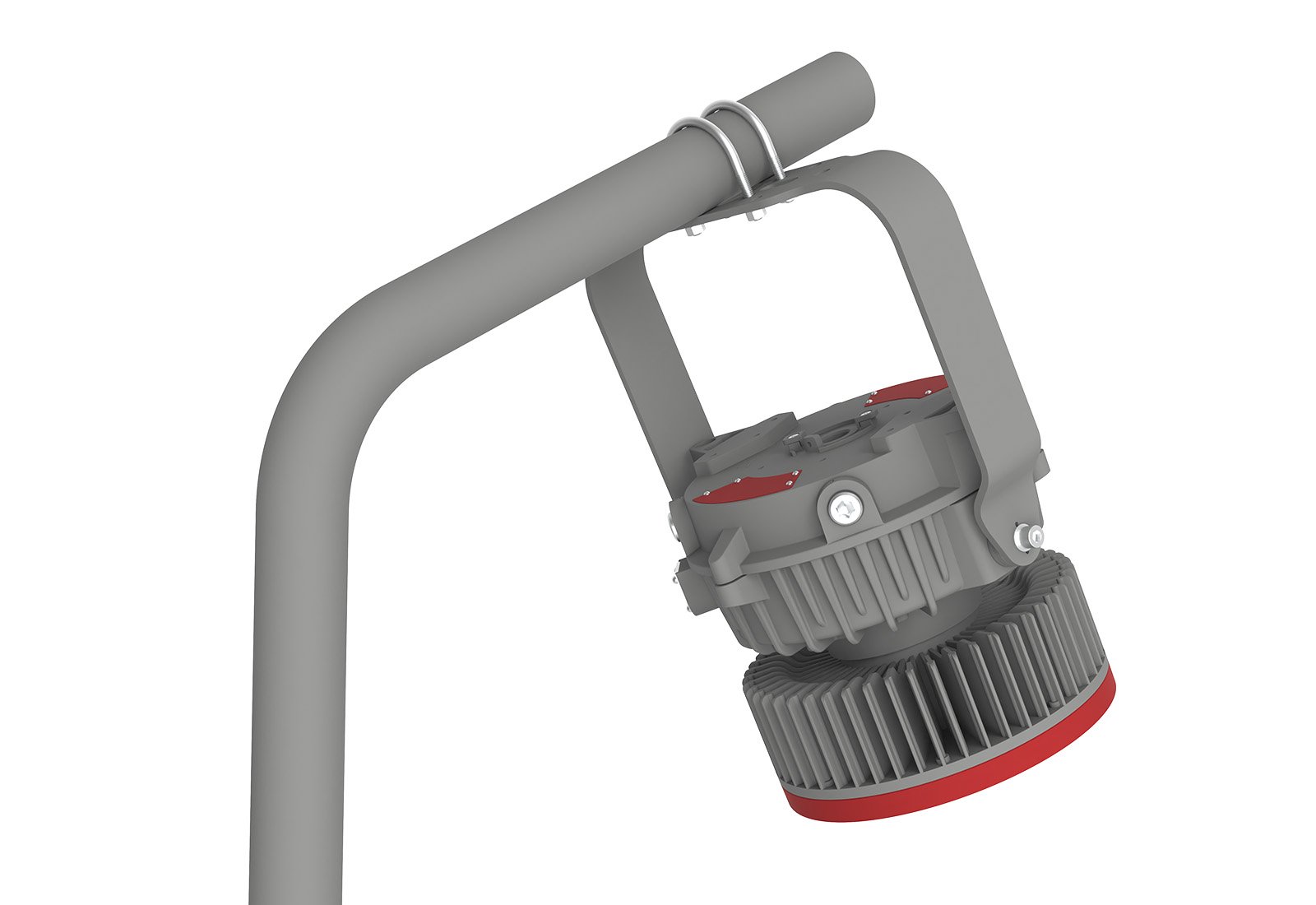

Mounting Options
Pendant, Ceiling, Yoke, Wall, Stanchion, Pole, Junction Box, Stanchion Slip Fitter
Product Weight
28lbs/12.7kg
Cable Entry
(5) NPT 3/4”
Product Dimensions(L×W×H)
Flat lens：Φ13×10.7 in (Φ330×271.5 mm) /
Drop lens：Φ13×12.9 in (Φ330×327.3 mm)
Environmental Parameters
Ambient Operating Temperature
40W, 50W, 65W, 85W, 130W, 160W: 32°F ~140°F (0°C ~ +60°C)
200W: 32°F ~ +131°F(0°C ~ +55°C）
