Modular Max Series
SKU MDX
Description:
The Modular Max Series packs powerful performance with a high lumen output of up to 70,000 lumens and excellent luminous efficacy of up to 180lm/W. This is achieved while maintaining a lightweight and compact design, making it over 25% lighter than comparable C1D2/C2D1 floodlights.
Certified for C1D2/C2D1 hazardous locations, the Modular Max Series withstands even the harshest environments. Its craftsmanship and rigorous testing ensure optimal performance under extreme conditions, maintaining high output from -49°F to +149°F (-45°C to +65°C). An outstanding thermal design and robust quality provide durable operation.
Specs
Compliance
Download
Electrical Parameters
Power (W)
90W, 120W, 190W, 260W, 310W, 380W, 440W
VOLTAGE(V)
100-277V AC, 347-480V AC
Frequency
50/60Hz
Power Factor
>0.90
THD
<20%
L70
90/120/190/260W:
230,000 hrs@149°F
310/380/440W:
230,000 hrs@131°F
Dimming
0-10V, Range 10%-100%
Surge Protection
10KV/5KA
Warranty
Standard: 7 Years,
Extended: 10 years
Optical Parameters
Lumen Output
90W: 16,467Lm
120W: 21,037Lm
190W: 32,082Lm
260W: 40,632Lm
310W: 50,554Lm
380W: 62,902Lm
440W: 72,190Lm
Lumen Efficacy
180Lm/W
Available Beam Angle
30° / 60° / 90° / 120° / T2 / T3 / T5
Correlated Color Temperature (CCT)
2700K/4000K/5000K
Color Rendering Index (CRI)
Ra>70
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Tempered Glass

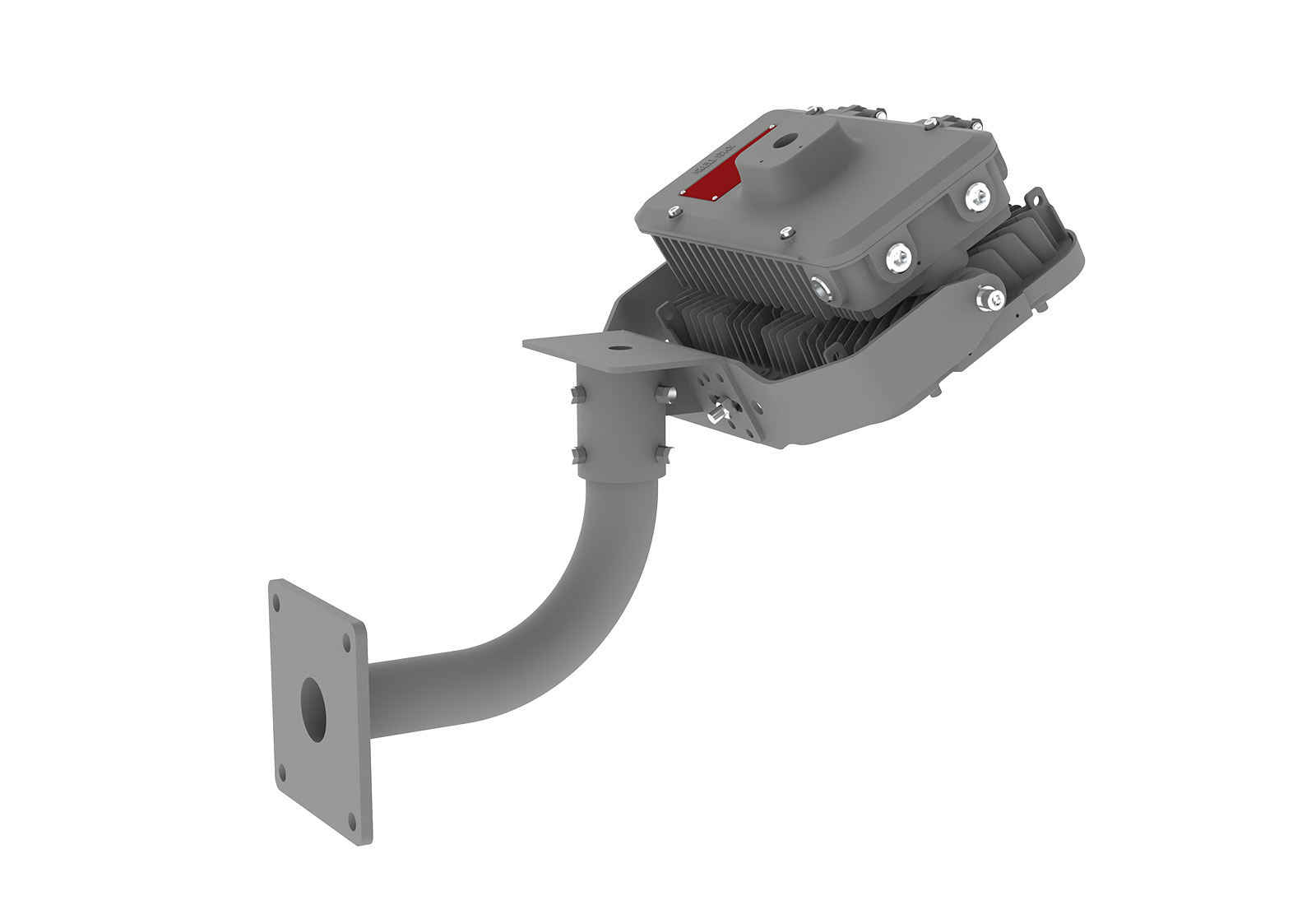

Mounting Options
Pendant, Straight Yoke, Angled Yoke, Chain, Stanchion
Product Weight
90/120/190/260W:
21.8lbs/9.9kg
310/380/440W:
36.3lbs/16.5kg
Cable Entry
(5) 3/4″ NPT***
Product Dimensions(L×W×H)
90/120/190/260W: 14.1×9.8×7.4in(357×250×189mm)
310/380/440W: 19.9×14.1×7.4in(505×357×189mm)
Environmental Parameters
Ambient Operating Temperature
90/120/190W:
-49°F ~ +149°F (-45°C ~ 65°C)
260/310/380/440W:
-49°F ~ +131°F (-45°C ~ 55°C)
T-Code Rating
CID2 – T3C, C2D1 – T4
EPA wind rating (FT2)
90/120/190/260W:
1.753 (Yoke), 1.888 (Stanchion)
310/380/440W:
2.864 (Yoke), 2.999 (Stanchion)
