SERIOUSLY SAFE LIGHTS™

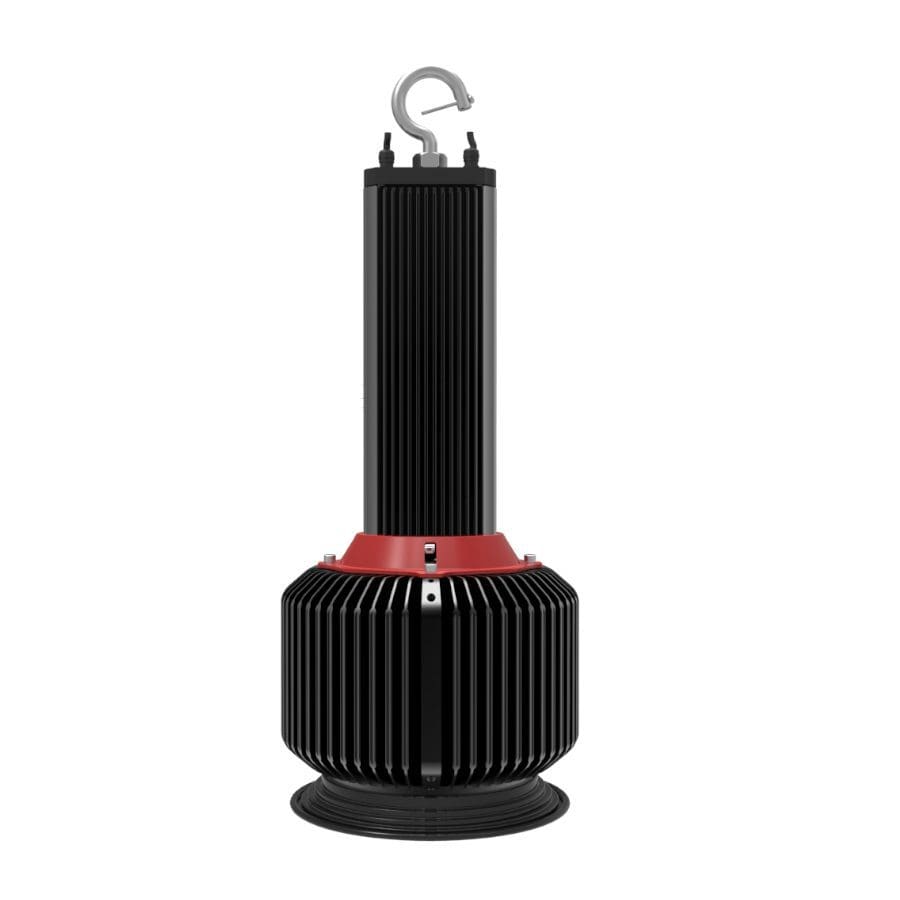

High Bay Hot Series

SKU HBH

Description:

Introducing the High Bay Hot Series by Red Sky Lighting, the lighting solution designed to excel in high temperature
environments. This series has been rigorously tested and verified by UL, demonstrating an impressive lumen maintenance of up to 95.9% after 10,000 hours of continuous operation at an ambient temperature of 176°F (80°C).

Product Type & Application: Applications, High bay & Low bay, Metal Processing
Electrical Parameters

Power (W)

150W

VOLTAGE(S)

120-277V AC, 347-480V AC

Frequency

50/60Hz

Power Factor

>95%

THD

<10%

L70

75,000 Hours@176°F

Surge Protection

6KV

Warranty

Standard: 3 Years, Extended: 5 Years

Optical Parameters

Lumen Output

22157Lm(110°)/19970Lm(60°)

Lumen Efficacy

150Lm/W

Available Beam Angle

60°/ 110°

Correlated Color Temperature (CCT)

4000K/5000K/5700K

Color Rendering Index (CRI)

Ra≥70

Mechanical Parameters

Finish

Thermoset Powdercoat

Hardware

Stainless steel 316

Lens Material

Tempered glass

Mounting Options

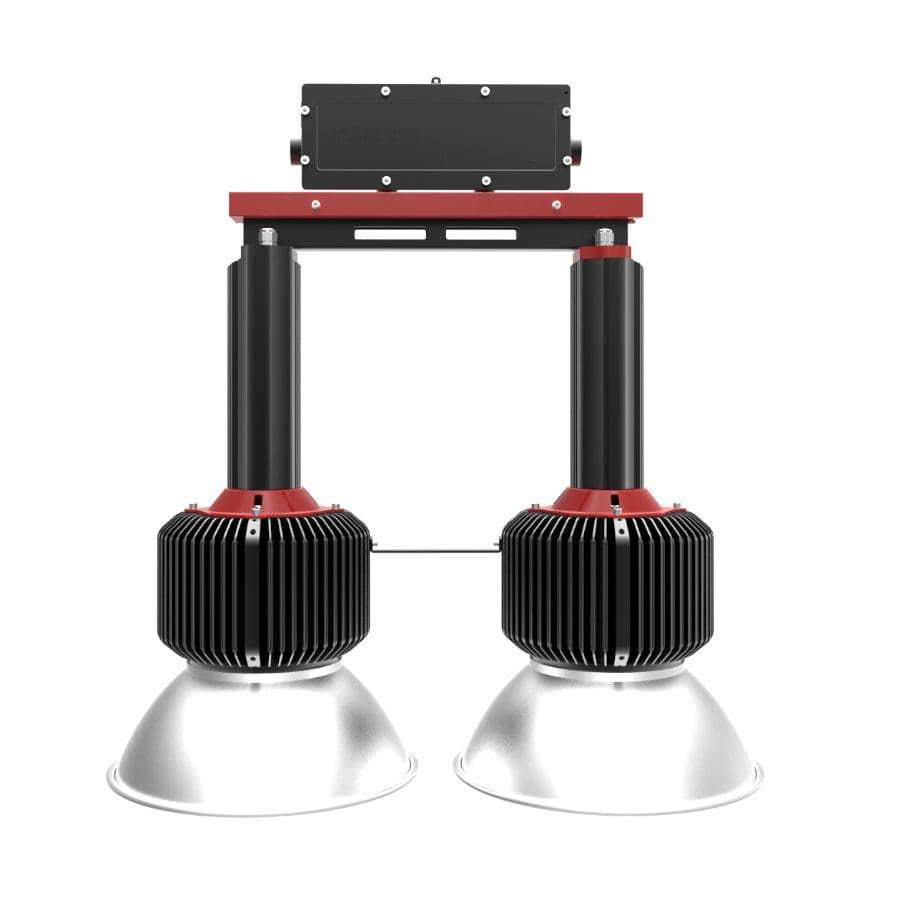

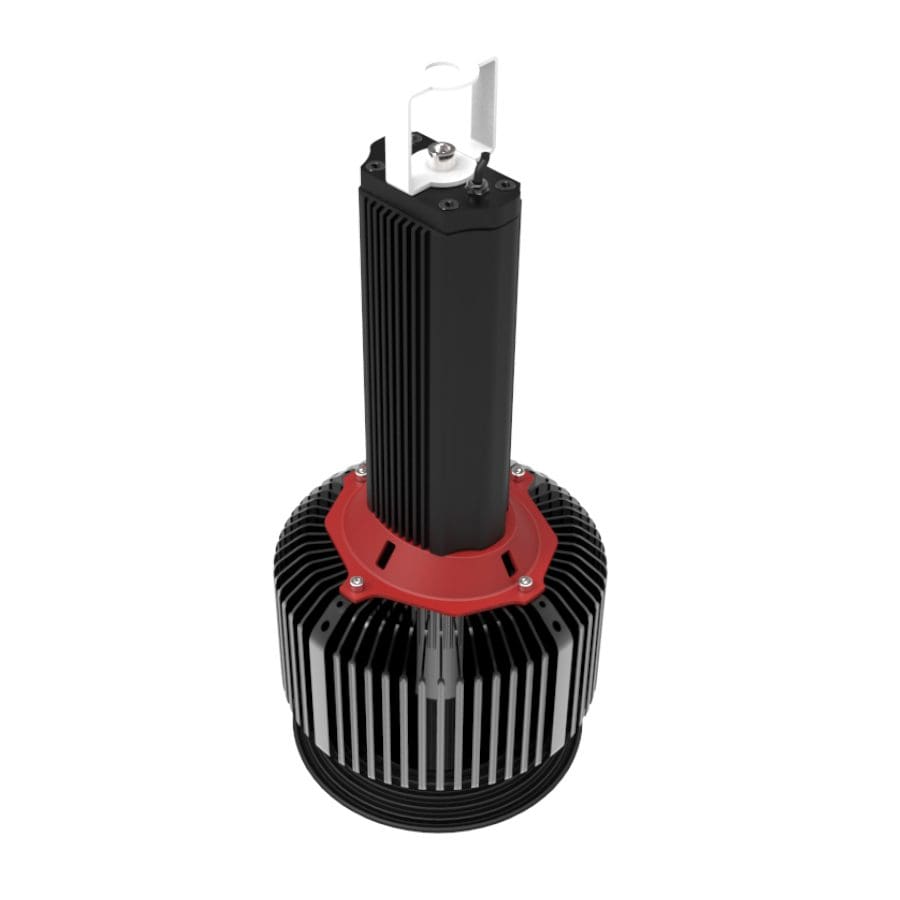

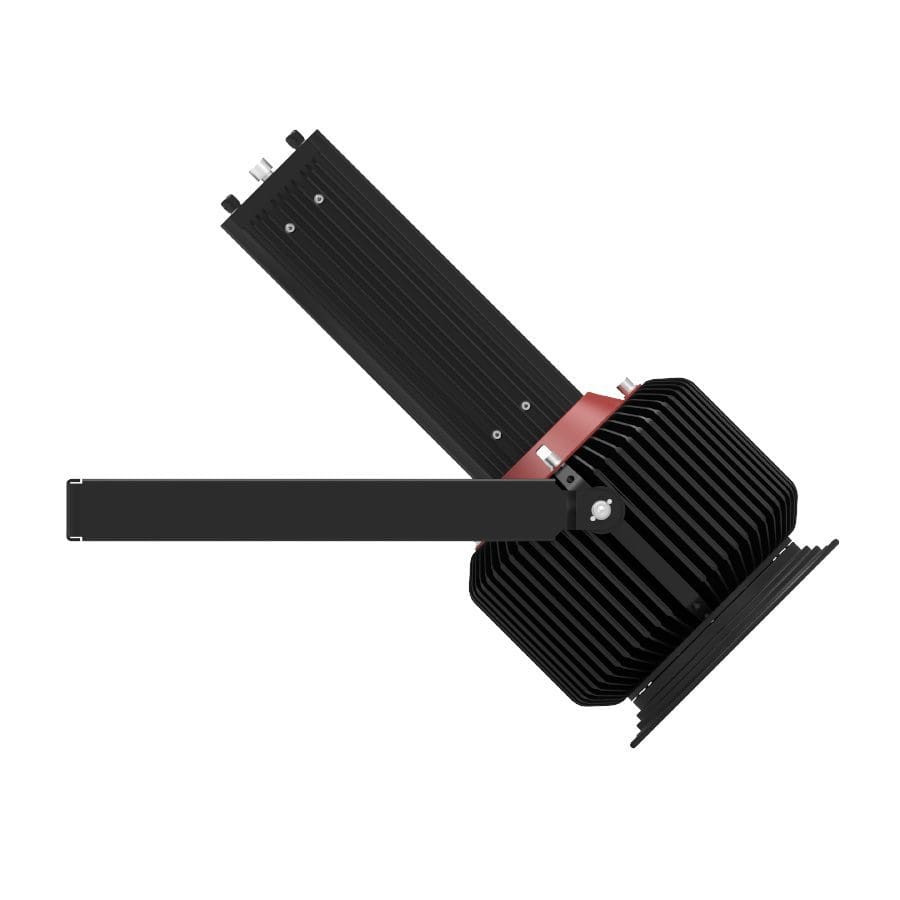

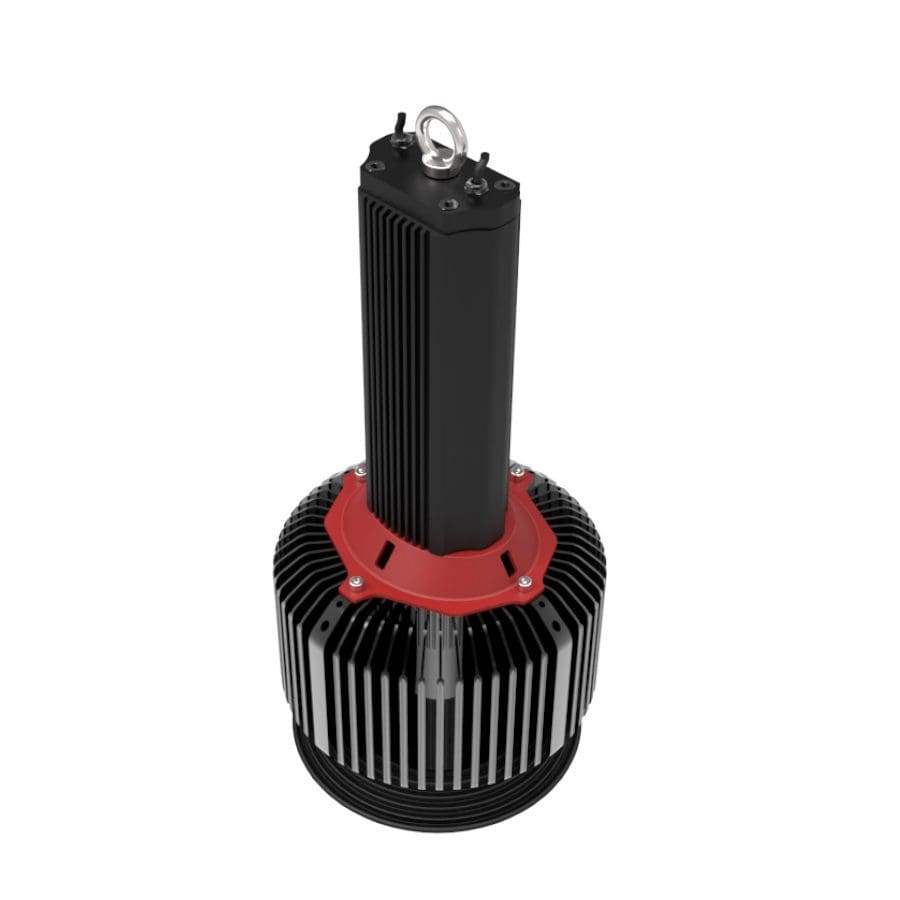

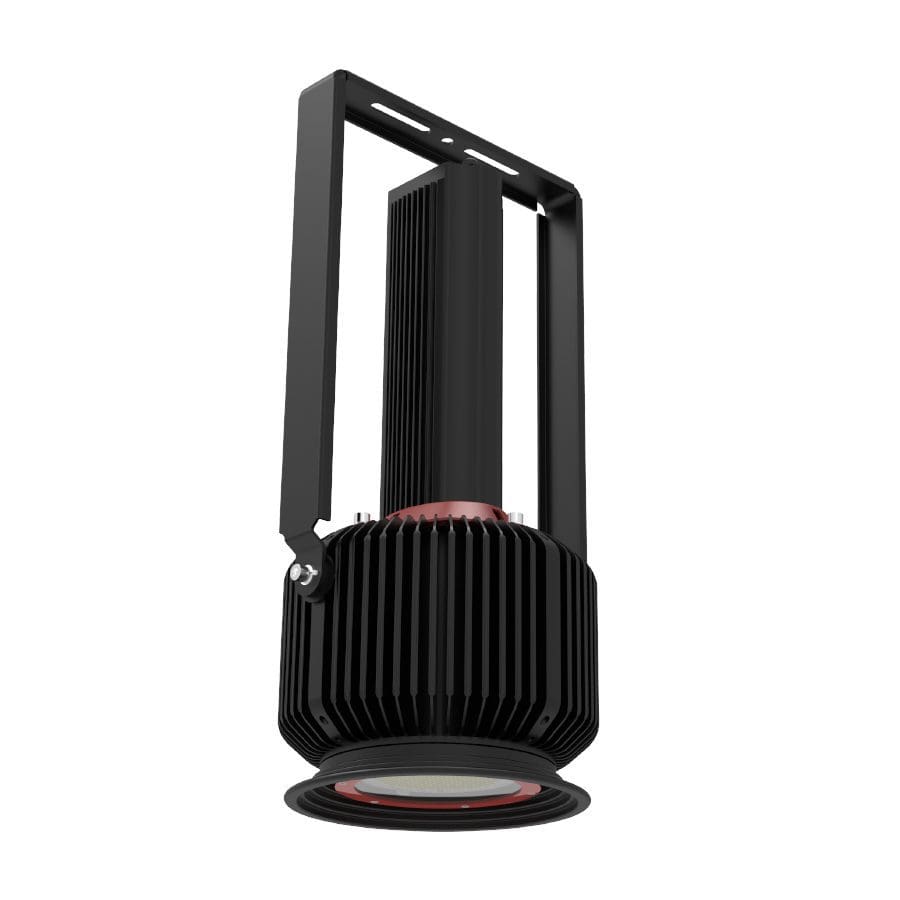

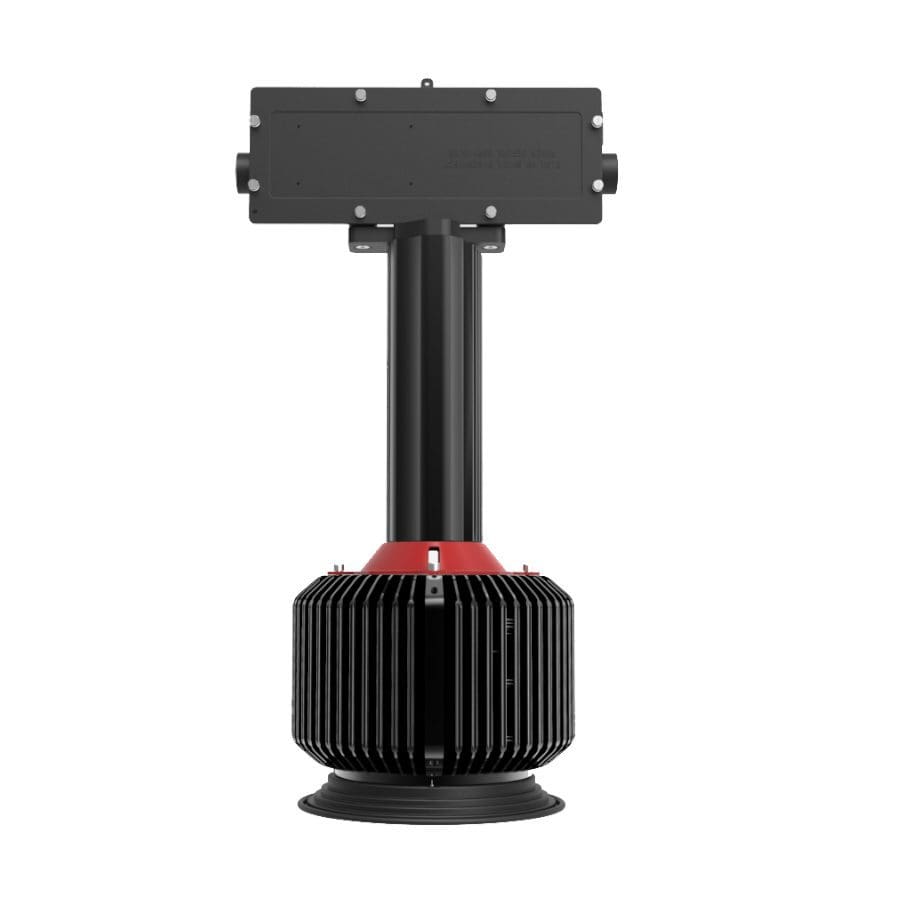

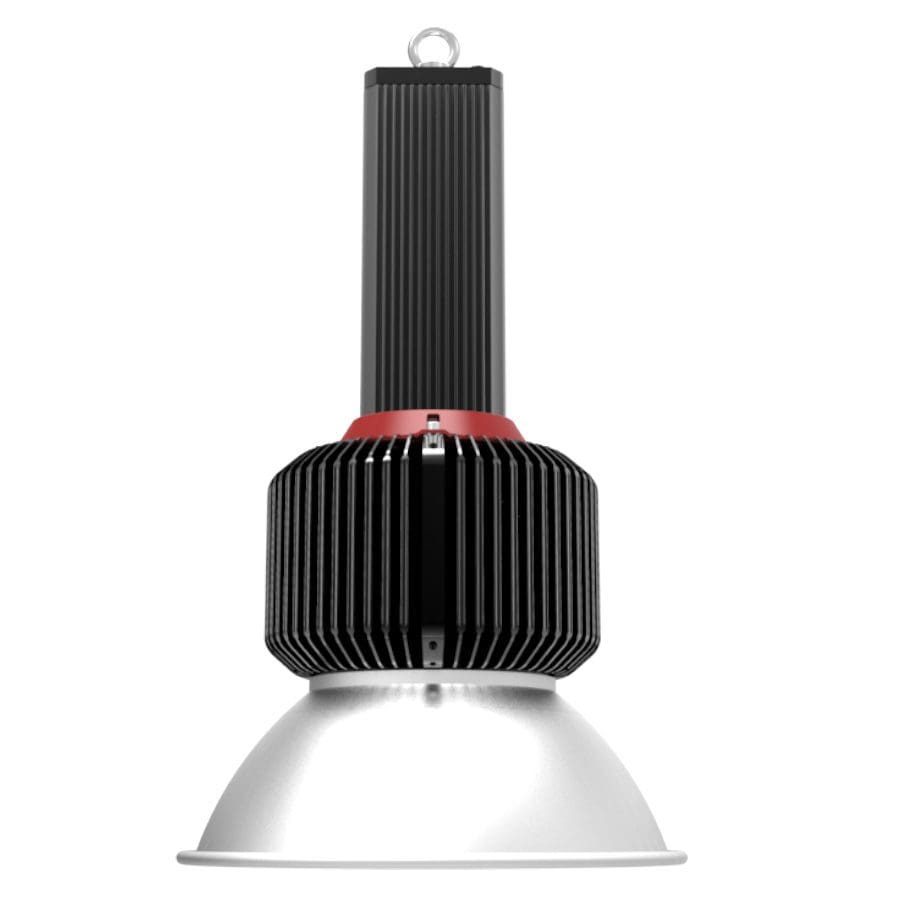

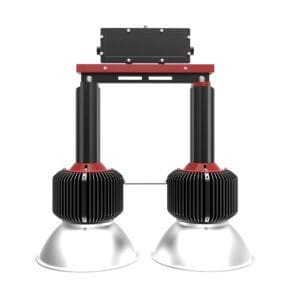

Pendant, Yoke, Twin

Product Weight

23.8lbs/10.8kg

Cable Entry

M16

Product Dimensions

Φ10.2×22.6in (Φ260×573mm)

Environmental Parameters

Ambient Operating Temperature

-40°F ~ +176°F (-40°C ~ +80°C)

Ambient Operating Humidity

10%~90% RH

Optimal Operating Temperature

25°C (77°F)

RELATED PRODUCTS

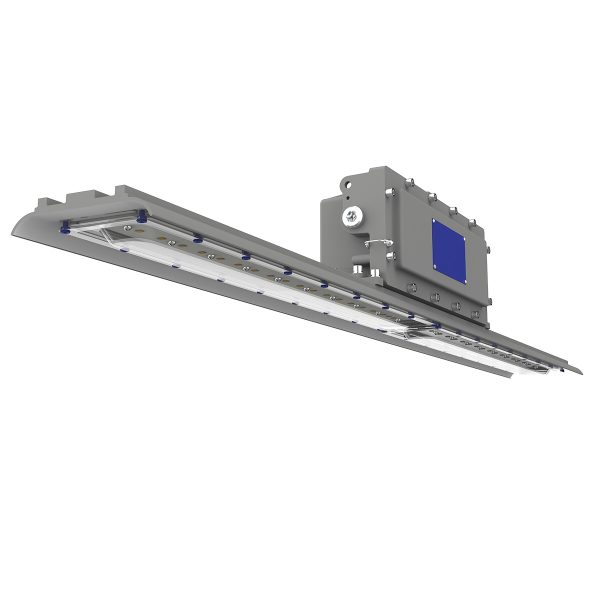

Linear Harsh Series
