Description:
At 130 lumens per watt with 3 different beam patterns, the Block Series brings design, excellence, and durability to harsh and hazardous rated lighting. Explosion proof, the Block is suitable where flammable gases, vapors and combustible dusts are present. Applications include oil and gas rigs, petrochemical plants, paint spray booths, and other hazardous corrosive facilities.
Product Type & Application: Applications, Floodlight, High bay & Low bay, Marine Transportation and logistics, Oil and gas, Paint Booth, Petrochemical Refining and Processing, Water, wastewater treatment
Specifications
Rating & Classifications
Downloads
Electrical
Power (W)
80W, 100W, 150W
Voltage(s)/Frequency
100-277V AC, 347-480V AC
Power Factor
>90%
THD
<20%
L70
170,000 Hours@140°F
Surge Protection
4KvA
Optical
Lumen Output
10,400Lm, 13,000Lm, 19,500Lm
Lumen Efficacy
Up to 130Lm/W
Beam Angle(s)
25°, 60°, 120°
CCT
3000K, 4000K, 5000K
CRI
Ra>70
Mechanical
Ambient Operating Temperature
-40°F to +140°F (-40°C to 60°C)
T-Code Rating
CID1 – T6, CID2 – T4A, CIID2 – T4A
Housing Construction
Marine Grade Cast Aluminum
Housing Finish
Thermoset Powercoat
Lens Material
Tempered Glass

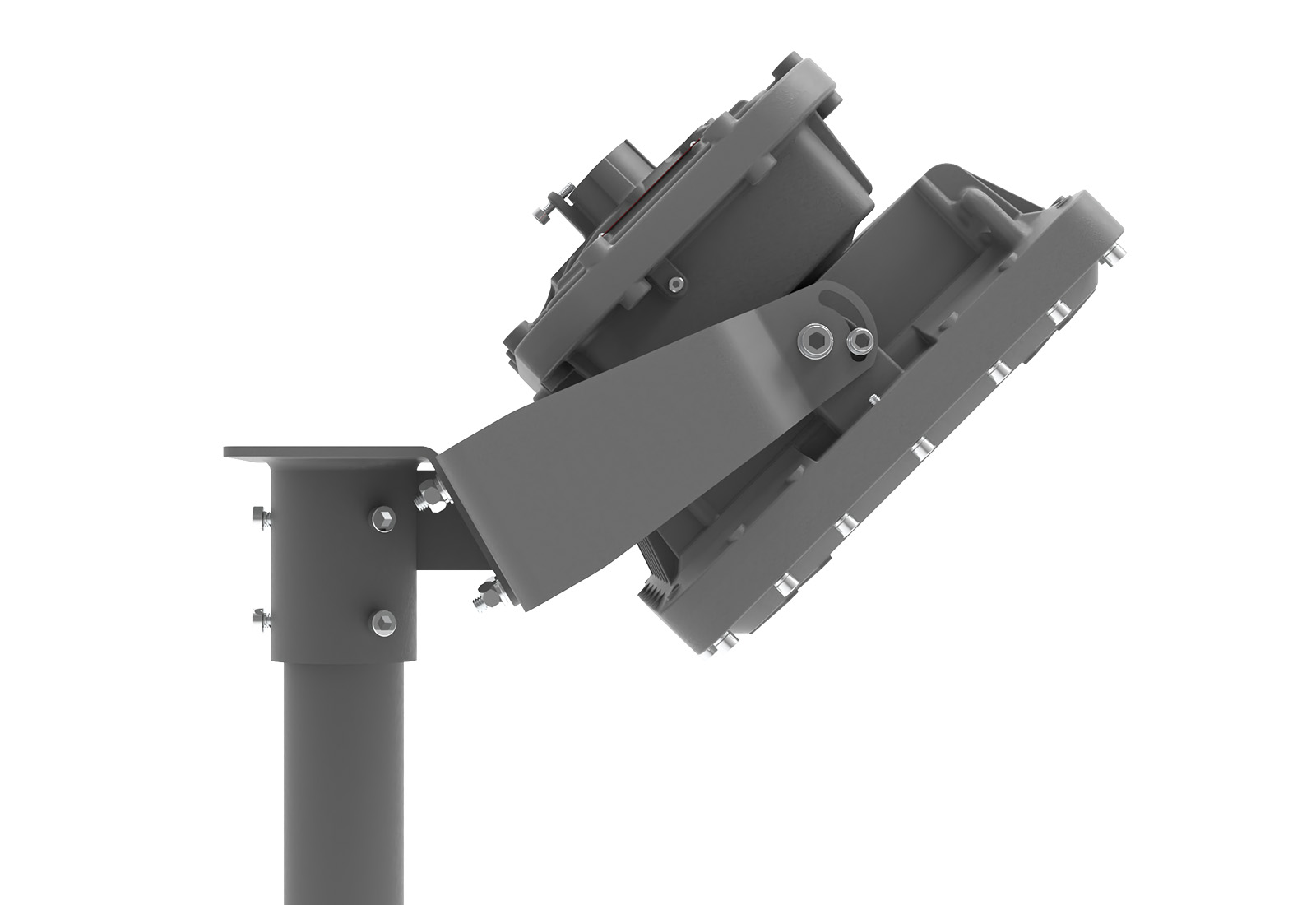

Mounting Options

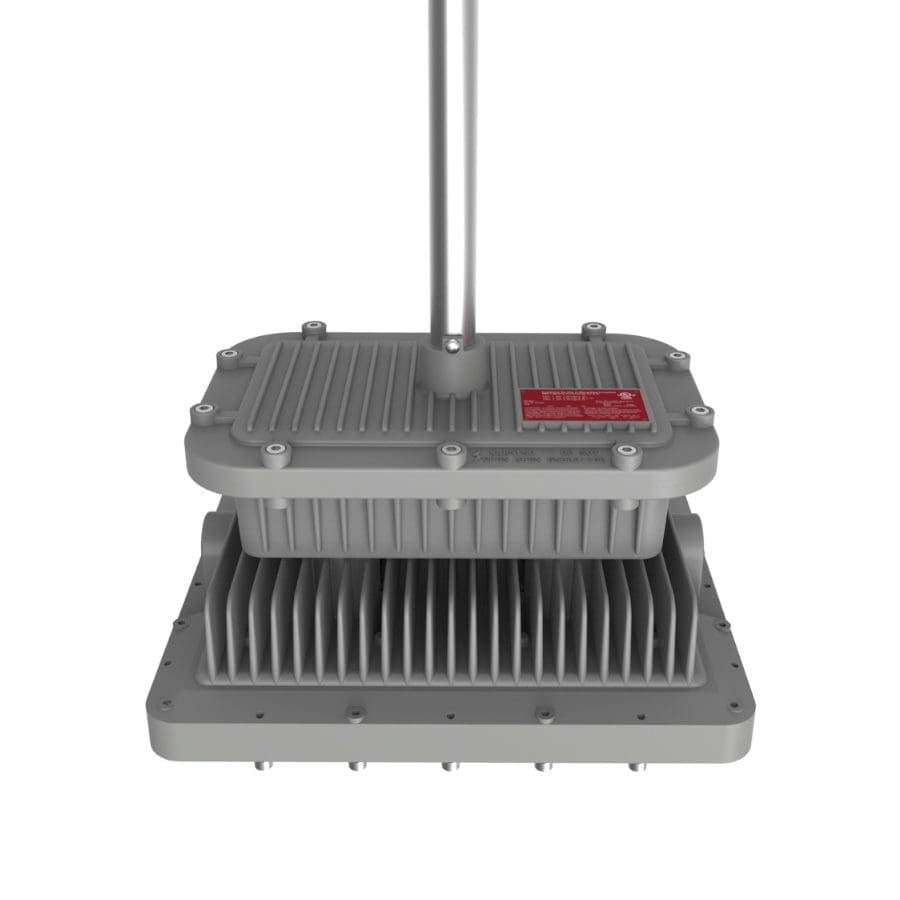

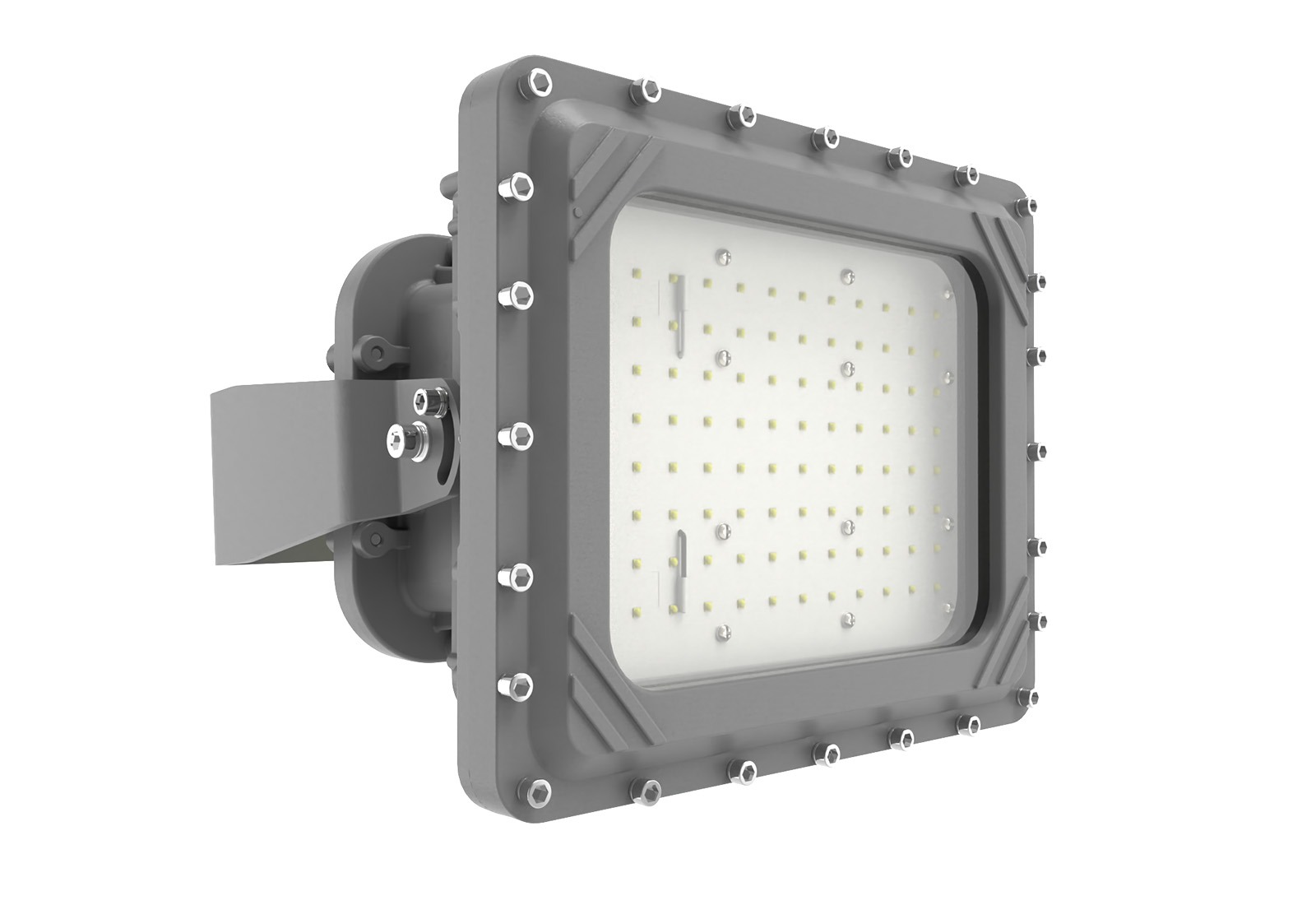

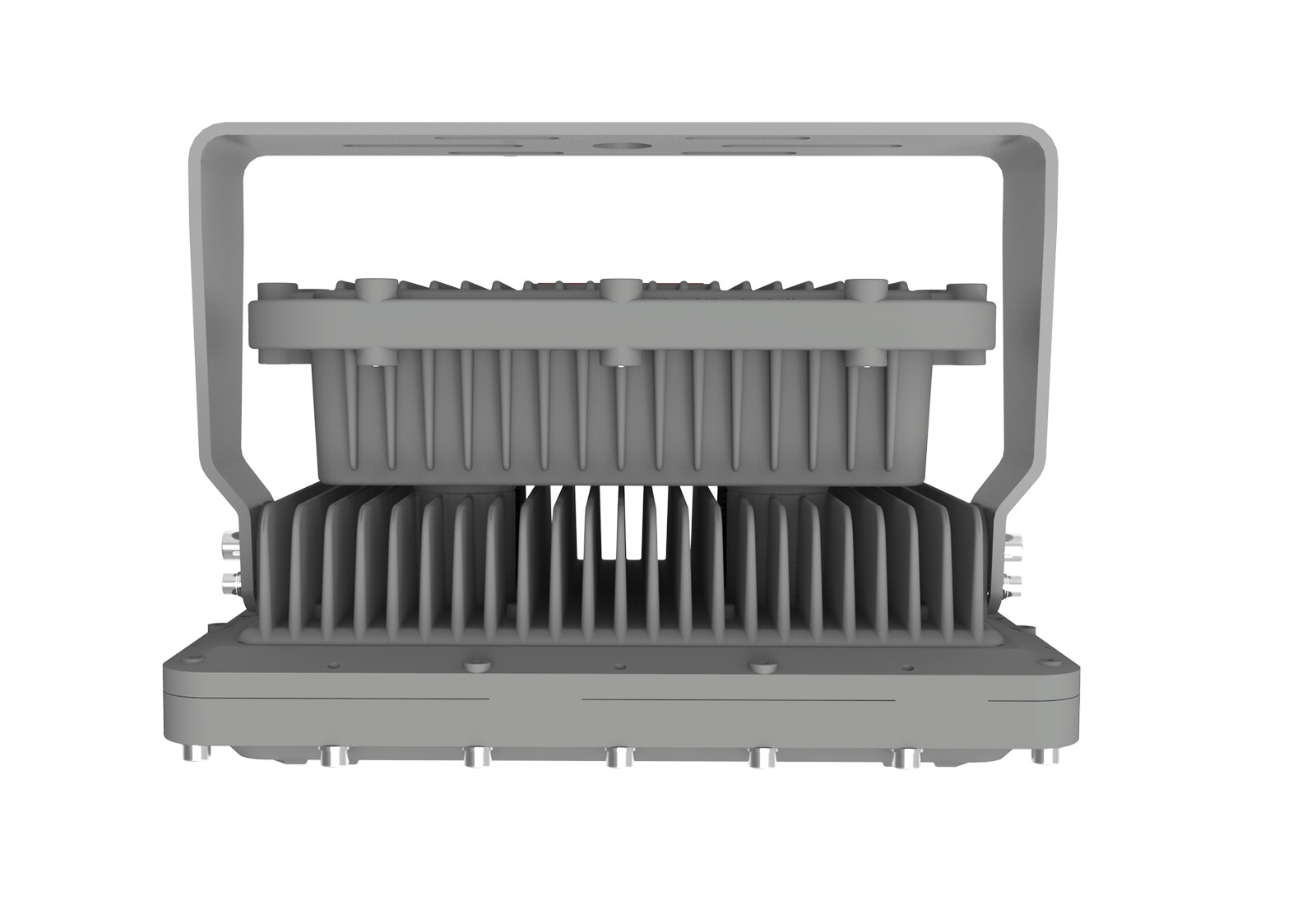

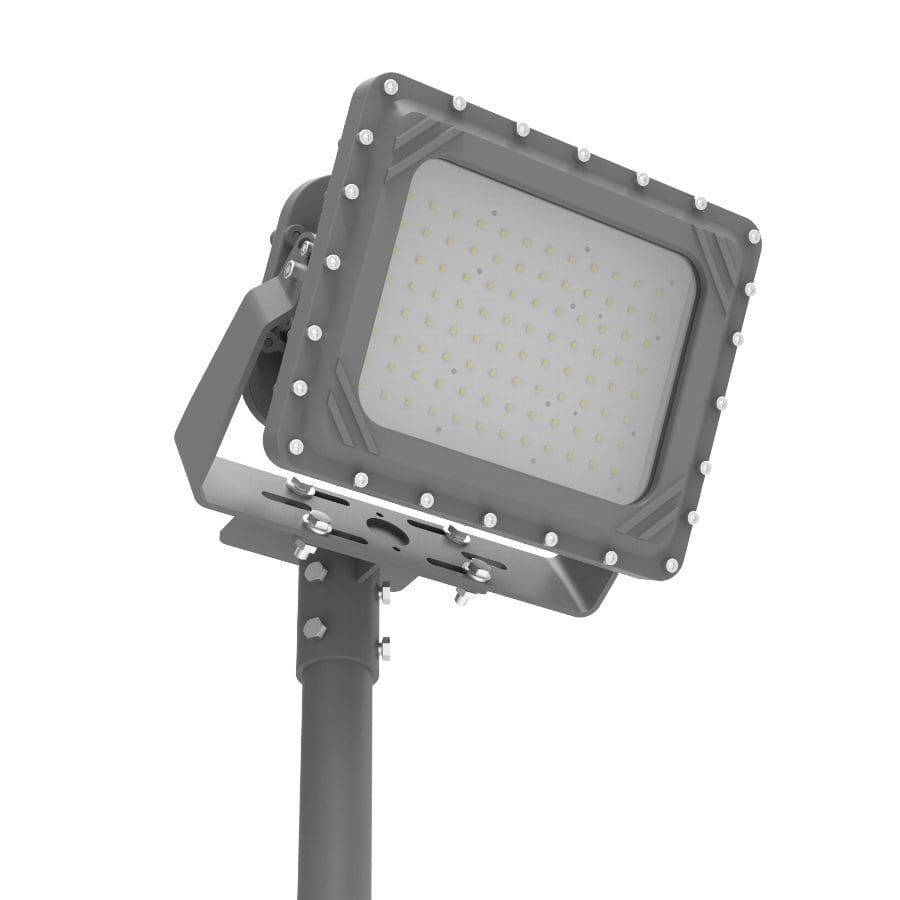

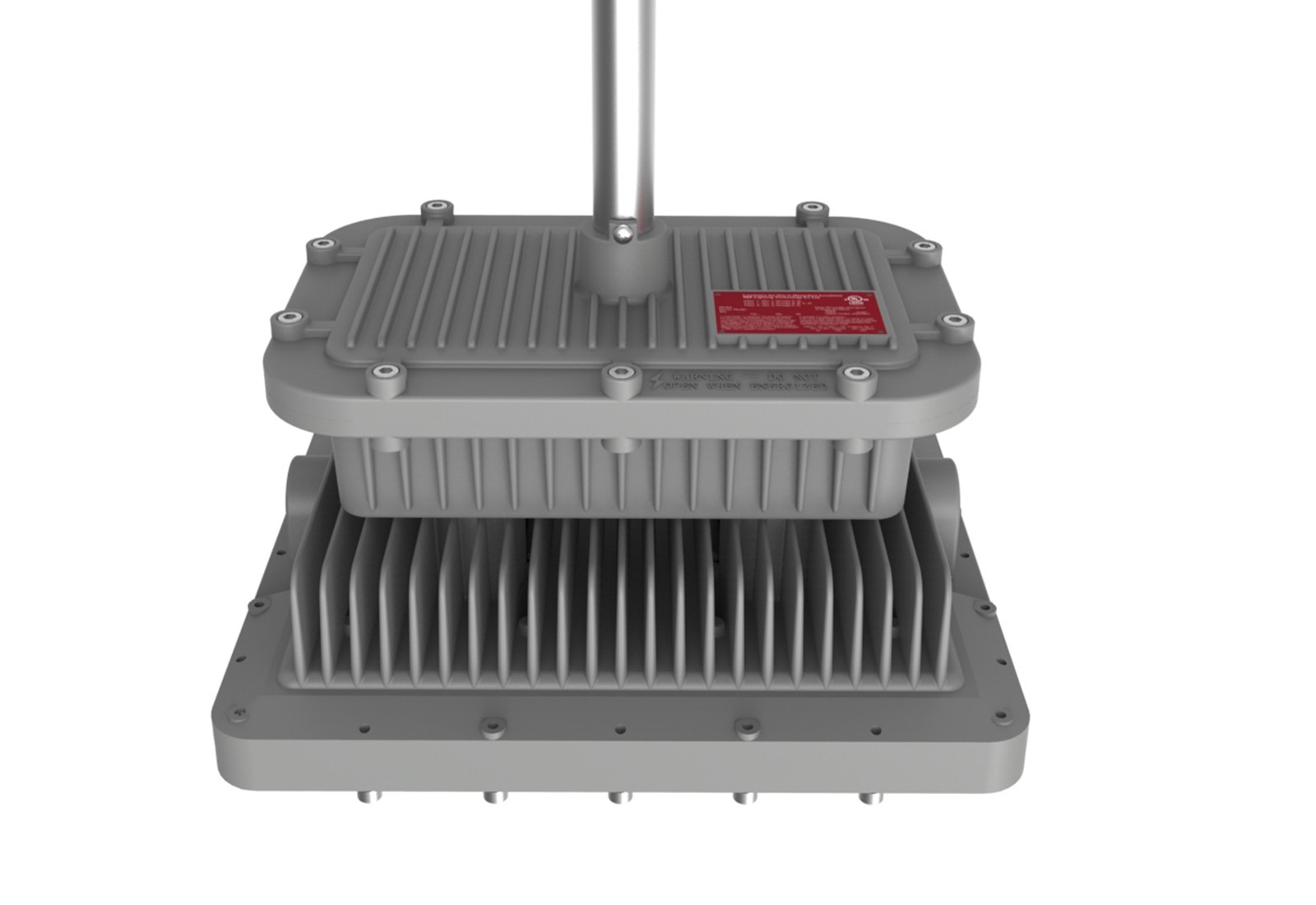

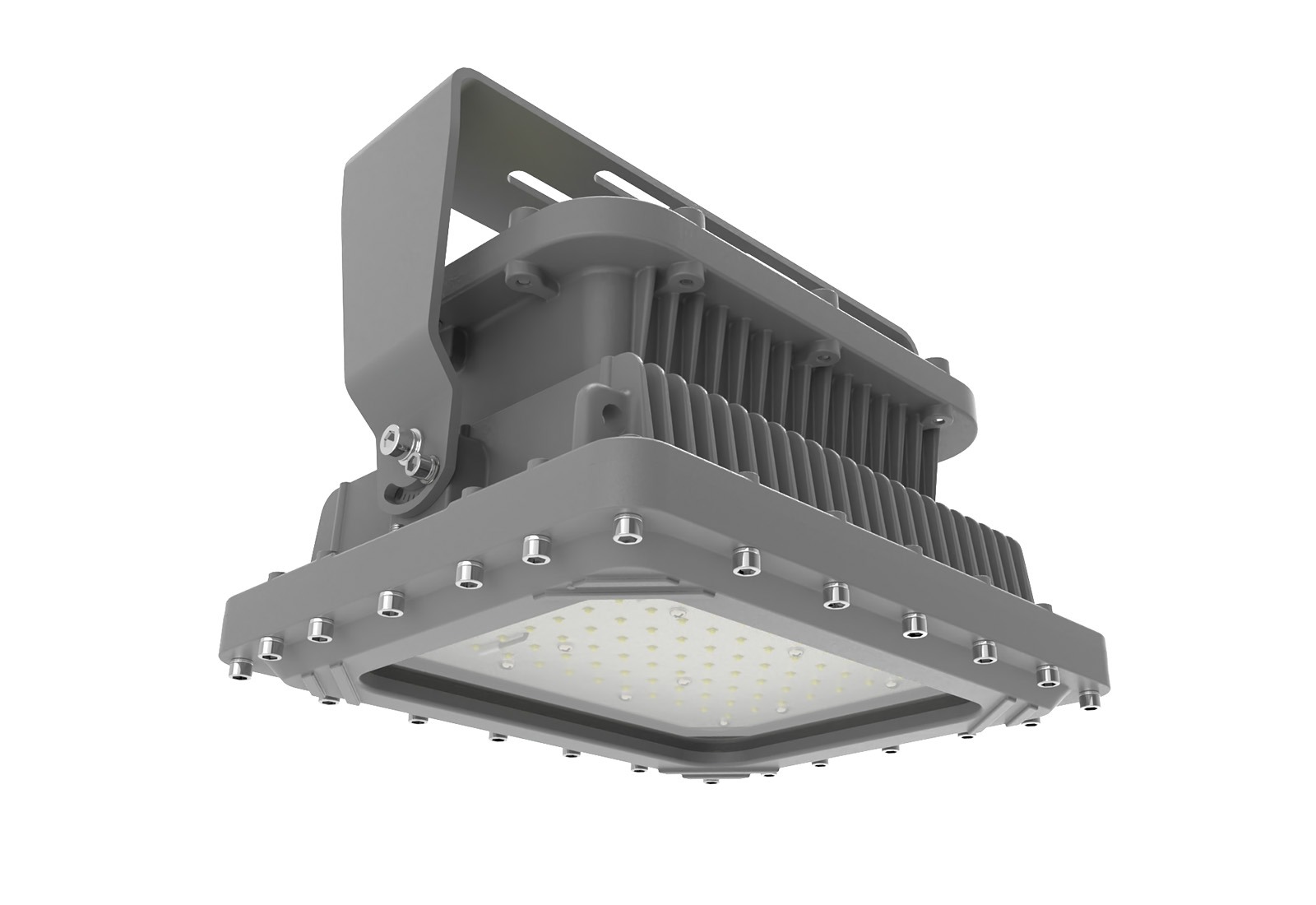

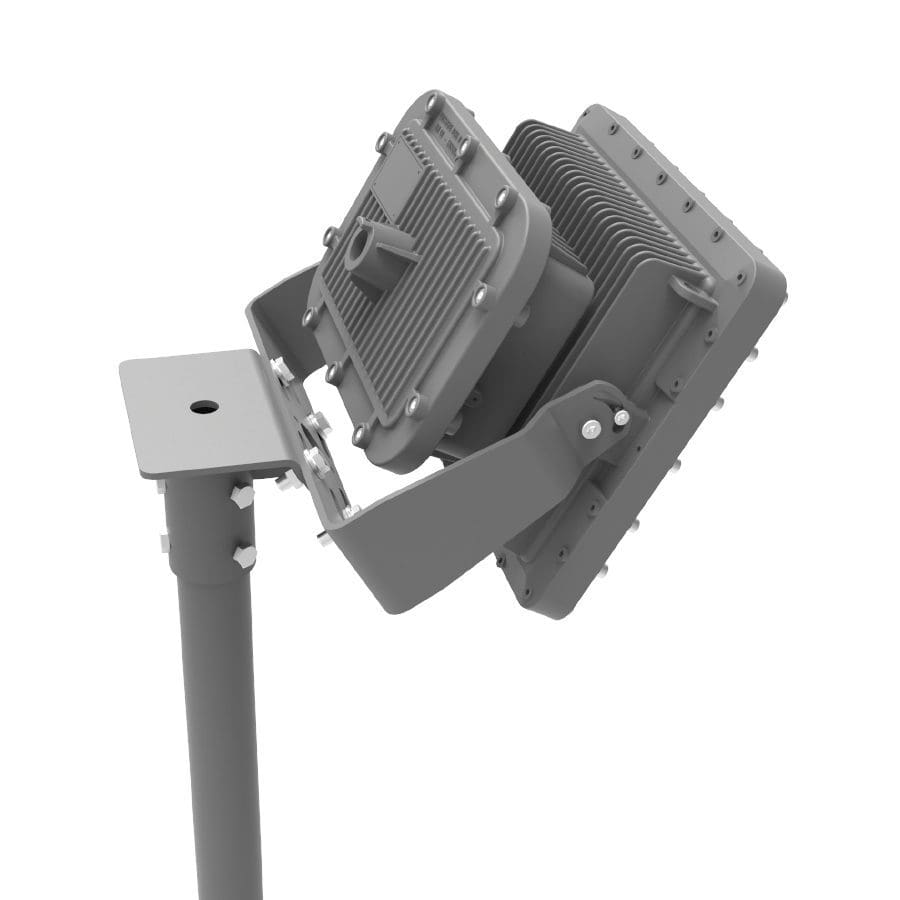

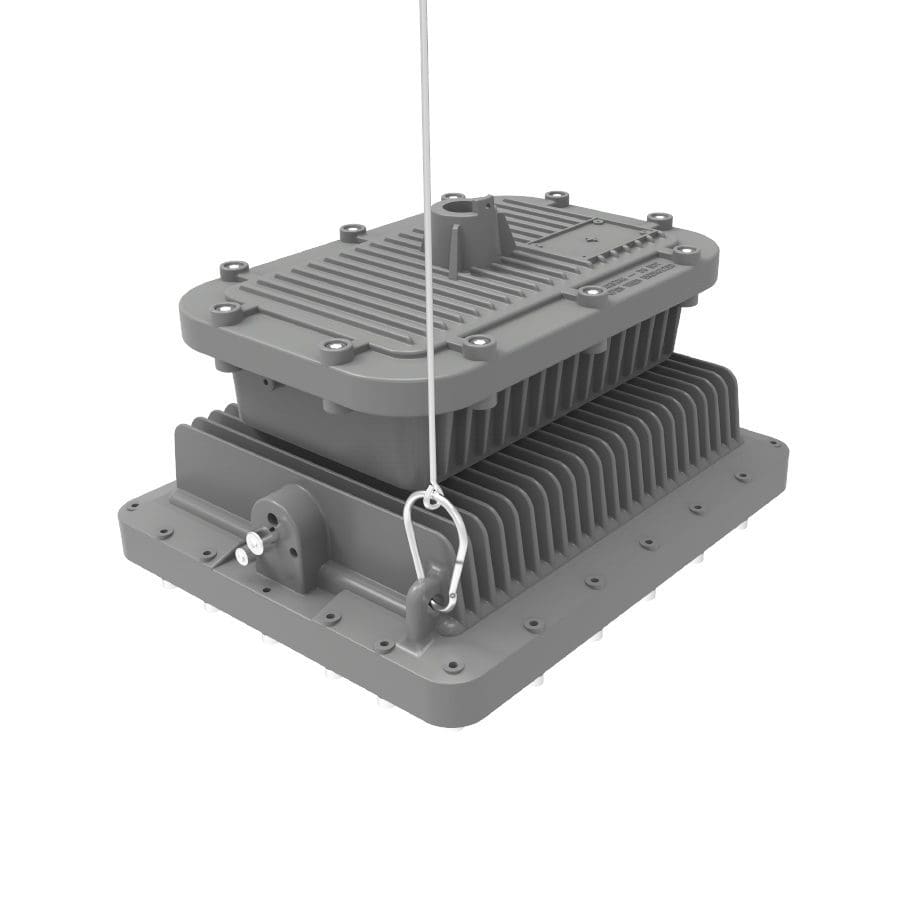

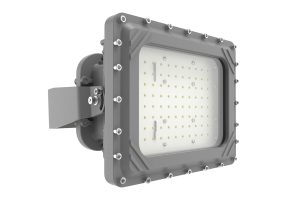

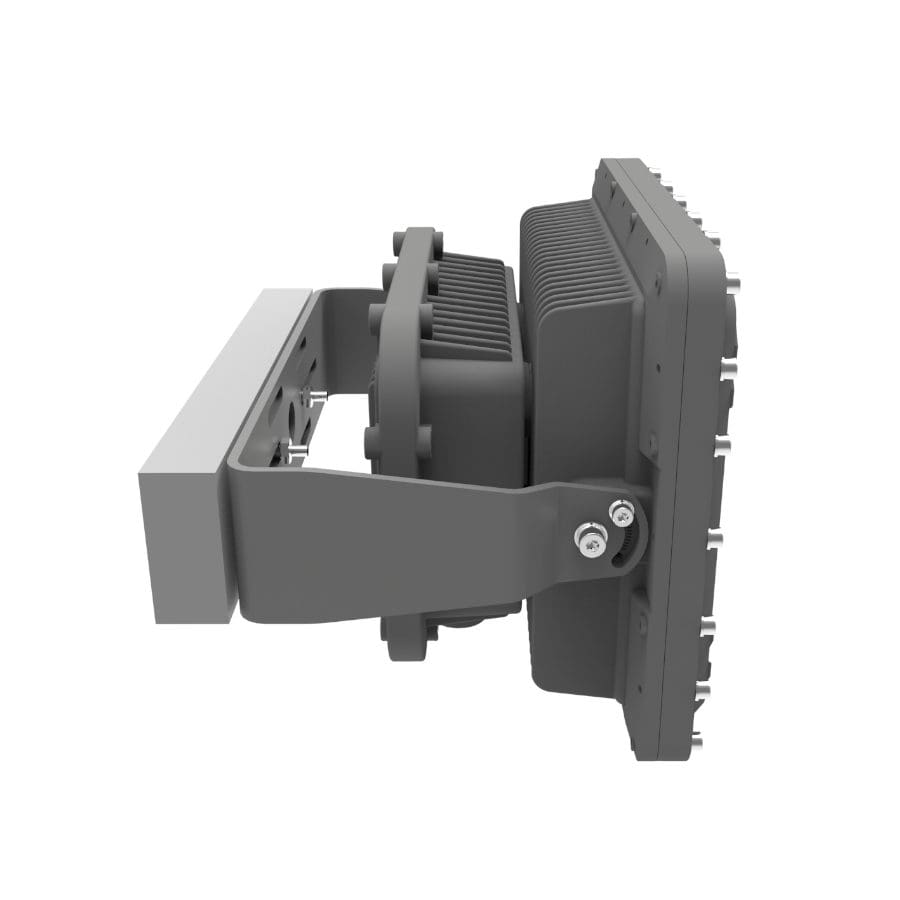

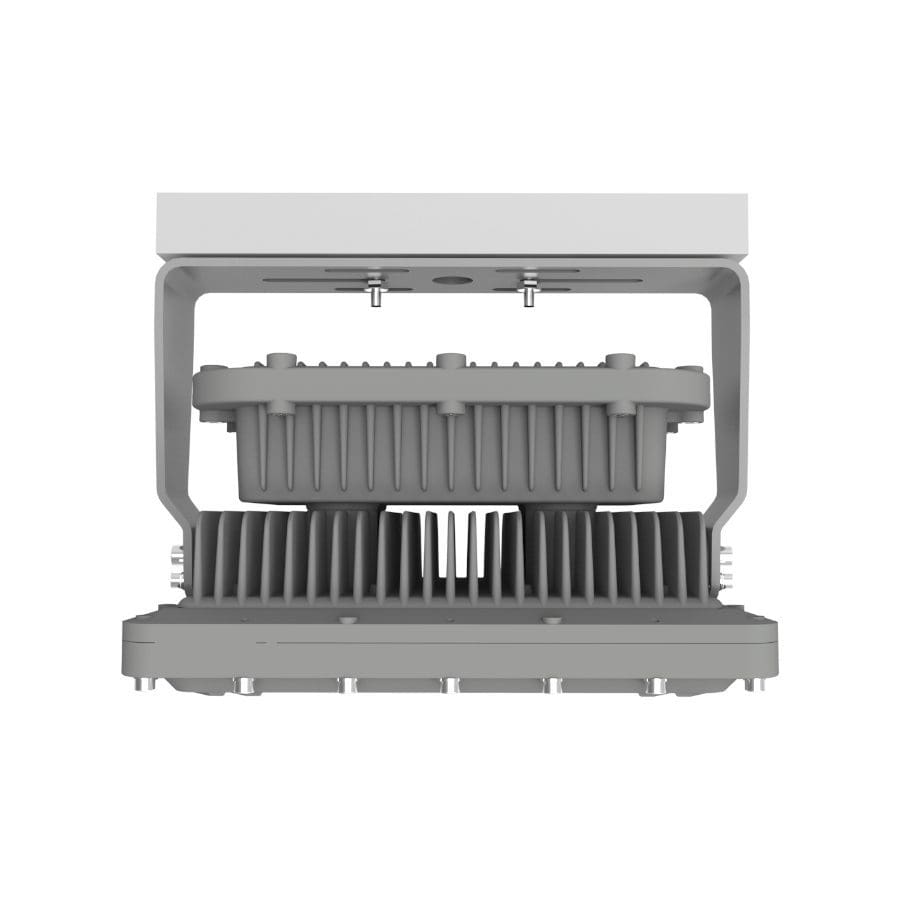

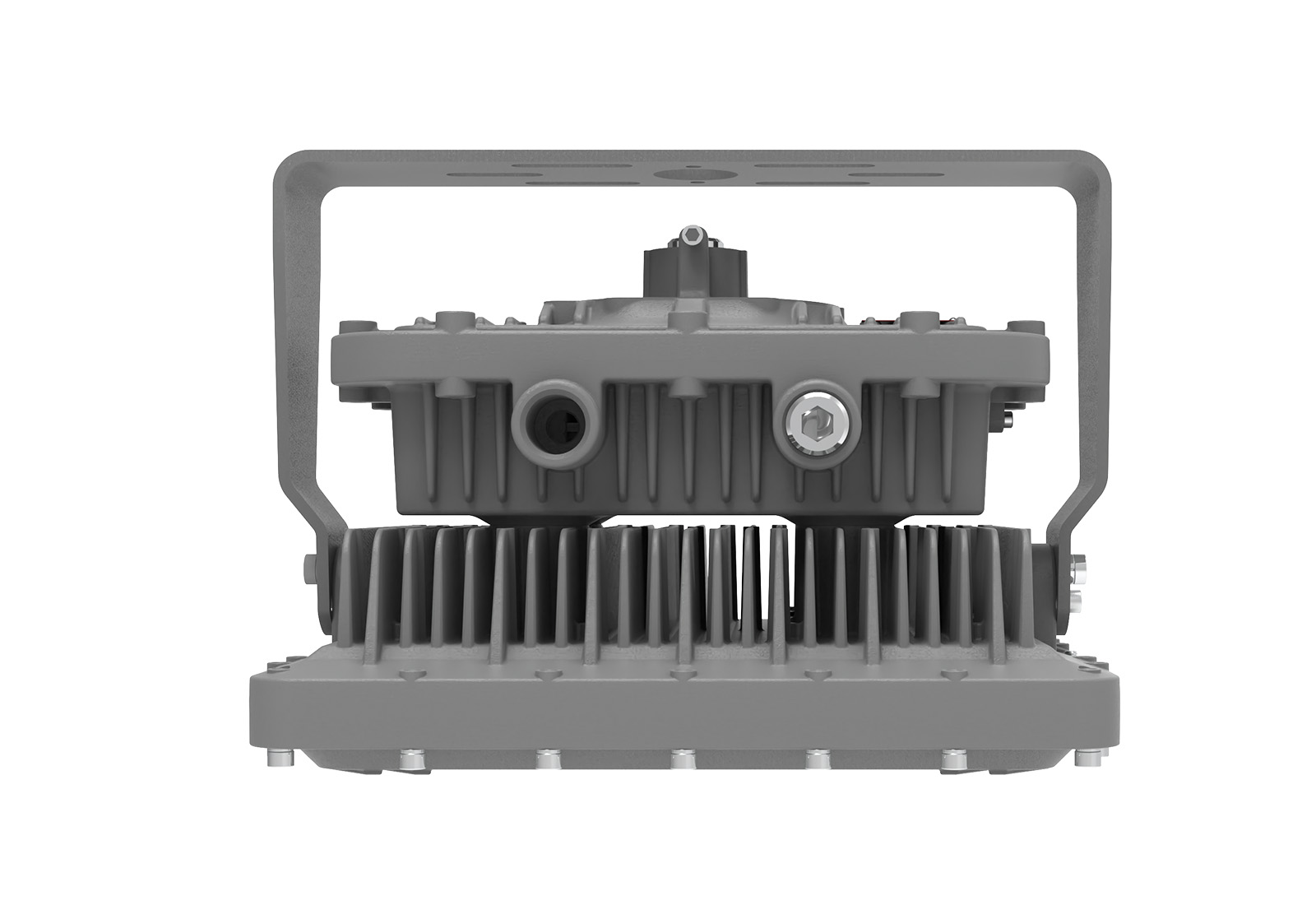

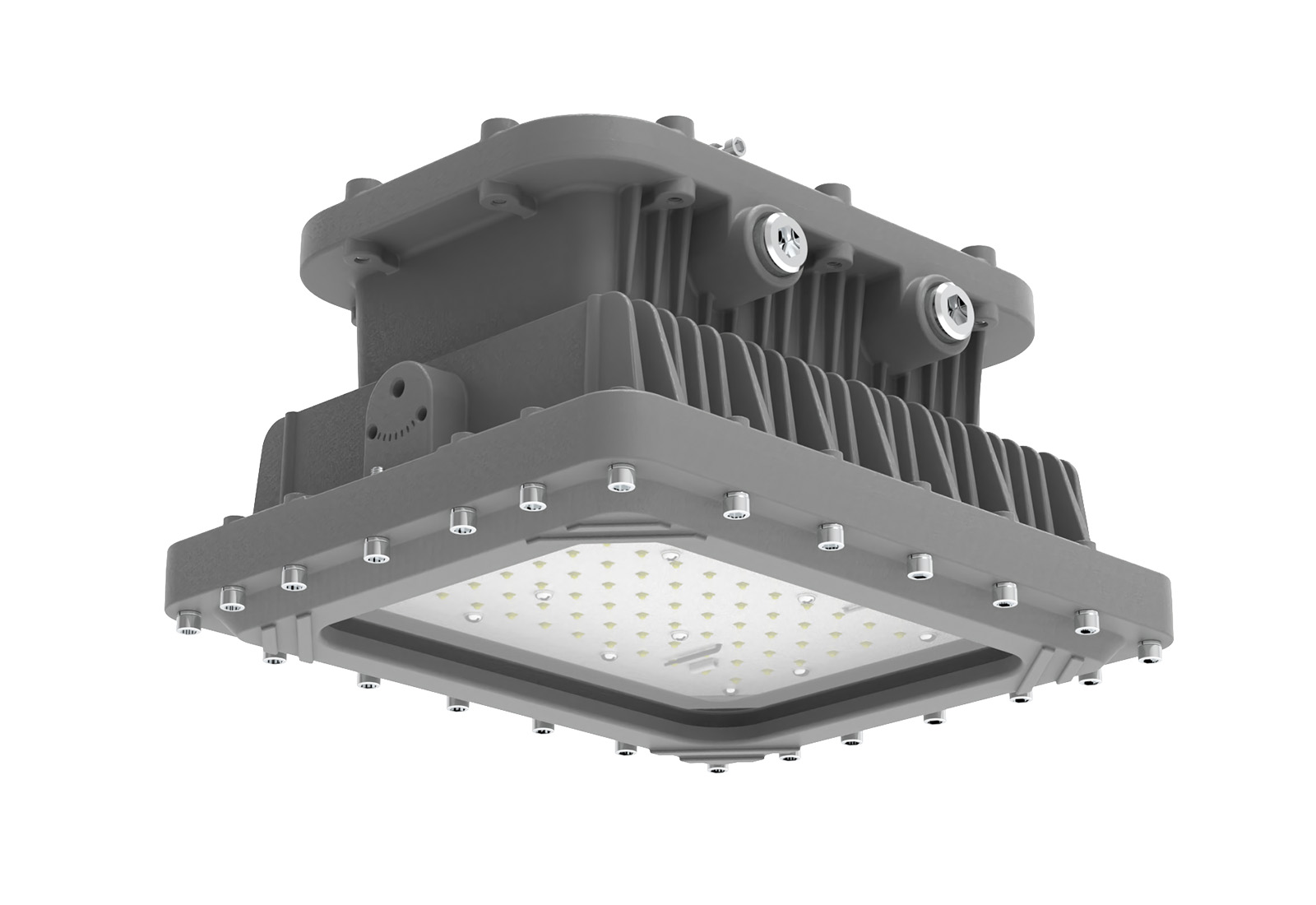

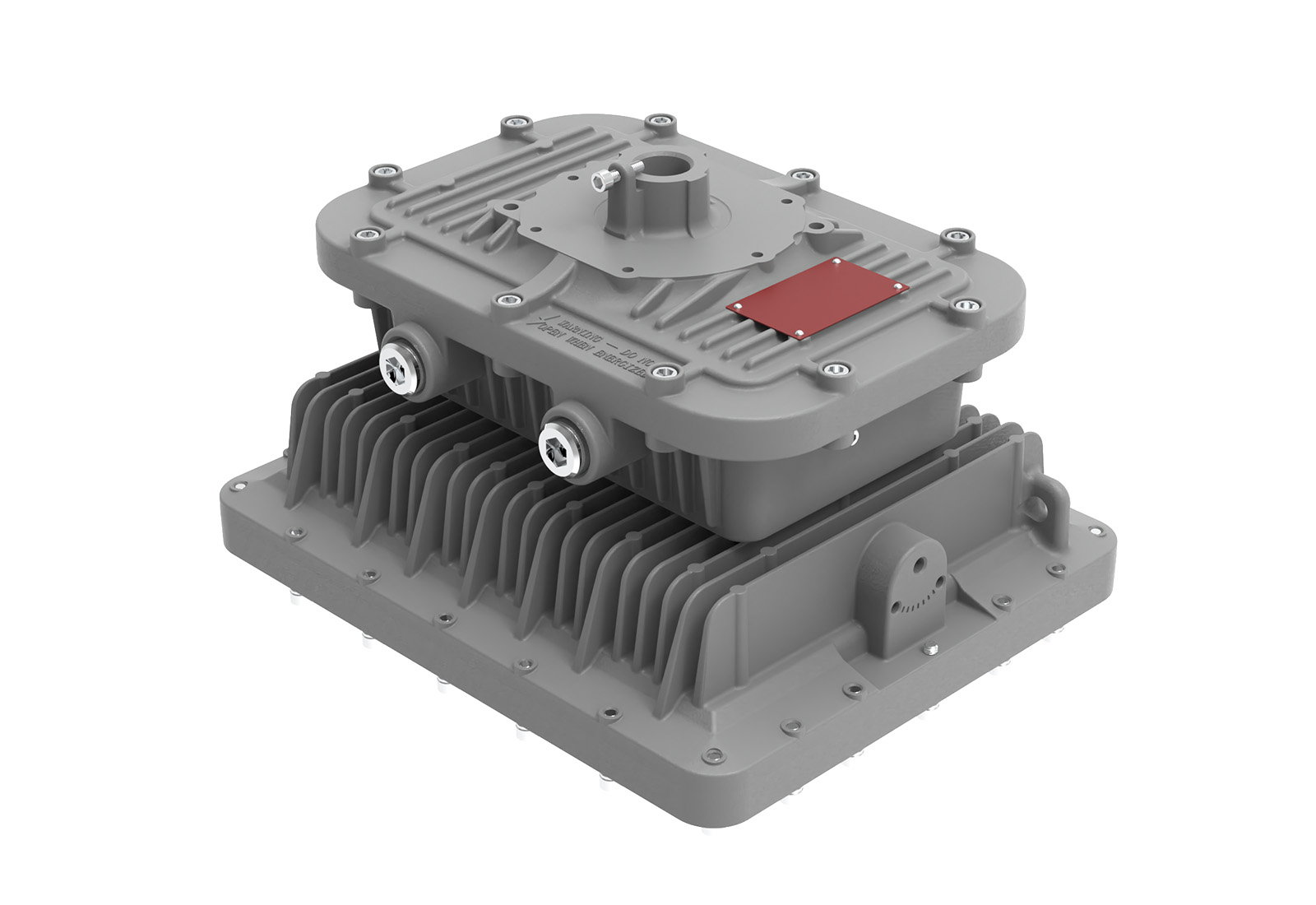

Pendant, Yoke Bracket
Weight
33.4lbs/15.2kg
Dimensions (L×W×H)
12.9×10.7×8.4in (328×271×214 mm)
Connections
(3) 3/4″ NPT
Warranty/Certifications
Warranty Terms
Driver: 7 years, LEDs: 10 years
Class l Division 1/Groups C, D
Class l Division 2/Groups A,B,C,D
Class ll Division 2/Group F,G
UL 844 Hazardous Location
UL 1598 Wet Location
UL 1598A Marine Vessels – Salt Spray
UL 8750 LED Safety
CSA C22.2 No.137-M1981
IP66
