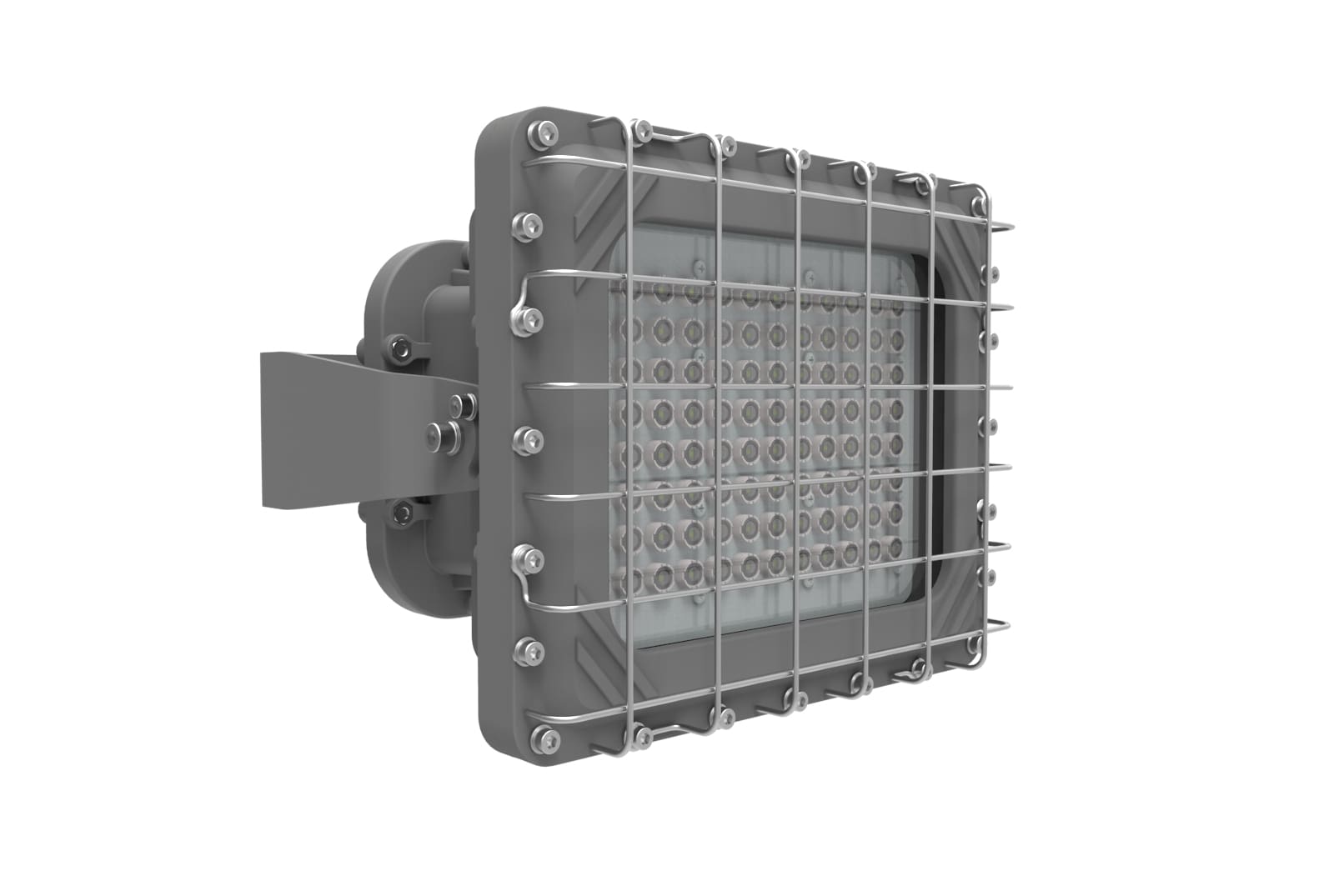

Description:

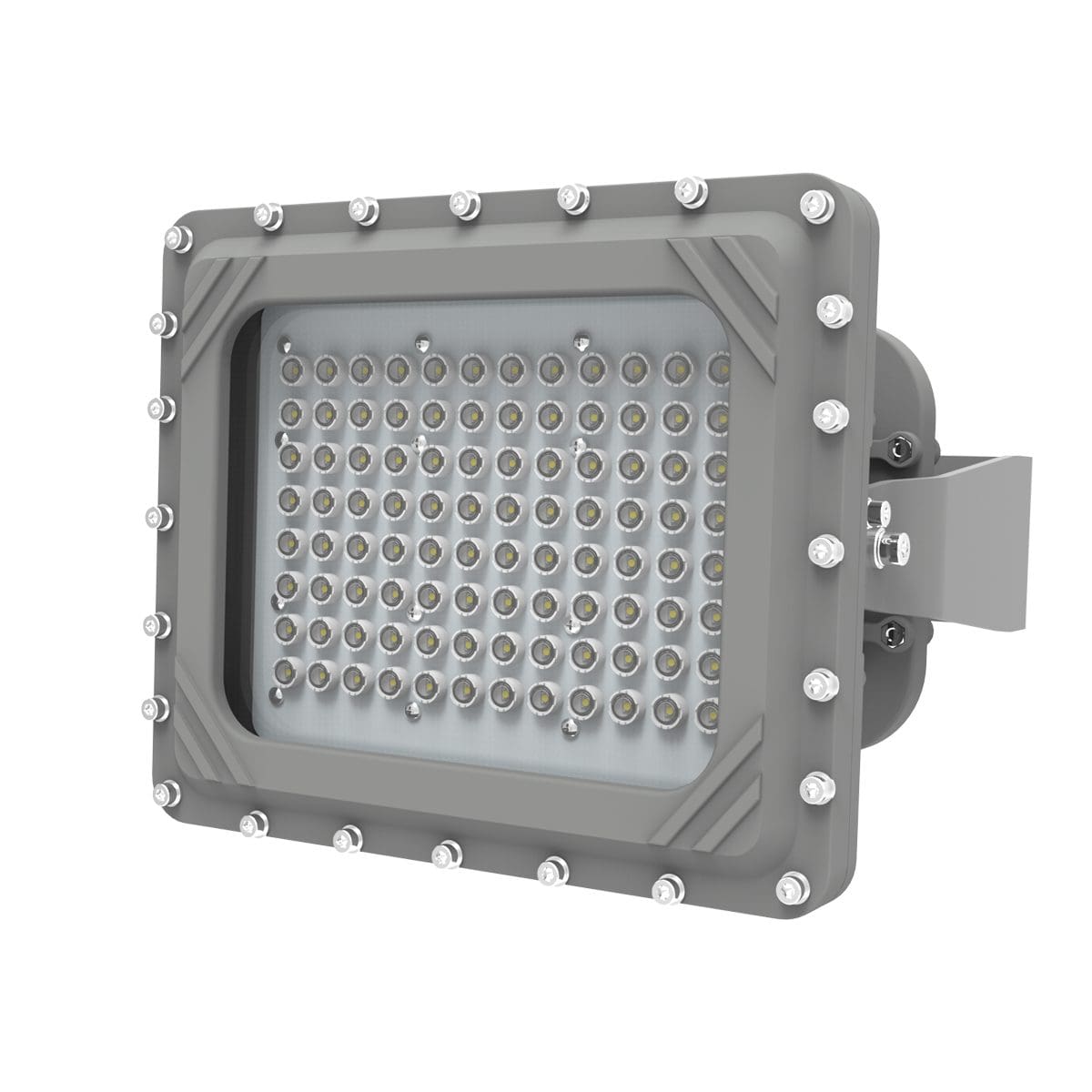

Block (BLK) C1 Series LED Luminaire is designed for installations where moisture, dirt, dust, corrosion and vibration
may be present, or areas where wind, water, snow or high ambient can be expected.
They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the IECEX.
BLK C1 Series is ideal for retrofit of existing HPS/MH and offers higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks
Product Type & Application: Applications, Floodlight, Marine Transportation and logistics, Oil and gas, Petrochemical Refining and Processing, Power Generation, Water, wastewater treatment
Specifications
Rating & Classifications
Downloads
Electrical
Power (W)
80W, 100W, 150W
VOLTAGE(S)
100-240V AC, 200-480V AC
Frequency
50/60Hz
Power Factor
≥95%
THD
L70
Surge Protection
4KV
Optical
Lumen Output
10,400Lm, 13,000Lm, 19,500Lm
Lumen Efficacy
130Lm/W @5000K
Beam Angle(s)
25°, 60°, 120°
CCT
3000K, 4000K, 5000K
CRI
Ra>70
Mechanical
Ambient OPERATING Temperature
-13°F to 122°F (-25°C to +50 °C)
T-Code Rating

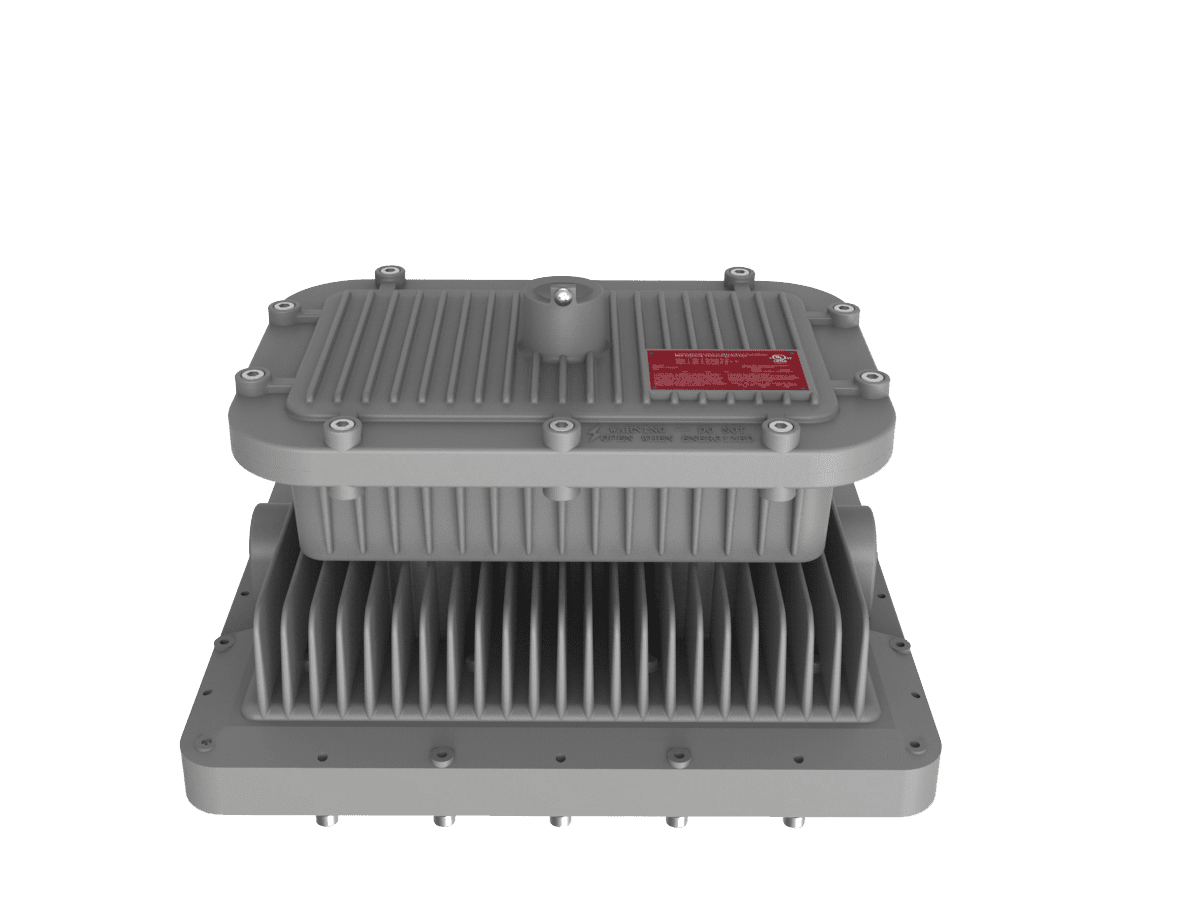

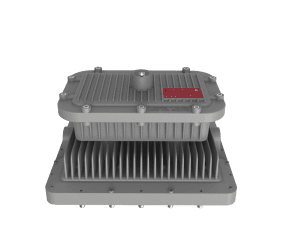

Housing Construction
Stainless steel 316
Housing Finish
Polyster powder coating for uniform corrosion resistance
Lens Material
Tempered Glass

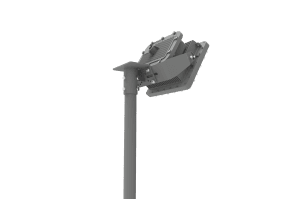

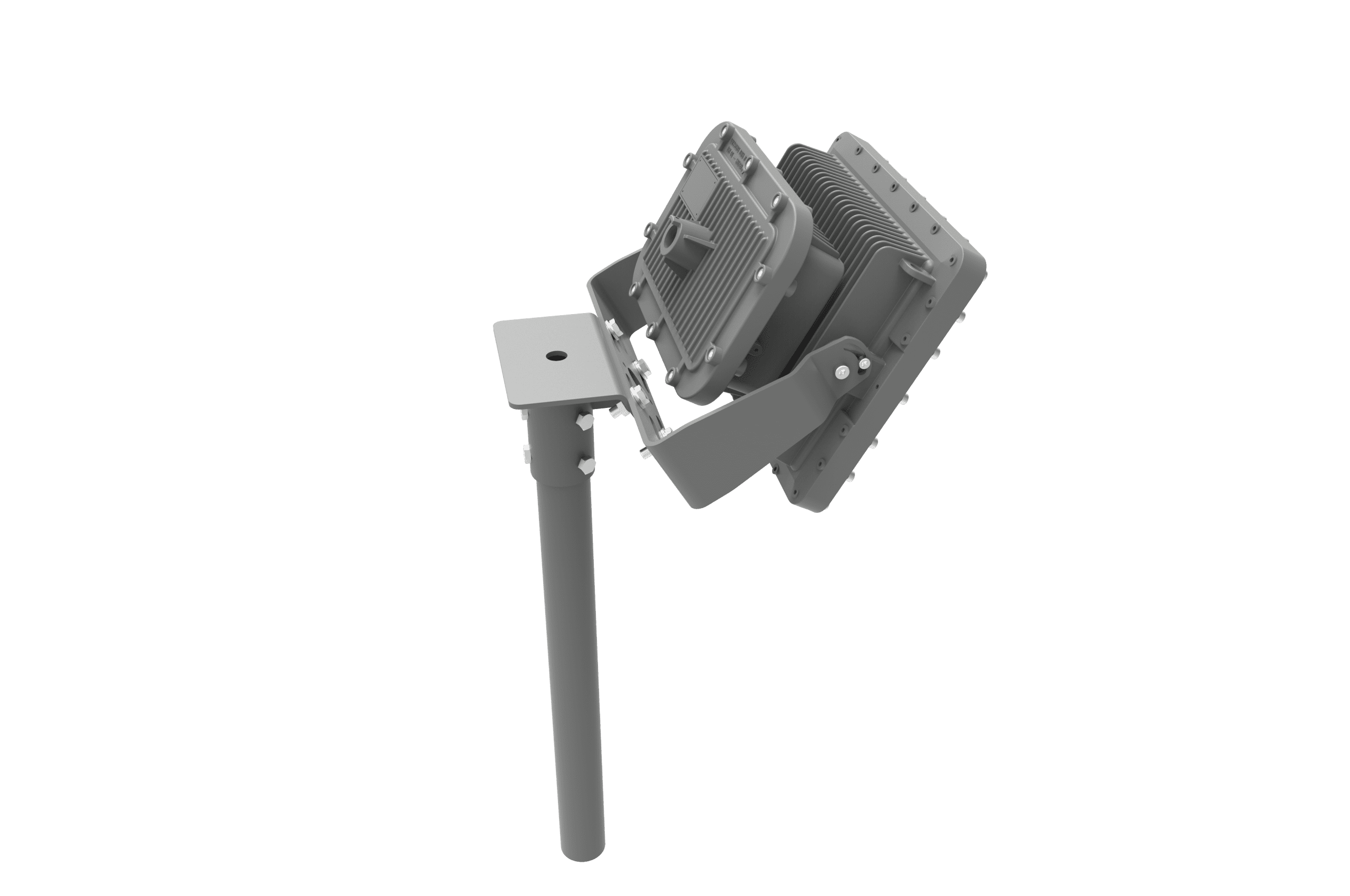

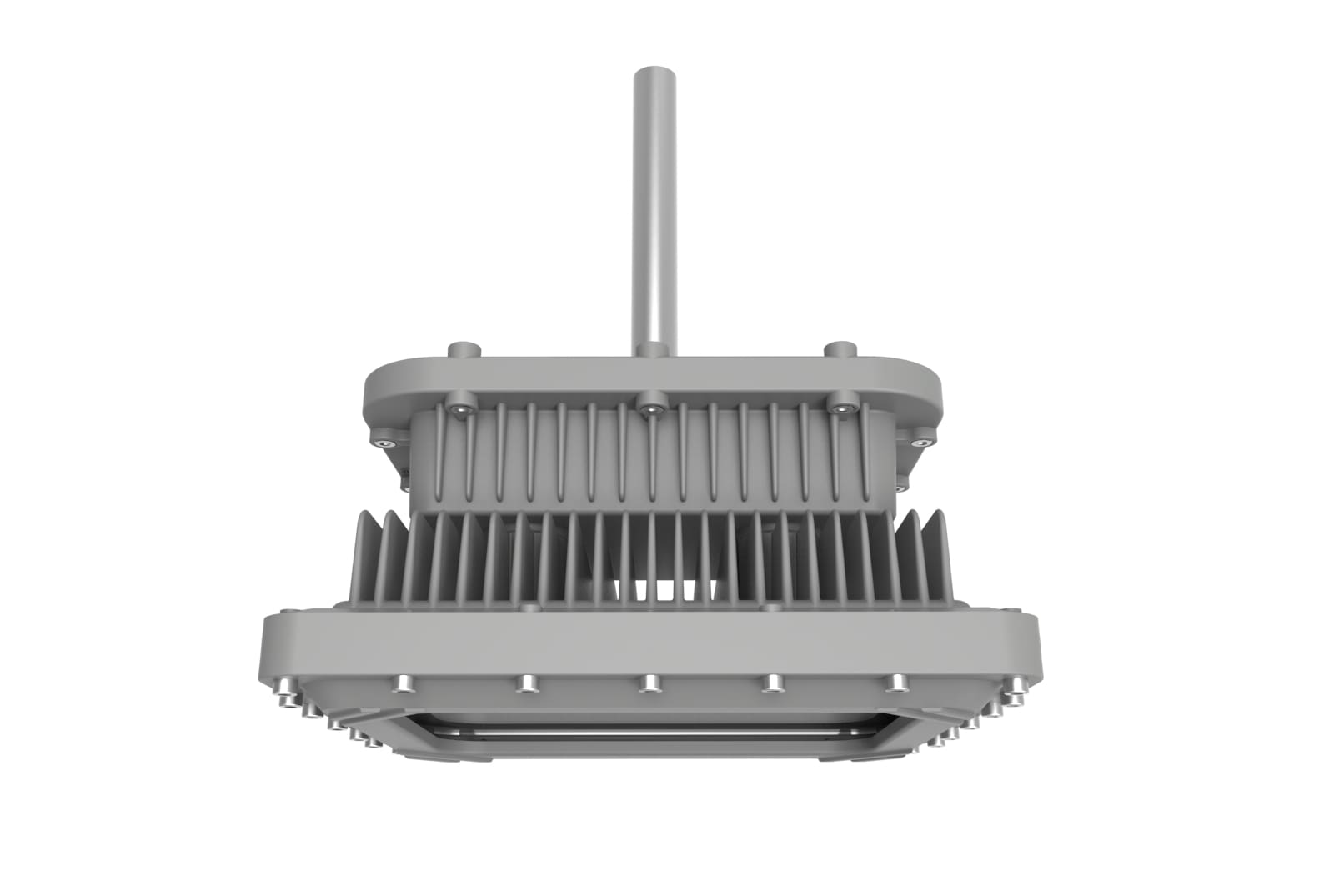

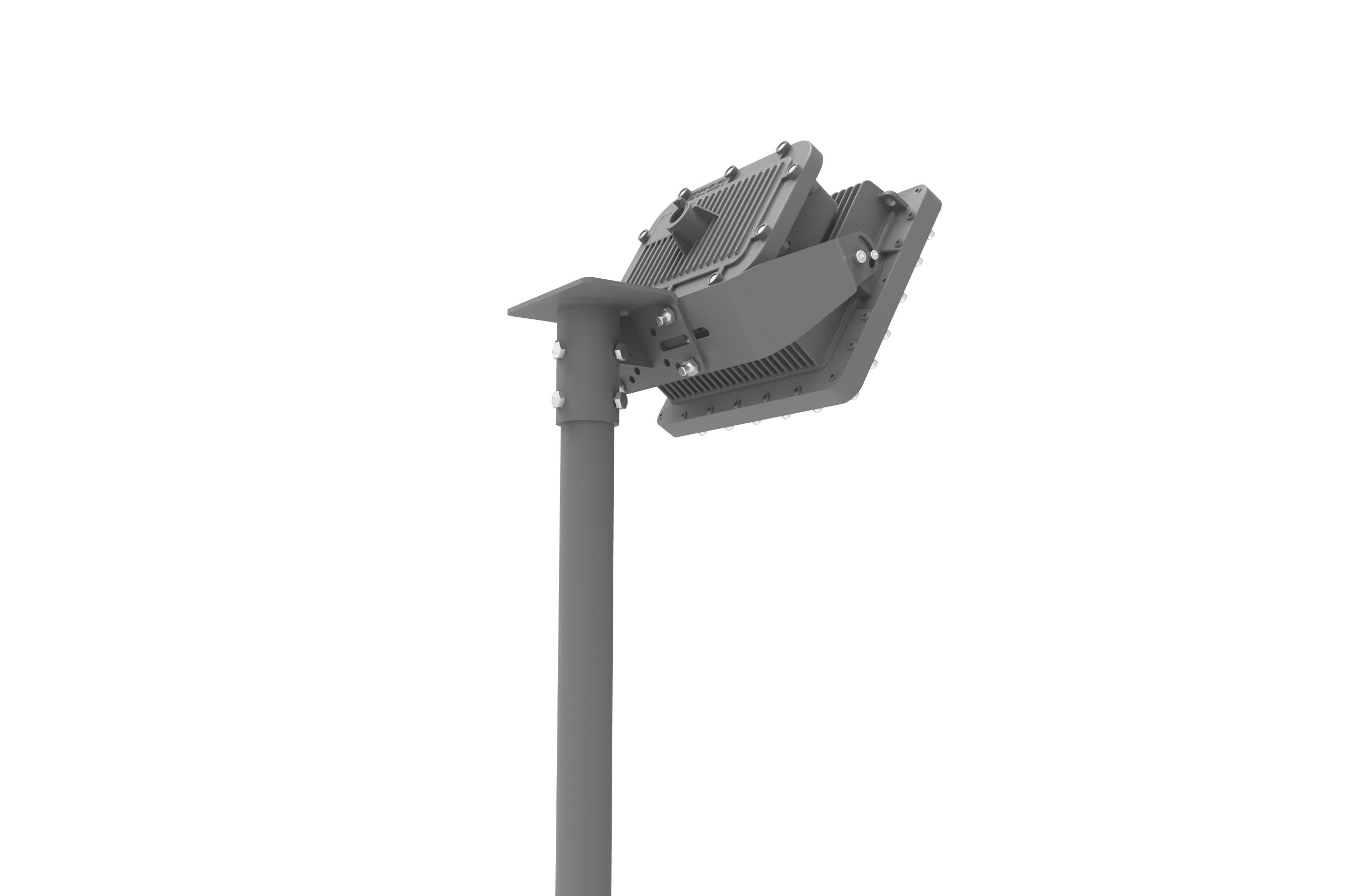

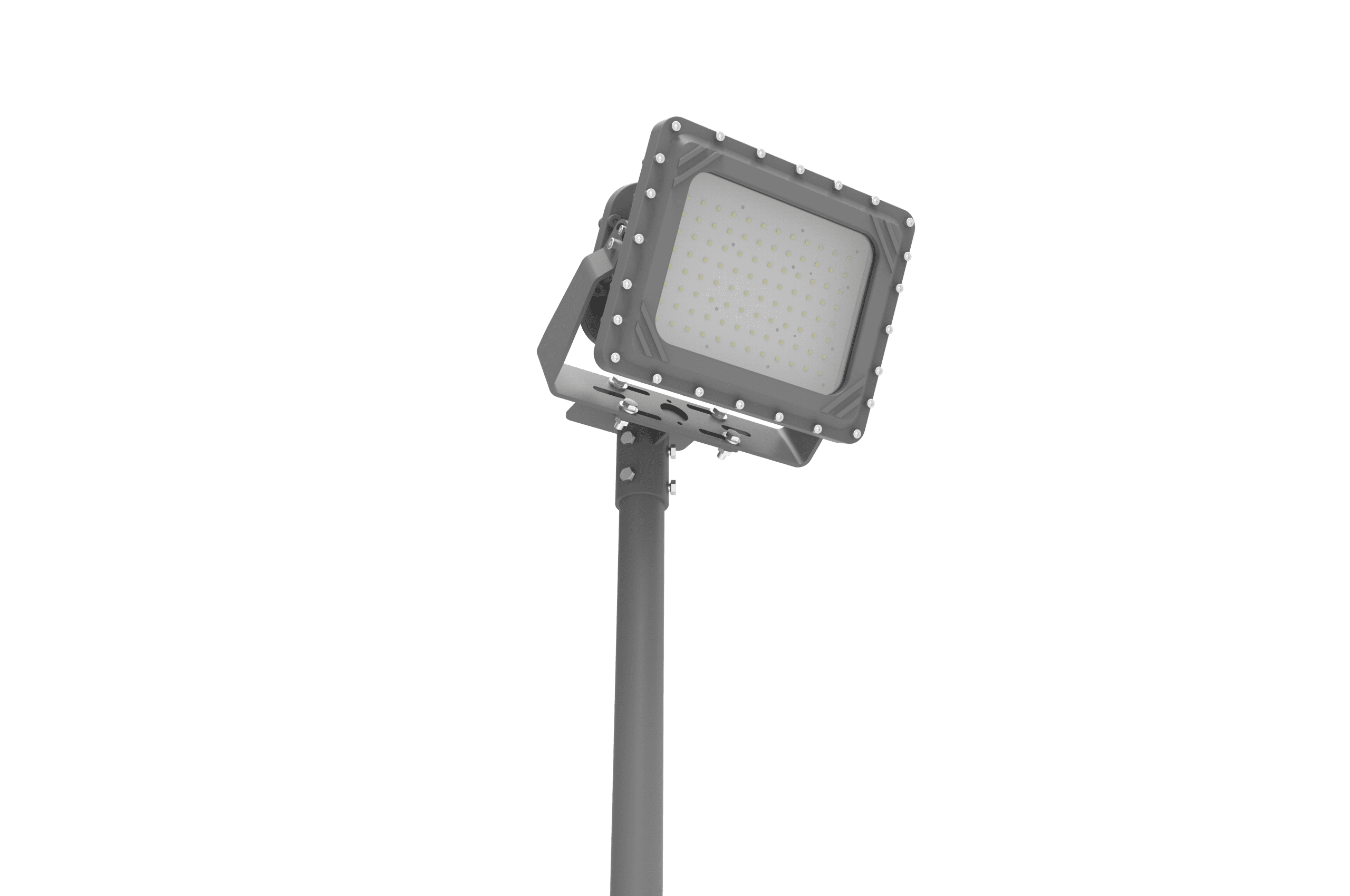

Mounting Options
Ceiling, Wall, Pole
Weight
100W: 15.3Kg/33.7Lb, 150W: 15.5Kg/34.2Lb, 80W: 15.2Kg/33.5Lb
Dimensions (L×W×H)
12.9x10.7x6.9 in (328×271×176 mm)
Connections
Warranty/Certifications
Warranty Terms
5 Years
Ex d IIB T6 Gb
Ex tb IIIC T85°C Db
Zone 1&2 ( Explosive gas )
Zone 21&22 ( Combustible dust )
