ROUND X2 SERIES DC VERSION
SKU RND X2 DC
Description:

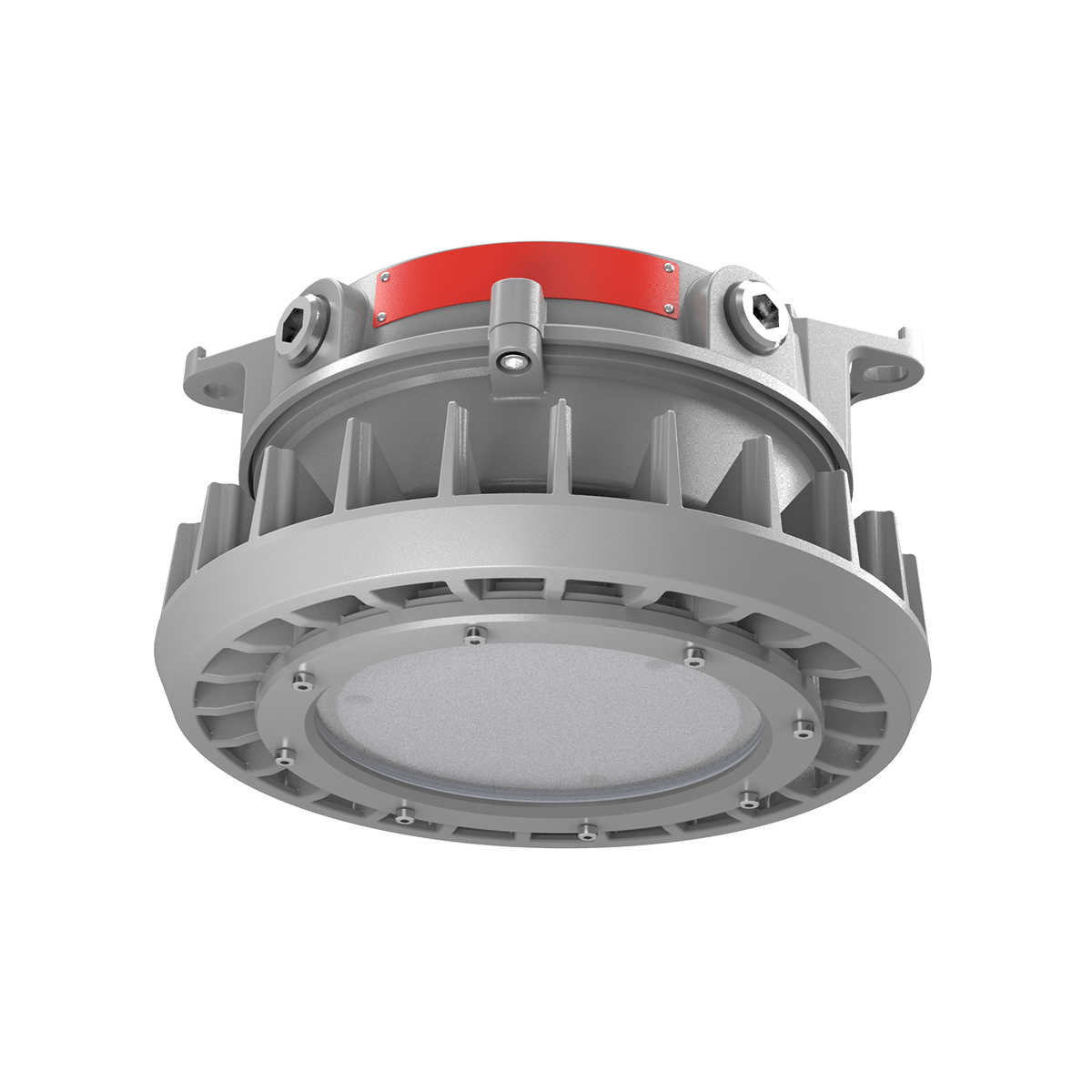

The RED SKY Round X2 DC is a compact, energy-efficient LED lowbay/floodlight designed for hazardous industrial environments requiring 24V DC input. Delivering up to 10,209 lumens with a wide range of beam angles (60°, 110°, 180°), it is certified for Zone 2 and 21, IP66, and ATEX/IECEx standards. With lightweight marine-grade aluminum housing and high efficacy (up to 150 lm/W), it’s ideal for confined spaces, mobile equipment, and battery-powered systems in oil & gas, marine, and manufacturing sectors.
Product Type & Application: Metal Processing, Agriculture, Area & Floodlight, High bay & Low bay, Oil and gas, Power Generation, Pulp, Paper and Wood, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power (W)
25W, 45W, 65W
VOLTAGE(V)
24V DC
Frequency
50/60Hz
L70
147,000 hrs@55°C
Warranty
3 Years
Optical Parameters
Lumen Output*
4,096Lm, 7,067Lm, 10,209Lm
Lumen Efficacy*
150Lm/W
Available Beam Angle
60°/ 110° /180°
Correlated Color Temperature (CCT)
4000K/5700K
Color Rendering Index (CRI)
Ra>70
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Tempered Glass

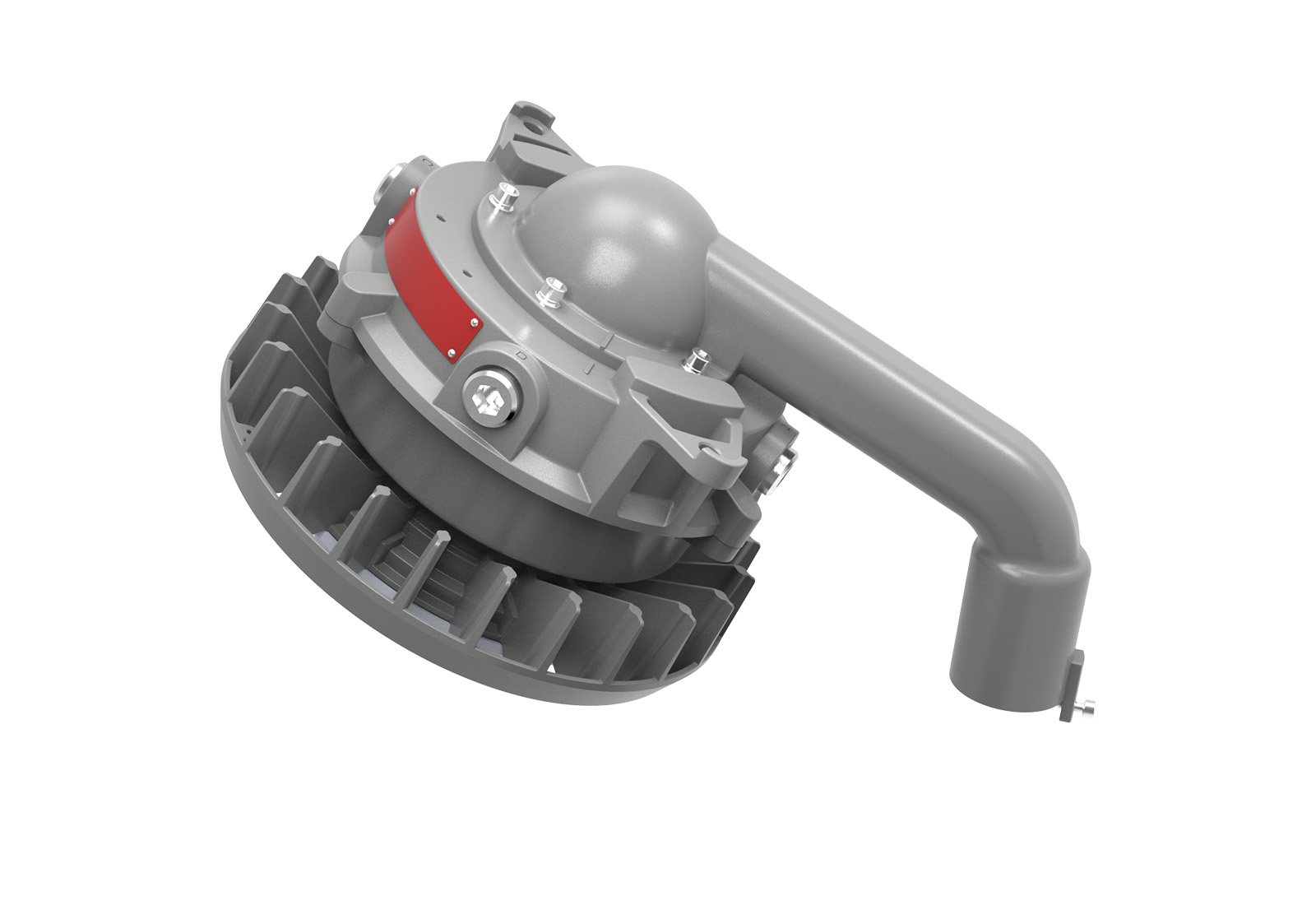

Mounting Options

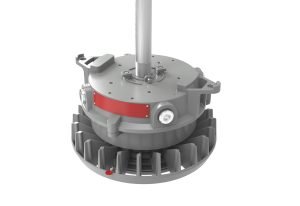

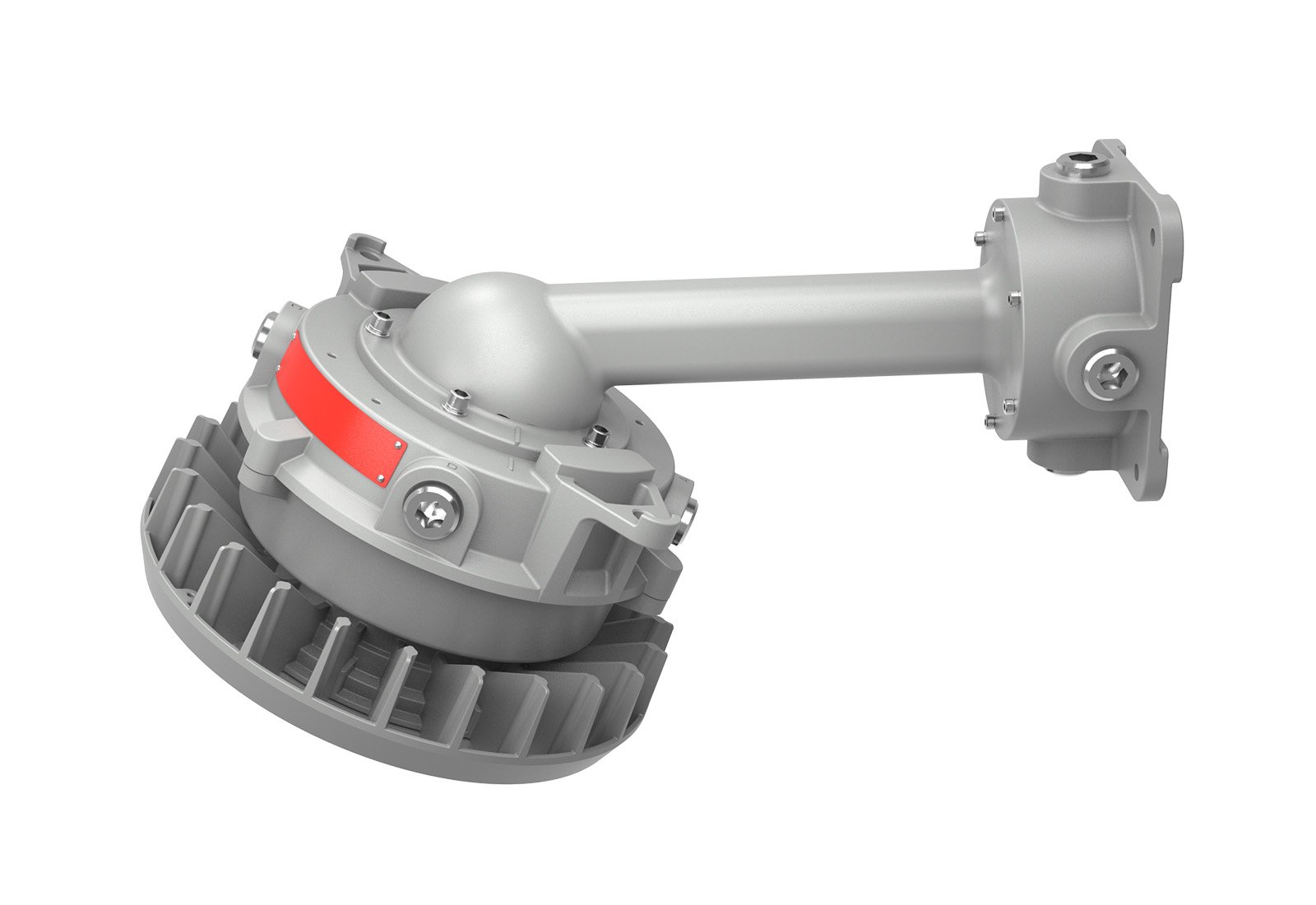

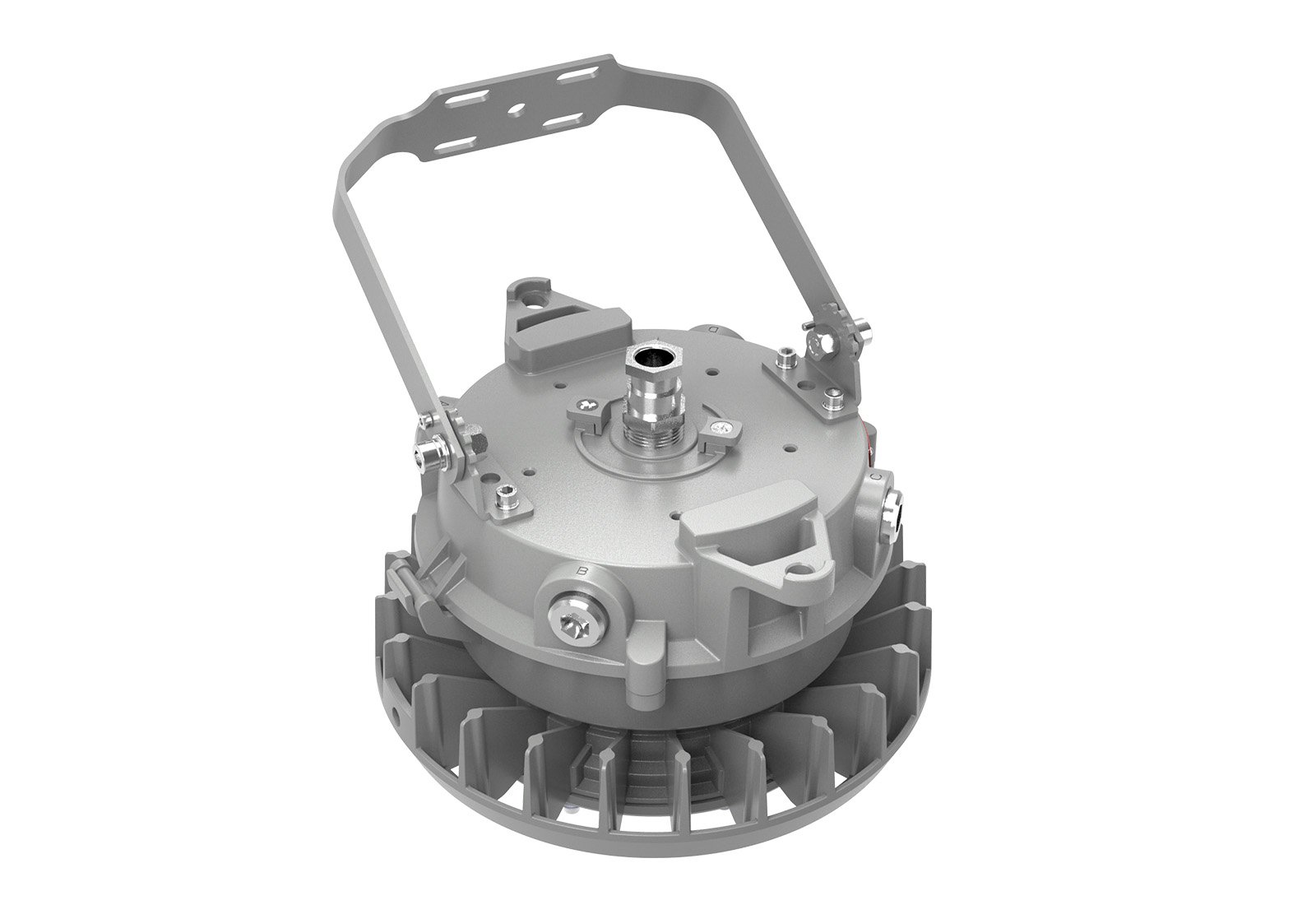

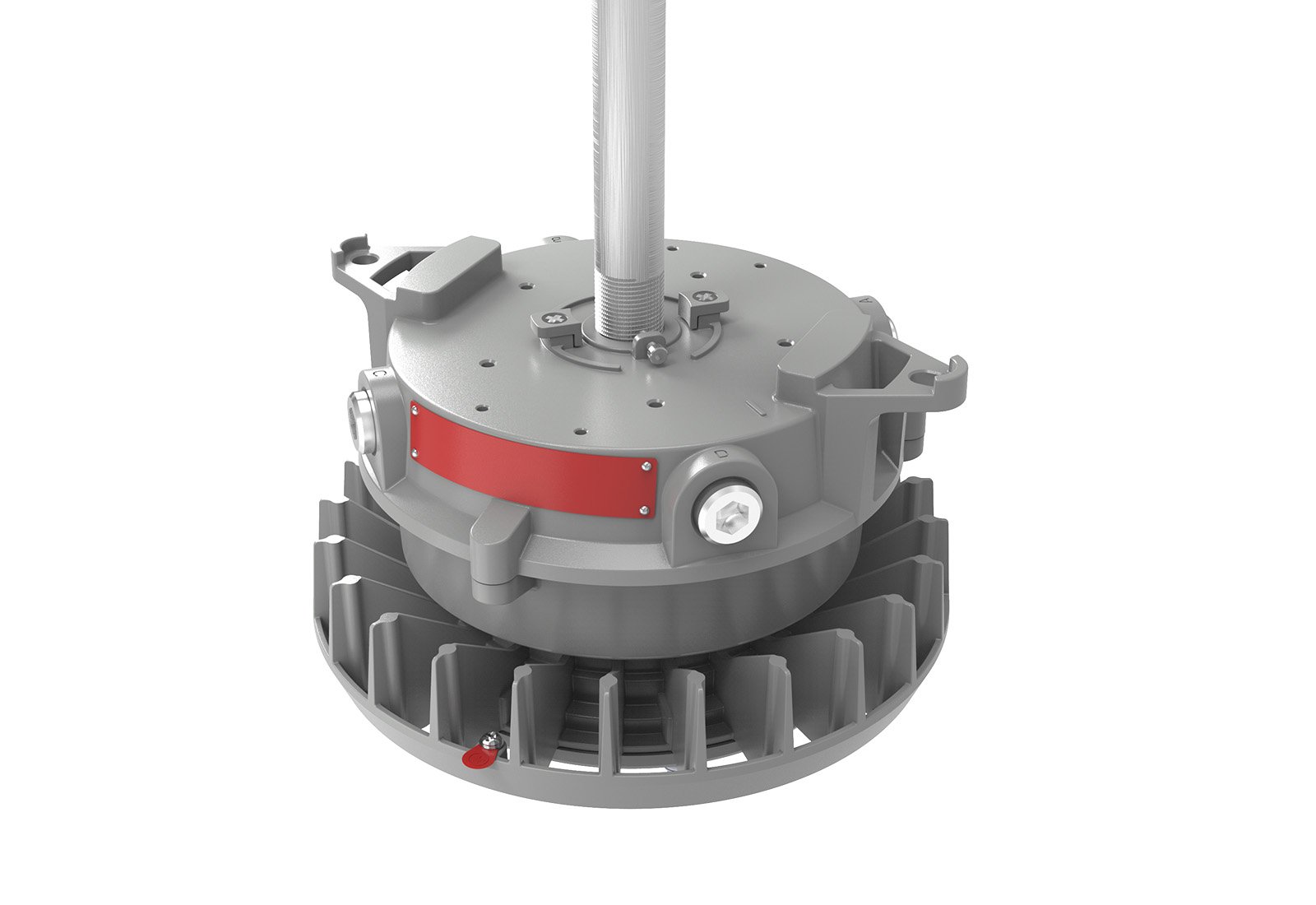

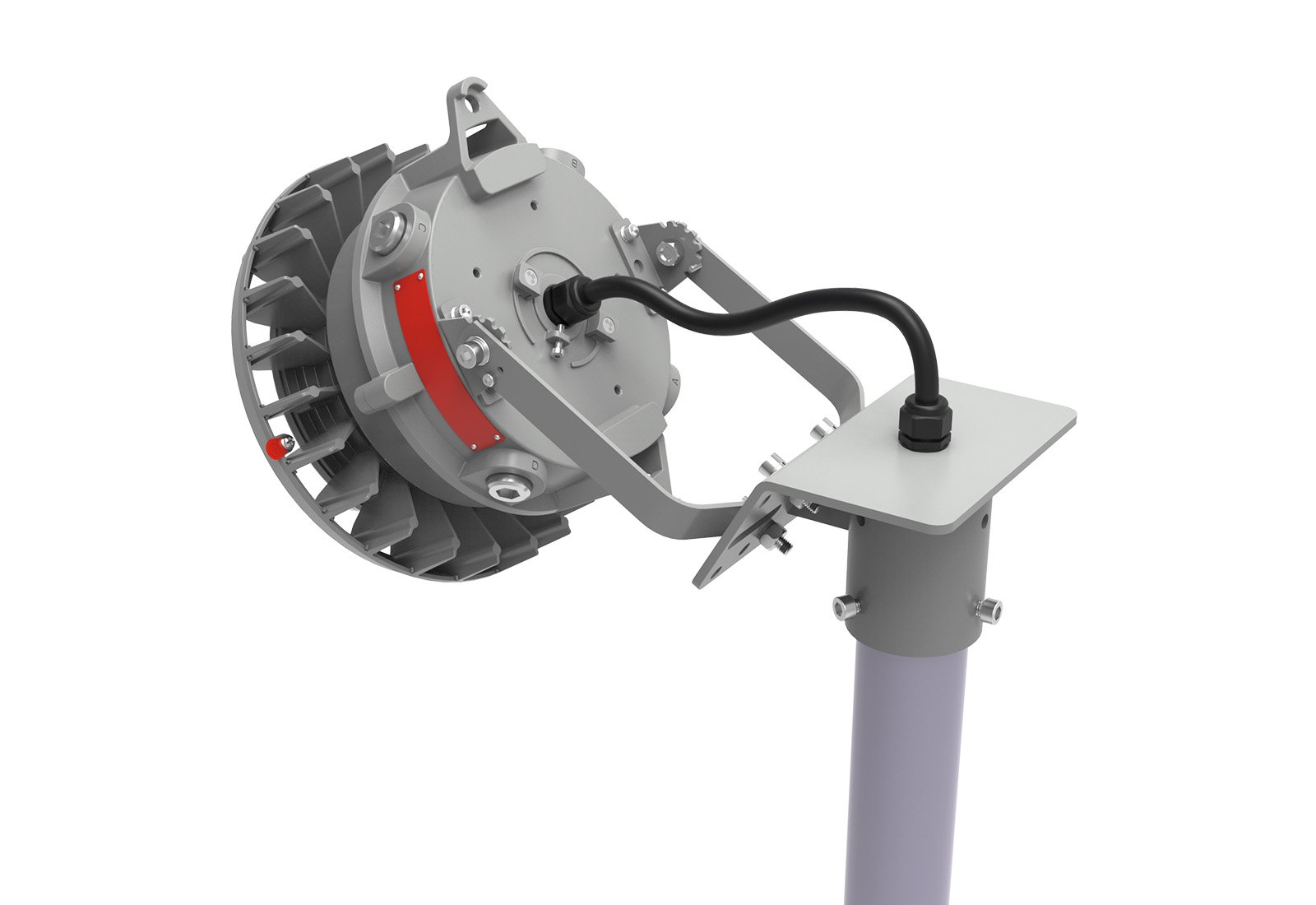

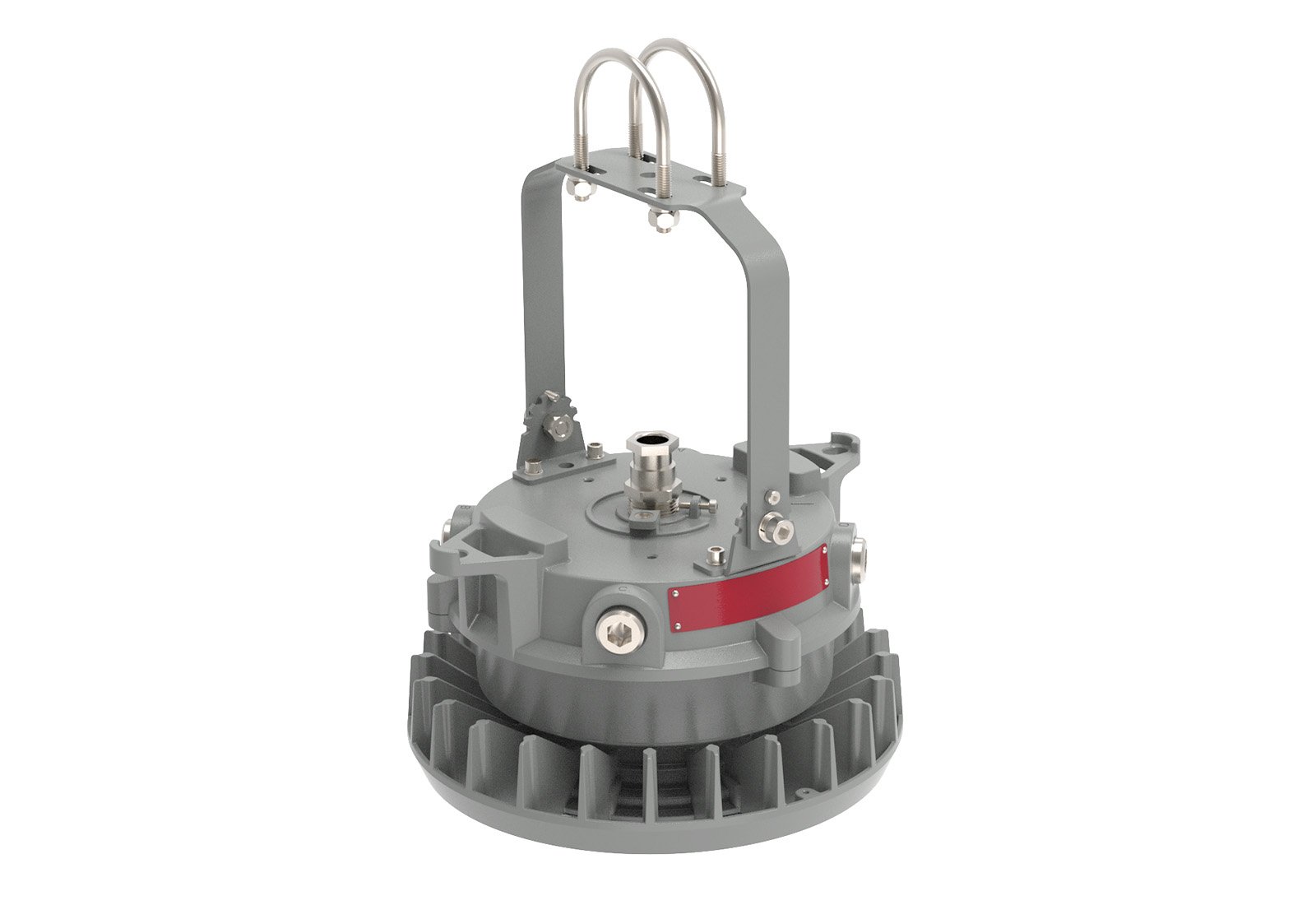

Pendant, Yoke, Wall, Stanchion, Pole
Product Weight
10.6lbs/4.8kg
Cable Entry
(5) 3/4″ NPT
Product Dimensions(L×W×H)
10.6×10.3×6in (269.4×262×151.7mm)
Environmental Parameters
Ambient Operating Temperature
-40°C~+55°C
