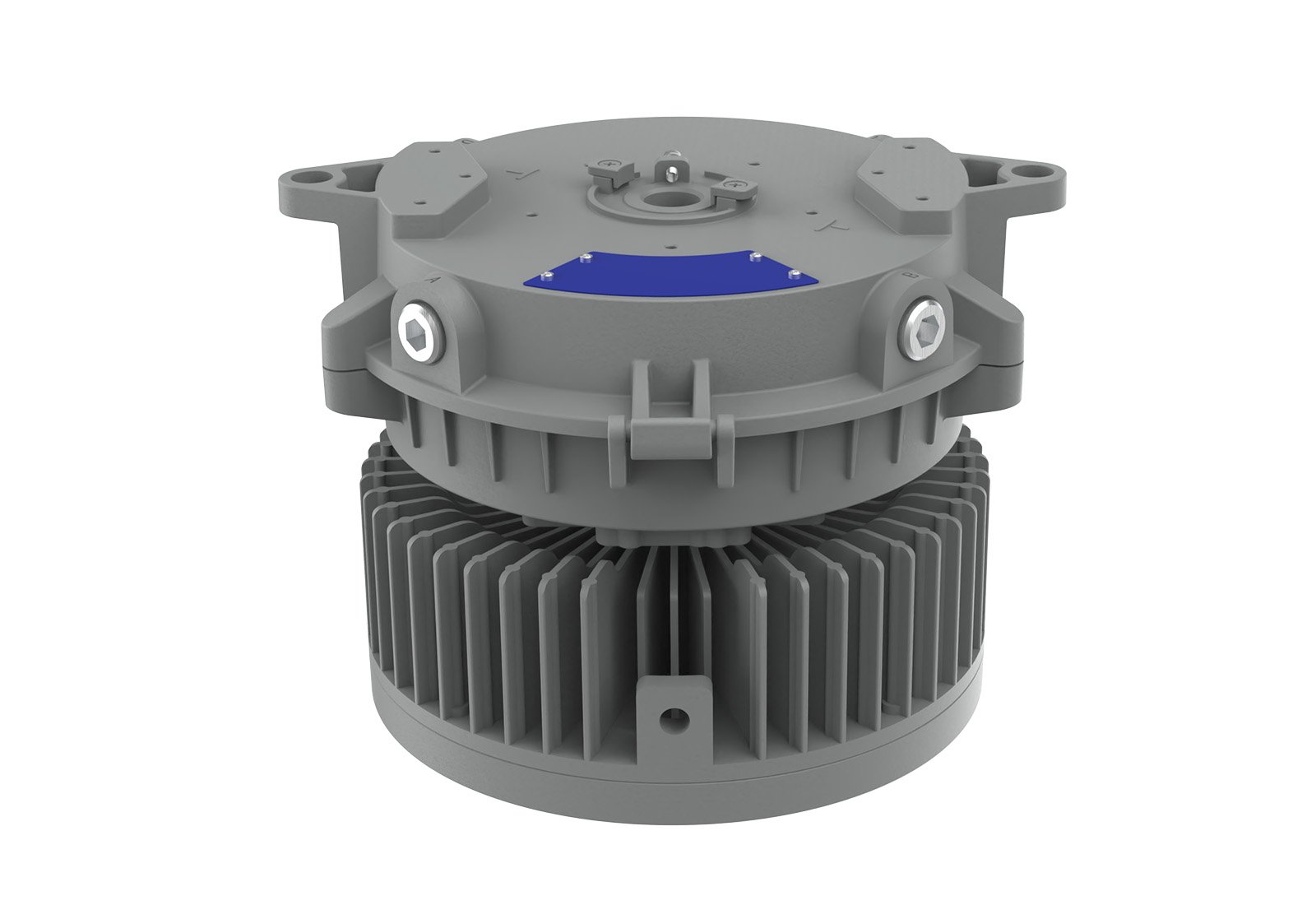

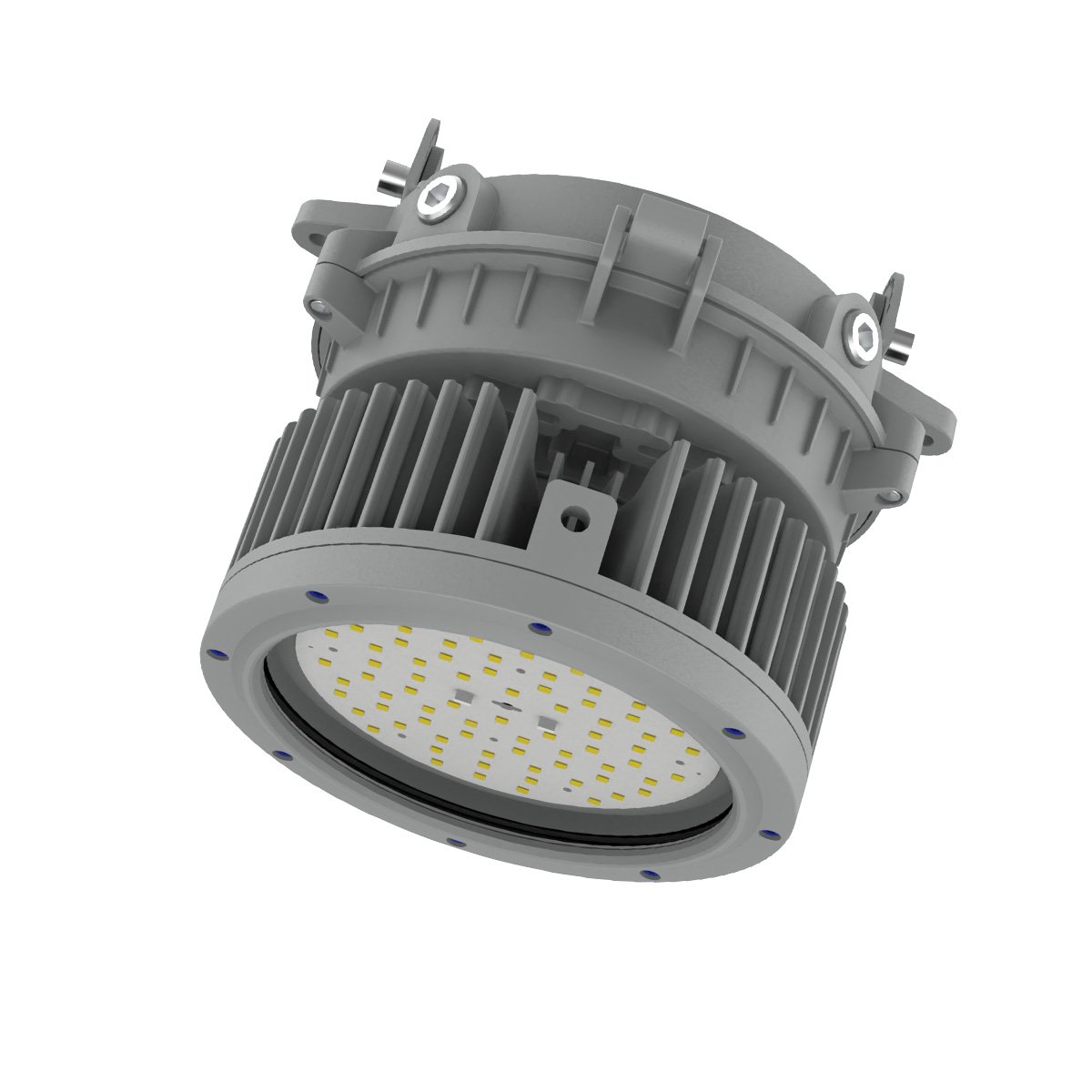

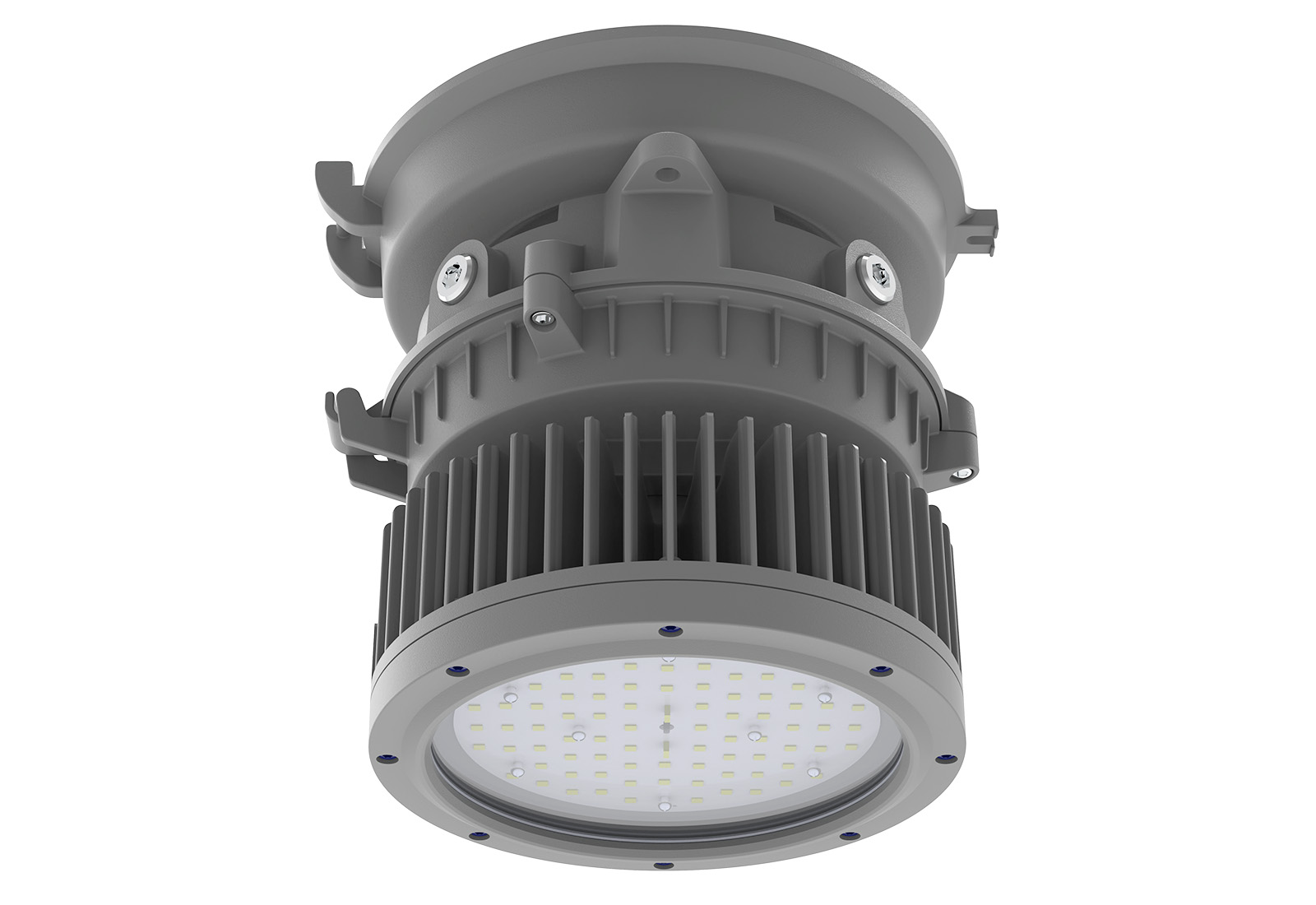

Round Max Harsh Series
SKU RDX HS
Description:
The Round Max Harsh Series from Red Sky Lighting delivers up to 30,000 lumens with five beam options, including Type I, III, V, 30°, and 60°. Designed for mid- to high-bay lighting in shipyards, power plants, and heavy industrial settings, it installs in under 60 seconds and withstands harsh conditions with its NEMA 4X/IP66-rated housing.
Product Type & Application: Metal Processing, Agriculture, Area & Floodlight, High bay & Low bay, Power Generation, Pulp, Paper and Wood, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power (W)
80W, 120W, 150W, 200W
VOLTAGE(V)
100-277V AC, 347-480V AC, 120V AC, 208-277V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
80/120W: 112,000 hrs@149°F
150W: 112,000 hrs@140°F
200W: 110,000 hrs@131°F
Dimming
0-10V, Range 10-100%
Surge Protection
6KV
Warranty
LEDs: 10 years, Driver: 7 years
Optical Parameters
Lumen Output
12,157Lm, 17,388Lm, 21,771Lm, 26,076Lm
Lumen Efficacy
148Lm/W
Available Beam Angle
T1/T3/T5/30°/60°
Correlated Color Temperature (CCT)
3000K/4000K/5000K
Color Rendering Index (CRI)
80 CRI
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Tempered Glass or Polycarbonate
Mounting Options

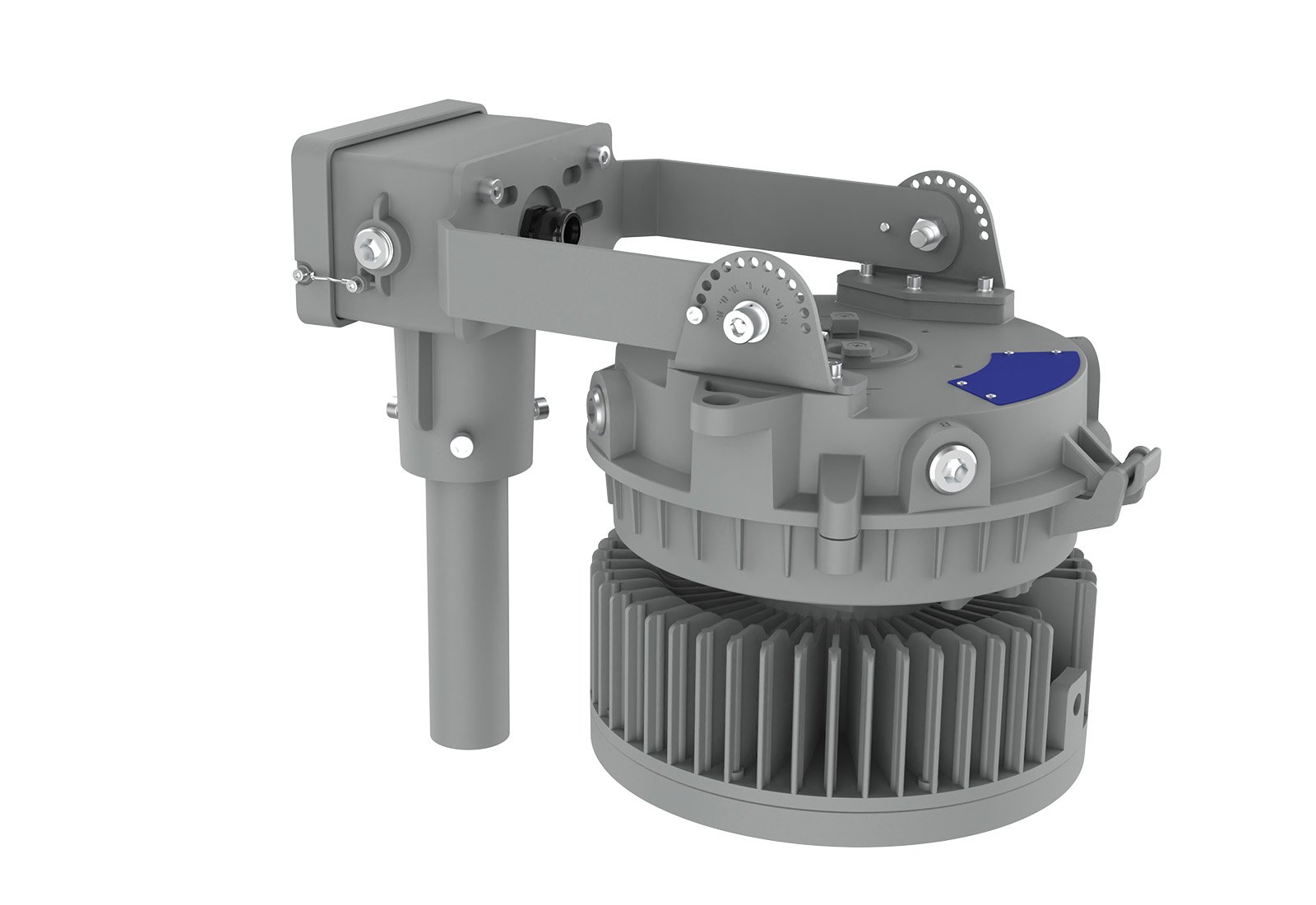

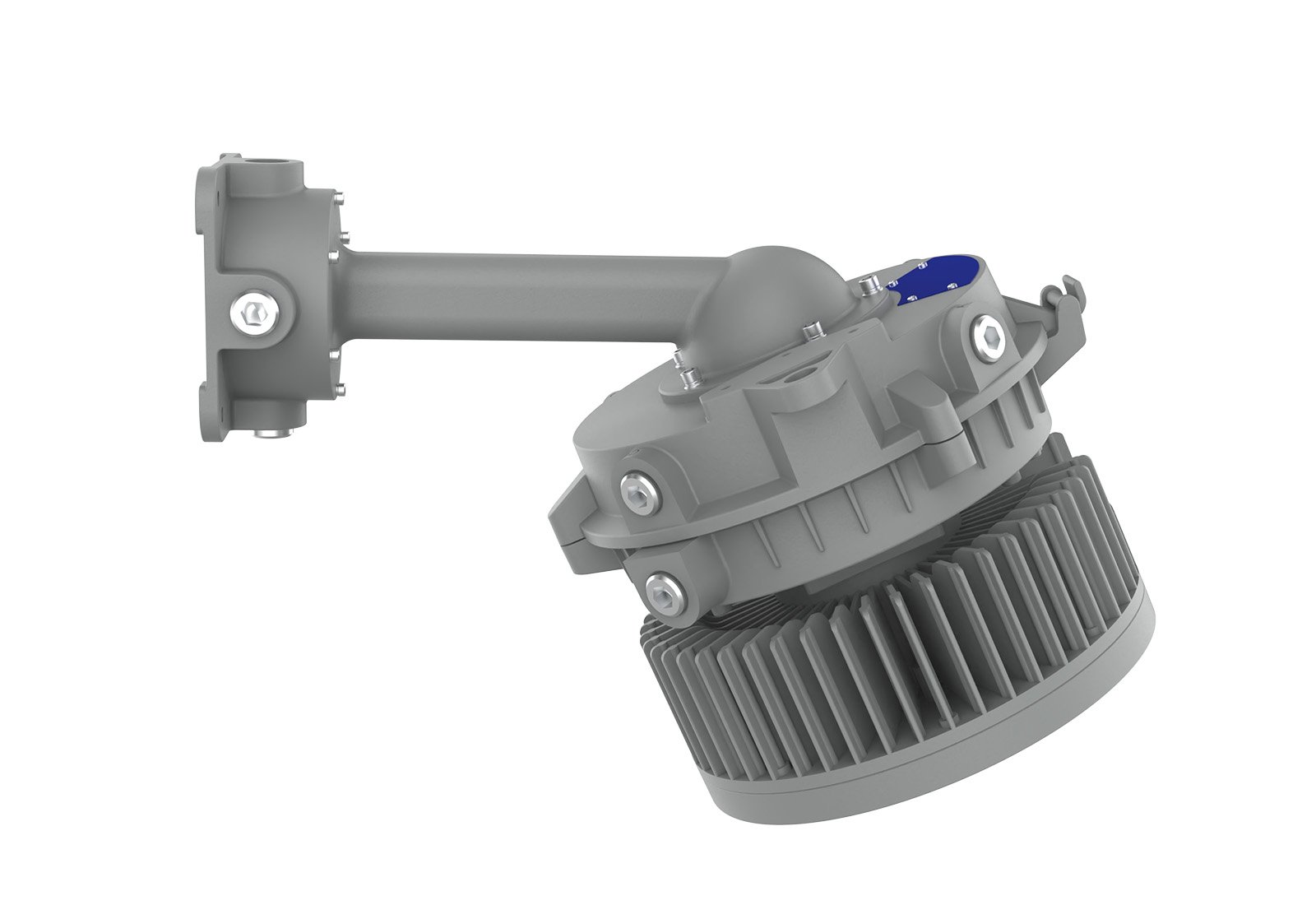

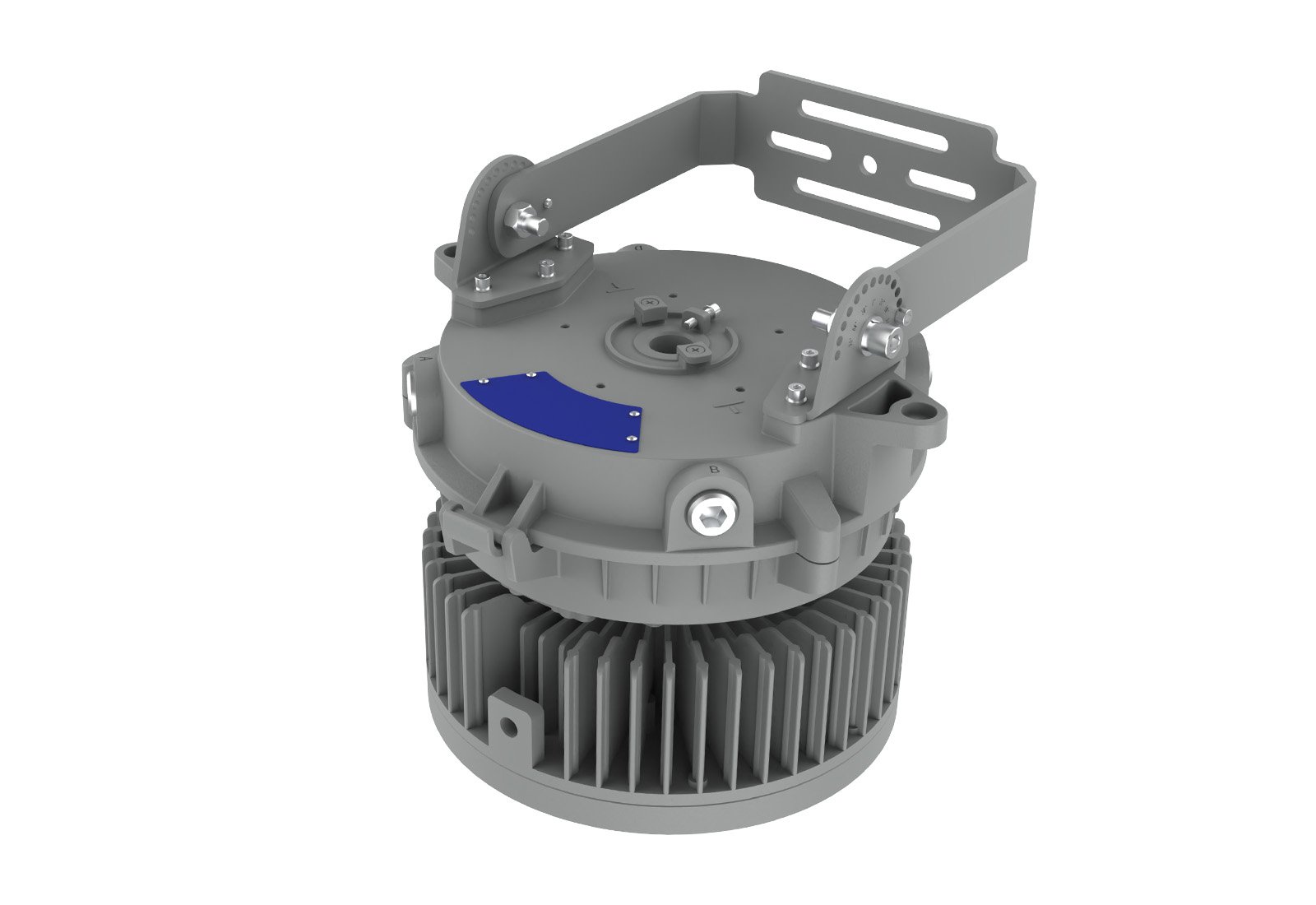

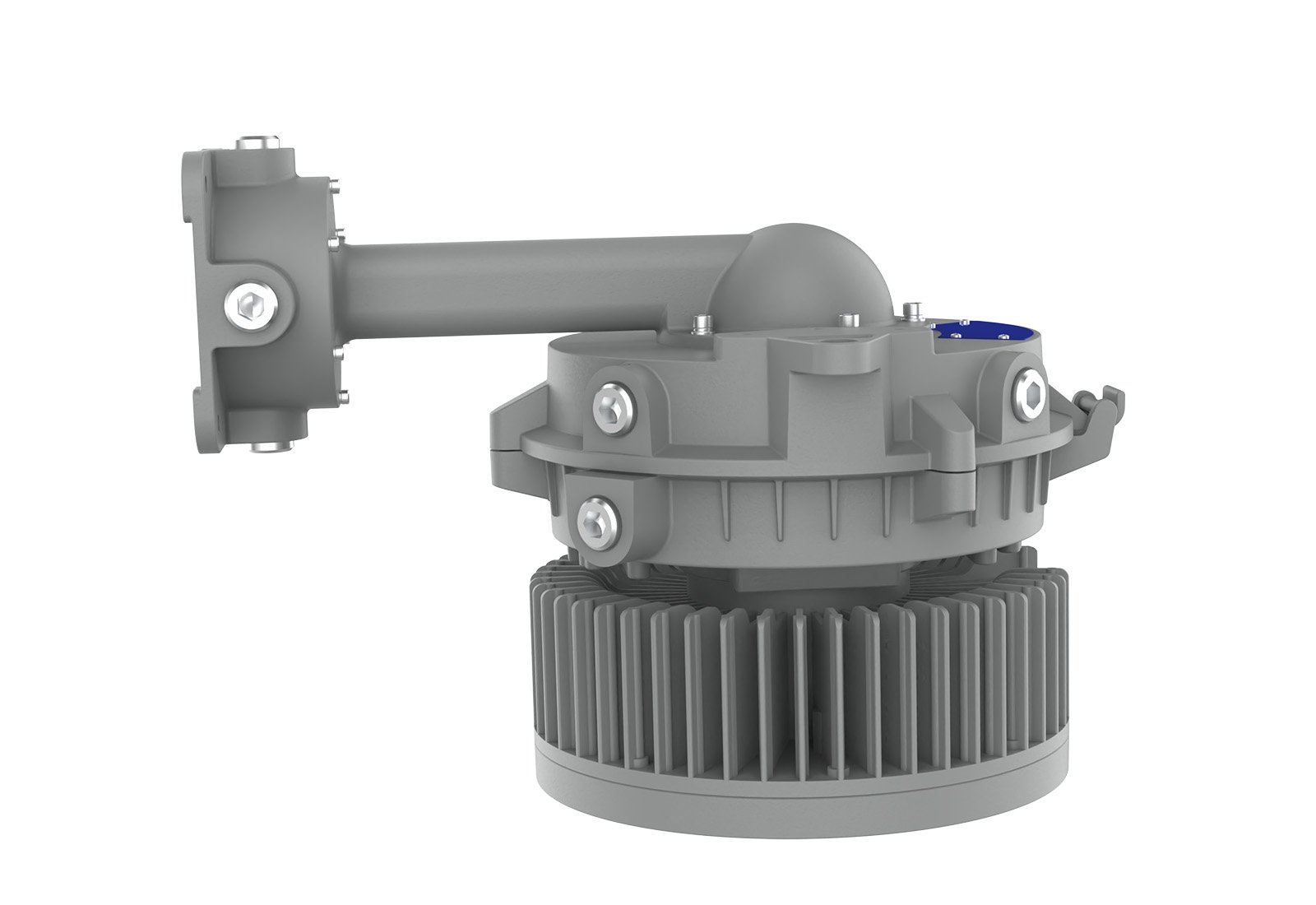

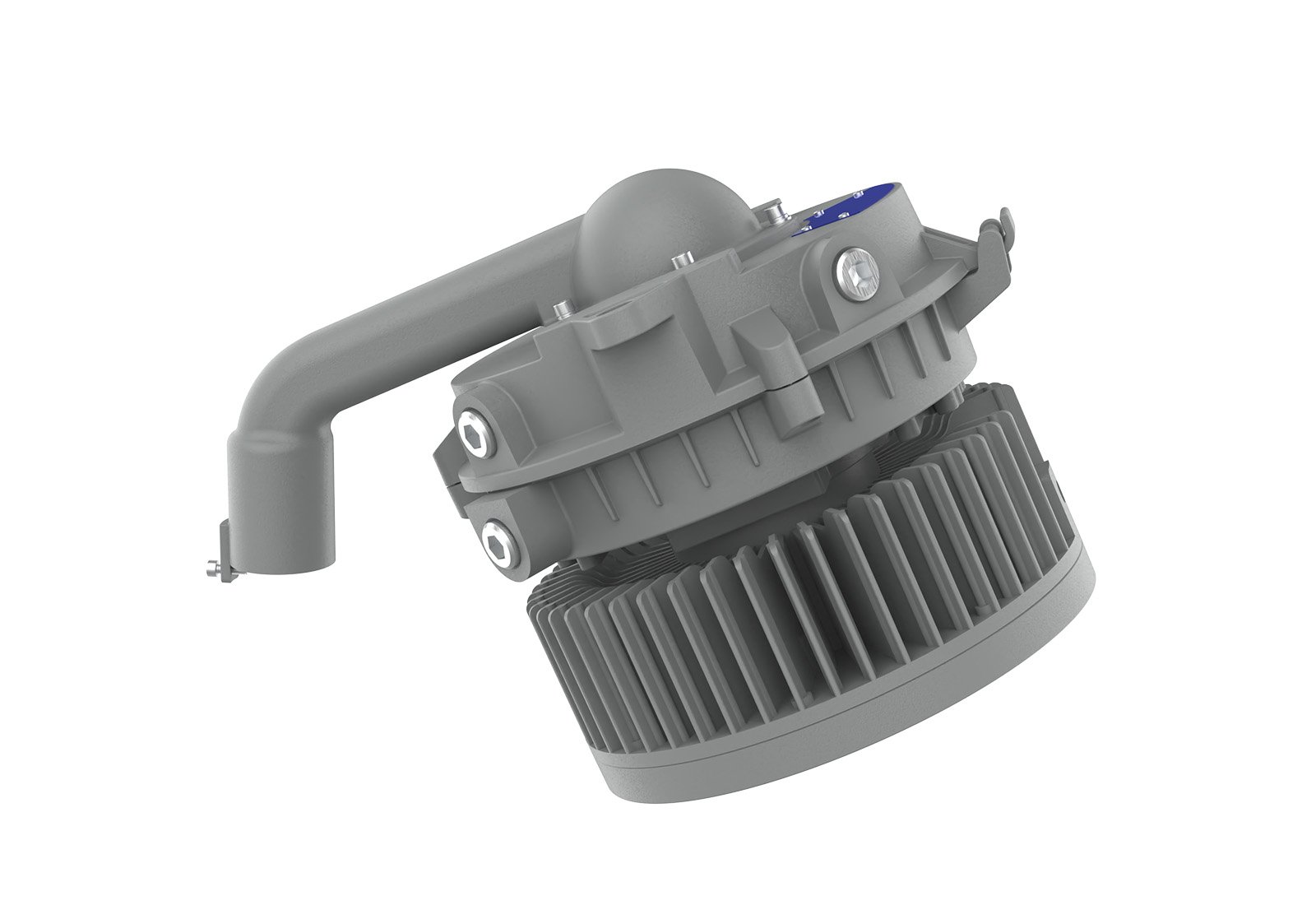

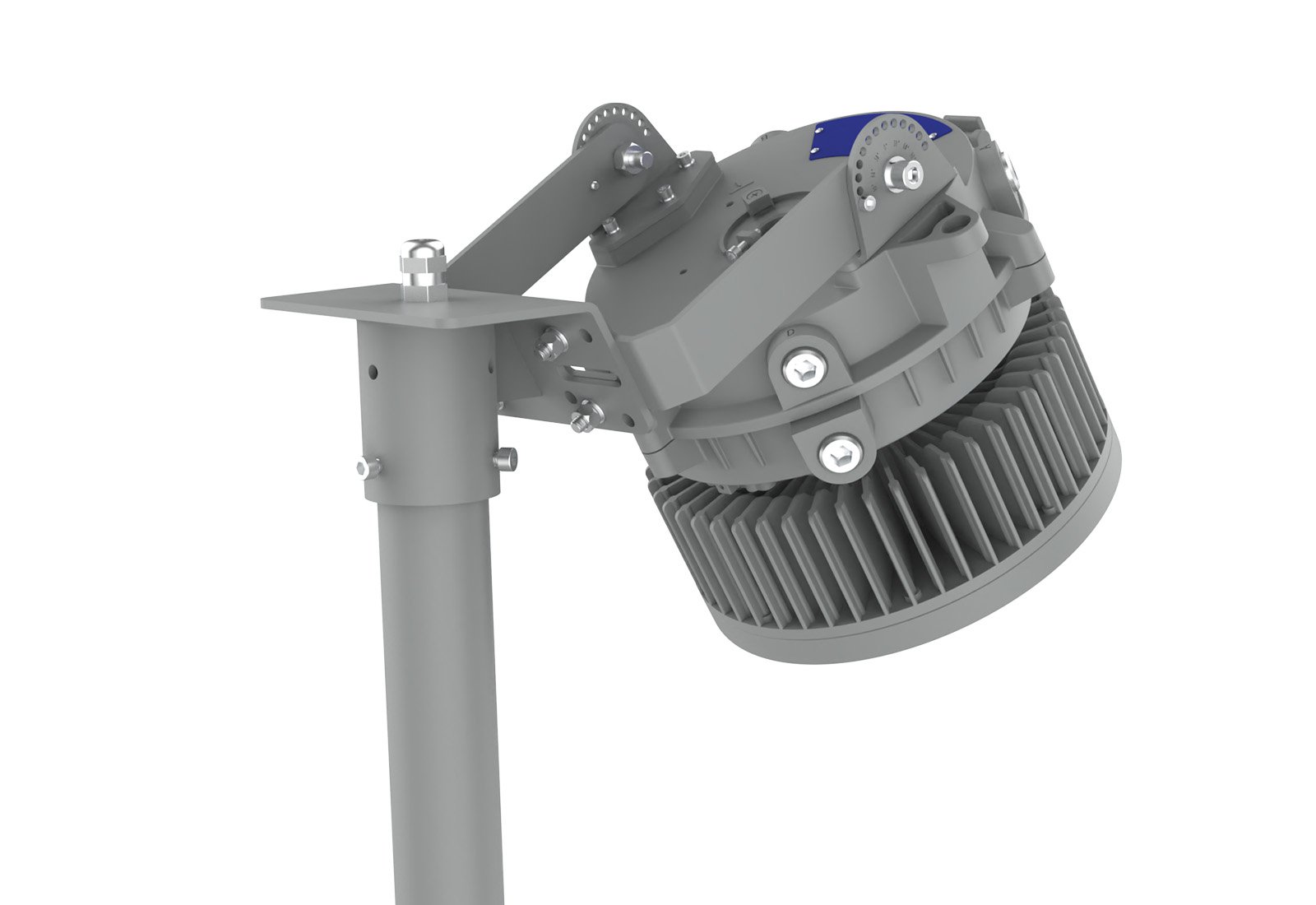

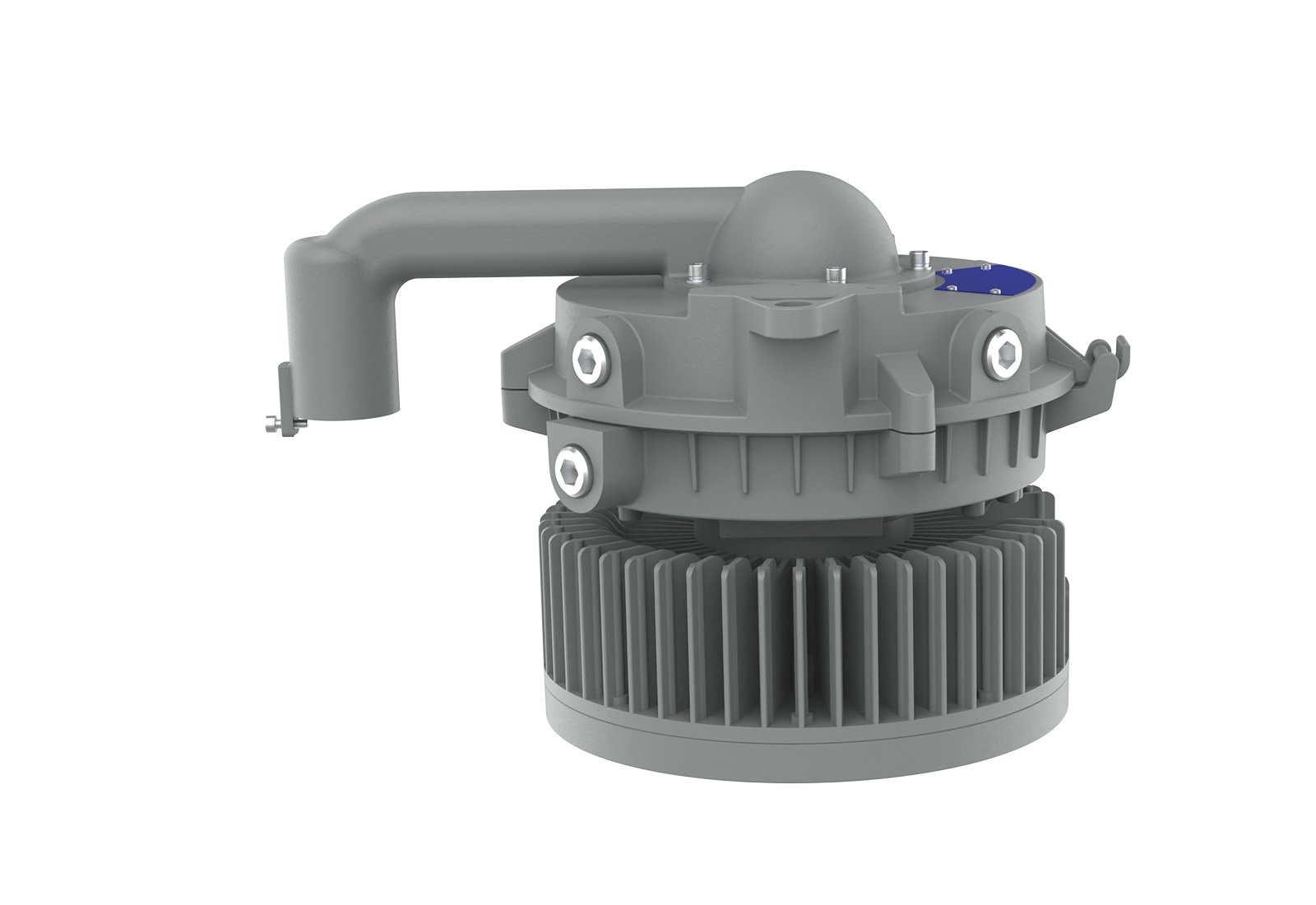

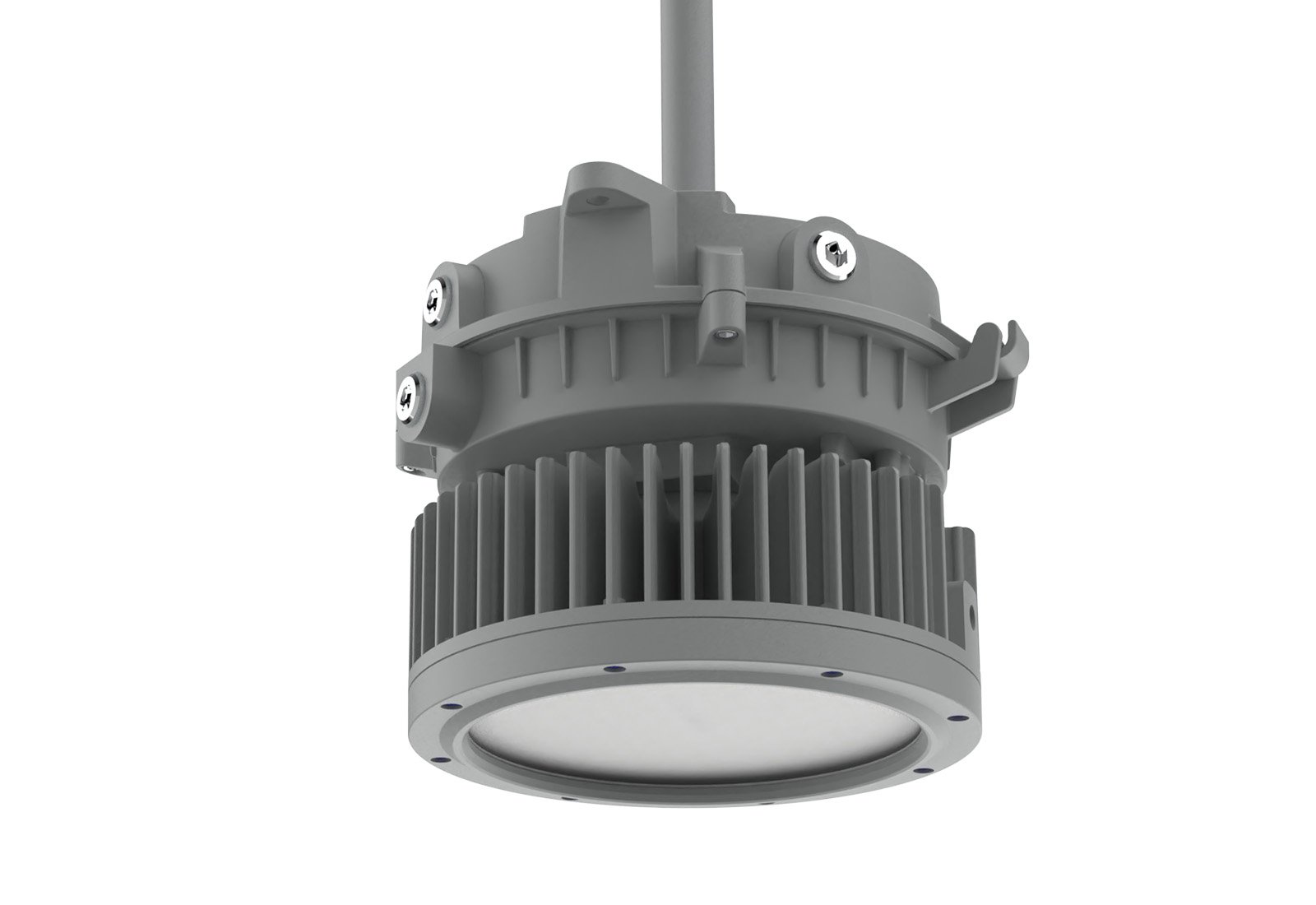

Pendant, Ceiling, Stanchion, Wall, Yoke, Junction Box, Stanchion slip fitter
Product Weight
21.6lbs/9.8kg
Cable Entry
(6) 3/4″ NPT
Product Dimensions(L×W×H)
Φ10.6×9.1in(Φ270×230mm)
Environmental Parameters
Ambient Operating Temperature
80W/120W:
-40°F ~ +149°F (-40°C ~ 65°C)
150W:
-40°F ~ +140°F (-40°C ~ 60°C)
200W:
-40°F ~ 131°F (-40°C ~ 55°C)
