Description:

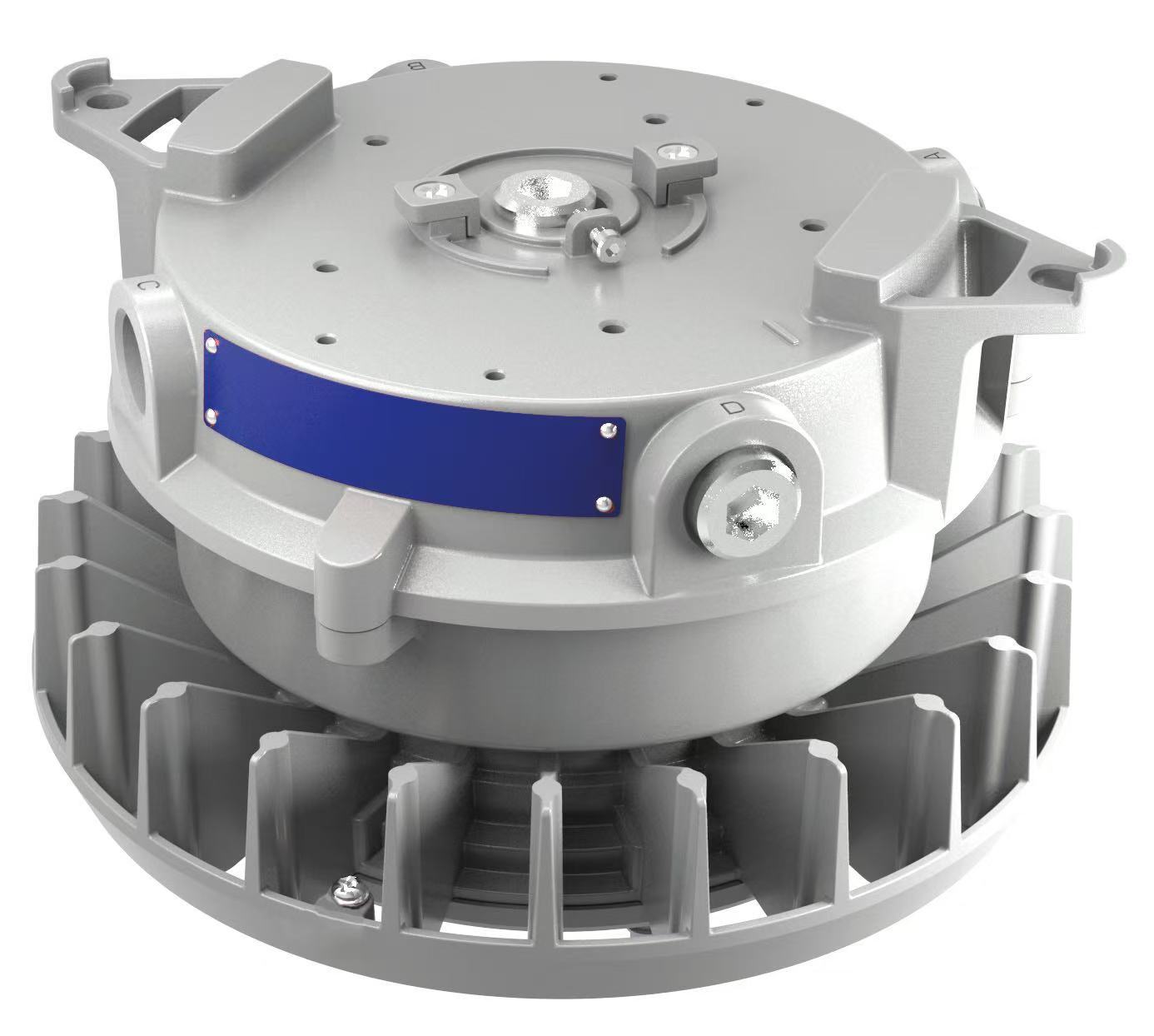

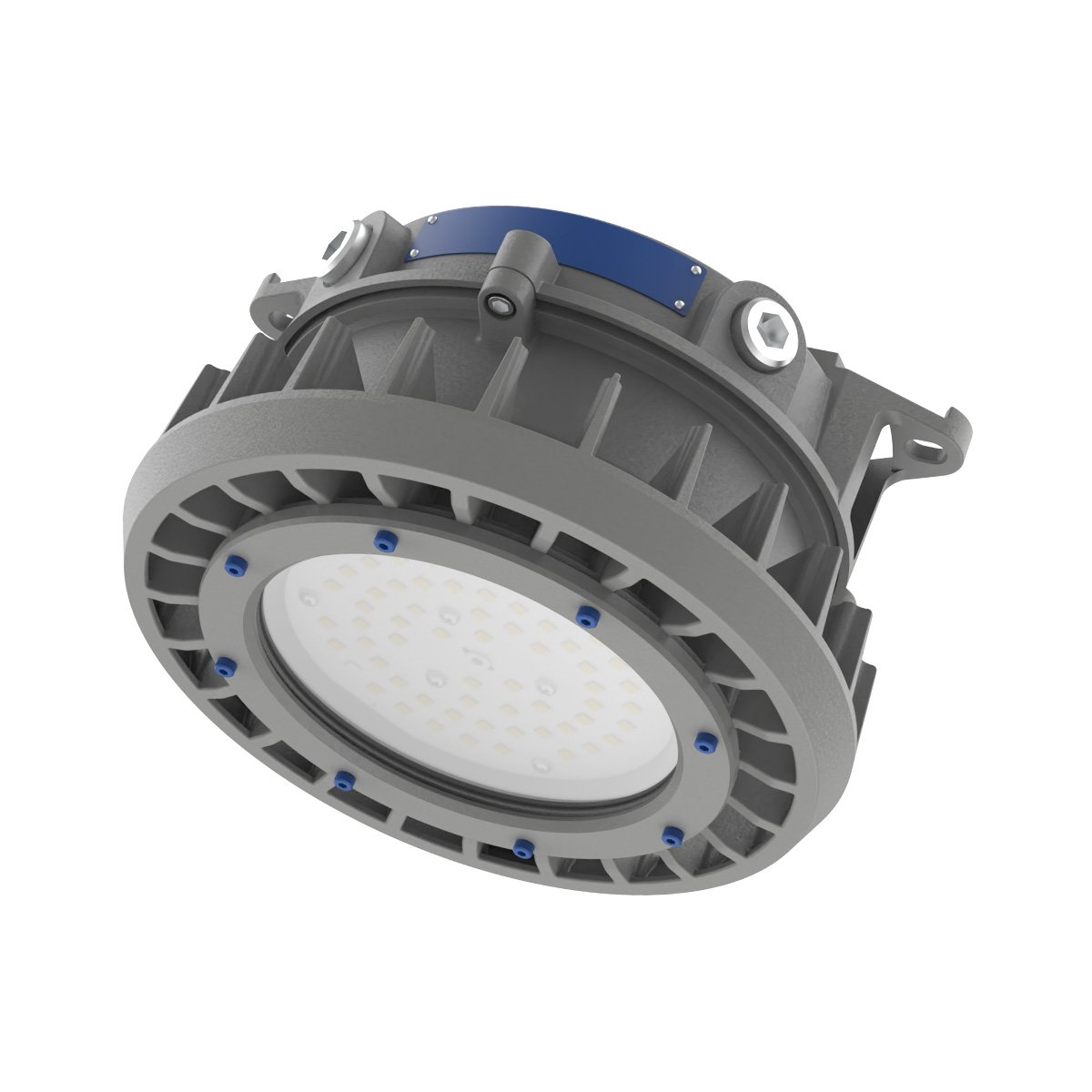

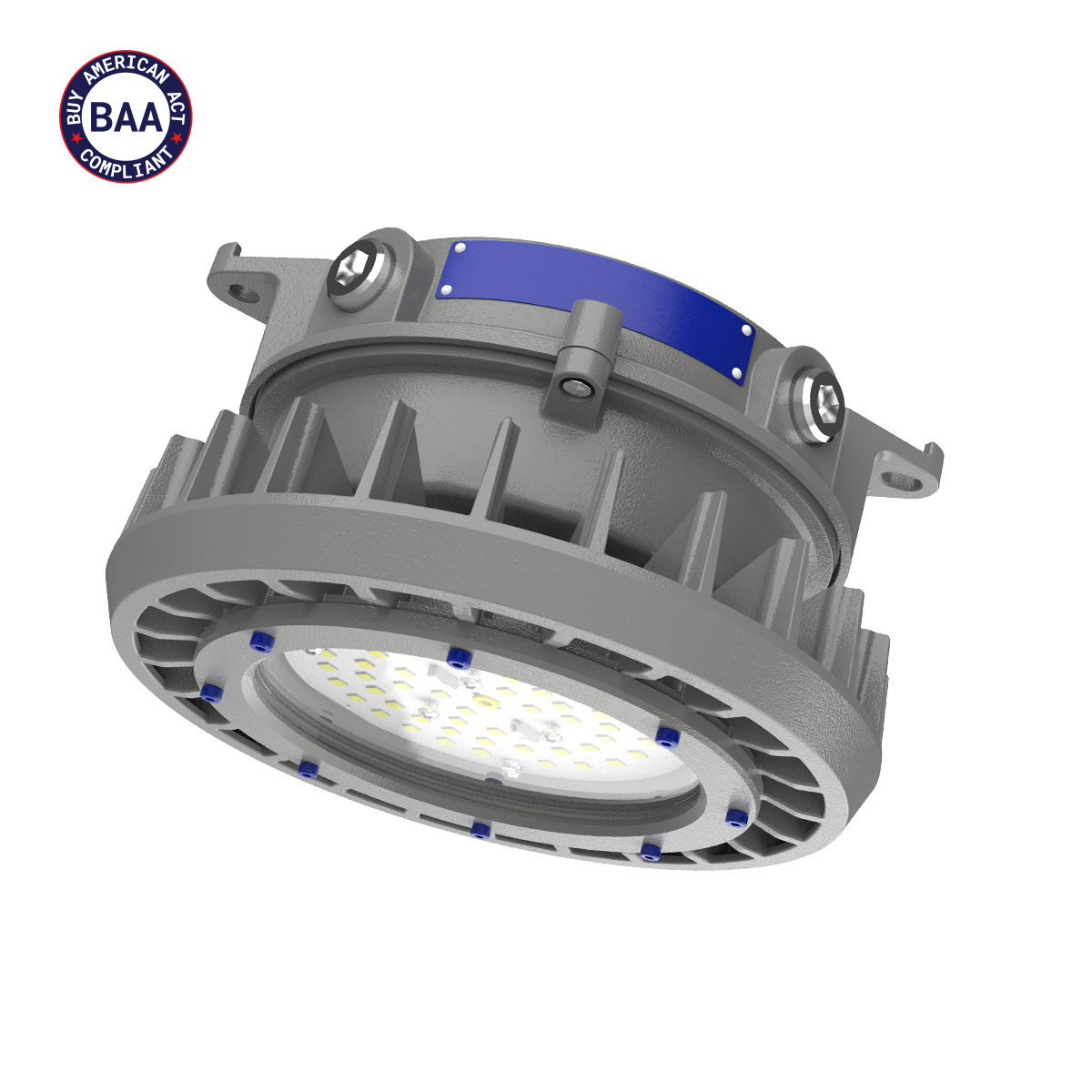

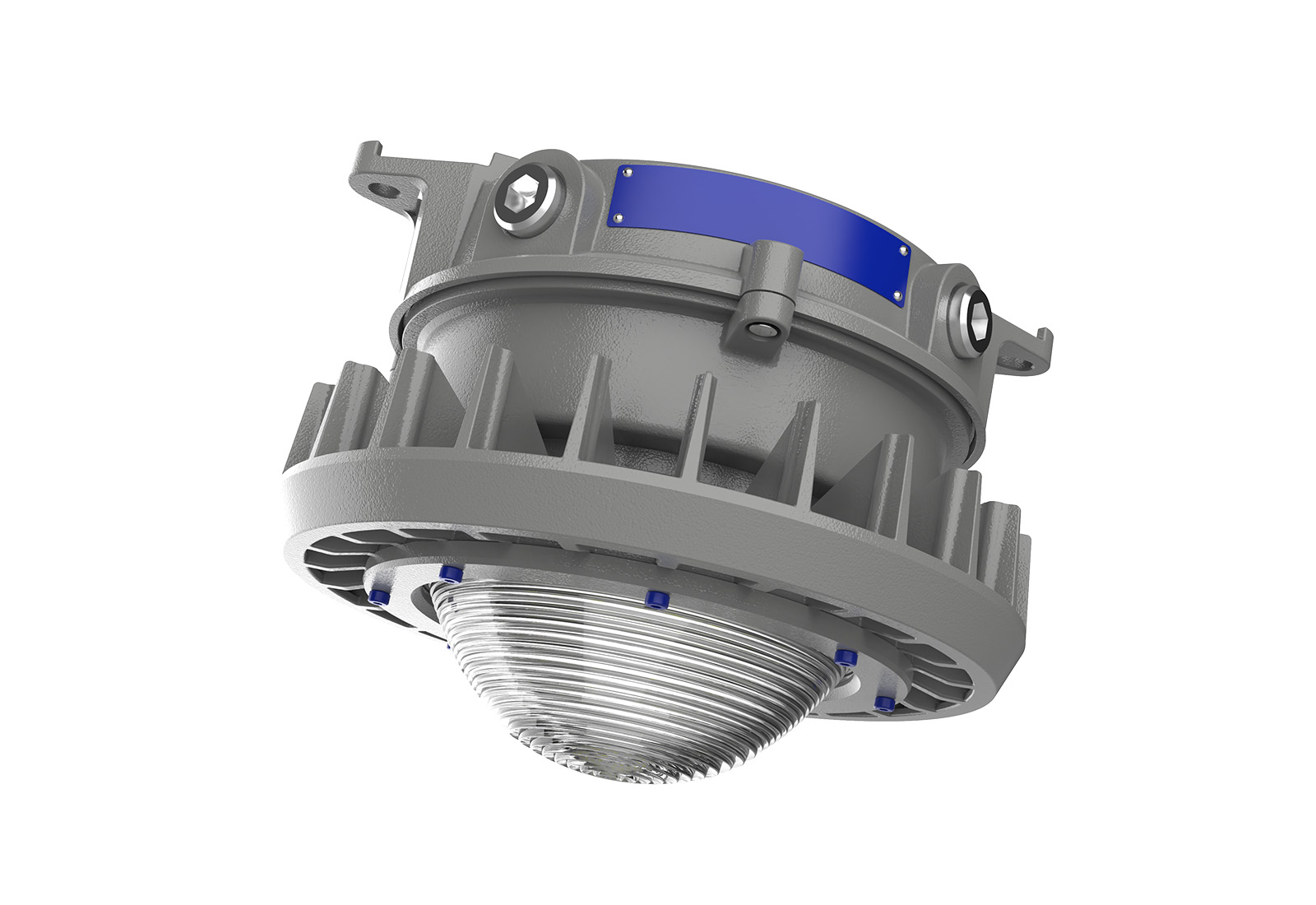

The Round Harsh Series packs powerful, efficient lighting into a compact 9-inch form. With NEMA 4X protection, it delivers up to 150 lm/W and 127,000+ hours of life. Built to endure -40°F to 140°F, it resists dust, salt, and vibration. Multiple lens and mounting options offer flexibility, while pre-installed cords simplify installation in harsh industrial settings.
Specs
Compliance
Download
Electrical Parameters
Power (W)
35W, 40W, 45W, 55W, 60W, 65W
VOLTAGE(V)
100-277V AC, 347-480V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
127,000 hrs@140°F
Dimming
34/40/45/55/65W: 0-10V, Range 10-100%
Surge Protection
35/40/45W: 6KV 55W: 10KV 60W: L\N-FG 4KV L-N 2KV 65W: 10KV
Warranty
LEDs: 10 years, Driver: 7 years
Optical Parameters
Lumen Output
4,802Lm, 5,729Lm,6,156Lm, 7,982Lm, 9,139Lm
Lumen Efficacy
150Lm/W
Available Beam Angle
60°/ 120°
Correlated Color Temperature (CCT)
3000K/4000K/5000K
Color Rendering Index (CRI)
Ra>80
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Tempered Glass
Mounting Options

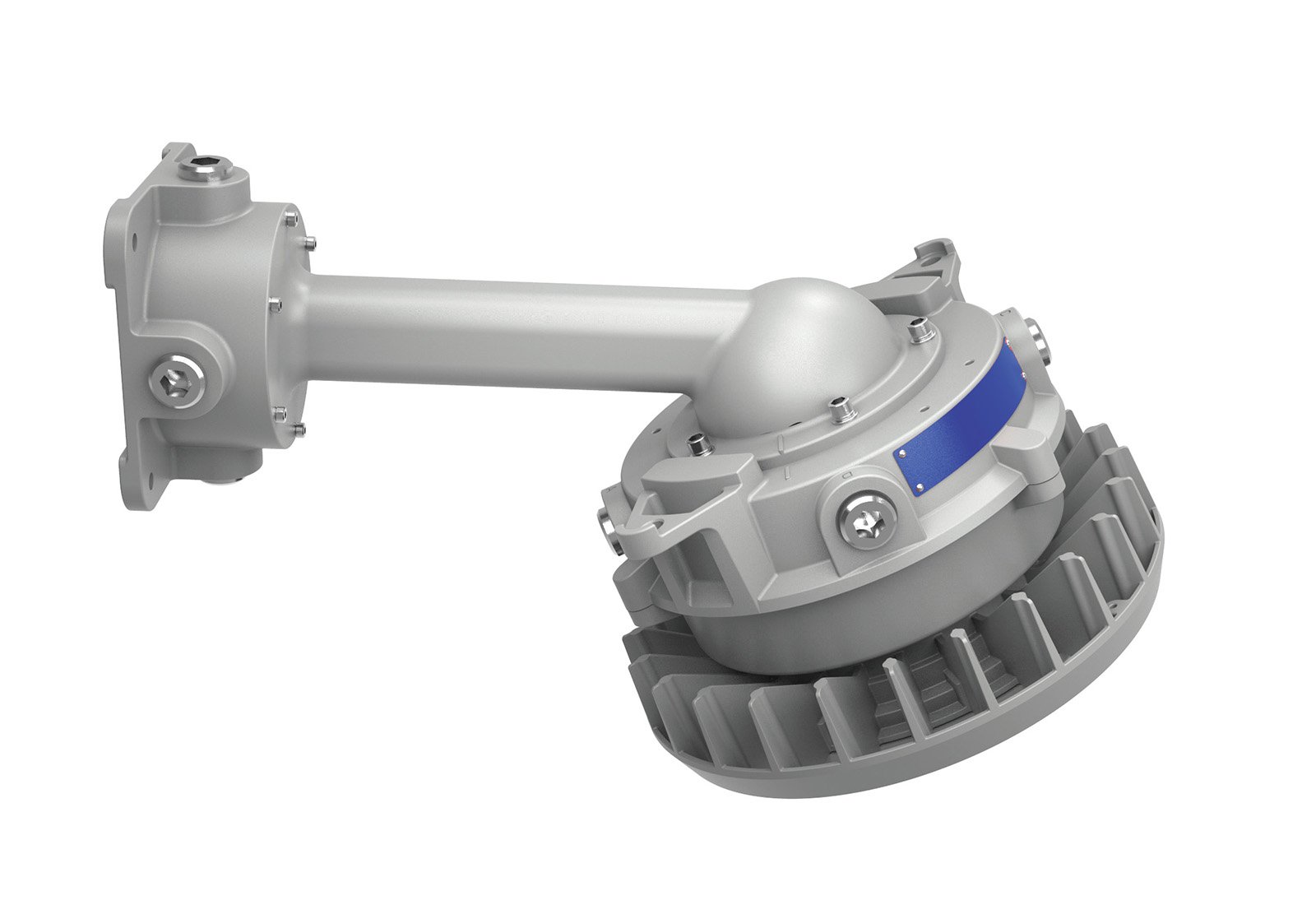

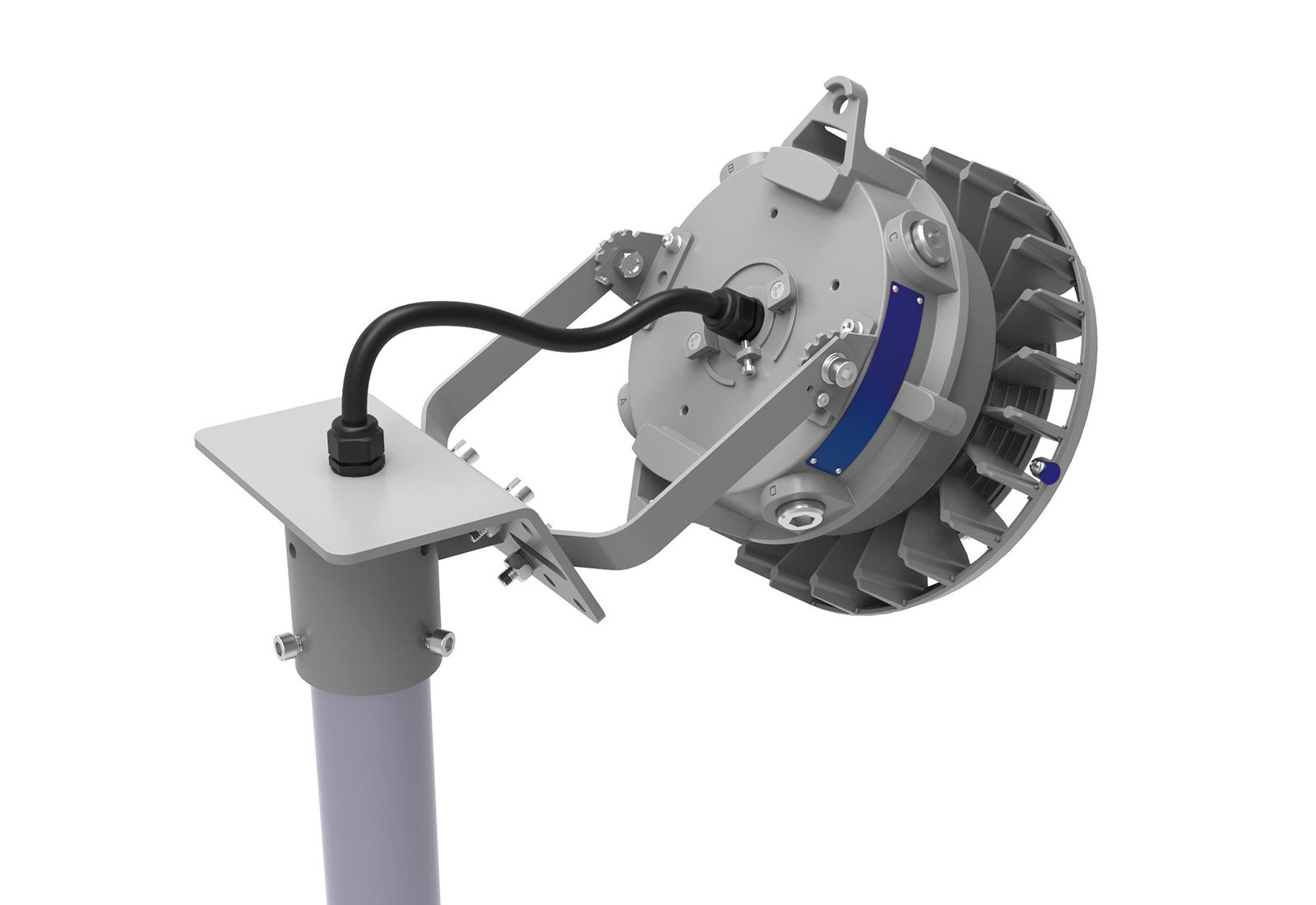

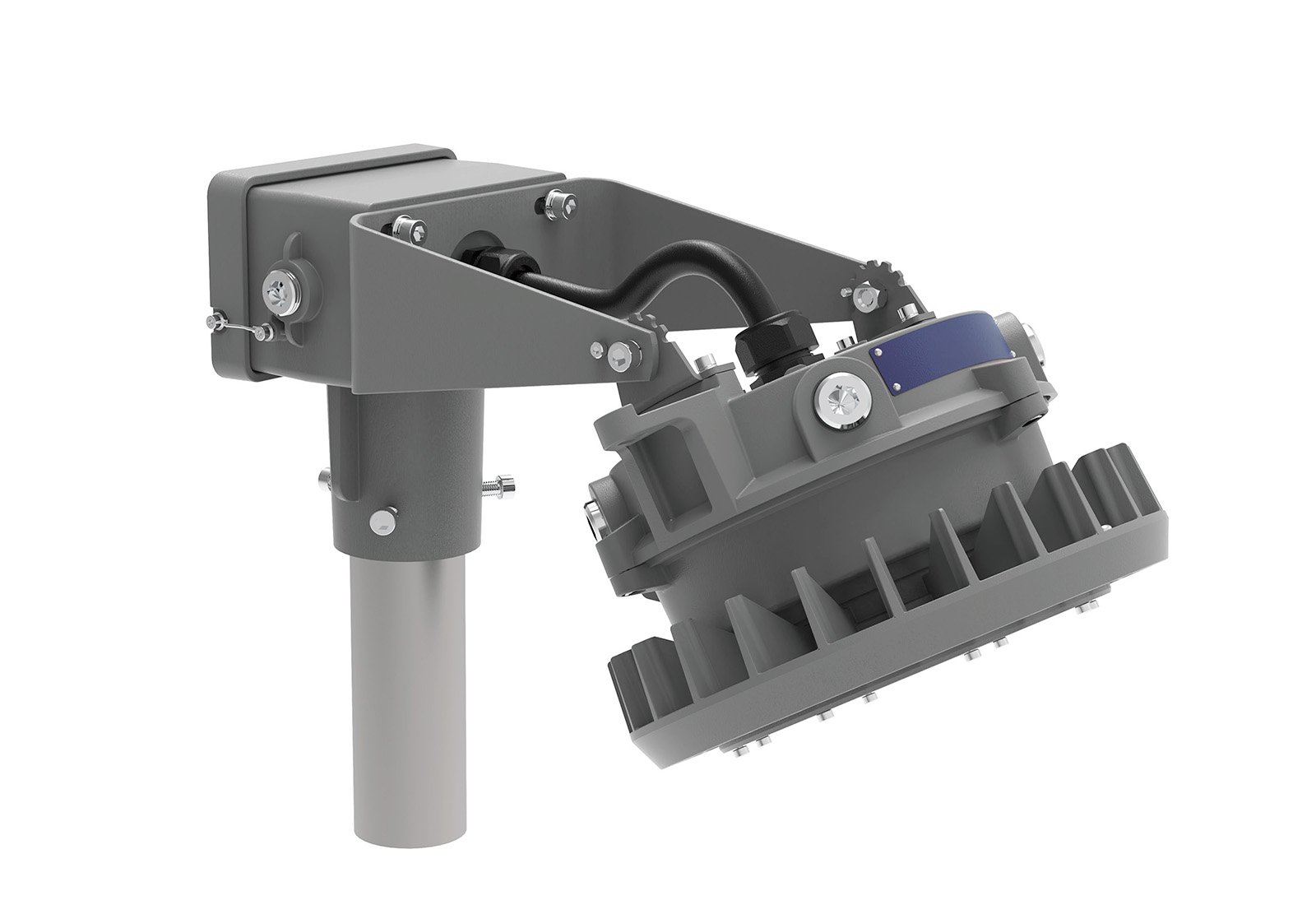

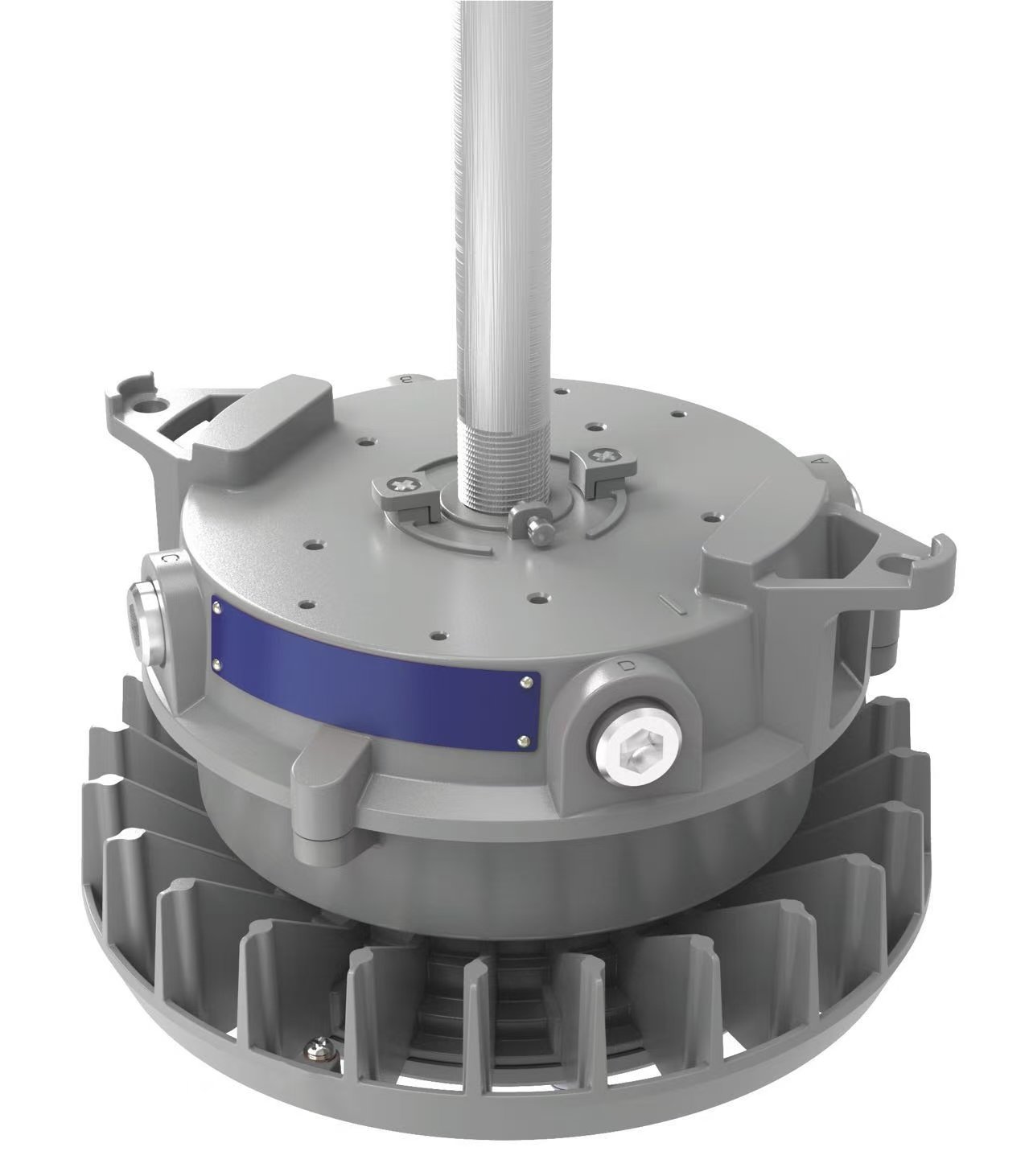

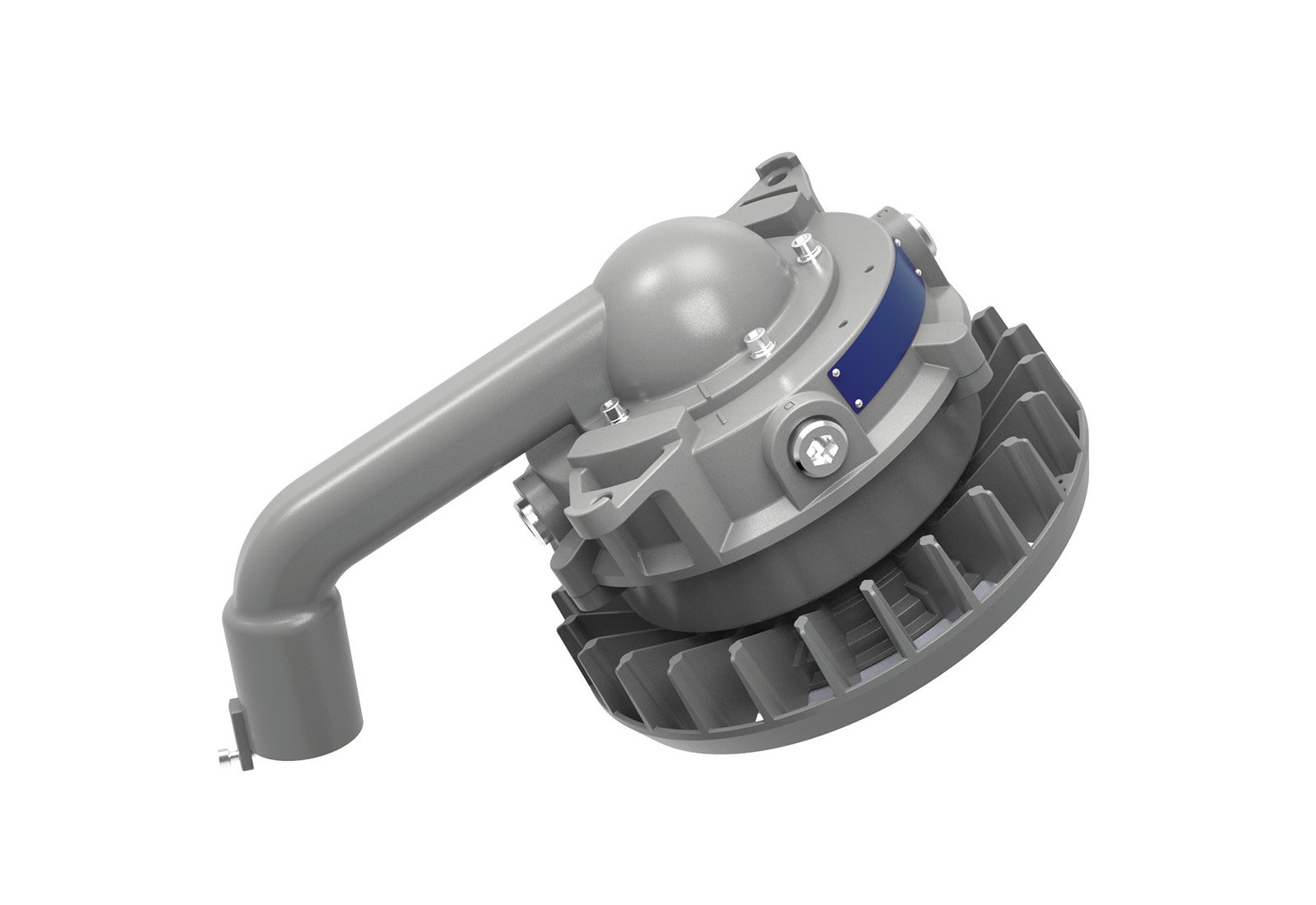

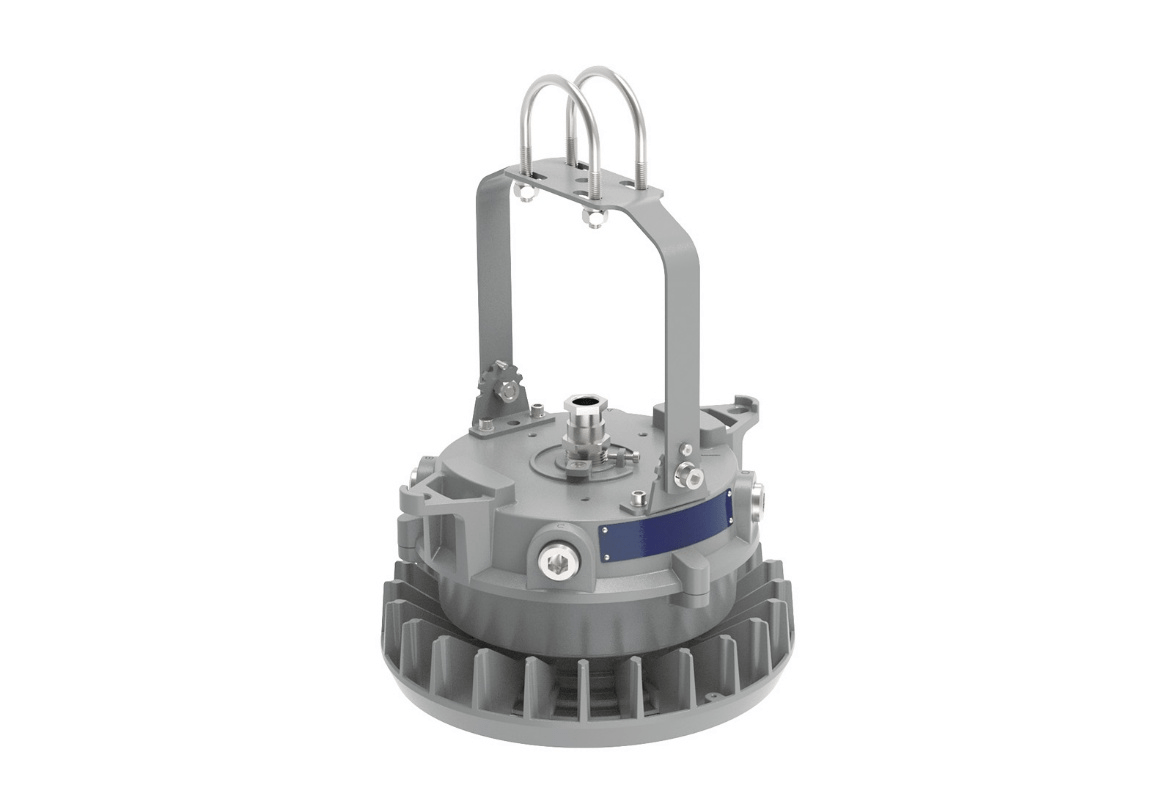

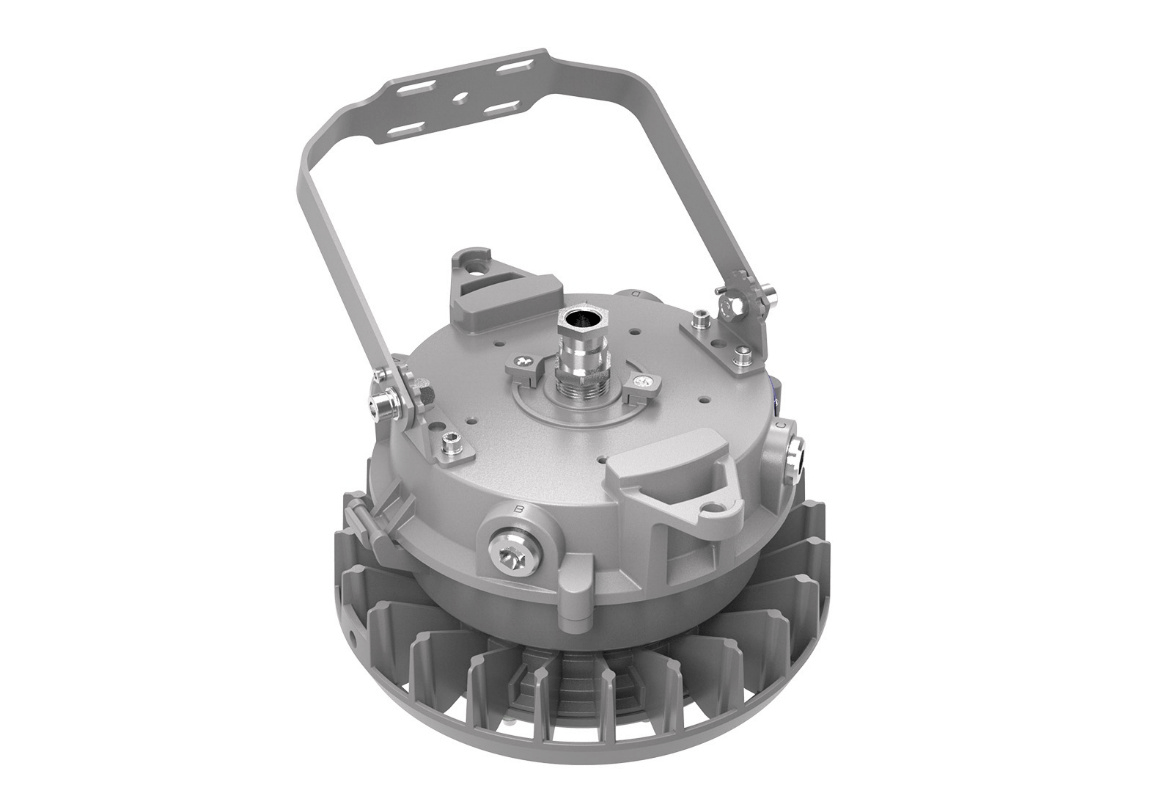

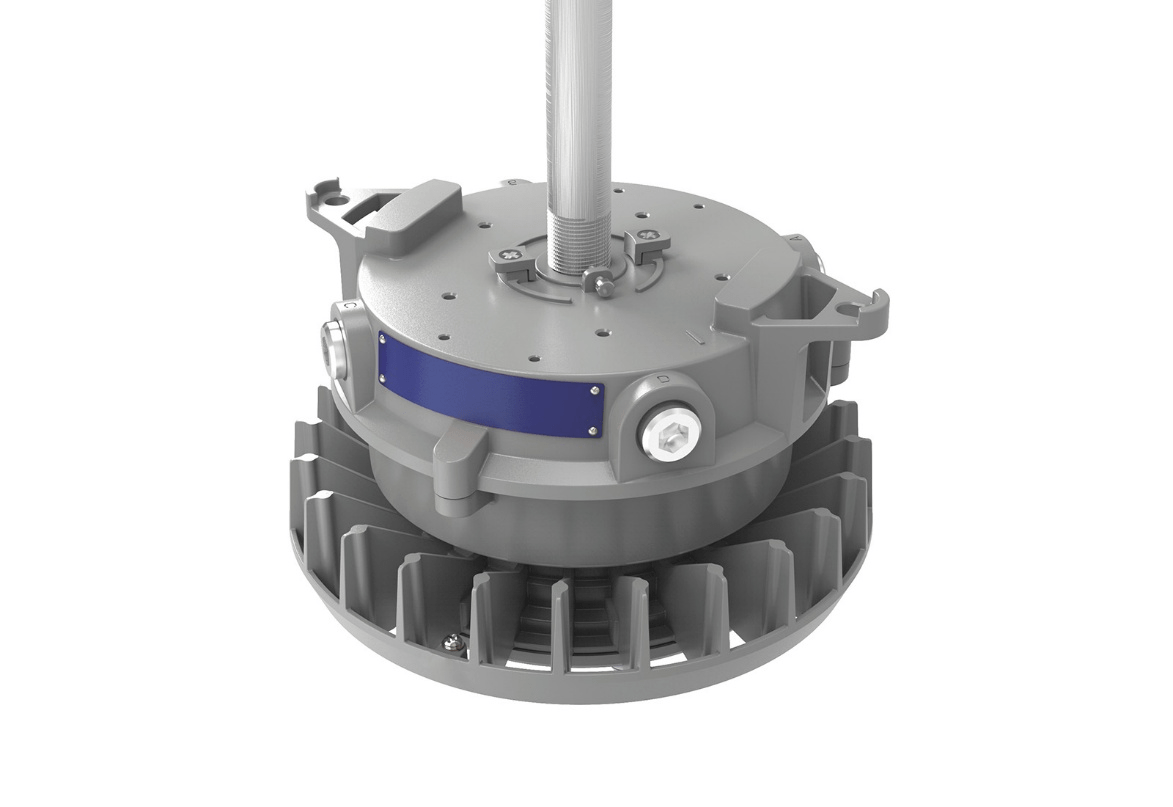

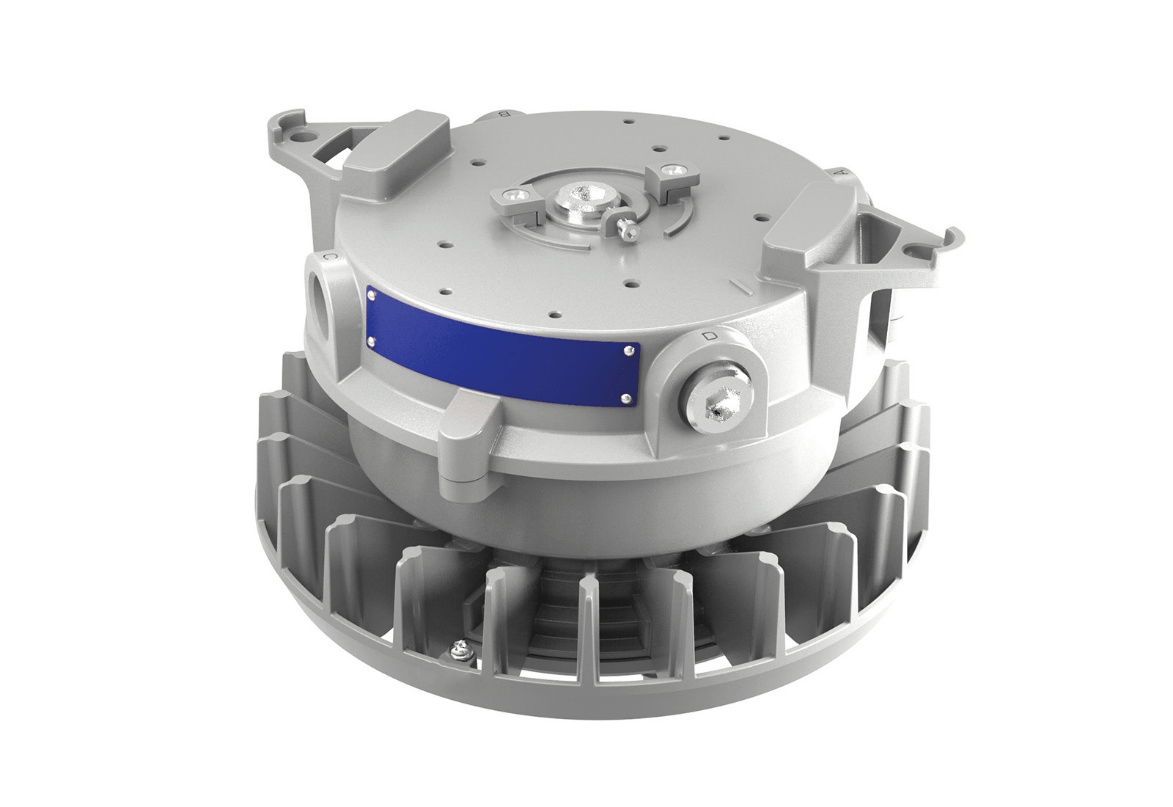

Pendant, Ceiling, Yoke, Wall, Stanchion, Pole
Product Weight
11.0lbs / 5.0kg
Cable Entry
(5) 3/4″ NPT
Product Dimensions(L×W×H)
10.6×10.3×7.6in (269.4×262×191.7mm)
Environmental Parameters
Ambient Operating Temperature
-40°F ~ +140°F (-40°C ~ 60°C)
Ratings:
UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
Salt Spray 720 hrs (ISO 9227)
NEMA 4X
IP66
IK08
Certifications:
UL1598
UL1598A
CSA C22.2 NO. 250.0
DLC Premium
FCC Part 15, Subpart B
