Description:

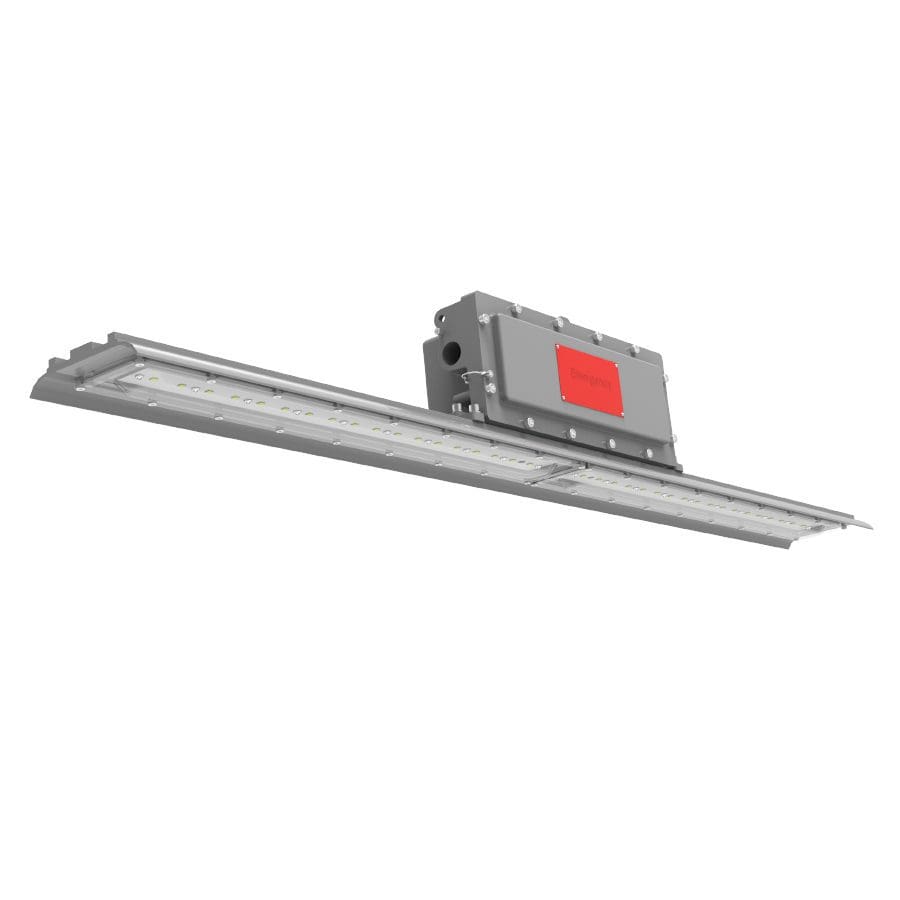

When the power goes out, keep hazardous locations safe and illuminated. Bringing the same robustness, cost-efficiency, and safety, the Linear Tuff now boasts a 90 Minute emergency battery backup. Suitable for petrochemical facilities, drilling rigs, platforms, loading docks, mining, oil and gas refineries, tunnels, and other hazardous locations.
Specs
Compliance
Download
Electrical Parameters
Power (W)
Standard: 40W, 80W
EM: 12W
VOLTAGE(V)
120-277V AC
Frequency
50/60Hz
Power Factor
>95%
THD
<20%
L70
120,000 Hours@122°F
Surge Protection
4KV
Optical Parameters
Lumen Output
Standard: 11548Lm, 5533Lm
EM: 2736Lm
Lumen Efficacy
Up to 143Lm/W
Available Beam Angle
110°
Correlated Color Temperature (CCT)
3000K, 4000K, 5000K
Color Rendering Index (CRI)
Ra>70
Mechanical Parameters
AMBIENT OPERATING TEMPERATURE
32°F to 122°F (0°C to 50°C)
T-CODE RATING
CIID1 – T6, CID1-T4A
HOUSING CONSTRUCTION
Die Cast Driver Box, Marine Grade Extruded Aluminum Housing
HOUSING FINISH
Thermoset Powercoat
LENS MATERIAL
Polycarbonate
MOUNTING OPTIONS

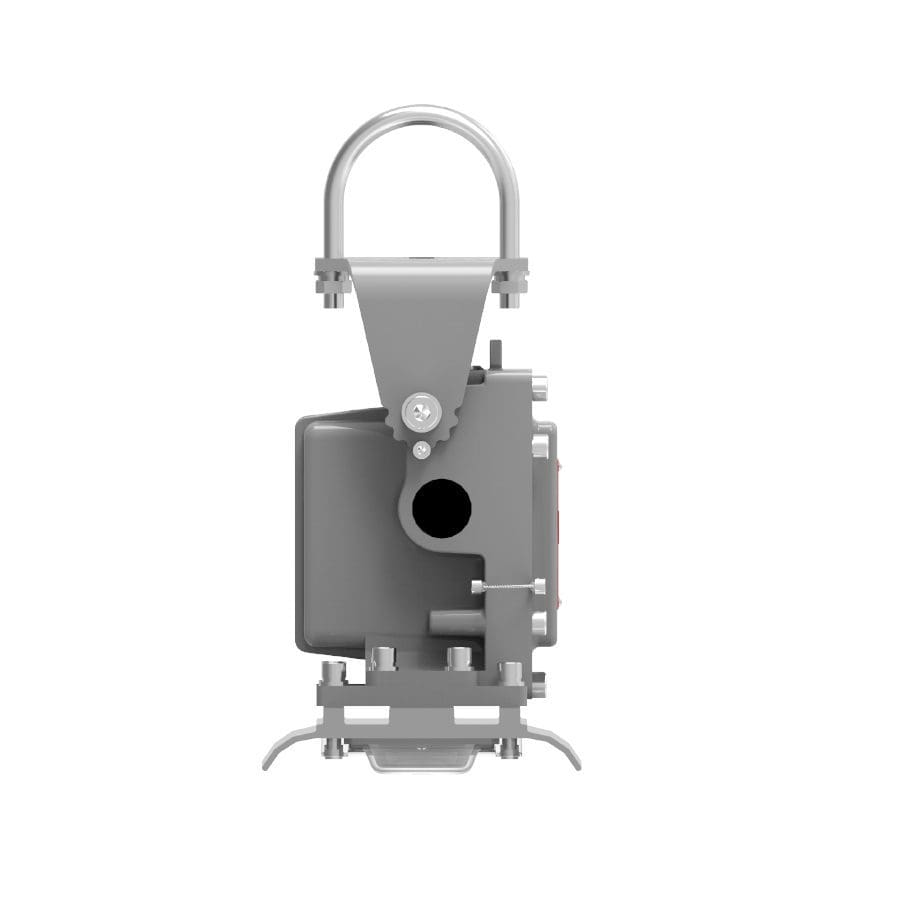

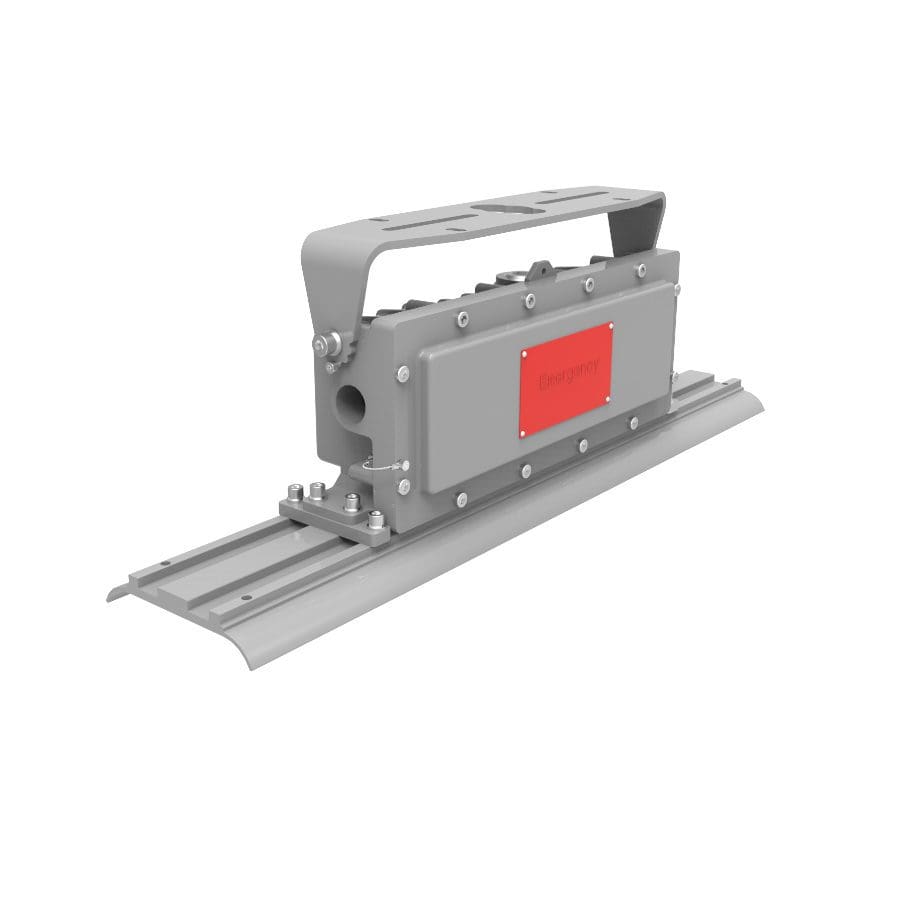

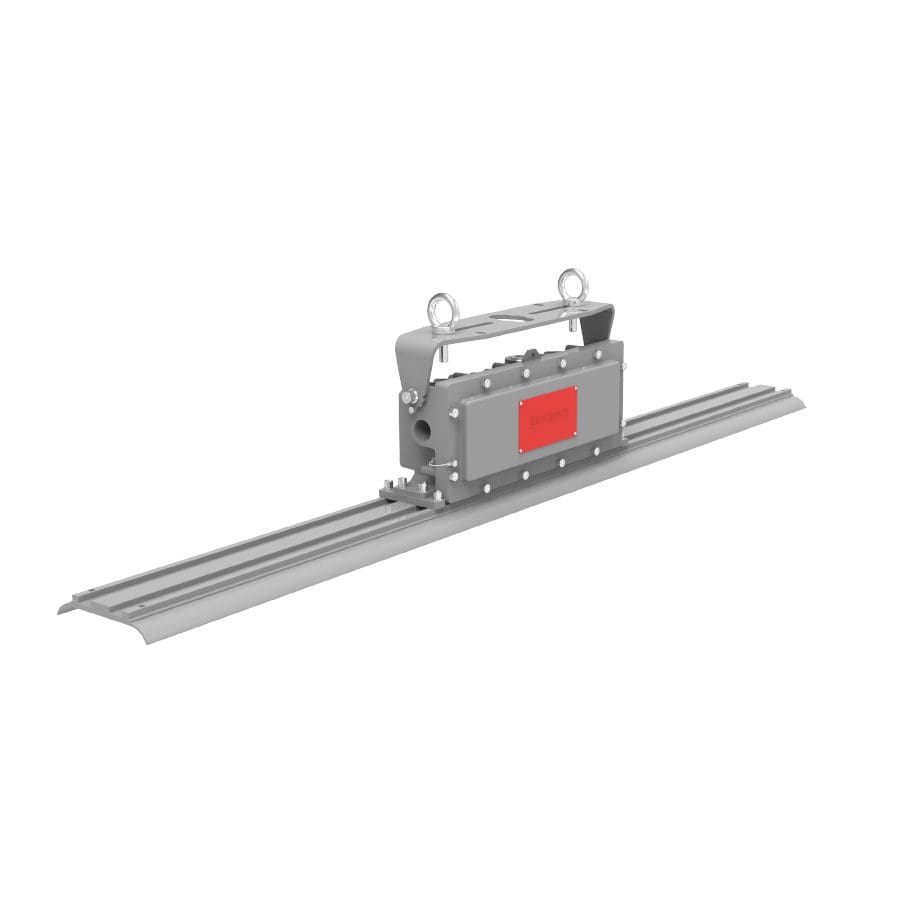

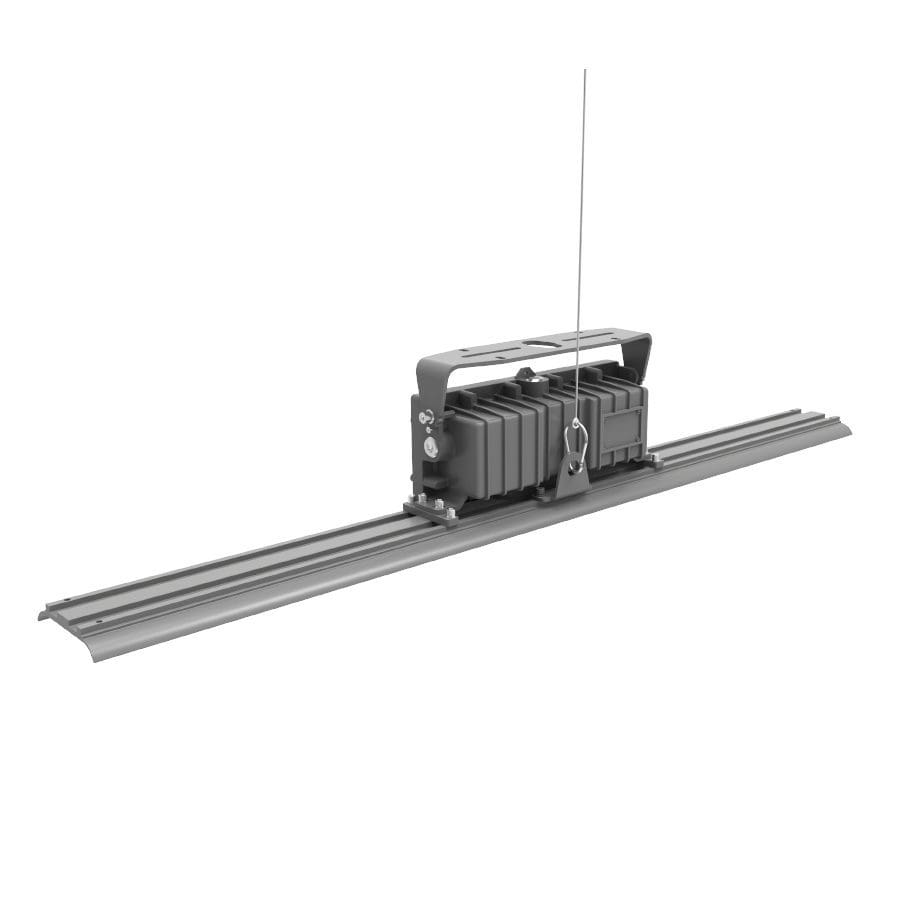

Pendant, Yoke Bracket, Chain, Pipe
WEIGHT
40W: 16.5lbs/7.5kg
80W: 18.3lbs/8.3kg
DIMENSIONS (L×W×H)
40W: 600×127×173 mm 23.6×5.0×6.8in
80W: 1200×127×173 mm 47.2×5.0×6.8in
CONNECTIONS
(3) 3/4″ NPT
WARRANTY/CERTIFICATIONS
WARRANTY TERMS
Driver: 7 years
LEDs: 10 years
Battery: 3 years
Class I Division 2, Groups A, B, C,D
Class I, Zone 1, Group IIA
Class I, Zone 1, Group IIB
CSA C22.2 No. 141-15
CSA C22.2 No. 137-M1981
CSA C22.2 No.30-1986
UL 844 Hazardous Location
UL 924 Emergency Lighting Equipment
UL 1598A Marine Vessels
UL 1598 Wet Locations
UL 8750 LED Safety
DLC (Contact Us)
ABS (Contact Us)
IK08
IP66
