SERIOUSLY SAFE LIGHTS™

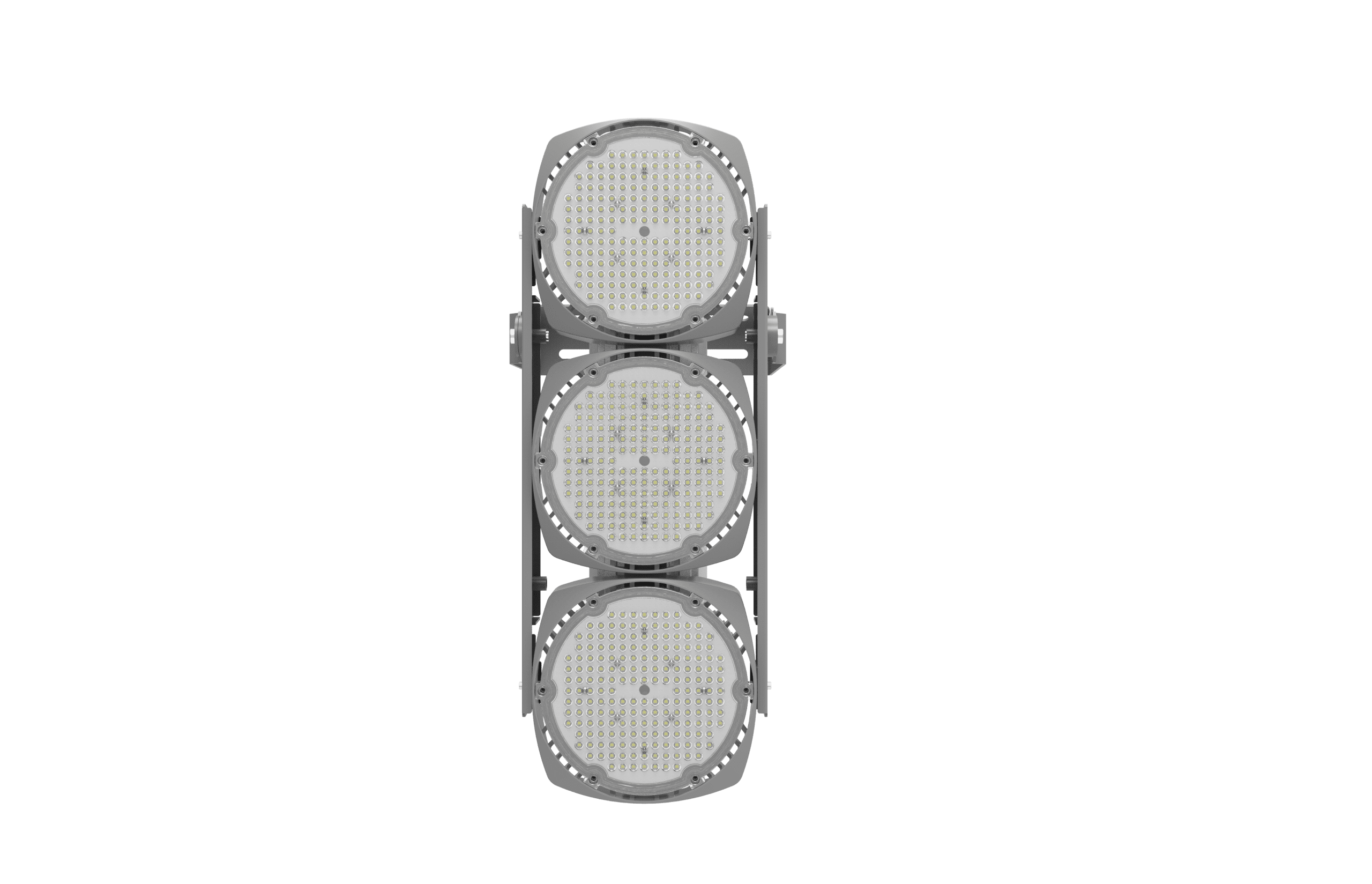

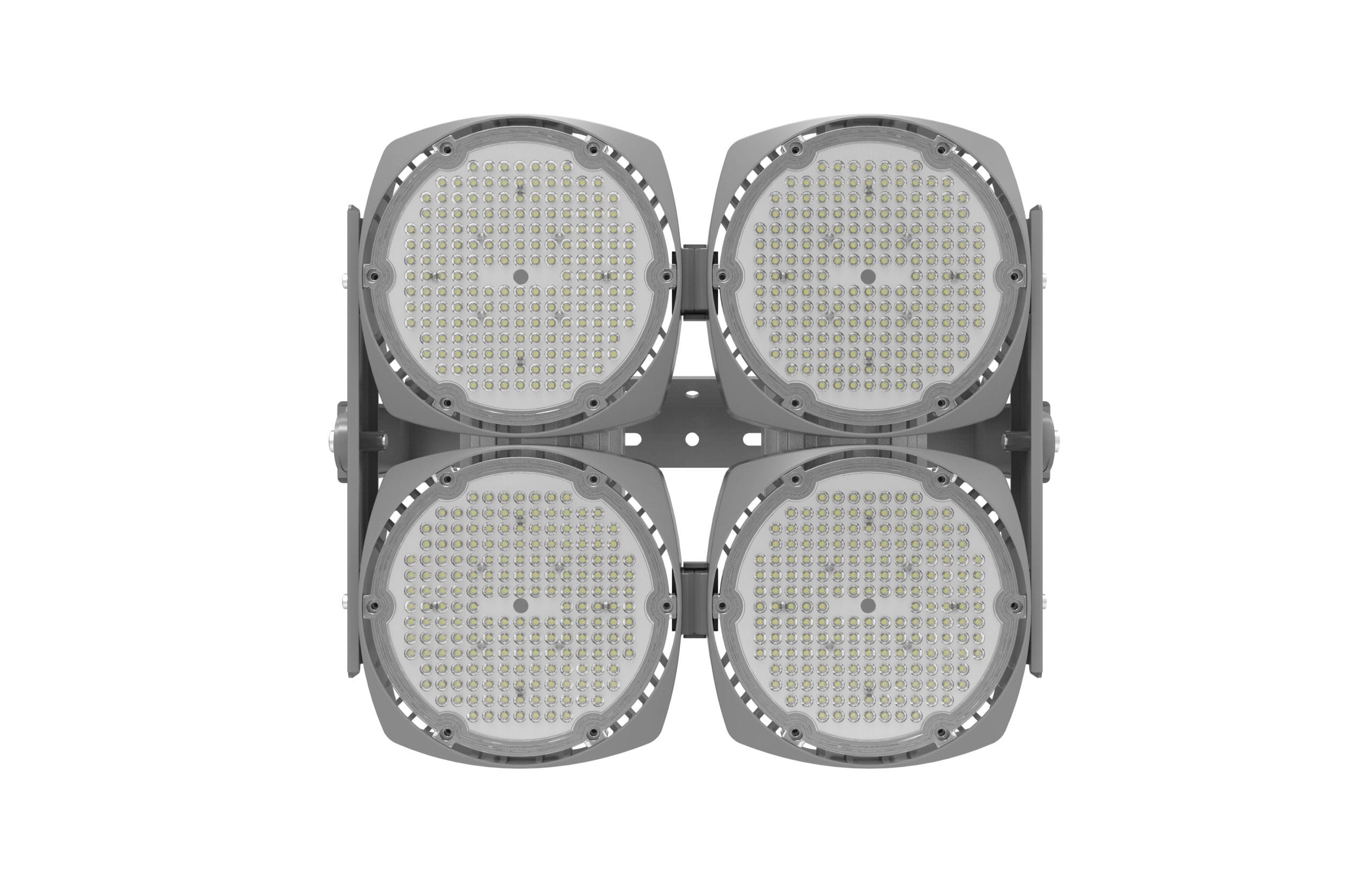

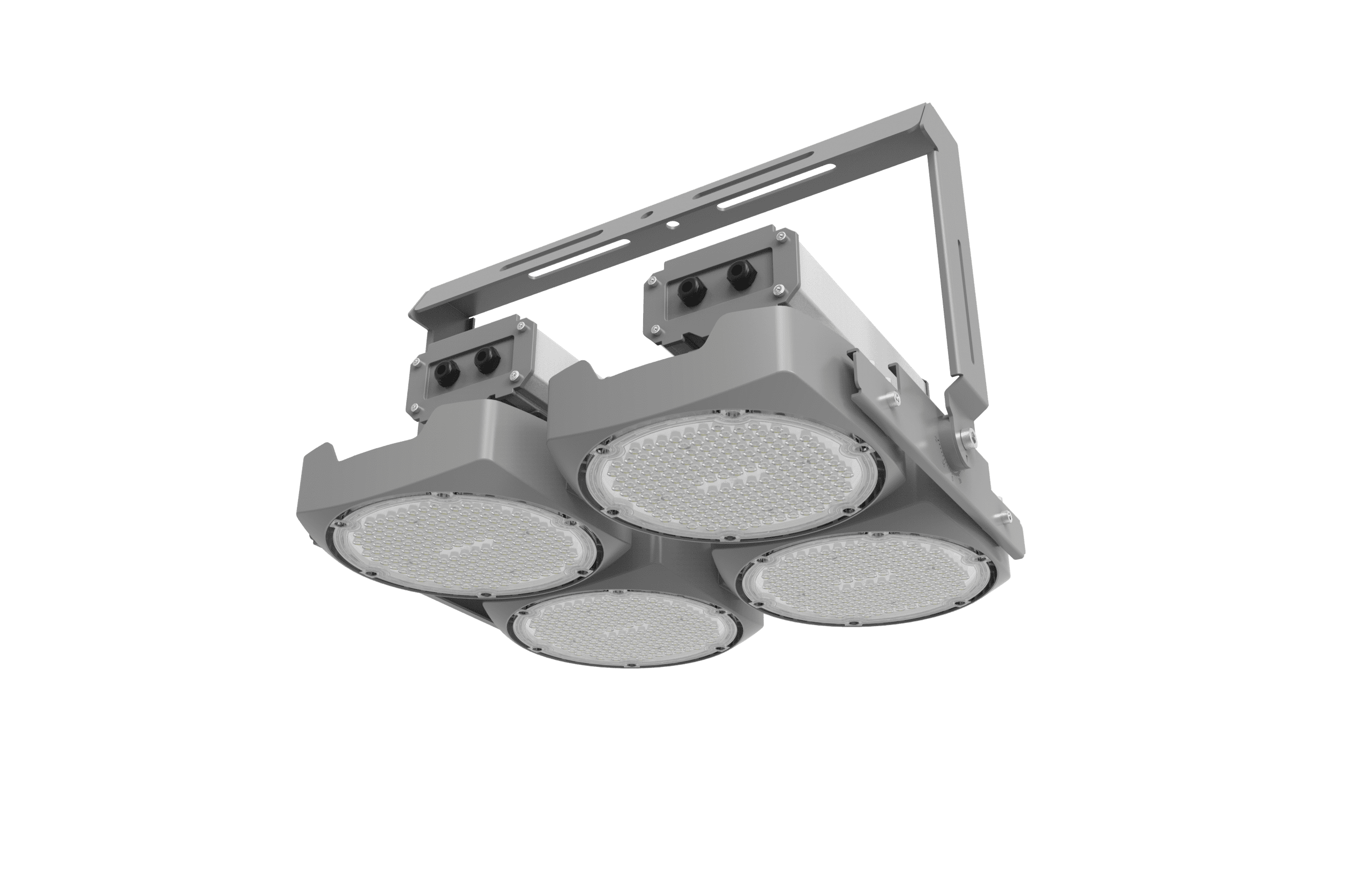

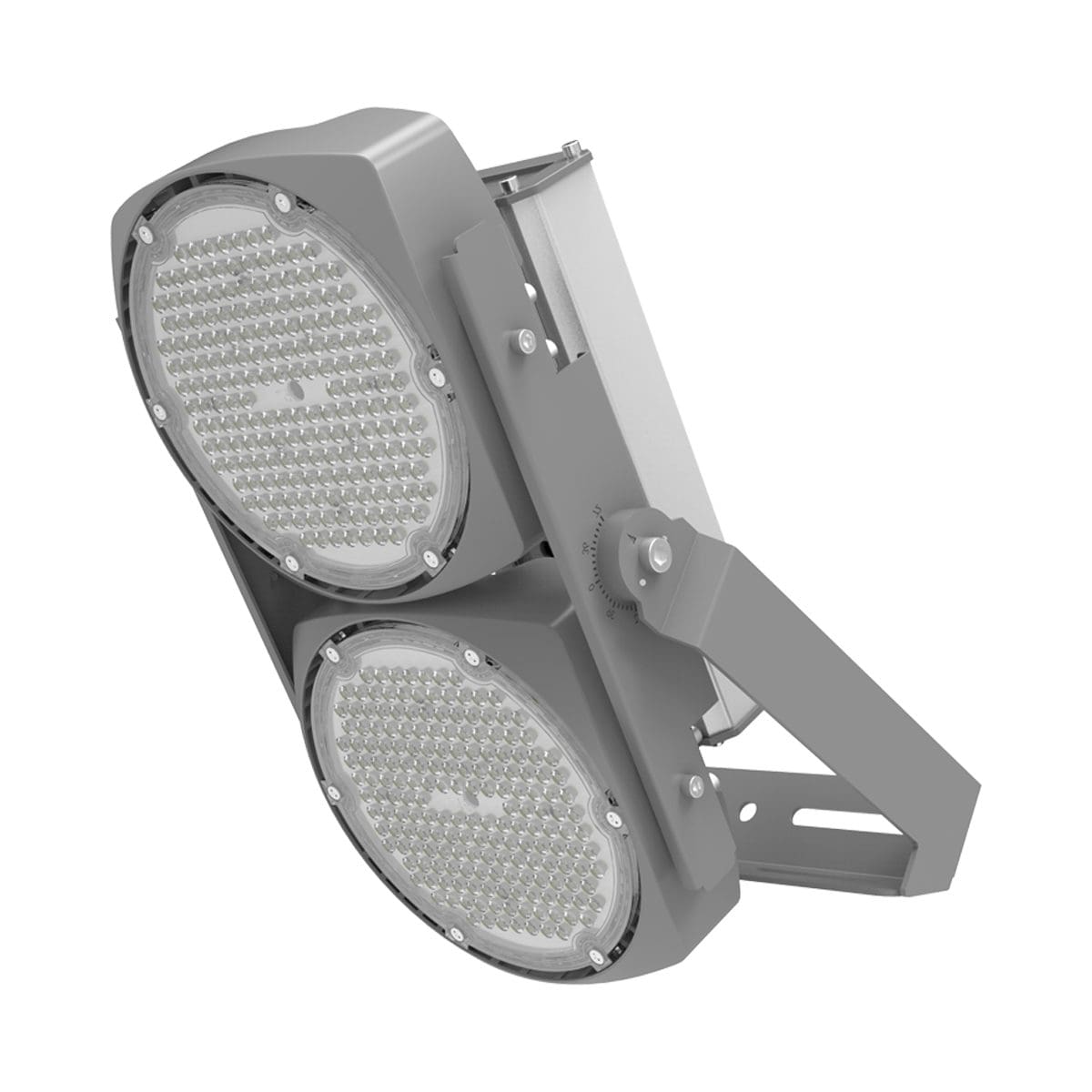

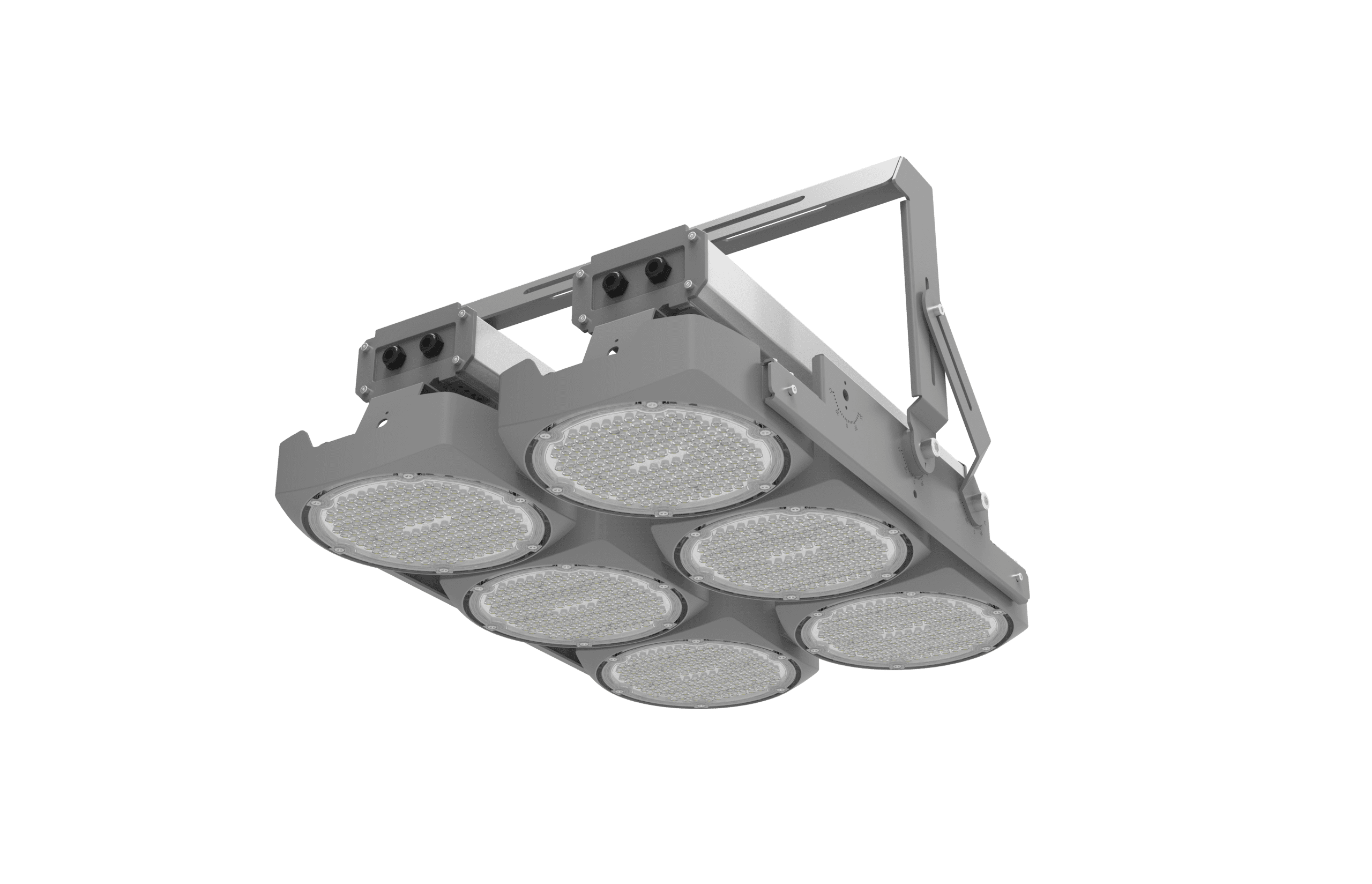

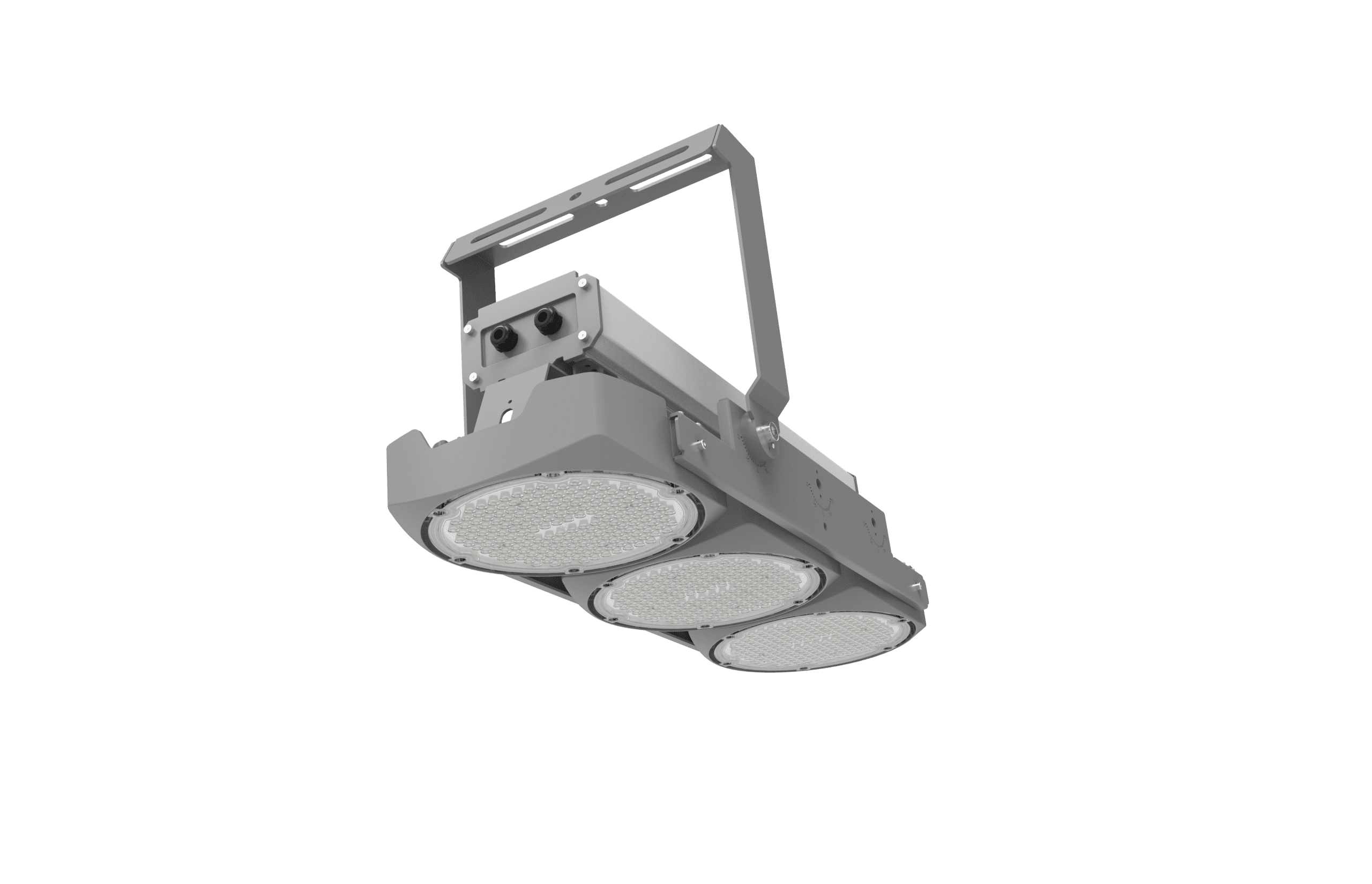

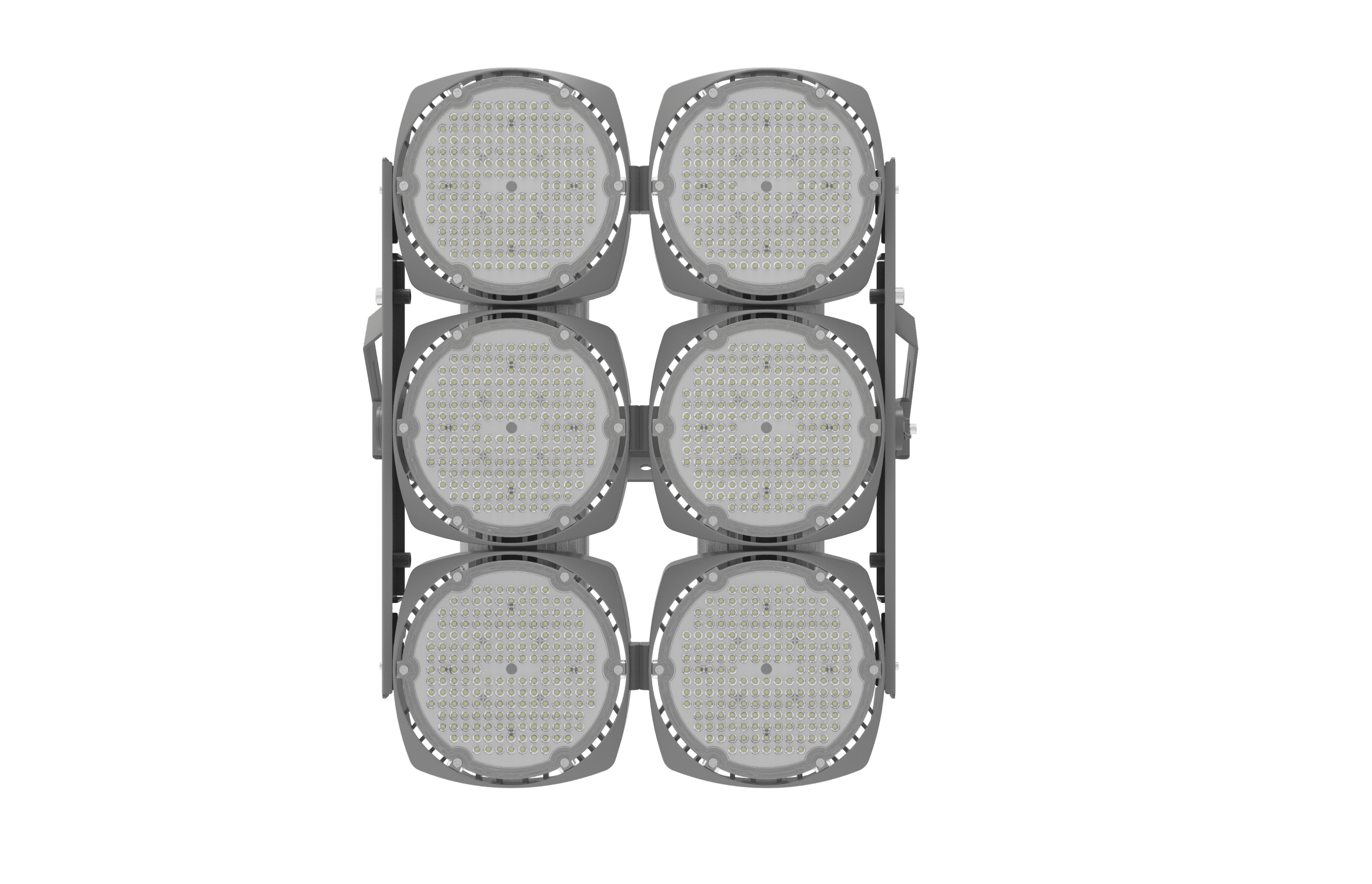

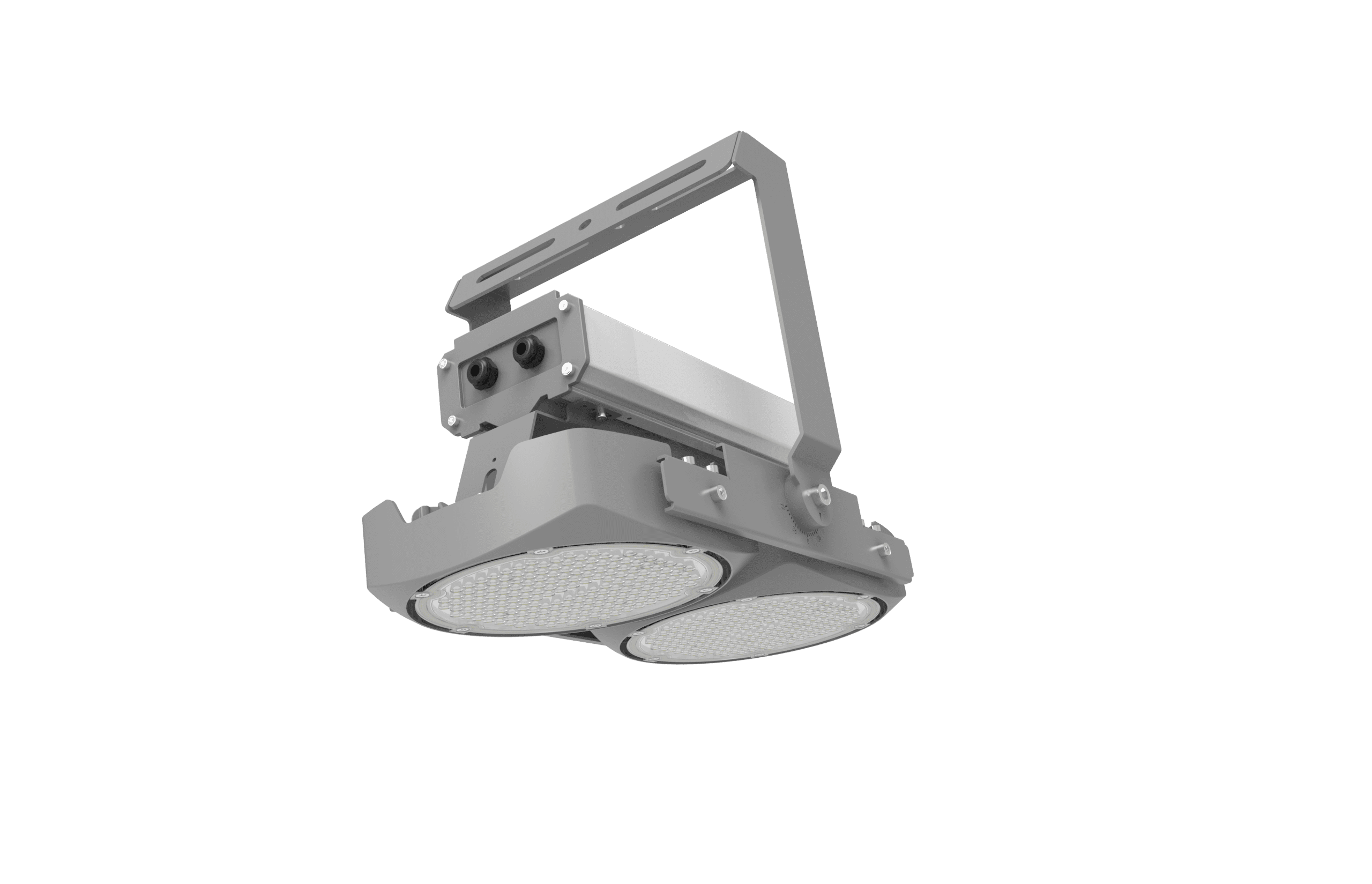

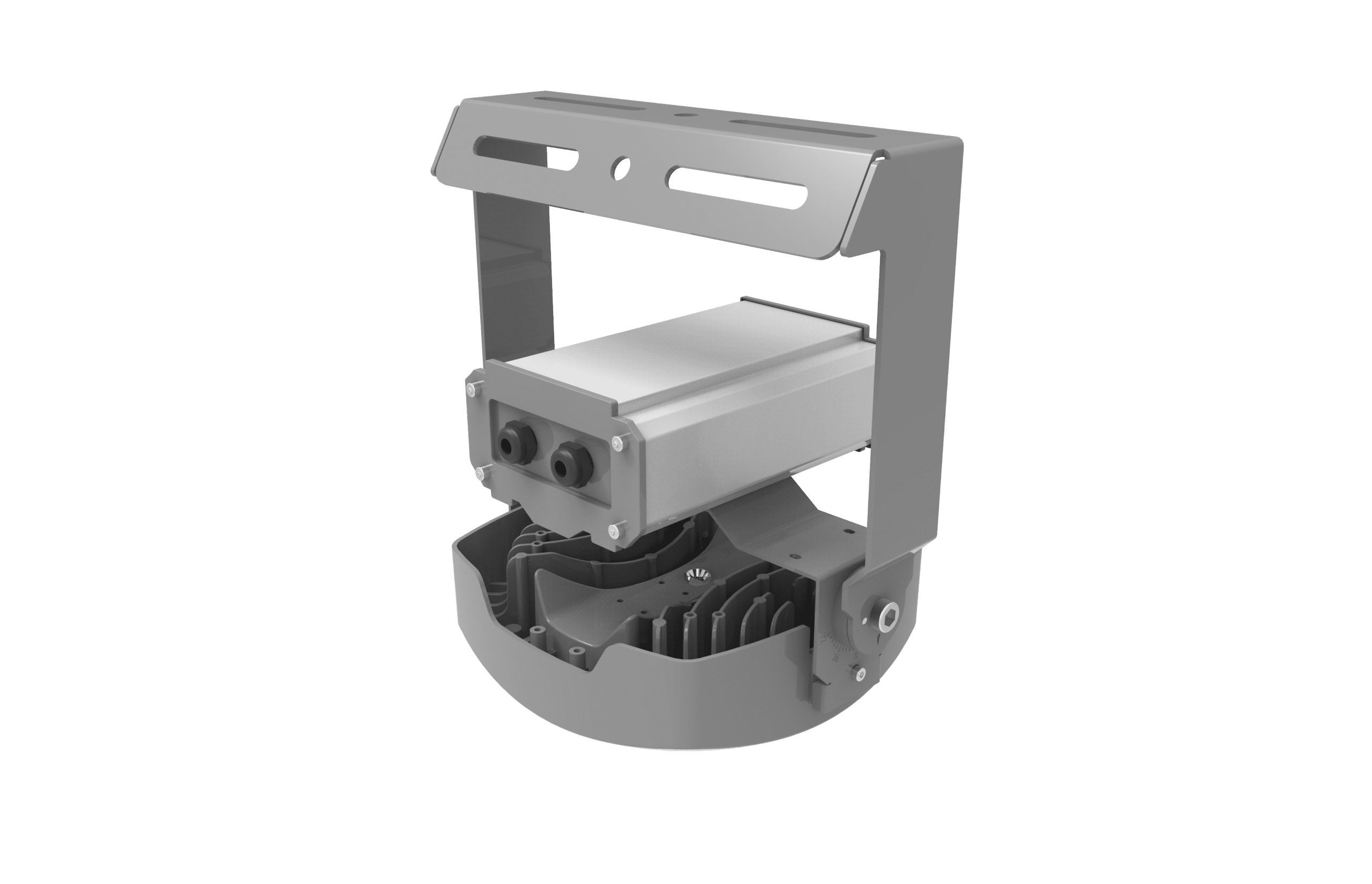

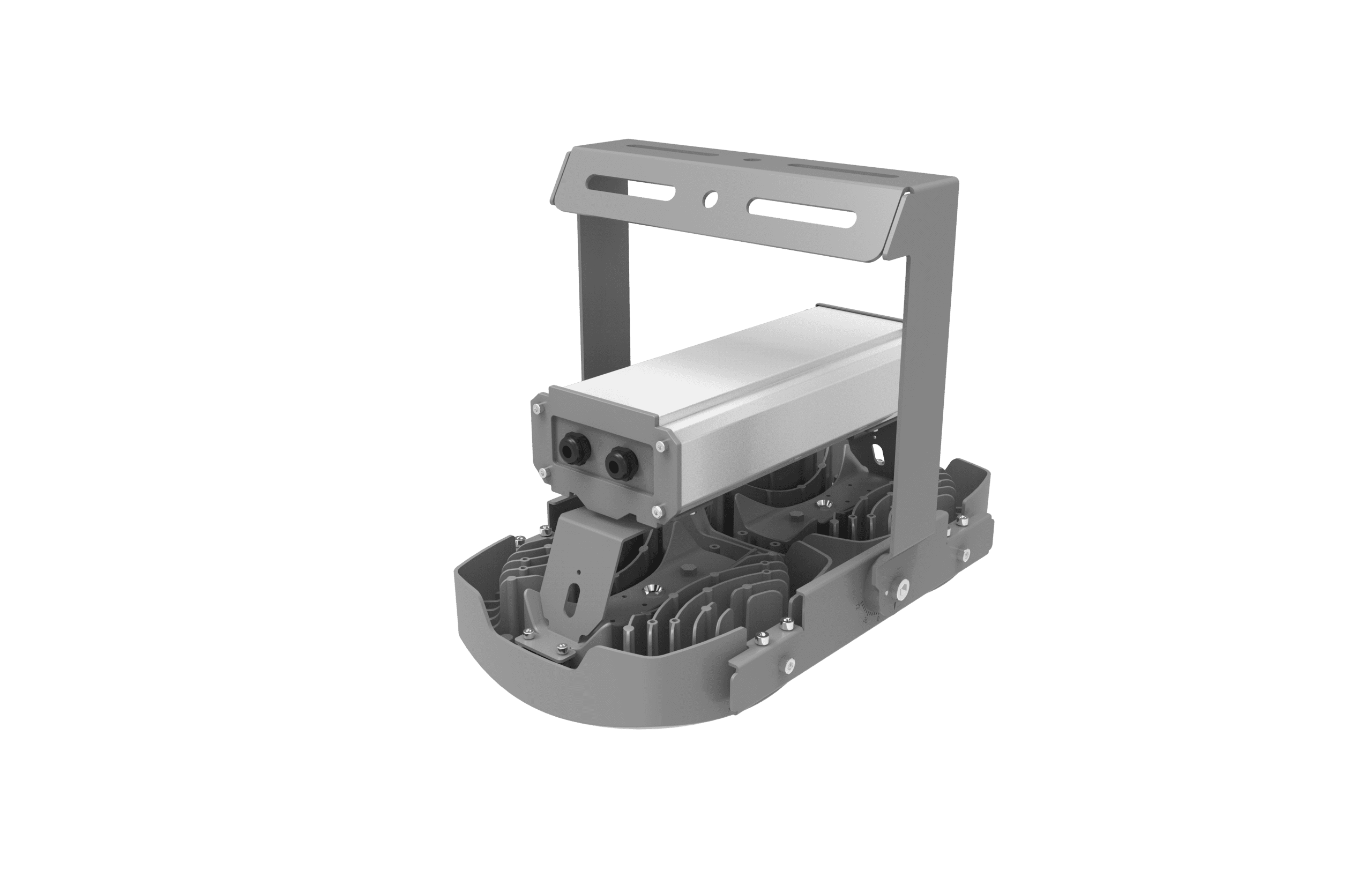

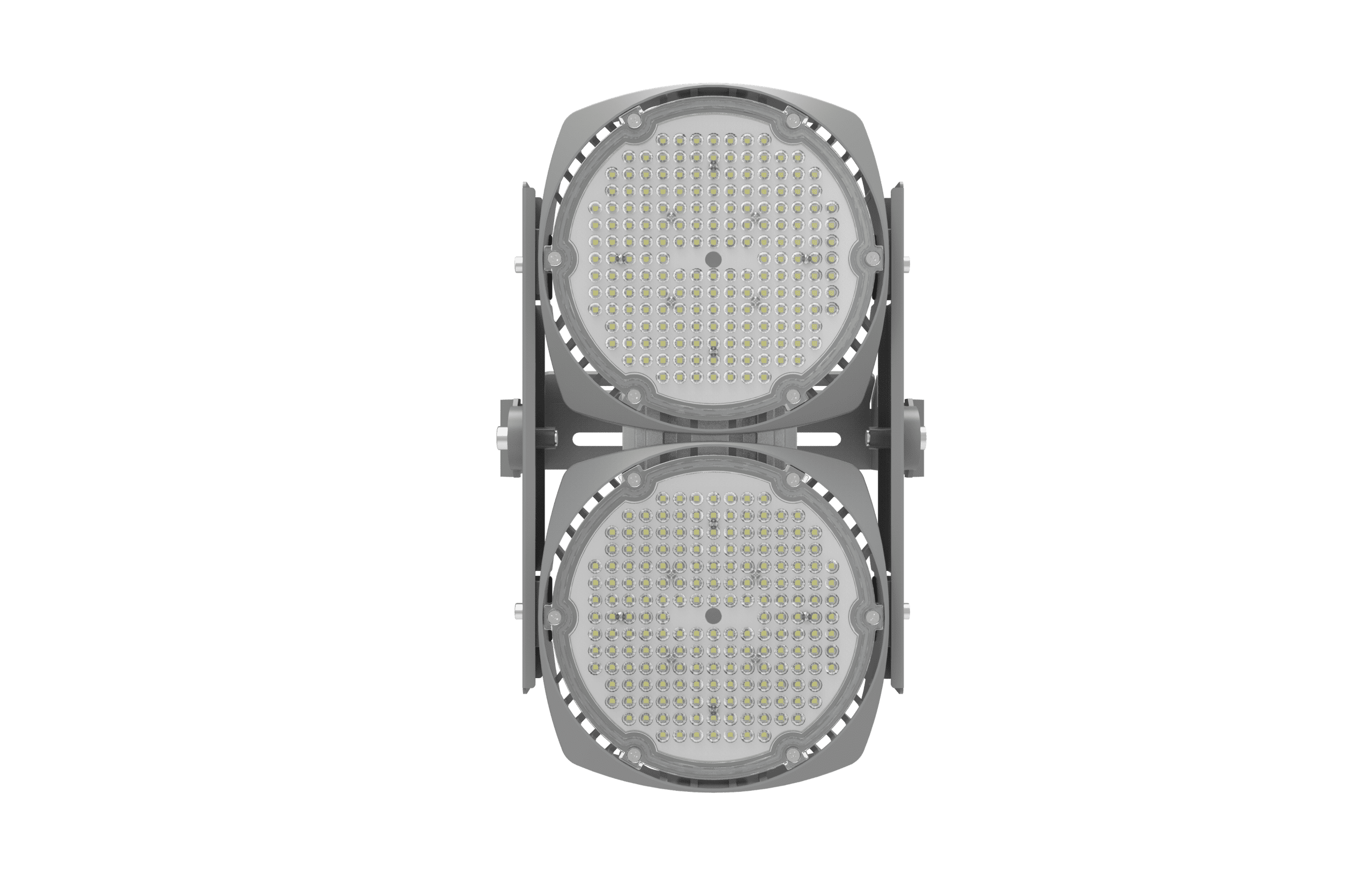

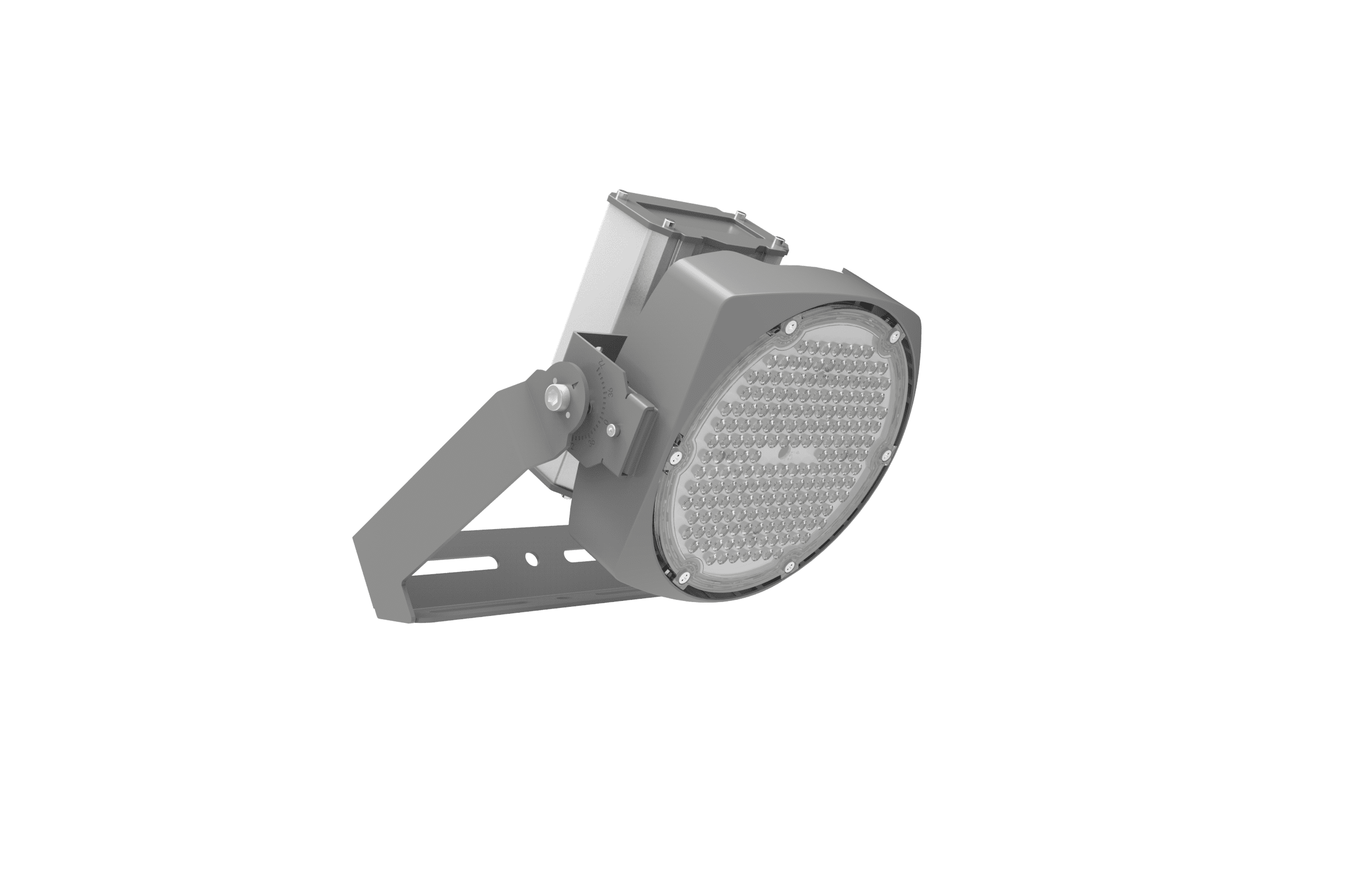

Crane Master Series

SKU CMF

Description:

Crane Master Series LED Luminaire combines optical performance, energy efficiency, and outstanding versatility to meet the requirements of field lighting solutions in fixed lighting for all types of high pole lights, port cranes, traveling cranes, and sites with large vibrations, also delivers a wide range of light outputs.
Crane Master Series offers higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.

Product Type & Application: Metal Processing, Area & Floodlight, Oil and gas
Electrical Parameters

Power (W)

150W, 300W, 420W, 560W

VOLTAGE(V)

100-240V AC

Frequency

50/60Hz

Power Factor

> 90%

THD

< 20%

L70

140,000 Hours@50°C

Warranty

5 years

Optical Parameters

Lumen Output

20,439Lm, 42,425Lm, 58,852Lm, 79,230Lm

Lumen Efficacy

140Lm/W

Available Beam Angle

PC: 30°, 60°, 90°, 30*120°
Glass: 120°

Correlated Color Temperature (CCT)

4000K/5700K

Color Rendering Index (CRI)

Ra>70

Mechanical Parameters

Finish

Polyster powder coating for uniform corrosion resistance

Hardware

Stainless steel 316

Lens Material

Clear Glass or Clear PC

Mounting Options

Yoke

Product Weight

16.5lbs/7.5kg
30.9lbs/14kg
39.7lbs/18kg
50.7lbs/23kg

Cable Entry

2 x M20

Product Dimensions(L×W×H)

10.2×9.1×5.8 in (260x230x148 mm)
22x11x6.7 in (559x280x171 mm)
24.9x11x6.7 in (632x280x171 mm)
19.2×16.5×6.7 in (487x420x171 mm)

Environmental Parameters

Ambient Operating Temperature

-40°C~+55°C

Optimal Operating Temperature

25°C
