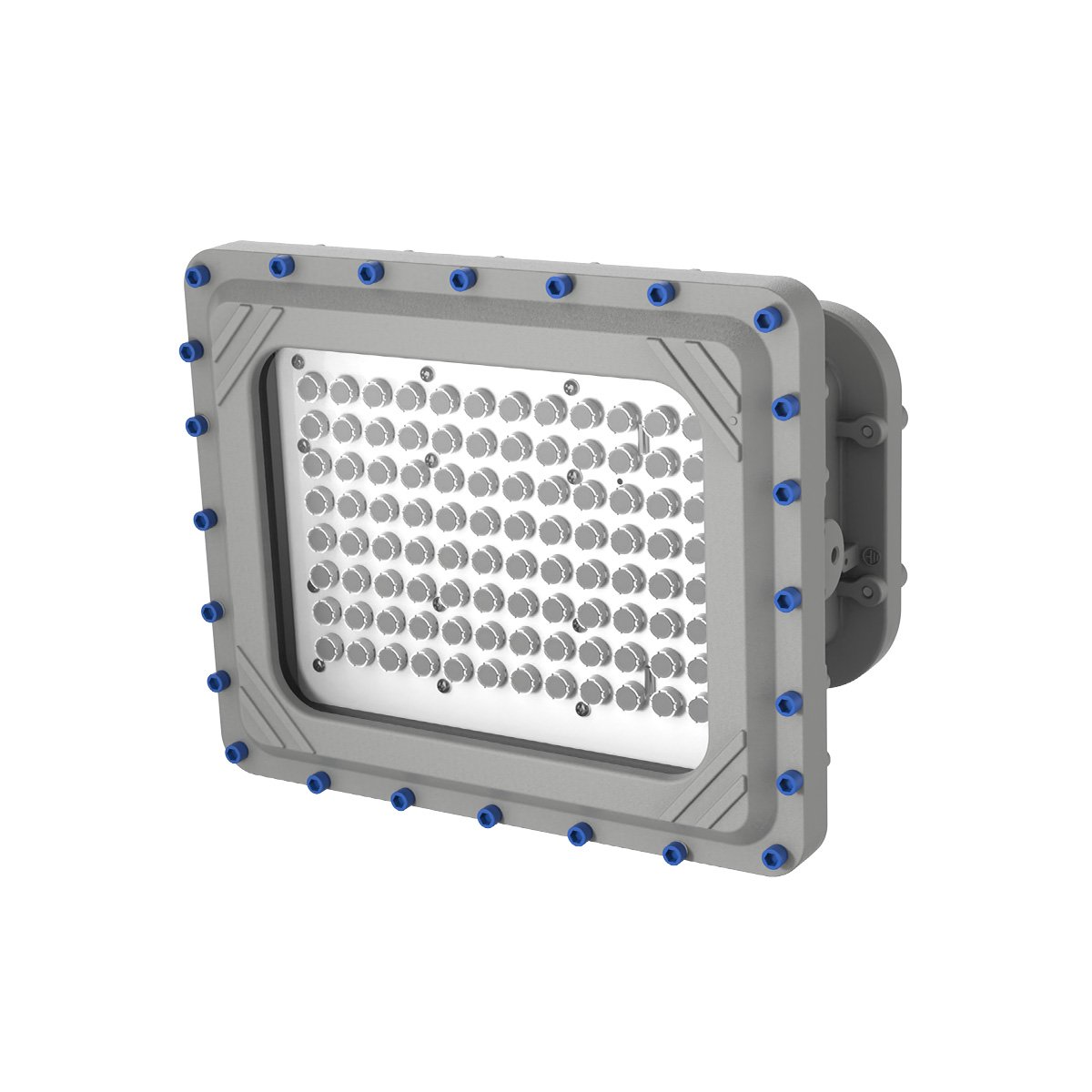

Block Harsh Series
SKU BLK2 HS
Description:
Engineered for harsh environments, the Block Harsh Series delivers up to 150 lm/W and 121,000-hour life at 140°F. Its rugged, NEMA 4X-rated housing resists corrosion, vibration, dust, and salt. With 10kV surge protection, dimmable driver, and multiple optics, it ensures safe, efficient lighting in extreme industrial settings—ideal for petrochemical plants, marine platforms, and coastal facilities.
Product Type & Application: Metal Processing, Area & Floodlight, High bay & Low bay, Power Generation, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power (W)
80W, 100W, 120W, 150W
VOLTAGE(V)
100-277V AC, 347-480V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
121,000 hrs@140°F
Dimming
0-10V, Range 10-100%
Surge Protection
10KV
Warranty
LEDs: 10 years, Driver: 7 years
Optical Parameters
Lumen Output
11,777Lm, 14,416Lm , 17,416Lm , 21,141Lm
Lumen Efficacy
146Lm/W
Available Beam Angle
25° / 60° / 120°
Correlated Color Temperature (CCT)
3000K/4000K/5000K
Color Rendering Index (CRI)
80 CRI
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Tempered Glass

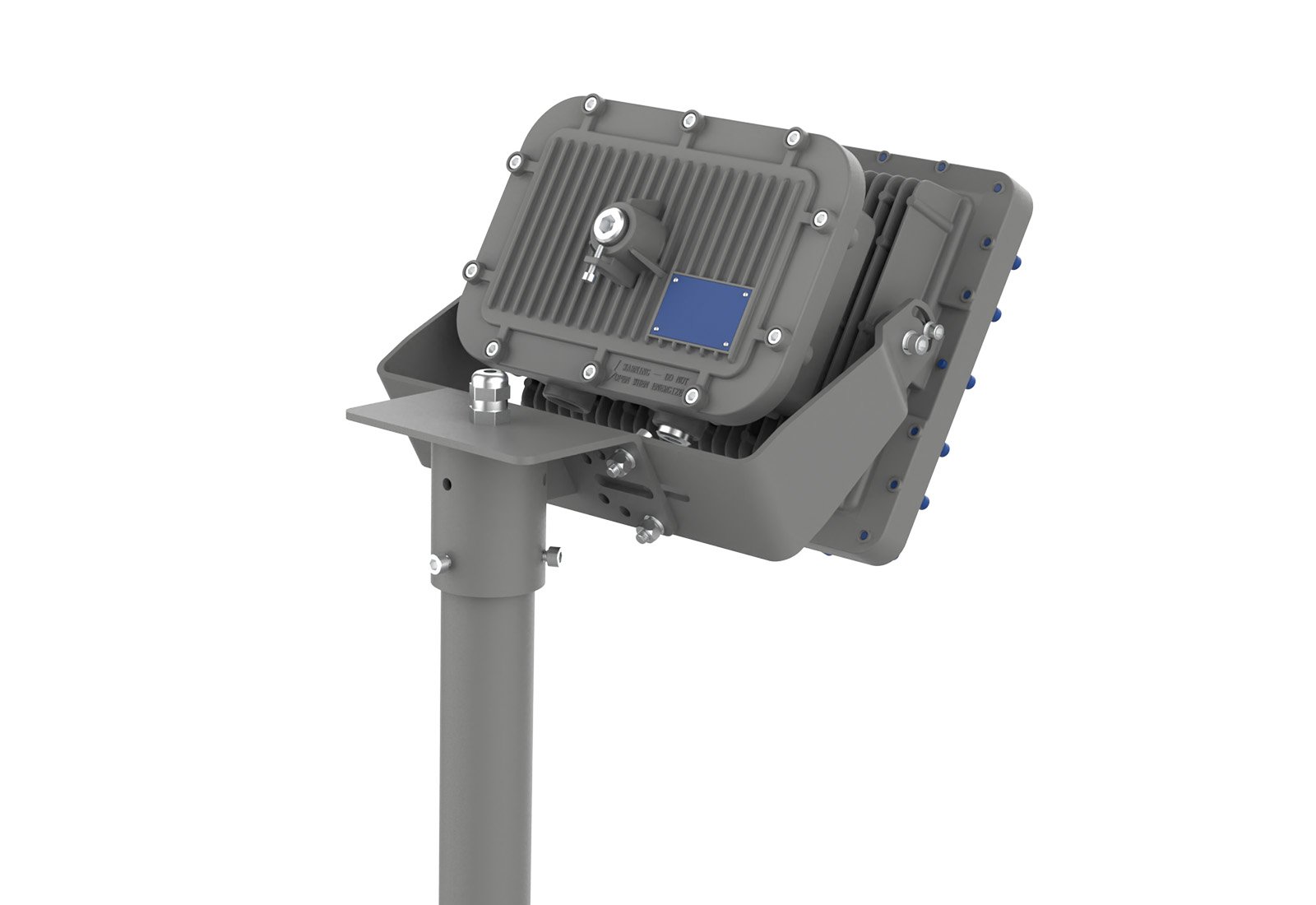

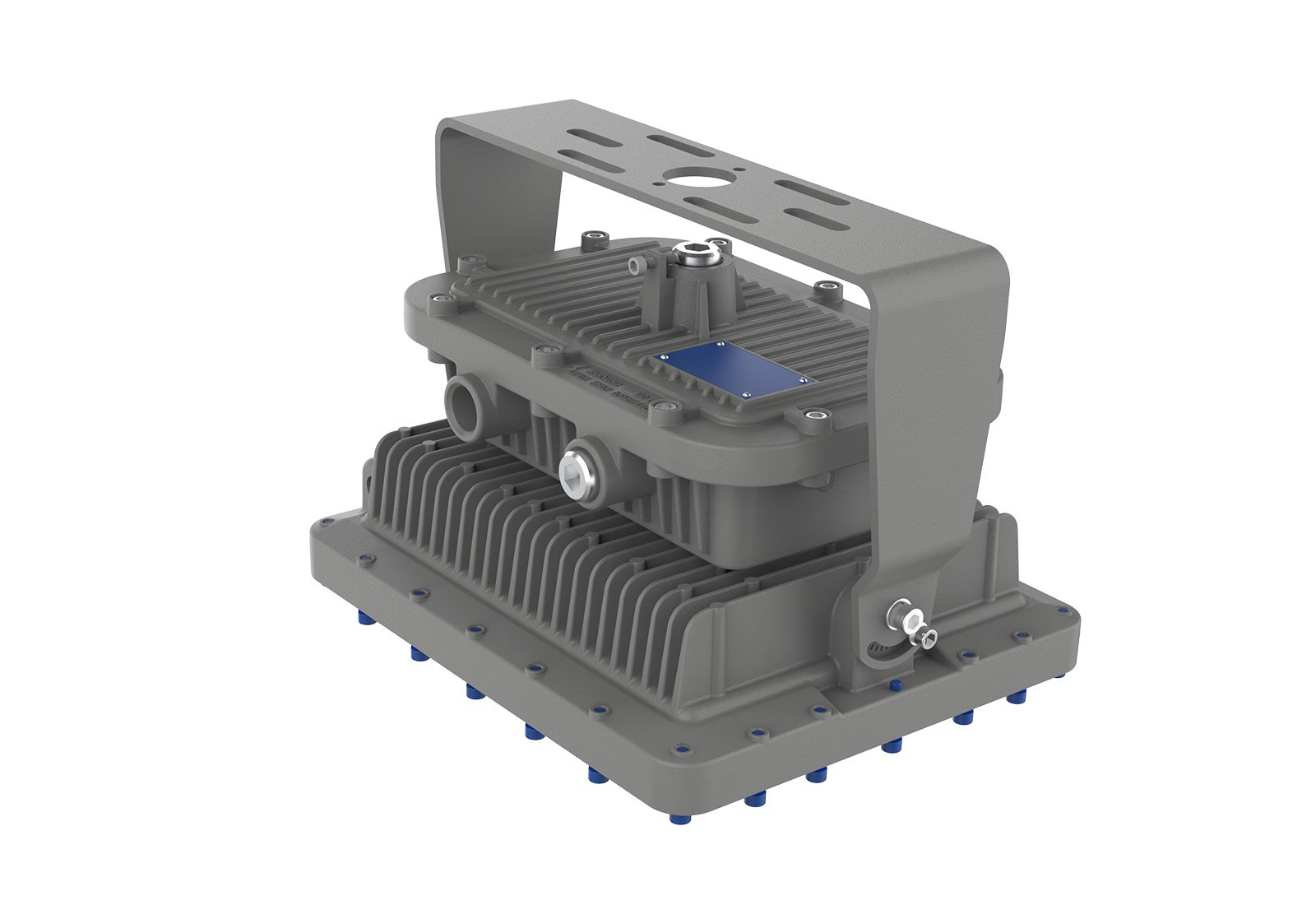

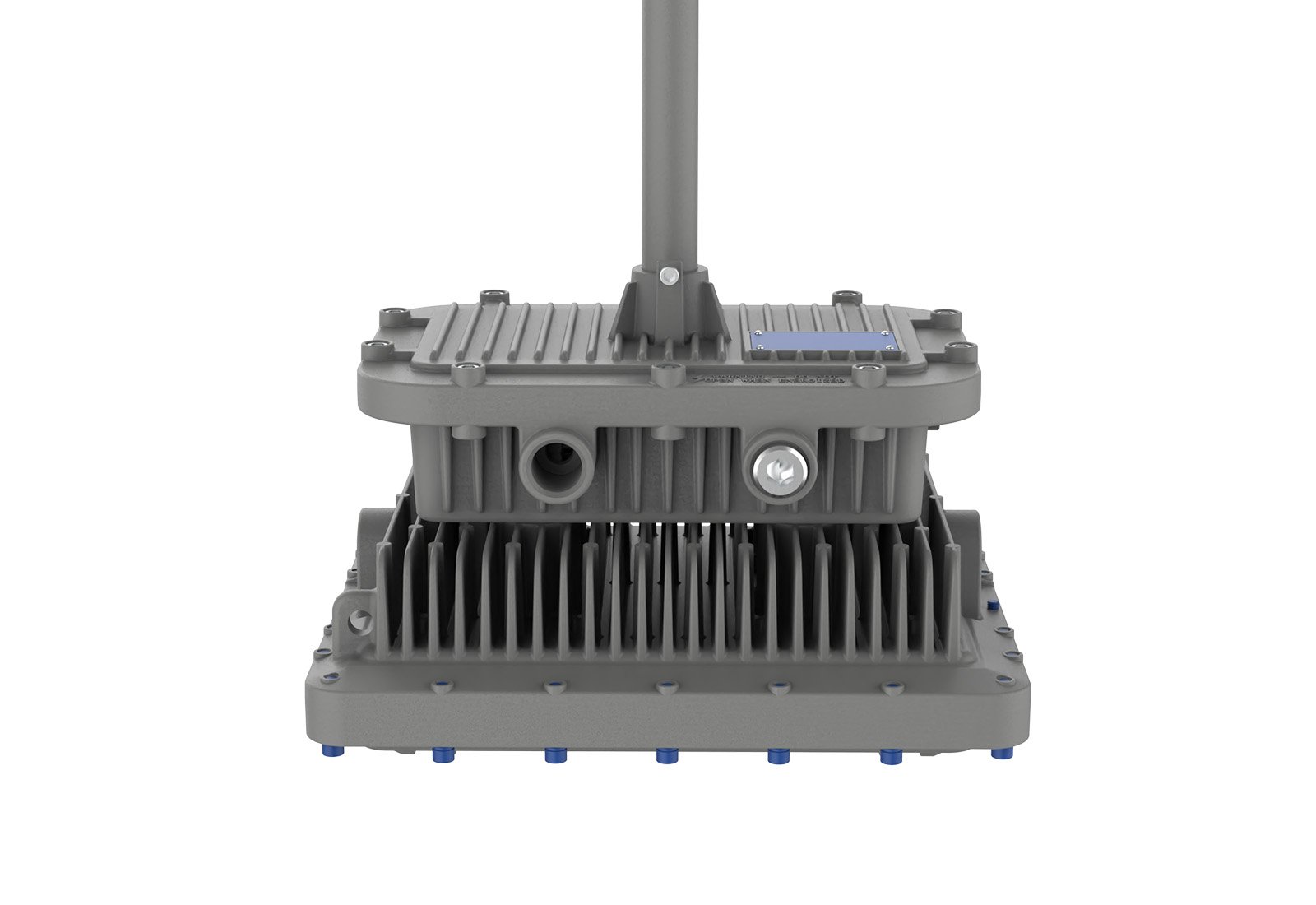

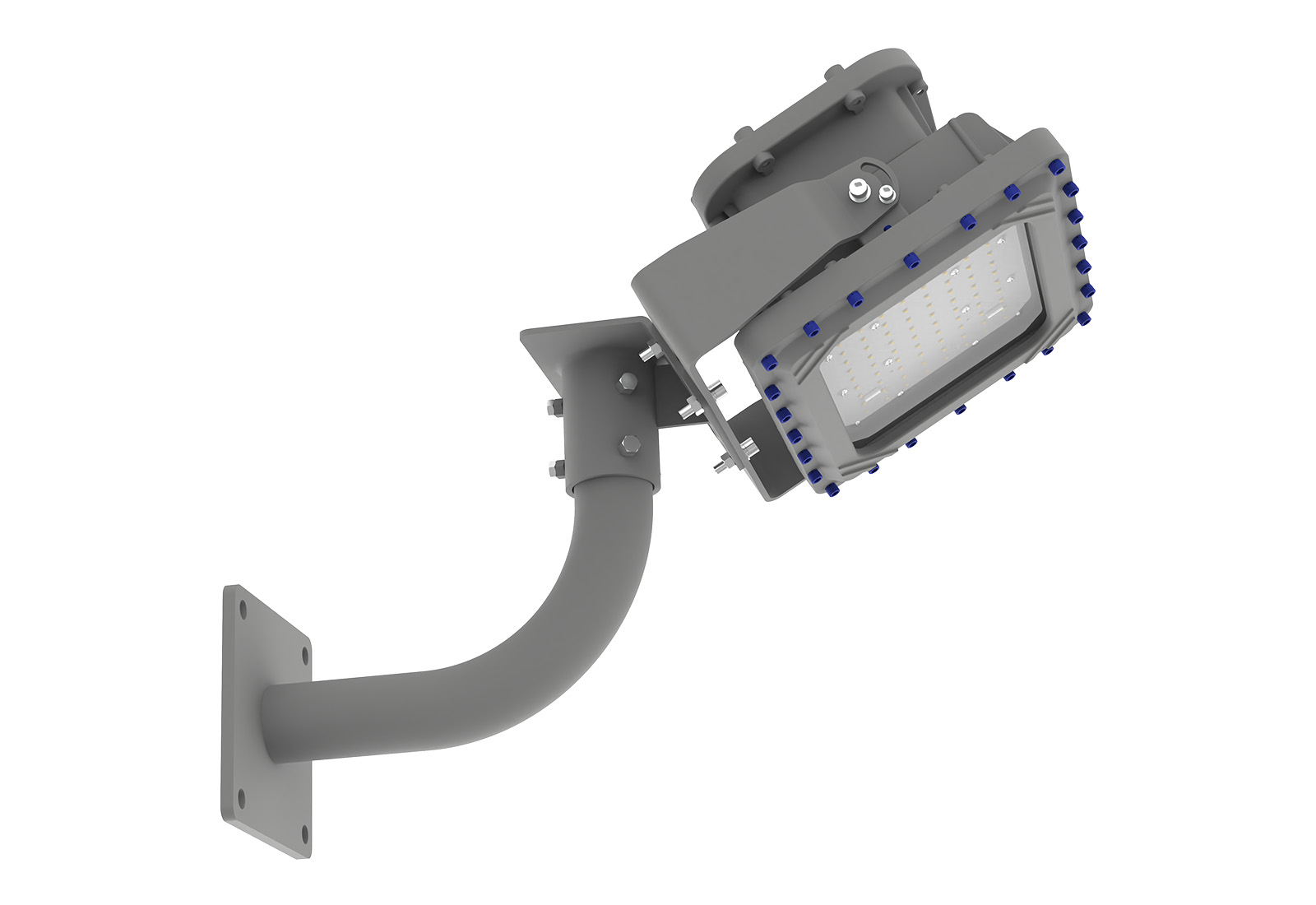

Mounting Options
Pendant, Yoke, Stanchion
Product Weight
80/100W: 33.5lbs/15.2kg, 120/150W: 33.7lbs/15.3kg
Cable Entry
(3) 3/4″ NPT
Product Dimensions(L×W×H)
12.9×10.7×8.4 in (328×271×214 mm)
Environmental Parameters
Ambient Operating Temperature
-40°F ~ +140°F (-40°C ~ +60°C)
