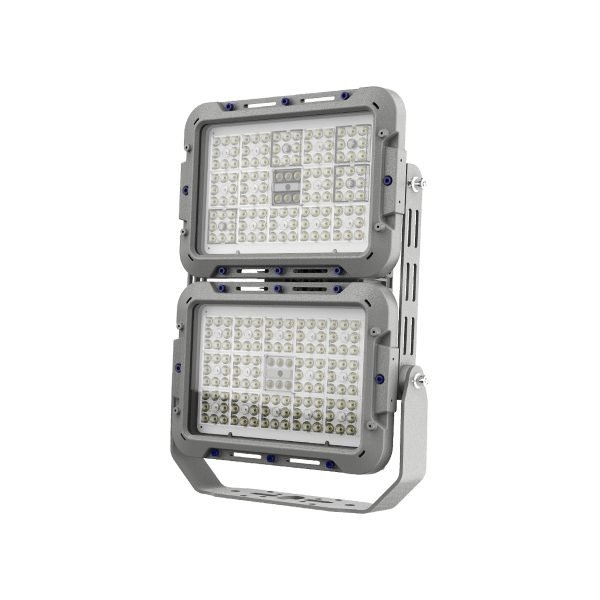

Block Series H2
SKU BLK2 H2
Description:
Designed to withstand hazardous environments, the Block Series excels with a luminous efficacy of 150 lumens per watt. It is certified for use in hazardous locations requiring explosion-proof fixtures where flammable gases, vapors and combustible dusts are present. Applications include oil and gas rigs, petrochemical plants, and other hazardous corrosive facilities.
Product Type & Application: Metal Processing, Area & Floodlight, High bay & Low bay, Oil and gas, Power Generation, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power (W)
80W, 100W, 120W, 150W
VOLTAGE(V)
100-277V AC, 347-480V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
121,000 hrs@140°F
Dimming
0-10V, Range 10-100%
Surge Protection
6KV
Warranty
LEDs: 10 years, Driver: 7 years
Optical Parameters
Lumen Output
12,320Lm, 14,162Lm, 17,680Lm, 21,227Lm
Lumen Efficacy
150Lm/W
Available Beam Angle
25° / 60° / 120°
Correlated Color Temperature (CCT)
3000K/4000K/5000K
Color Rendering Index (CRI)
Ra>70
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Tempered Glass
Mounting Options
Pendant, Yoke, Stanchion
Product Weight
80/100W: 33.5lbs/15.2kg, 120/150W: 33.7lbs/15.3kg
Cable Entry
(3) 3/4″ NPT
Product Dimensions(L×W×H)
12.9×10.7×8.4 in (328×271×214 mm)
Environmental Parameters
Ambient Operating Temperature
-40°F ~ +140°F (-40°C ~ +60°C)
T-Code Rating
C1D2 – T4A, C2D2 – T4A
