Description:

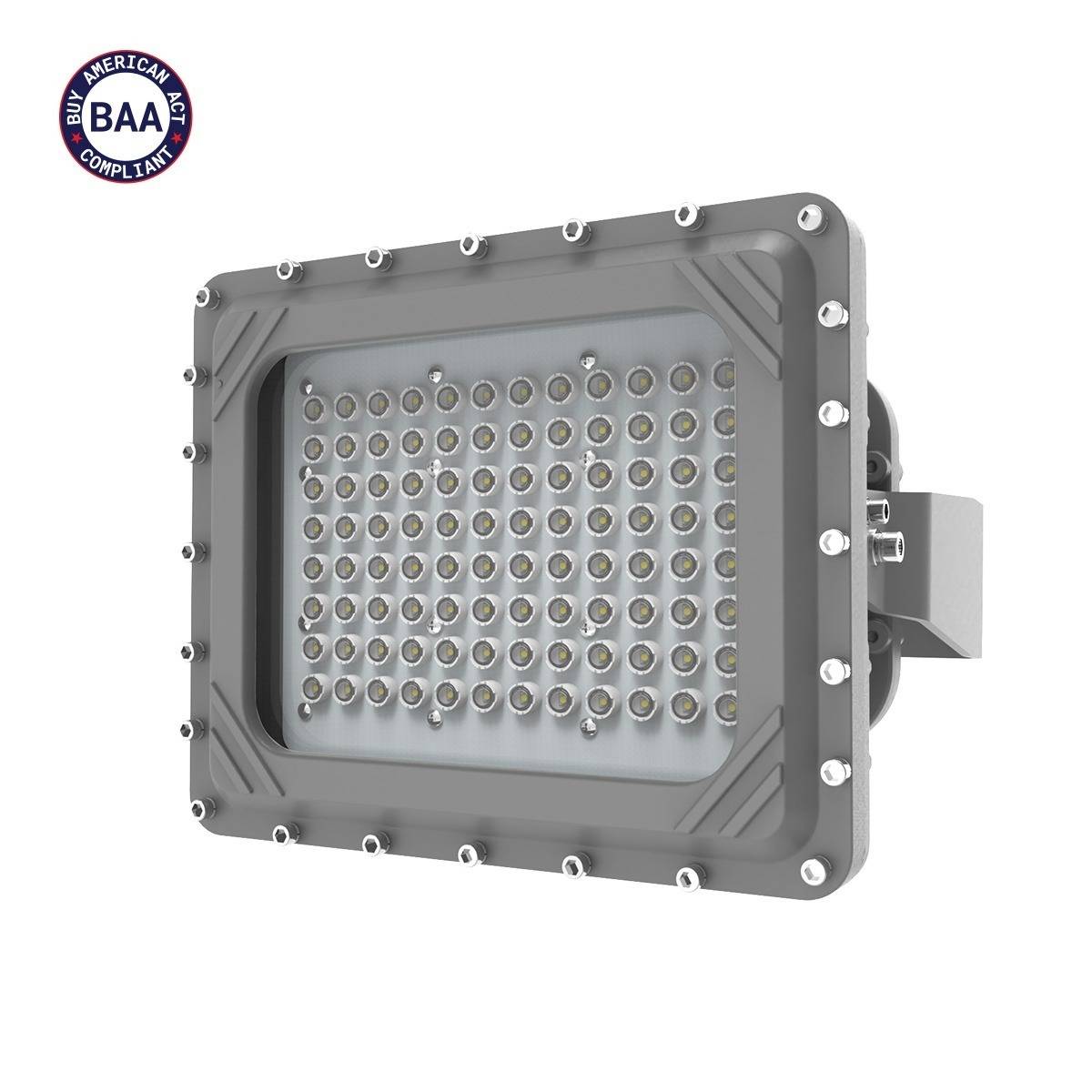

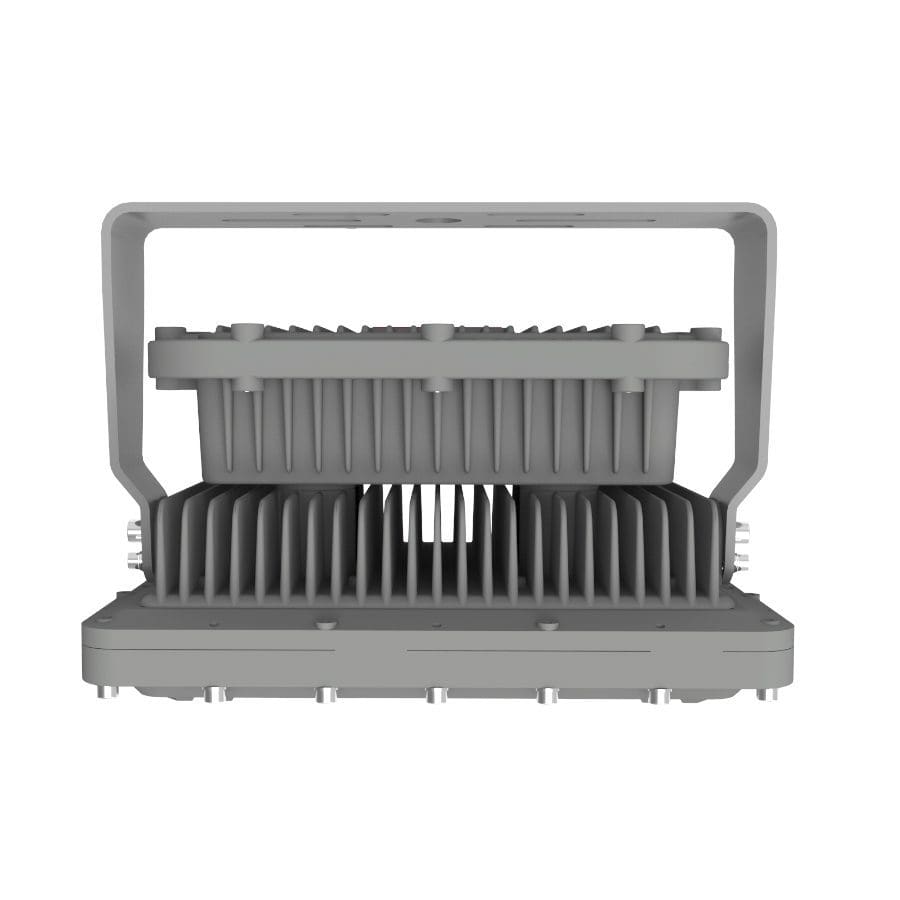

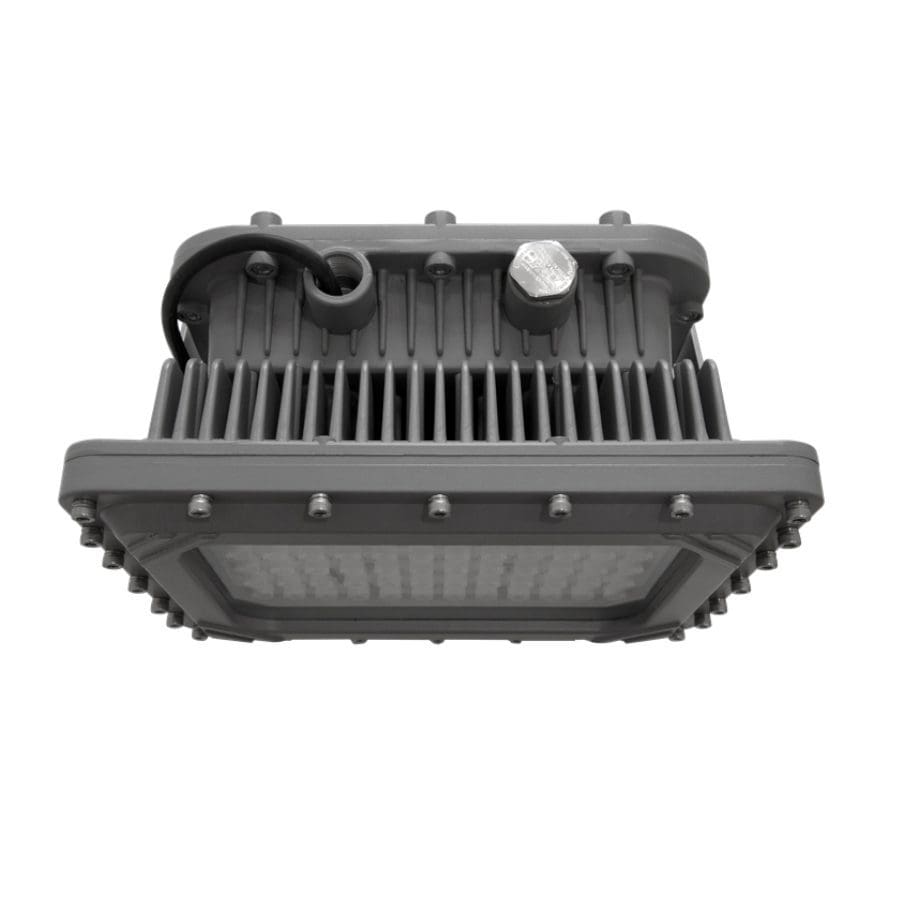

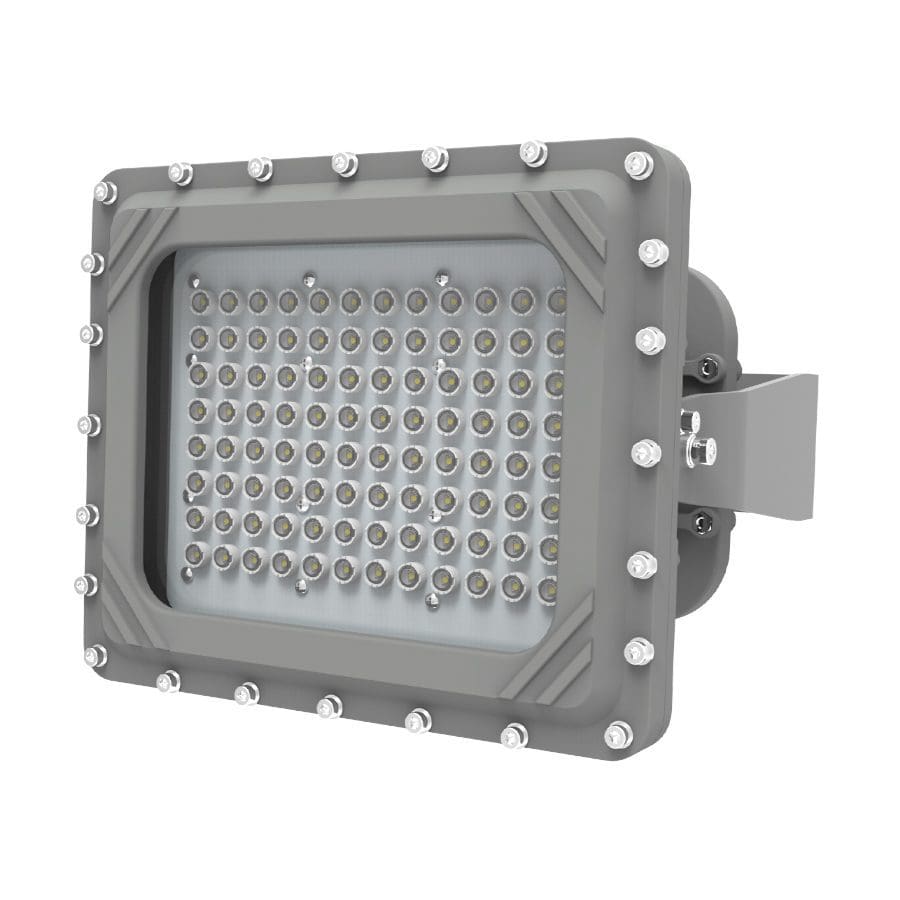

Designed to withstand hazardous environments, the Block Series excels with a luminous efficacy of 150 lumens per watt. It is certified for use in hazardous locations requiring explosion-proof fixtures where flammable gases, vapors and combustible dusts are present. Applications include oil and gas rigs, petrochemical plants, and other hazardous corrosive facilities.
Specs
Compliance
Download
Electrical Parameters
Power (W)
80W, 100W, 120W, 150W
VOLTAGE(V)
100-277V AC, 347-480V AC
Frequency
50/60Hz
Power Factor
≥90%
THD
<20%
L70
148,000 Hours@140°F
Dimming
0-10V
Surge Protection
10KV
Warranty
LEDs: 10 years, Driver: 7 years
Optical Parameters
Lumen Output
12,320Lm, 14,162Lm, 17,680Lm, 21,227Lm
Lumen Efficacy
150Lm/W
Available Beam Angle
25° / 60° / 120°
Correlated Color Temperature (CCT)
3000K/4000K/5000K
Color Rendering Index (CRI)
Ra>70
Mechanical Parameters
Finish
Thermoset Powdercoat
Hardware
Stainless steel 316
Lens Material
Clear Glass
Mounting Options

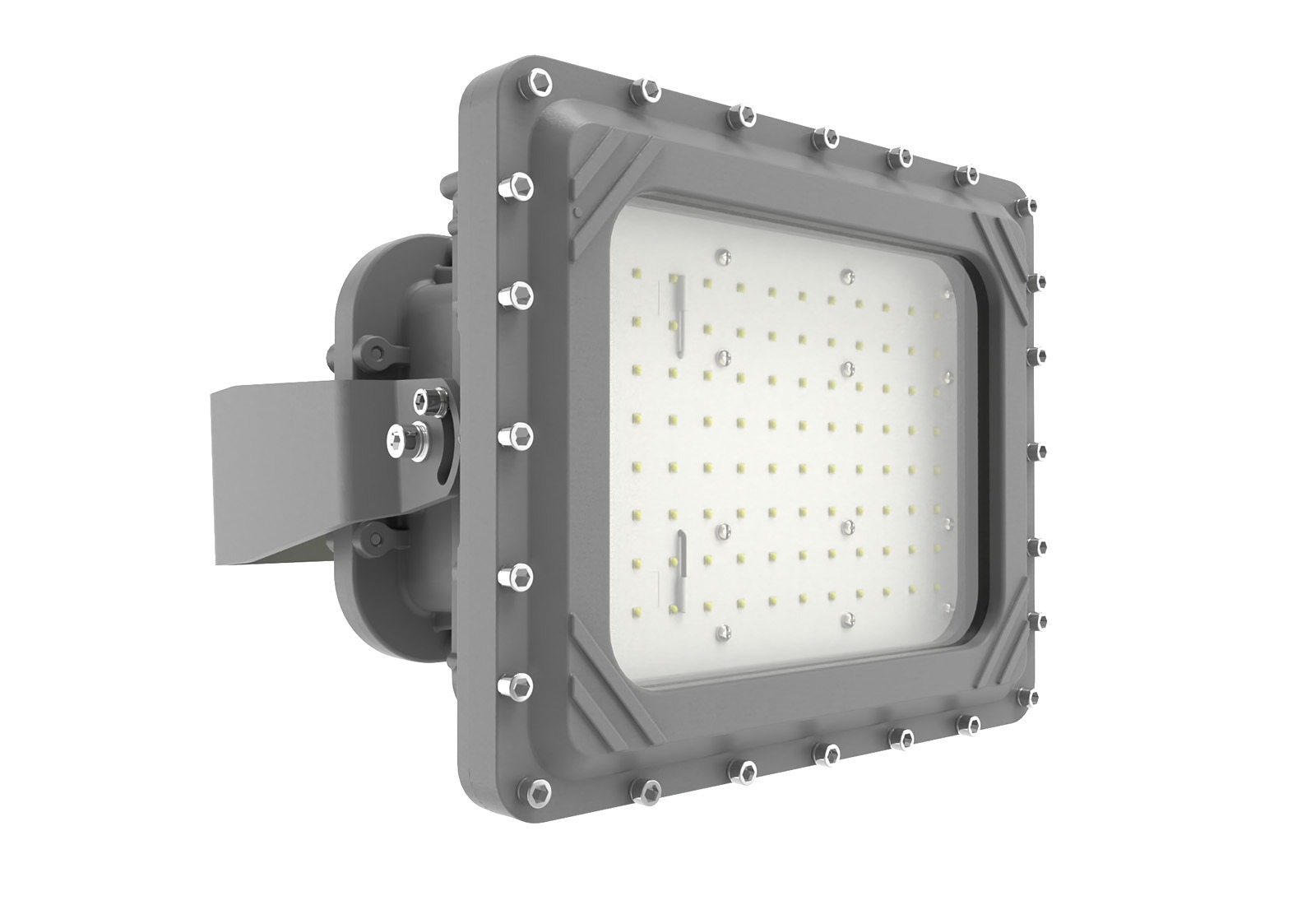

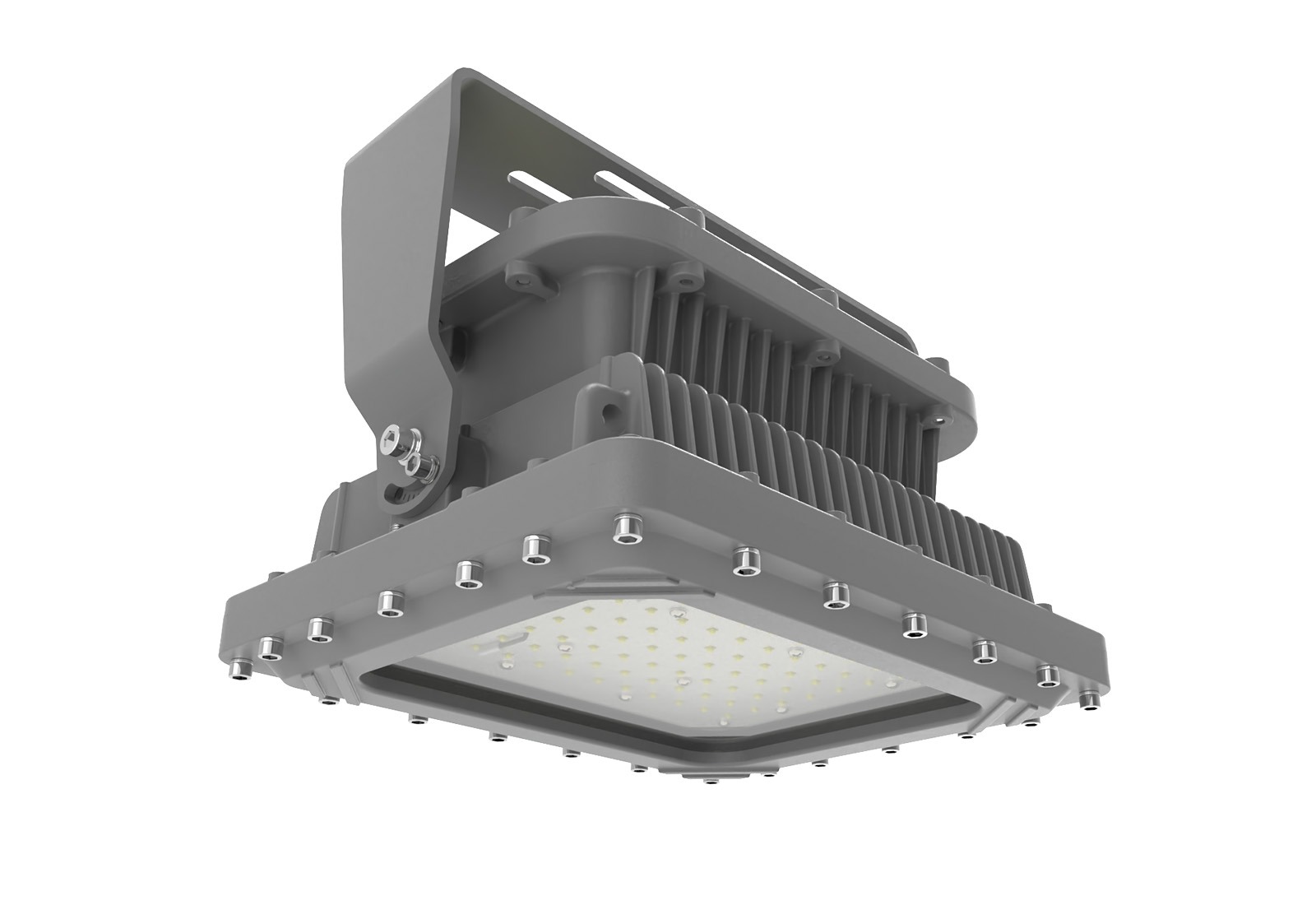

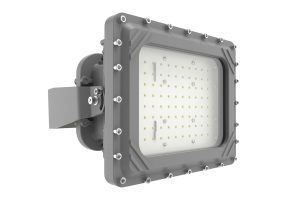

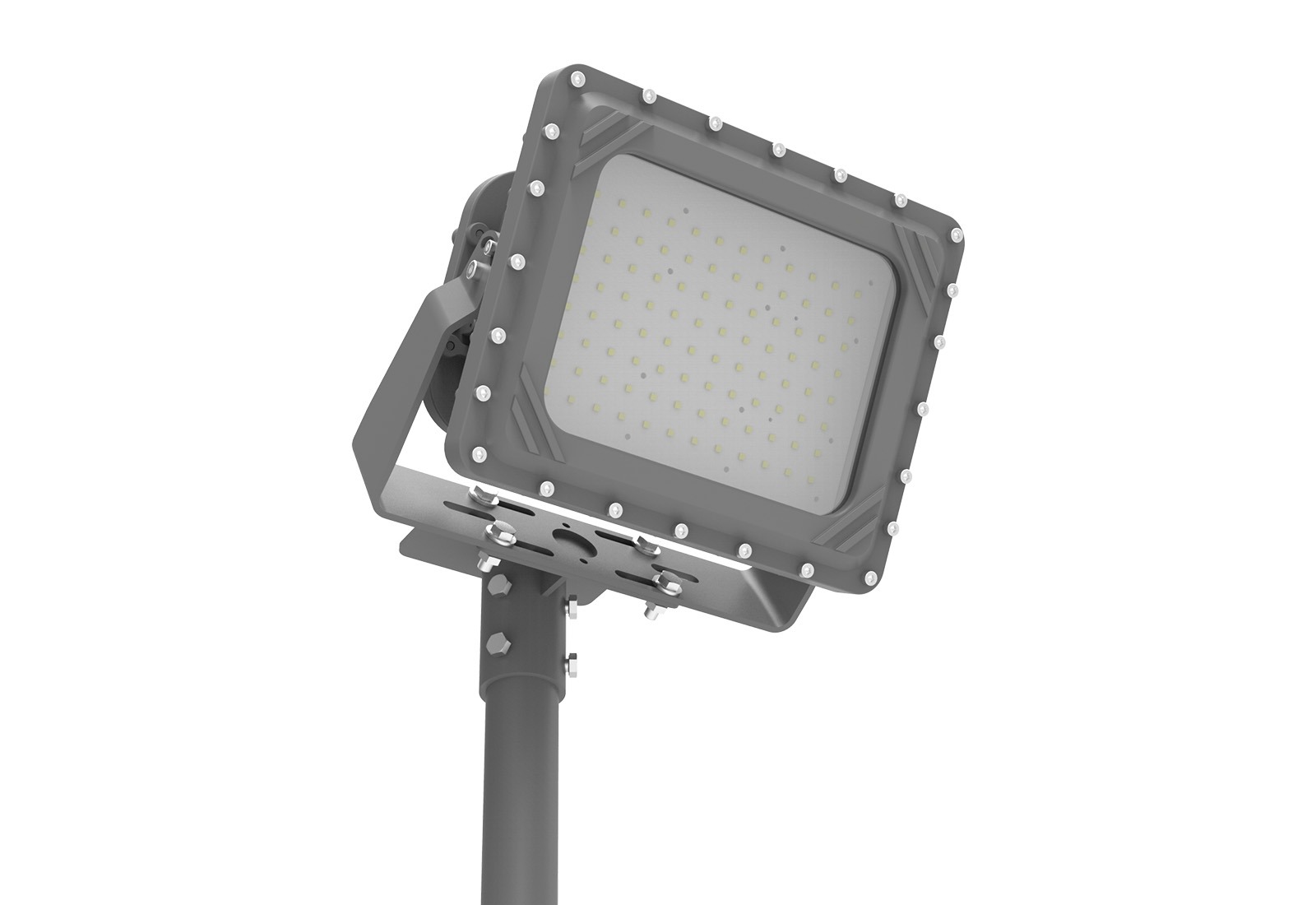

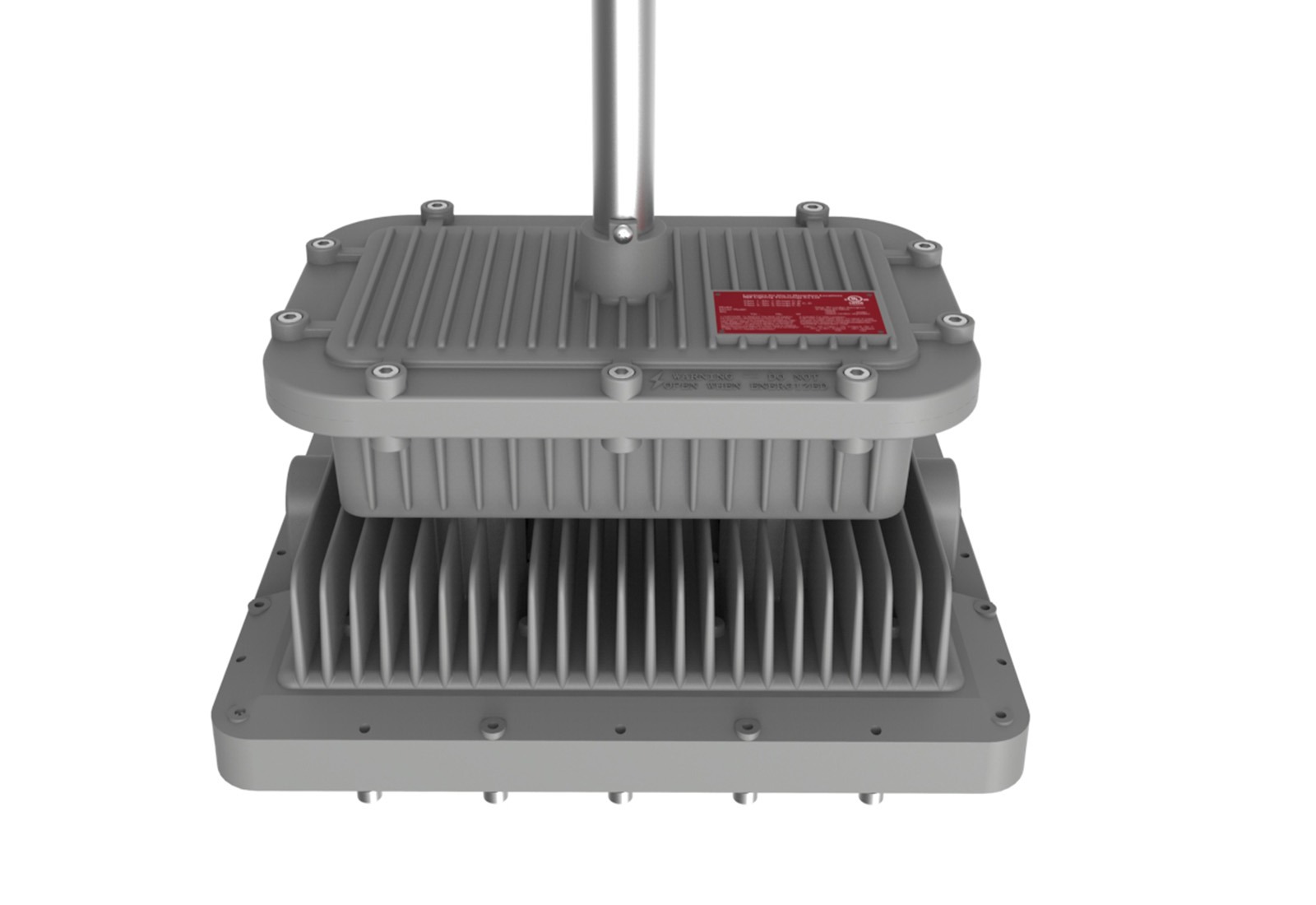

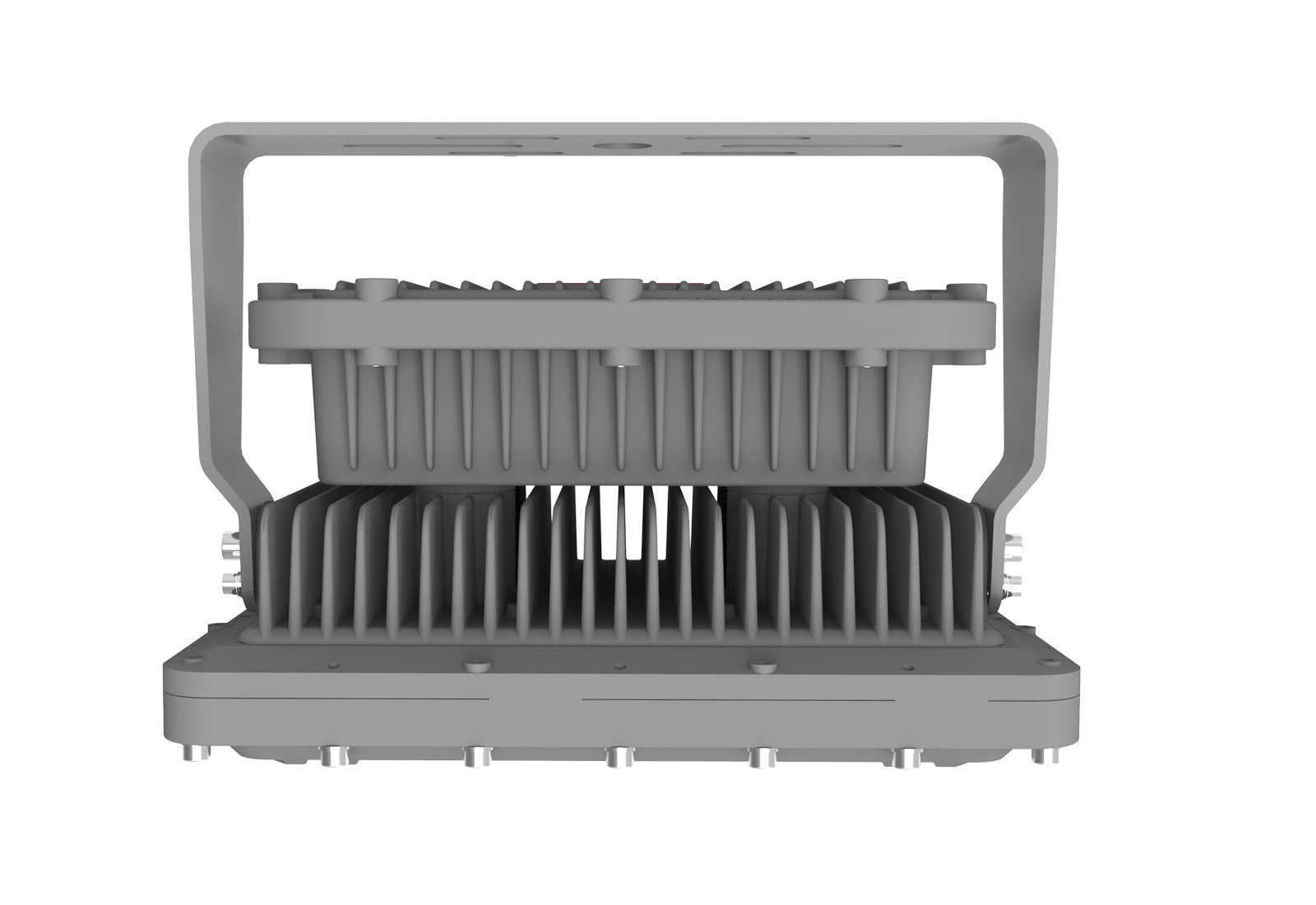

Pendant, Yoke, Stanchion
Product Weight
33.5lbs/15.2kg, 33.7lbs/15.3kg
Cable Entry
(3) 3/4″ NPT
Product Dimensions(L×W×H)
12.9×10.7×8.4 in (328×271×214 mm)
Environmental Parameters
Ambient Operating Temperature
-40°F ~ +140°F (-40°C ~ +60°C)
T-Code Rating
C1D2 – T4A, C2D2 – T4A
Ratings:
Class I Division 2, Groups A, B, C, D
Class II Division 2, Groups F, G
Class III
Class I, Zone 2, Group IIC
Zone 22, Group IIIB
Simutaneous Presence
UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
IP66
IK09
Certifications:
UL844
UL1598
UL1598A
CSA C22.2 NO. 250.0:21, 5th Ed
CSA C22.2 No. 137, Edition: 2
DLC (Pending)
