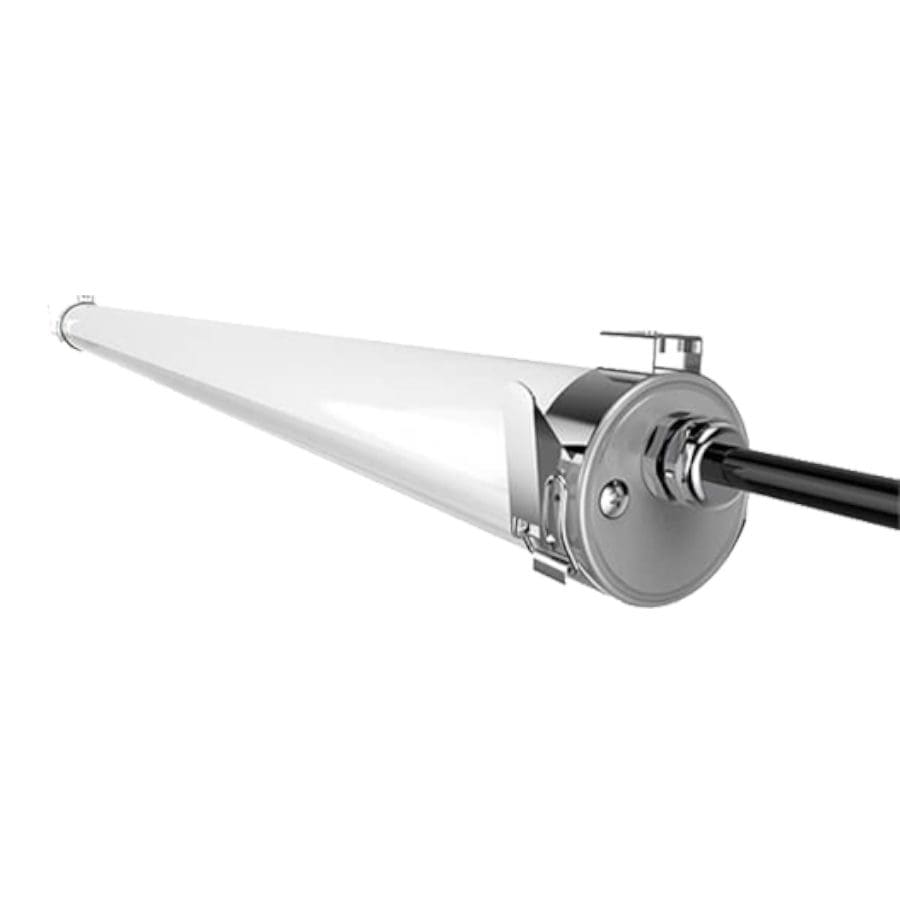

Tuff-Tube Series
SKU TFT
Description:
The Tuff-Tube is perfect for harsh conditions in polluted environments where a high level of quality lighting is needed. Rated IP69K with an IK10 shock rating, the Tuff-Tube handles water, dust, humidity, corrosion, vibration, and sudden impact with ease. Constructed of a high-quality PC/PE tubular housing and stainless steel caps, this fixture can be used indoors or outdoors and installs easily with little maintenance over the lifetime of the fixture. The Tuff-Tube is perfect for agricultural and livestock applications, food processing plants, refrigeration specification, and car washes.
Specifications
Rating & Classifications
Downloads
Electrical
Power (W)
20W, 36W, 45W
Voltage(s)/Frequency
120-277V AC
Power Factor
＞0.95@120V
THD
L70
75,000 Hours
Surge Protection
4KvA
Optical
Lumen Output
2,700Lm, 4,860Lm, 6,075Lm
Lumen Efficacy
110Lm/W - 140Lm/W
Beam Angle(s)
120°
CCT
4000K, 5000K
CRI
Ra>80
Mechanical
Ambient Operating Temperature
-4°F to 104°F (-20°C – 40°C)
T-Code Rating
Housing Construction
Stainless Steel End-caps, Polymer Housing
Housing Finish
Lens Material
Polycarbonate, Polyethylene
Mounting Options
Cable Hang Mount
Weight
20W: 2.65lbs/1.2kg, 36W: 4.85lbs/2.2kg, 45W: 5.95lbs/2.7kg
Dimensions (L×W×H)
20W: Φ2.95×23.6in (Φ75×600mm), 36W: Φ2.95×47.2in (Φ75×1200mm), 45W: Φ2.95×59.1in (Φ75×1500mm)
Connections
Series, Single
Warranty/Certifications
Warranty Terms
5 Years
